3-2110095-5

Description
HEADER CONNECTOR,PCB MNT,RECEPT,120 CONTACTS,SKT,0.075 PITCH,COMPLIANT FIT TERMINAL,GUIDE PIN,BLACK
CategoryThe connector    The connector
File Size325KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

3-2110095-5 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,120 CONTACTS,SKT,0.075 PITCH,COMPLIANT FIT TERMINAL,GUIDE PIN,BLACK

3-2110095-5 Parametric

Parameter NameAttribute value
Objectid308260021
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL7.9
Board mount optionsPEG
body width0.909 inch
subject depth1.272 inch
body length0.898 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN/LEAD OVER NICKEL
Contact point genderFEMALE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Insulator colorBLACK
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number2110095
Plug contact pitch0.075 inch
Installation option 1GUIDE PIN
Installation option 2LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number15
Number of rows loaded15
Maximum operating temperature85 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing1.3462 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.047 inch
Terminal pitch1.905 mm
Termination typePRESS FIT
Total number of contacts120
8

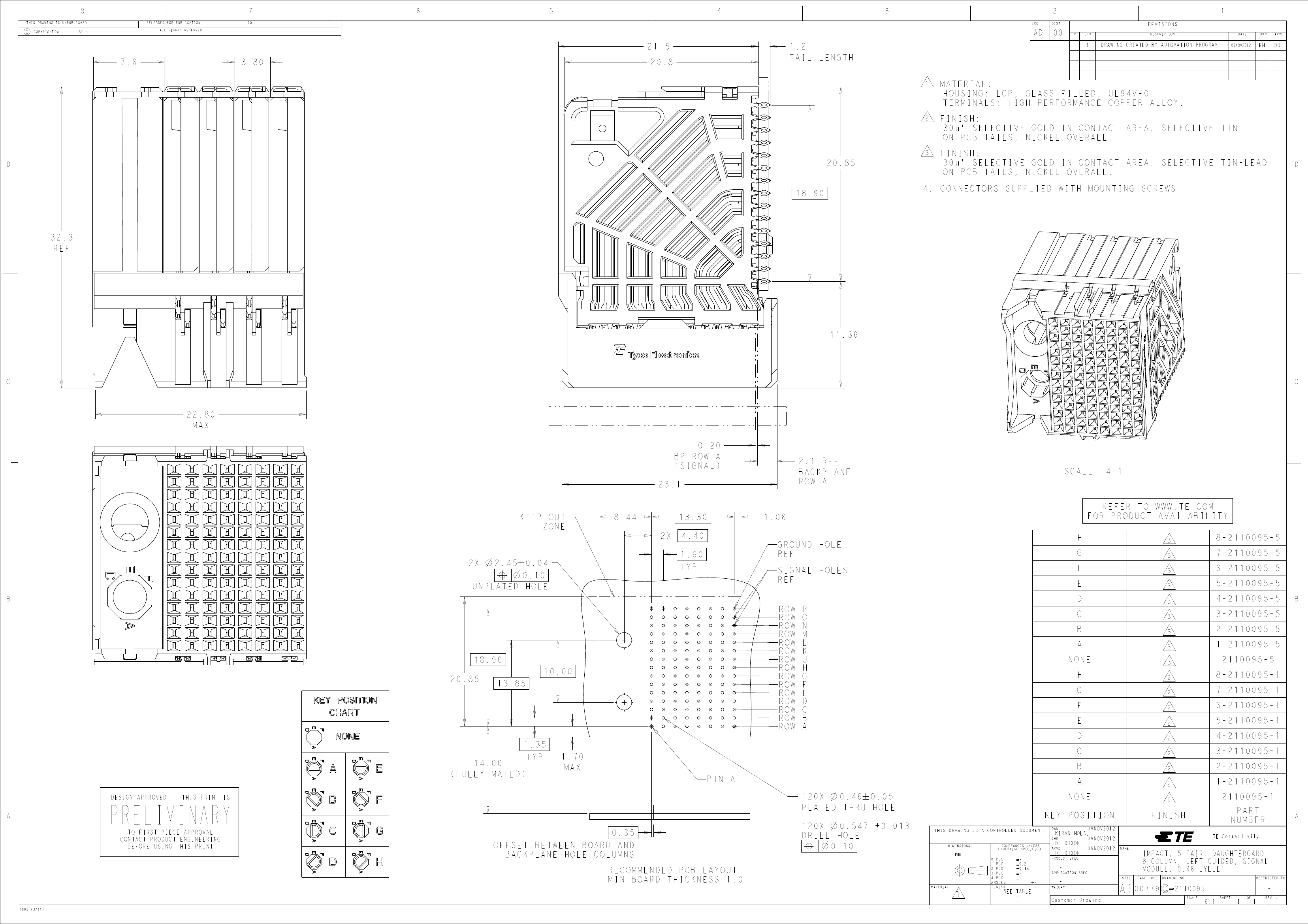

THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
ALL RIGHTS RESERVED.
7
6
5
4
3
LOC
2
DIST
P
LTR
1
REVISIONS
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
21.5
7.6
3.80
20.8
1.2
TAIL LENGTH
D
20.85
18.90
4. CONNECTORS SUPPLIED WITH MOUNTING SCREWS.
D
32.3
REF
11.36
C
C
22.80
MAX
0.20
BP ROW A
(SIGNAL)
23.1
KEEP-OUT
ZONE
8.44
2X
13.30
4.40
1.90
TYP
1.06
GROUND HOLE
REF
SIGNAL HOLES
REF
ROW
ROW
ROW
ROW
ROW
ROW
ROW
ROW
ROW
ROW
ROW
ROW
ROW
ROW
ROW
P
O
N
M
L
K
J
H
G
F
E
D
C
B
A
H
G
F
E
D
C
B
A
NONE
8- 2110095 -5
7- 2110095 -5
6- 2110095 -5
5- 2110095 -5
4- 2110095 -5
3- 2110095 -5
2- 2110095 -5
1- 2110095 -5
2110095 -5
8- 2110095 -1
7- 2110095 -1
6- 2110095 -1
5- 2110095 -1
4- 2110095 -1
3- 2110095 -1
2- 2110095 -1
1- 2110095 -1
2110095 -1
FINISH
B
2.1 REF
BACKPLANE
ROW A
SCALE
4:1
2X
B
0.10
UNPLATED HOLE
2.45
0.04
18.90
20.85
13.85
10.00
H
G
F
E
D
C
B
A
1.35
14.00
(FULLY MATED)
TYP
1.70
MAX
PIN A1
0.46 0.05
120X
PLATED THRU HOLE
0.35
120X
0.547
DRILL HOLE
0.10
1.0
±0.013
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
NONE
KEY POSITION
DWN
CHK
A
PART
NUMBER
TE Connectivity
A
OFFSET BETWEEN BOARD AND
BACKPLANE HOLE COLUMNS
APVD
RECOMMENDED PCB LAYOUT
MIN BOARD THICKNESS
4805 (3/11)
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
PRODUCT SPEC
PRELIMINARY
NAME
APPLICATION SPEC
WEIGHT
A1
SIZE
CAGE CODE
DRAWING NO
RESTRICTED TO
SCALE
SHEET
OF
REV
