2622-2-15-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2622-2-15-1

2622-2-15-1: DescriptionBoard Connector, 15 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Kinked Leads Terminal, Locking; CategoryThe connector The connector; File Size132KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2622-2-15-1 Overview

Board Connector, 15 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Kinked Leads Terminal, Locking

2622-2-15-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.242 inch
subject depth	0.646 inch
body length	1.575 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e3
Manufacturer's serial number	2622
Plug contact pitch	0.098 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.4892 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	15
Base Number Matches	1

Preview

Download Datasheet

View All

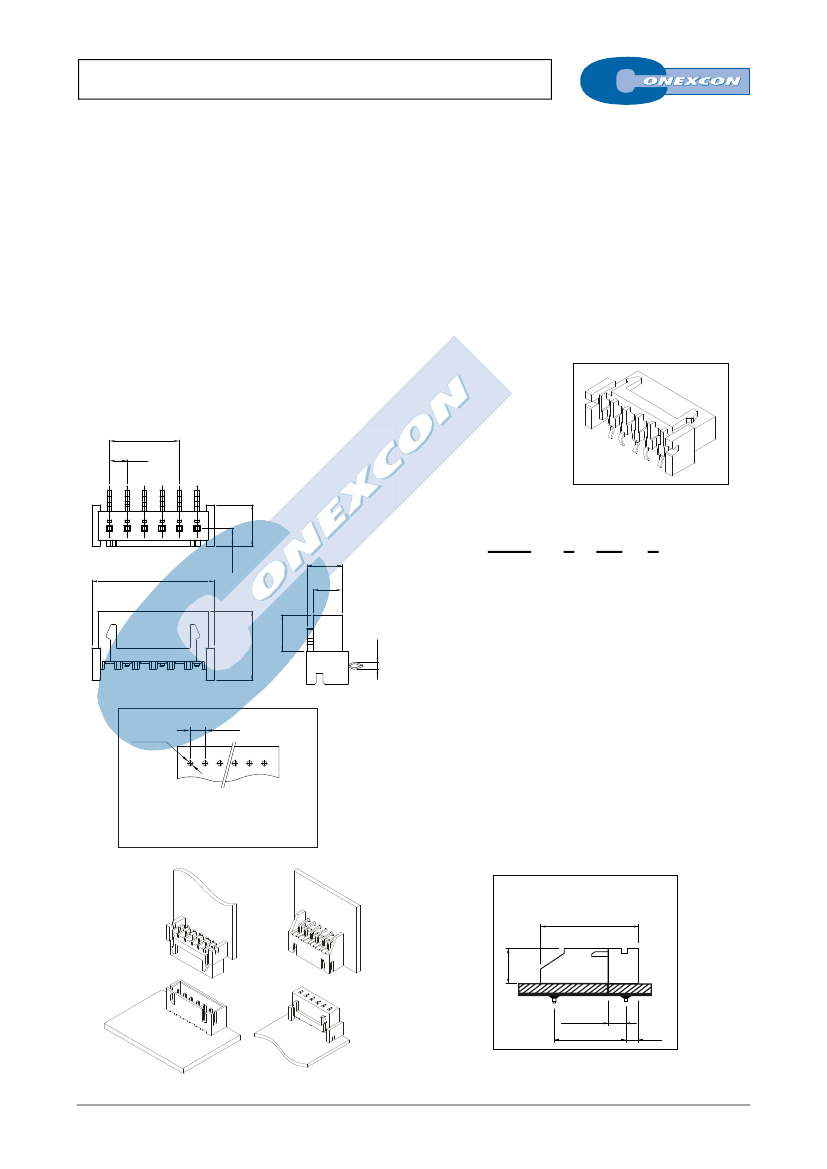

BOARD TO BOARD SIDE ENTRY CONNECTOR

2622 SERIES.

2.50 mm. (0.098”) Pitch.

General Features

Electrical Features



Available in 2 through 15 circuits

Mates with 2.50 mm. pin header 2521 and 2522 series

Box contact Pcb female terminal

Fully shrouded with friction lock



Voltage Rating: < 250 V

Current Rating: < 3 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features

Pin retention force to insulator: > 1.00 Kgf

Durability: 25 cycles



Insulator: Nylon 6/6 UL 94 V-0

Terminal: Tin plated brass

Operating temperature. -25ºC to +85ºC

RoHS compliant

Dimensional Information

2.5

.098

6.0

.236

1.5

.059

2622 -

5.0

.197

4.1

.161

4.8

.189

2- XX- 1

1. Connector Serie

3.2

126

9.55

.376

3. (XX) Number of circuits





Available in 2 through 15 circuits

ø0.9

±0.1

ø0.35

2.50

.098

Dimensions:

(in mm.)

= 2.50 x (XX*-1)

= 2.50 x (XX*)+2.50

RECOMMENDED HOLE PATTERN

PCB Tickness: 1.0 to 1.6 mm.

*XX (Number of circuits)

000

Assembly options and dimensions:

Side entry type

2522

2622

16.40

6. 15

2522

2622

2.6 max .

2521

2621

10.25

2.25

D-XX
