892AS-4R7M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 892AS-4R7M

892AS-4R7M: DescriptionGeneral Purpose Inductor, 4.7uH, 20%, 1 Element, SMD; CategoryPassive components inductor; File Size75KB，2 Pages; ManufacturerTOKO, INC.; Websitehttps://www.murata.com/

Download Datasheet Parametric Compare View All

892AS-4R7M Overview

General Purpose Inductor, 4.7uH, 20%, 1 Element, SMD

892AS-4R7M Parametric

Parameter Name	Attribute value
Maker	TOKO, INC.
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.0155 Ω
Nominal inductance(L)	4.7 µH
Inductor Applications	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	J BEND
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

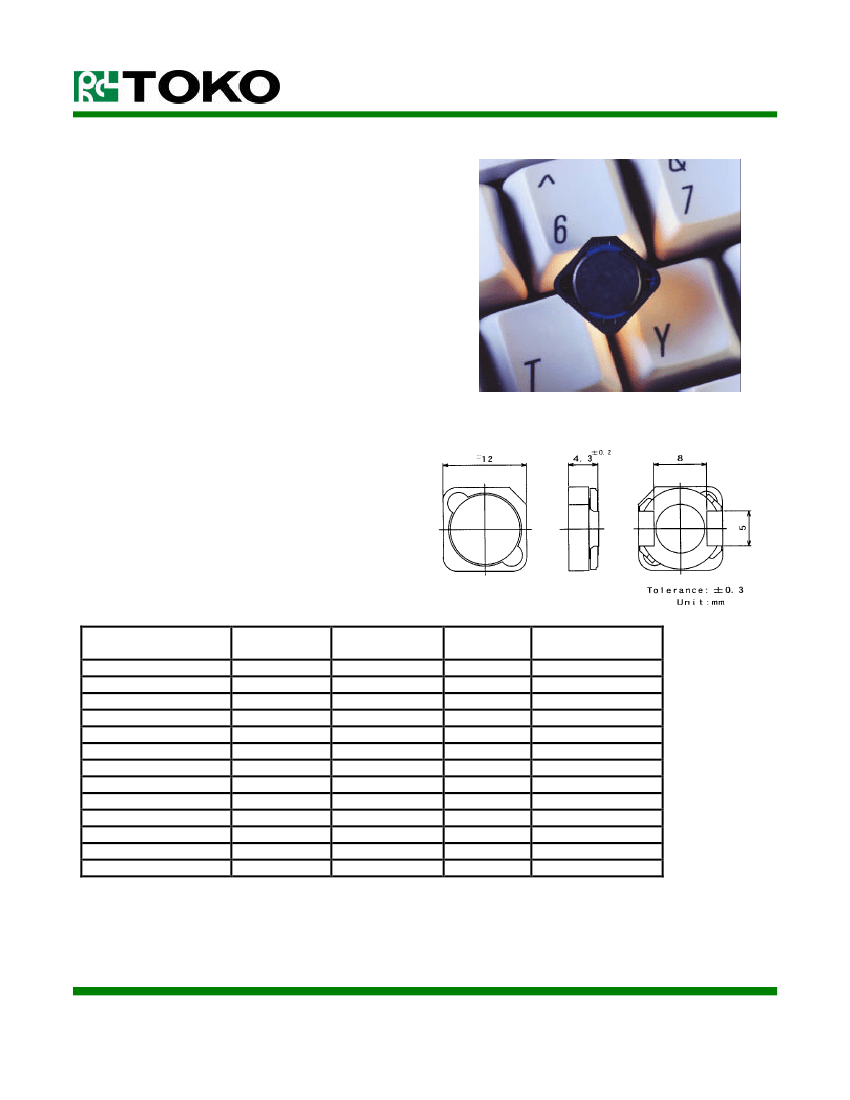

D124C Series

FIXED INDUCTOR FOR SURFACE MOUNTING

DESCRIPTION

The D124C is a low profile fixed inductor for

use as a DC choke coil. It is recommended

for large current DC-DC converter

applications in consumer electronics

platforms. The low profile (4.3 mm typical)

makes it ideal for use in portable laptop

computers and flat panel displays.

FEATURES

DIMENSIONS

Low profile: 4.5 mm (Max.)

High DC current: 6.2 A (Max.)

Frequency Range: 1 kHz~1 MHz

Inductance Range: 3.3~100

µH

Suitable for reflow soldering

Packaged on 500 piece reels.

PART NUMBER TABLE

TOKO Part Number

892AS-3R3M

892AS-4R7M

892AS-5R6M

892AS-7R5M

892AS-100M

892CS-150M

892AS-180M

892BS-220M

892CS-330M

892BS-470M

892BF-680M

892CF-820M

892CF-101M

Inductance

(1)

(µH)

3.3

4.7

5.6

7.5

100

Tolerance

(%)

+/−

IDC Max.

(2)

(A)

6.2

6.0

5.6

5.1

4.2

3.1

3.0

2.5

1.9

1.7

1.4

1.1

RDC Max.

(3)

(mΩ )

Ω

13.5 (11.0)

15.5 (12.5)

17.0 (14.0)

19.0 (16.0)

22.5 (18.5)

26.0 (21.5)

44.0 (36.5)

45.0 (37.5)

56.0 (46.5)

94.5 (79.0)

174 (145)

195 (160)

210 (175)

Spec. Value

(Typical Value)

(1)

(2)

(3)

Inductance is measured with a LCR meter 4284A (HP) or equivalent.

DC Resistance is measured with a digital multimeter TR6871 (Advantest) or equivalent.

Maximum allowable DC current is that which causes a 10% inductance reduction from the initial value, or coil temperature to rise by 40

C, whichever is

smaller. (Reference ambient temperature 20

April 1999

1999 Toko, Inc
