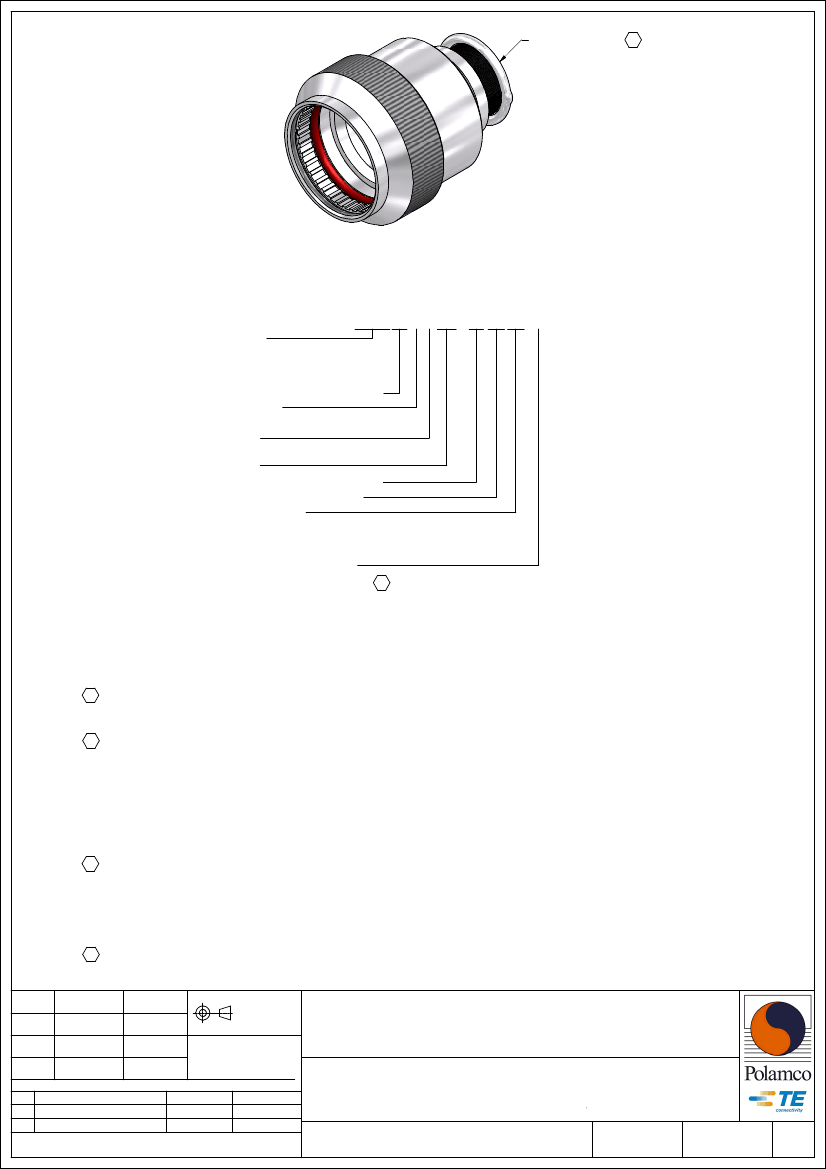

TINEL LOCK RING 3
CODE 61 - TINEL-LOCK BACKSHELL
TXR61AB00-1608AI-S
SERIES
TXR: RING INCLUDED
(SEE RING OPTION)
TX: RING NOT INCLUDED
CONNECTOR INTERFACE
MATERIAL
REFER TO CH00-0250-008
FINISH
REFER TO CH00-0250-008
ANGLE
ORDER NUMBER (TABLE 1)
ENTRY SIZE (TABLE 2)
RING OPTION
AI - TO SUIT SINGLE BRAID
BI - TO SUIT DOUBLE BRAID
FOR TX, LEAVE BLANK
MODIFICATION CODE
REFER TO CH00-0250-008 2
NOTES:
1. THIS PRODUCT IS DESIGNED TO TERMINATE A BRAIDED CABLE SHIELD AND
A HEAT SHRINKABLE LIPPED BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,
SEE CH00-0250-008.
3. SEE DRAWING TR FOR DETAIL ON TINEL-LOCK RING, RINGS ARE DESIGNED
TO BE HEATED ELECTRICALLY, ALL RINGS ARE MARKED WITH THERMOCHROMIC
PAINT WHICH CHANGES COLOUR WHEN INSTALLATION TEMPERATURE IS REACHED.
4. BACKSHELL TO BE PERMANENTLY MARKED/BAGGED AND LABELLED WITH CODE
IDENTIFICATION NUMBER AND PART NUMBER LESS RING DESIGNATOR. (e.g. 06090-TXR61AB00-1206).
RING SHALL BEAR NO MARKING.
5. FOR LARGER ENTRY SIZES, A 2 PIECE BACKSHELL ASSEMBLY (TYPE 2) IS SUPPLIED.
6. BACKSHELL MATES TO MIL-C-81511, SERIES 1, 2, 3 AND 4, CLASS A, C, E, F, P AND T,
M81511/1, /5, /6, /21, /23, /25, /26, /31, /32, /33, /34, /35, /36, /37, /38
/45, /46, /49, /51, /53, /55 AND /56 CONNECTORS.
7. THESE DIMENSIONS APPLY IF A SELF-LOCKING COUPLING NUT IS USED.
If this document is printed it becomes uncontrolled. Check for the latest revision
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
24/02/2015
24/02/2015
20/03/2015
20/08/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
TINEL-LOCK BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
D REVISED PER ECN AD93073
E
REVISED PER ECO-15-011999
DATE
APPROVED
H.SMITH
MIL-DTL-81511
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
20/08/2015
DRAWING NO:
DRAWING REV:
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
TXR61
E
1
If this document is printed it becomes uncontrolled. Check for the latest revision
IF MAX ENTRY IS EXCEEDED BACKSHELL
WILL BE SUPPLIED AS TYPE 2
23,80
`
0,50
26,50
SILICONE
O-RING
40,00
A THREAD
A THREAD
ØK
ØB
XXXX
PART MARK
HERE
PART MARK
HERE
XXXX
ØB
ØS
ØZ
ØY
5

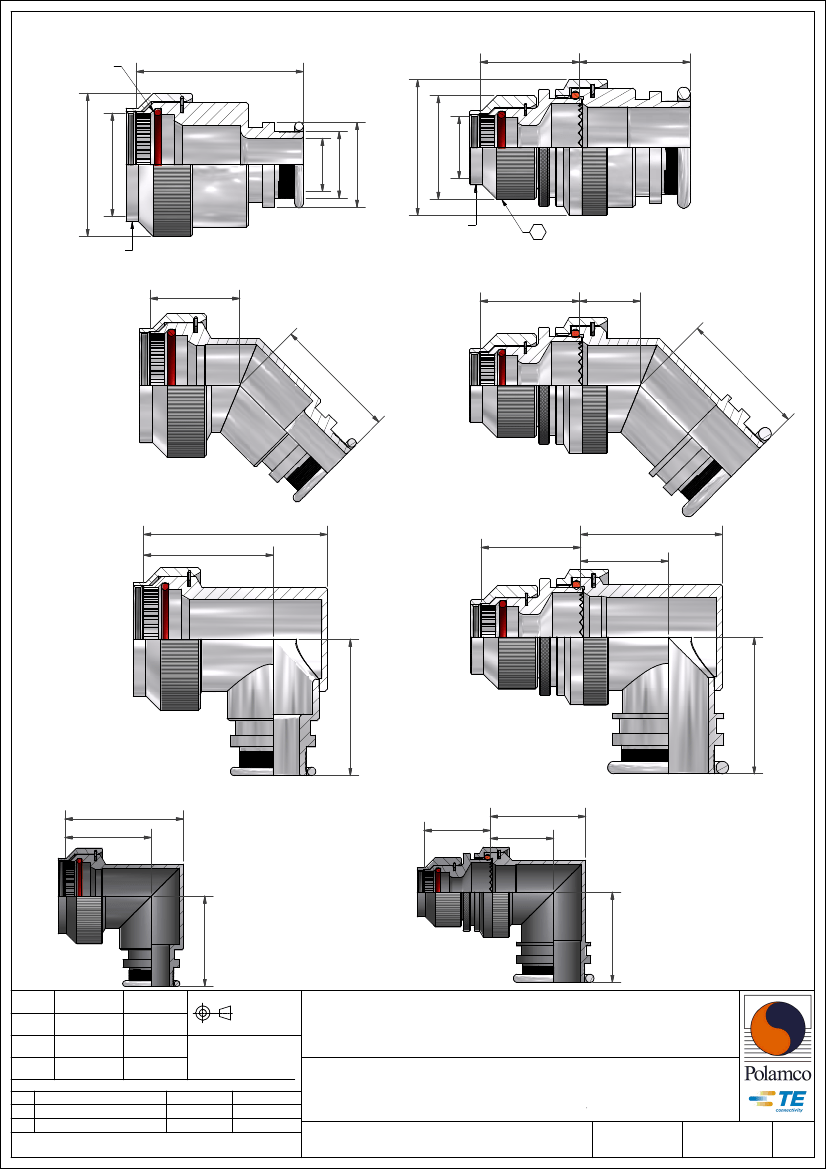

STRAIGHT BACKSHELL - TYPE 1
C
STRAIGHT BACKSHELL - TYPE 2
23,80
`
0,50
F
D
G
45° BACKSHELL - TYPE 1
45° BACKSHELL - TYPE 2
W
T
23,80
`
0,50
M
H
E
90° BACKSHELL - TYPE 1
W
T
23,80
`
0,50
M
H
90° BACKSHELL - TYPE 2
90° BACKSHELL - TYPE 1
STAINLESS STEEL AND
NICKEL ALUMINIUM BRONZE
3RD ANGLE
PROJECTION
NOT TO
SCALE
E
J
90° BACKSHELL - TYPE 2
STAINLESS STEEL AND
NICKEL ALUMINIUM BRONZE
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
24/02/2015
24/02/2015
20/03/2015
20/08/2015
TITLE:
H.SMITH
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TINEL-LOCK BACKSHELL
ASSY USED ON:
REVISIONS
LTR
DESCRIPTION
D REVISED PER ECN AD93073
E
REVISED PER ECO-15-011999
DATE
APPROVED
H.SMITH
MIL-DTL-81511
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
20/08/2015
DRAWING NO:
DRAWING REV:
J
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
TXR61
E
2
MODIFICATION S
24,30
`
0,50
SELF-LOCKING
MECHANISM
SELF-LOCKING
MECHANISM
SELF-LOCKING
MECHANISM
A THREAD
A THREAD
ØK 7
ØB 7
ØB 7
BACKSHELL - TYPE 1
BACKSHELL - TYPE 2

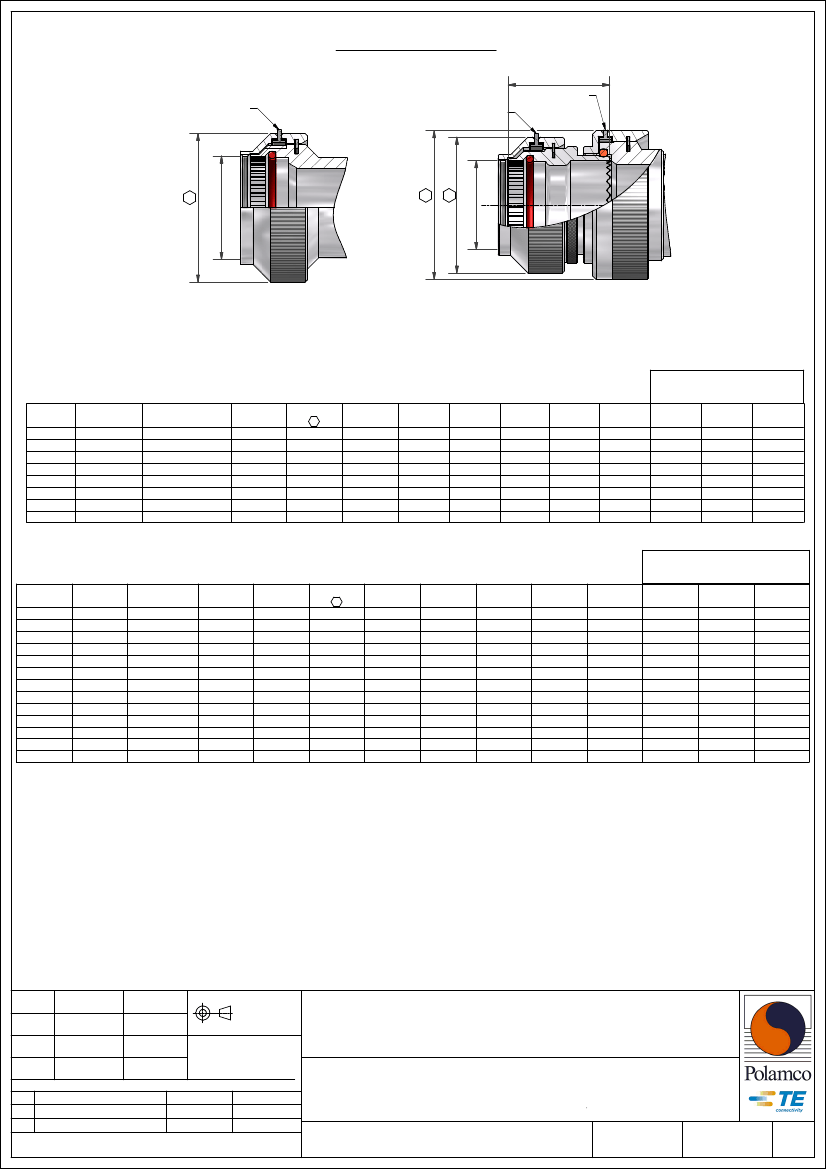

TABLE 1
ORDER
NO.
08
10
14
16
18
20
22
24
THESE DIMENSIONS APPLY IF
BACKSHELL IS STAINLESS STEEL
OR NICKEL ALUMINIUM BRONZE
SHELL SIZE
COM'L / MIL
8/A
10 / B
14 / D
16 / E
18 / F
20 / G
22 / H
24 / J
A THREAD
1/2-28UNEF
5/8-28UNEF
7/8-28UNEF
1-28UNEF
1 1/8-28UNEF
1 1/4-28UNEF
1 3/8-28UNEF
1 1/2-28UNEF
ØB
MAX
21,6
24,8
31,1
34,3
37,5
40,6
43,8
47,0
ØB MAX
7
23,6
26,4
32,9
36,6
38,9
41,9
44,9
48,1
MAX
ENTRY
06
08
12
14
16
18
20
22
C
±0,5
18,7
19,0
20,5
21,2
21,9
22,5
22,8
23,7
D
±0,5
26,8
27,5
29,0
29,7
30,5
30,9
31,1
32,1
W
±0,5
31,7
34,0
40,4
44,0
46,7
49,7
51,2
54,7
T
±0,5
24,5
25,3
28,2
31,0
32,0
33,0
33,7
35,5
E
±0,5
27,05
27,95
31,50
32,70
34,25
35,80
37,40
38,90
W
±0,5
29,4
32,4
39,3
42,4
45,2
47,6
49,8
52,8
T
±0,5
24,5
25,3
28,2
31,0
32,0
33,0
33,7
35,5
E
±0,5
26,4
28,2
31,2
32,9
34,5
36,1
37,6
39,1
TABLE 2
ENTRY
SIZE
04
05
06
07
08
10
12
14
16
18
20
22
24
THESE DIMENSIONS APPLY IF
BACKSHELL IS STAINLESS STEEL
OR NICKEL ALUMINIUM BRONZE
ØZ
MIN
6,35
7,92
9,53
11,10
12,70
15,88
19,05
22,23
25,40
28,58
31,75
34,93
38,10
ØS
9,49 +/-0,04
11,06 +/-0,04
12,66 +/-0,04
14,21 +/-0,07
15,81 +/-0,07
18,96 +/-0,08
22,14 +/-0,08
25,30 +/-0,08
28,48 +/-0,08
31,65 +/-0,08
34,83 +/-0,08
37,98 +/-0,08
41,15 +/-0,08
ØY
± 0,3
14,00
15,50
17,10
18,70
20,30
23,50
26,70
29,80
33,00
36,20
39,40
42,50
45,70
ØK
MAX
NA
NA
NA
21,0
24,5
29,0
32,5
35,5
37,0
40,0
43,5
48,5
52,1
ØK MAX
7
NA
NA
NA
24,6
28,3
32,4
35,6
38,5
41,7
43,9
47,0
50,0
56,0
F
±0,5
NA
NA
NA
12,5
13,1
13,5
14,5
15,5
16,1
16,5
17,0
18,5
21,9
G
±0,5
NA
NA
NA
27,5
28,0
29,0
29,7
30,5
30,9
31,1
32,1
35,3
38,1
H
±0,5
NA
NA
NA
24,0
27,0
31,0
34,0
35,0
38,0
42,0
45,0
54,5
58,0
M
±0,5
NA
NA
NA
15,5
17,0
19,5
21,0
20,0
21,5
24,0
25,5
31,0
33,0
J
±0,5
NA
NA
NA
27,95
29,45
31,00
32,70
34,25
35,80
37,40
38,90
42,00
46,00
H
±0,5
NA
NA
NA
24,3
28,3
31,1
34,2
38,5
40,7
43,7
46,4
50,0
53,5
M
±0,5
NA
NA
NA
17,2
19,4
21,0
22,8
25,3
26,1
27,6
29,1
31,0
33,0
J
±0,5
NA
NA
NA
28,2
29,7
31,2
32,9
34,5
36,1
37,6
39,1
42,0
46,0
If this document is printed it becomes uncontrolled. Check for the latest revision
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
24/02/2015
24/02/2015
20/03/2015
20/08/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
TINEL-LOCK BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
D REVISED PER ECN AD93073
E
REVISED PER ECO-15-011999
DATE
APPROVED
H.SMITH
MIL-DTL-81511
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
20/08/2015
DRAWING NO:
DRAWING REV:
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
TXR61
E
3
