7632-4861

Description
Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size130KB，1 Pages
ManufacturerConexcon Group
Download Datasheet Parametric Compare View All

7632-4861 Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Receptacle

7632-4861 Parametric

Parameter NameAttribute value
MakerConexcon Group
Reach Compliance Codeunknown
Board mount optionsSPLIT BOARD LOCK
body width0.591 inch
subject depth0.618 inch
body length0.6 inch
Body/casing typeRECEPTACLE
Connector typeTELECOM AND DATACOM CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
Contact resistance20 mΩ
Contact styleTELCOM, MODULAR
Dielectric withstand voltage500VAC V
Insulation resistance10000000 Ω
insulator materialGLASS FILLED POLYESTER
Manufacturer's serial number7632
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of ports1
Maximum operating temperature105 °C
Minimum operating temperature-25 °C
PCB contact patternSTAGGERED
Plating thickness6u inch
Rated current (signal)1.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.128 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts8
Base Number Matches1

Preview

Download Datasheet

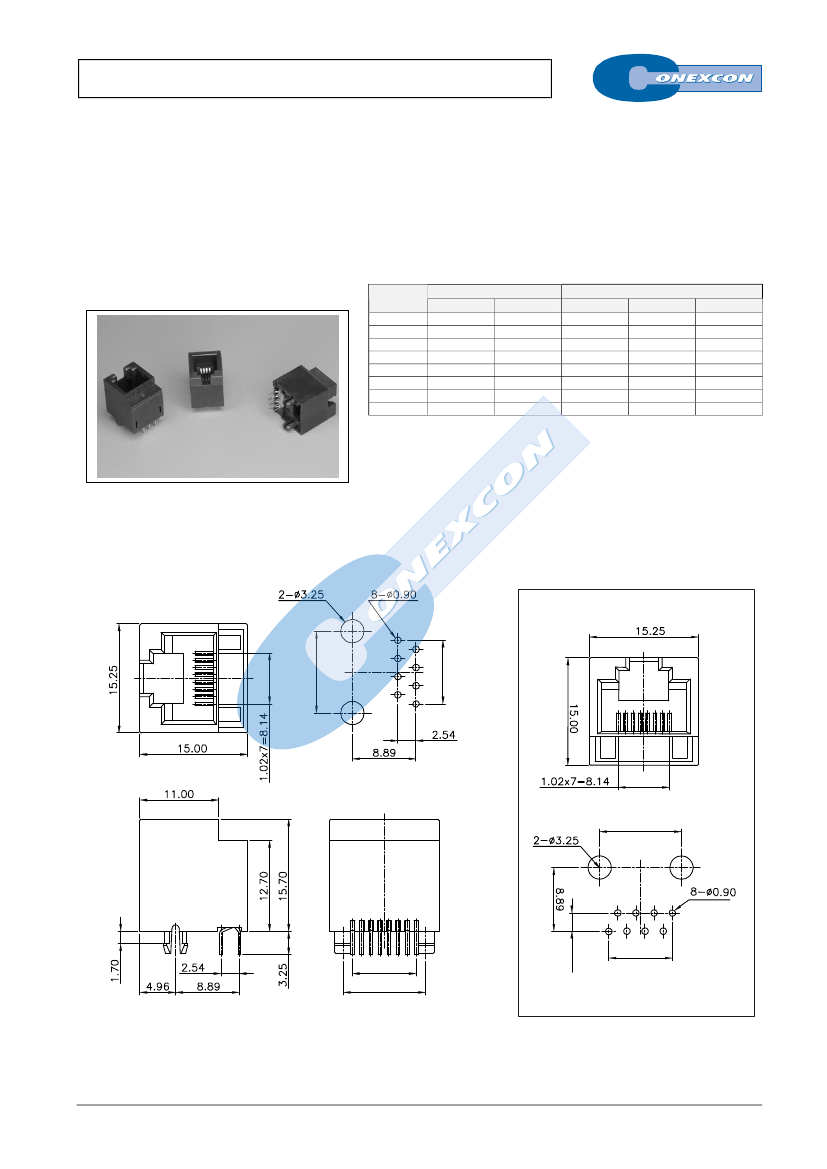

TOP ENTRY PCB JACK FCC-68
7632 SERIES.
For PCB Solder.
Features
Top Entry PCB Jack
Gold plating over nickel in Contact Area.
Tin plating over nickel in Solder Area
Optional: Cat. 5 version
Available in 4/4, 6/2, 6/4, 6/6, 8/2, 8/4, 8/6 and 8/8 circuits
Mates with FCC-68 modular plugs
Insulator Material: Glass filled polyester UL 94V-0
Contacts: Golden phosphor bronze 0.35mm square
Dimensional Information
Ordering and Dimensional Information
VERSIÓN
4/4
6/2
6/4
6/6
8/2
8/4
8/6
8/8
CÓDIGOS
Estándar
7632 –
T441
7632 –
T621
7632 –
T641
7632 –
T661
7632 –
T821
7632 –
T841
7632 –
T861
7632 –
T881
Categoría 5
7632 –
T445
7632 –
T625
7632 –
T645
7632 –
T665
7632 –
T825
7632 –
T845
7632 –
T865
7632 –
T885
A
11.18 (0.440)
13.21 (0.520)
13.21 (0.520)
13.21 (0.520)
15.25 (0.600)
15.25 (0.600)
15.25 (0.600)
15.25 (0.600)
DIMENSIONES
B
7.62 (0.300)
10.16 (0.400)
10.16 (0.400)
10.16 (0.400)
11.43 (0.450)
11.43 (0.450)
11.43 (0.450)
11.43 (0.450)
C
3.81 (0.150)
1.27 (0.050)
3.81 (0.150)
6.35 (0.250)
1.27 (0.050)
3.81 (0.150)
6.35 (0.250)
8.89 (0.350)
T = Contact Plating
T =
4.
6µ” gold over 50µ” nickel
T =
5.
15µ” gold over 50µ” nickel
T =
6.
30µ” gold over 50µ” nickel
T =
7.
50µ” gold over 50µ” nickel
CAT.5 VERSION
B
C
7864 5 31 2
RECOMMENDED HOLE PATTERN
B
8
4
3
2
7
6
5
1
B
C
C
RECOMMENDED HOLE PATTERN
