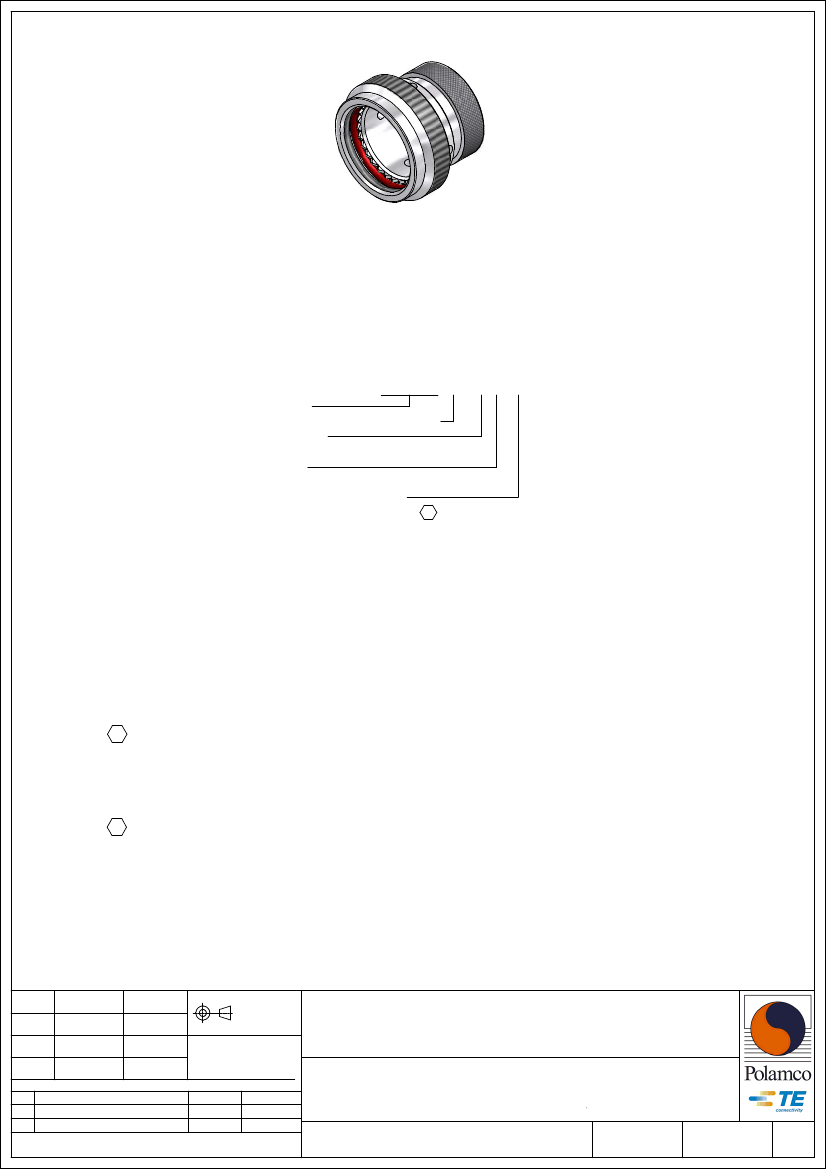

CODE 41 - HEAT SHRINK BOOT BACKSHELL
202M216-19C
SERIES
ORDER NUMBER (TABLE 1)
MATERIAL
REFER TO CH00-0250-004
FINISH
REFER TO CH00-0250-004
MODIFICATION CODE
REFER TO CH00-0250-004 2
NOTES:
1. THIS PRODUCT IS DESIGNED TO TERMINATE A HEAT SHRINKABLE LIPPED
BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,
SEE CH00-0250-004.
3. ADAPTOR TO BE PERMANENTLY MARKED/BAGGED AND LABELLED WITH CODE
IDENTIFICATION NUMBER AND PART NUMBER. (e.g. 06090-202M216-19B).
4. BACKSHELL MATES TO MIL-C-38999 SERIES I & II, CLASS E & T, MS27466,
MS27467, MS27468, MS27472, MS27473, MS27474, MS27479, MS27480,
MS27481, MS27484, MS27497, MS27653, MS27656 CONNECTORS.
If this document is printed it becomes uncontrolled. Check for the latest revision
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
19/02/2015
19/02/2015
03/03/2015
01/09/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
HEAT SHRINK BOOT BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
N REVISED PER ECN AD93016
P
REVISED PER ECO-15-011999
DATE
01/09/2015
APPROVED
H.SMITH
MIL-DTL-38999 SERIES I & II (CODE 41)
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
DRAWING NO:
DRAWING REV:
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
202M2XX
P
1

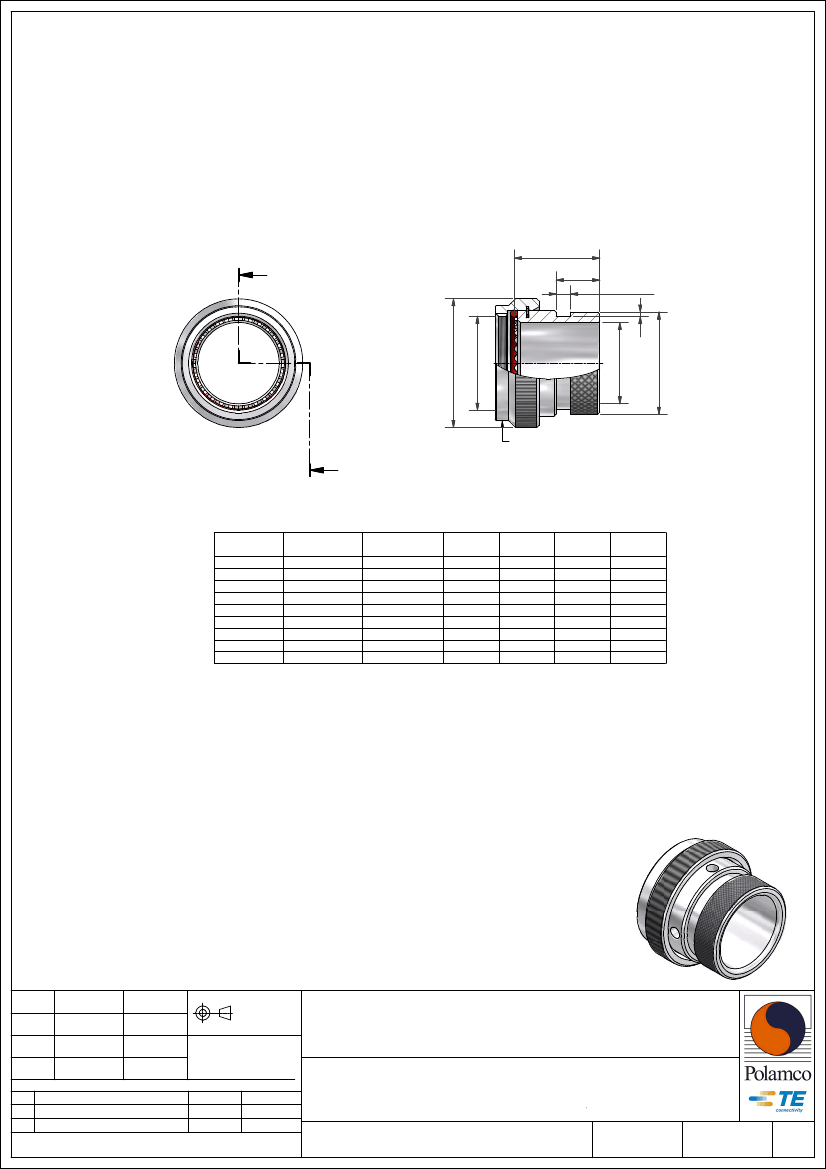

A-A
20,50
10,50
3,50
`
0,10
A
A THREAD
ØB
X
XXXX
PART MARK
HERE
A
TABLE 1
ORDER
NUMBER
08
10
12
14
16
18
20
22
24
X
+0,20/-0,00
1,12
1,12
1,12
1,12
1,12
1,12
1,75
1,75
1,75
ØY
+0,00/-0,50
13,50
15,40
19,70
21,30
24,50
26,50
31,00
34,40
36,60
SHELL SIZE
SER 1 / SER 2
09 / 08
11 / 10
13 / 12
15 / 14
17 / 16
19 / 18
21 / 20
23 / 22
25 / 24
A
THREAD
7/16-28UNEF
9/16-24UNEF
11/16-24UNEF
13/16-20UNEF
15/16-20UNEF
1 1/16-18UNEF
1 3/16-18UNEF
1 5/16-18UNEF
1 7/16-18UNEF
ØB
MAX
18,3
21,5
24,5
27,8
30,8
34,1
37,3
40,5
43,7
ØZ
MIN
6,60
10,00
12,90
16,10
19,30
21,70
24,80
28,20
31,30
DRAINHOLE OPTION
If this document is printed it becomes uncontrolled. Check for the latest revision
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
19/02/2015
19/02/2015
03/03/2015
01/09/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
HEAT SHRINK BOOT BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
N REVISED PER ECN AD93016
P
REVISED PER ECO-15-011999
DATE
01/09/2015
APPROVED
H.SMITH
MIL-DTL-38999 SERIES I & II (CODE 41)
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
DRAWING NO:
ØY
ØZ
DRAWING REV:
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
202M2XX
P
2
