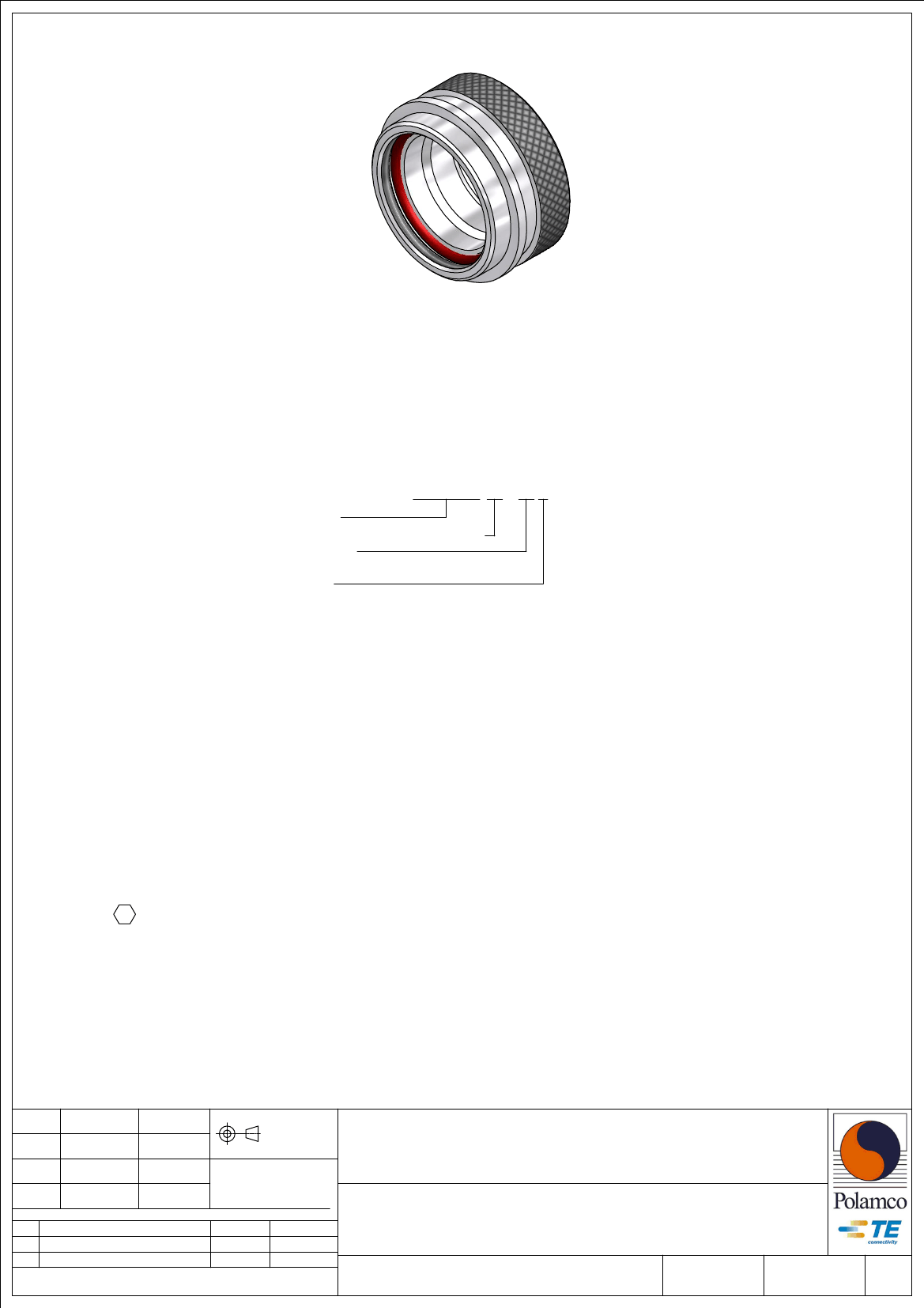

CODE 21 - LOW PROFILE HEAT SHRINK BOOT BACKSHELL
203M612-19B
SERIES
ORDER NUMBER (TABLE 1)
MATERIAL
REFER TO CH00-0250-004
FINISH
REFER TO CH00-0250-004
NOTES:
1. THIS PRODUCT IS DESIGNED TO TERMINATE A HEAT SHRINKABLE LIPPED
BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,
SEE CH00-0250-004.
3. BACKSHELL TO BE PERMANENTLY MARKED/BAGGED AND LABELLED WITH CODE
IDENTIFICATION NUMBER AND PART NUMBER. (e.g. 06090-203M612-19B).
4. KNURL INSIDE BOOT GROOVE MAY BE SUPPLIED AT MANUFACTURER'S OPTION.
5. BACKSHELL MATES TO MIL-C-26482 SERIES I, CLASS E, F, MS3110, MS3111,
MS3116 CONNECTORS.
DRAWN
CHECKED
W.RUST
DATE
14/09/2015
14/09/2015
09/10/2015
14/10/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1
TITLE:
APPROVED
K.SHEPPARD
APPROVED
LOW PROFILE HEAT SHRINK BOOT BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
G REVISED PER ECO-15-002747
H
REVISED PER ECO-15-013980
DATE
19/02/15
14/10/2015
APPROVED
H.SMITH
H.SMITH
MIL-DTL-26482 SERIES I
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
SHT
203M6XX
H
1

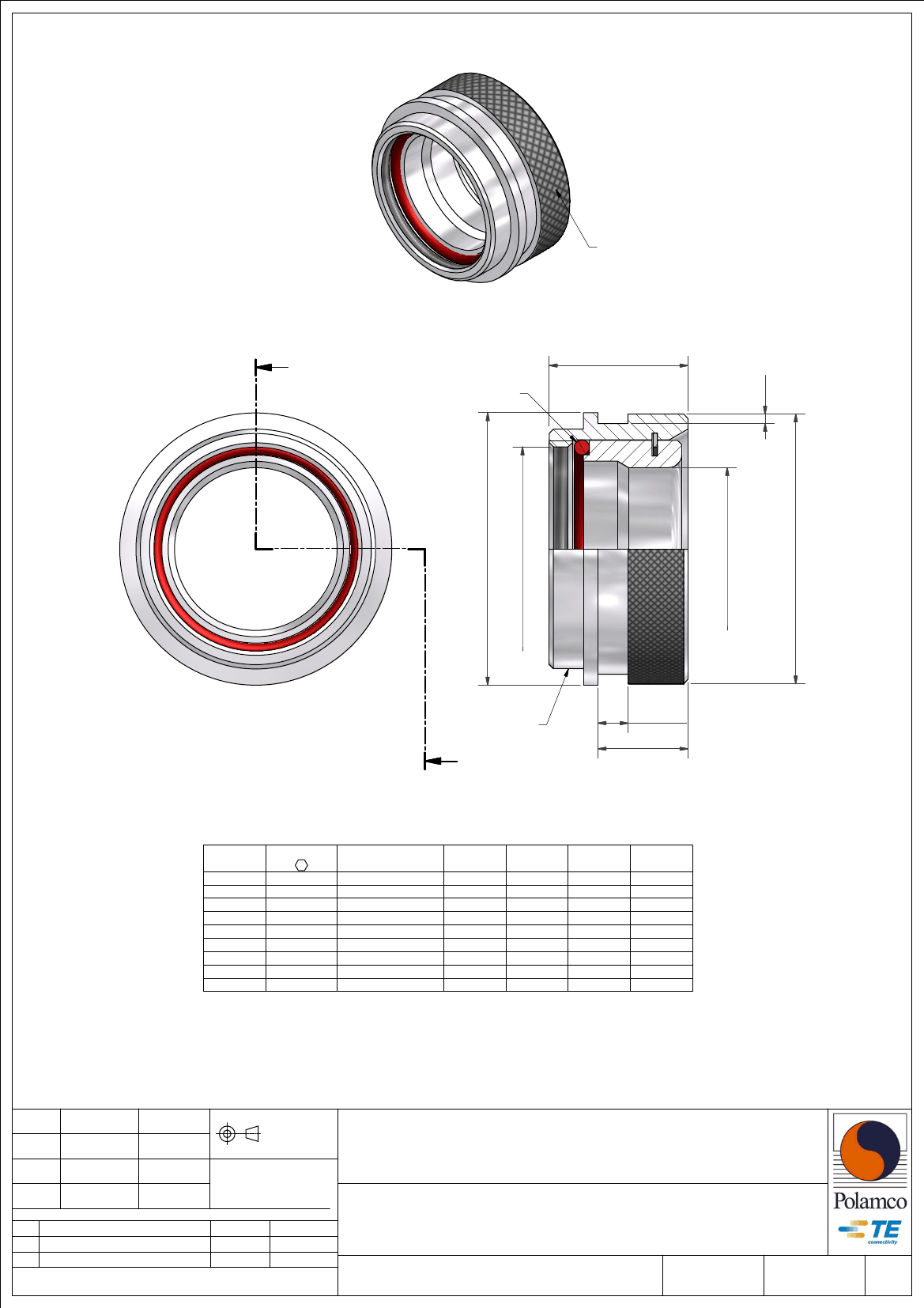

MEDIUM DIAMOND
KNURL
A-A
SILICONE O-RING
A THREAD
X
B
XXXX
3,50
PART MARK
HERE
10,50
0,10
A
16,20
0,20
A
TABLE 1
PART
NUMBER
203M608
203M610
203M612
203M614
203M616
203M618
203M620
203M622
203M624
SHELL SIZE
5
8
10
12
14
16
18
20
22
24
A
THREAD
7/16-28UNEF
9/16-24UNEF
11/16-24UNEF
13/16-20UNEF
15/16-20UNEF
1 1/16-18UNEF
1 3/16-18UNEF
1 5/16-18UNEF
1 7/16-18UNEF
B
MAX
19,1
22,3
25,4
28,6
31,8
35,0
38,1
41,3
44,5
X
+0,2/-0
1,1
1,1
1,1
1,1
1,1
1,1
1,7
1,7
1,7
Y
+0,00/-0,40
17,5
20,7
23,9
27,0
31,5
33,5
36,5
39,8
43,0
Z
MIN
7,0
9,7
13,4
15,8
18,9
21,3
24,5
27,7
30,9
DRAWN
CHECKED
W.RUST
DATE
14/09/2015
14/09/2015
09/10/2015
14/10/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1
TITLE:
APPROVED
K.SHEPPARD
APPROVED
LOW PROFILE HEAT SHRINK BOOT BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
G REVISED PER ECO-15-002747
H
REVISED PER ECO-15-013980
DATE
19/02/15
14/10/2015
APPROVED
H.SMITH
H.SMITH
MIL-DTL-26482 SERIES I
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
Y
Z
SHT
203M6XX
H
2
