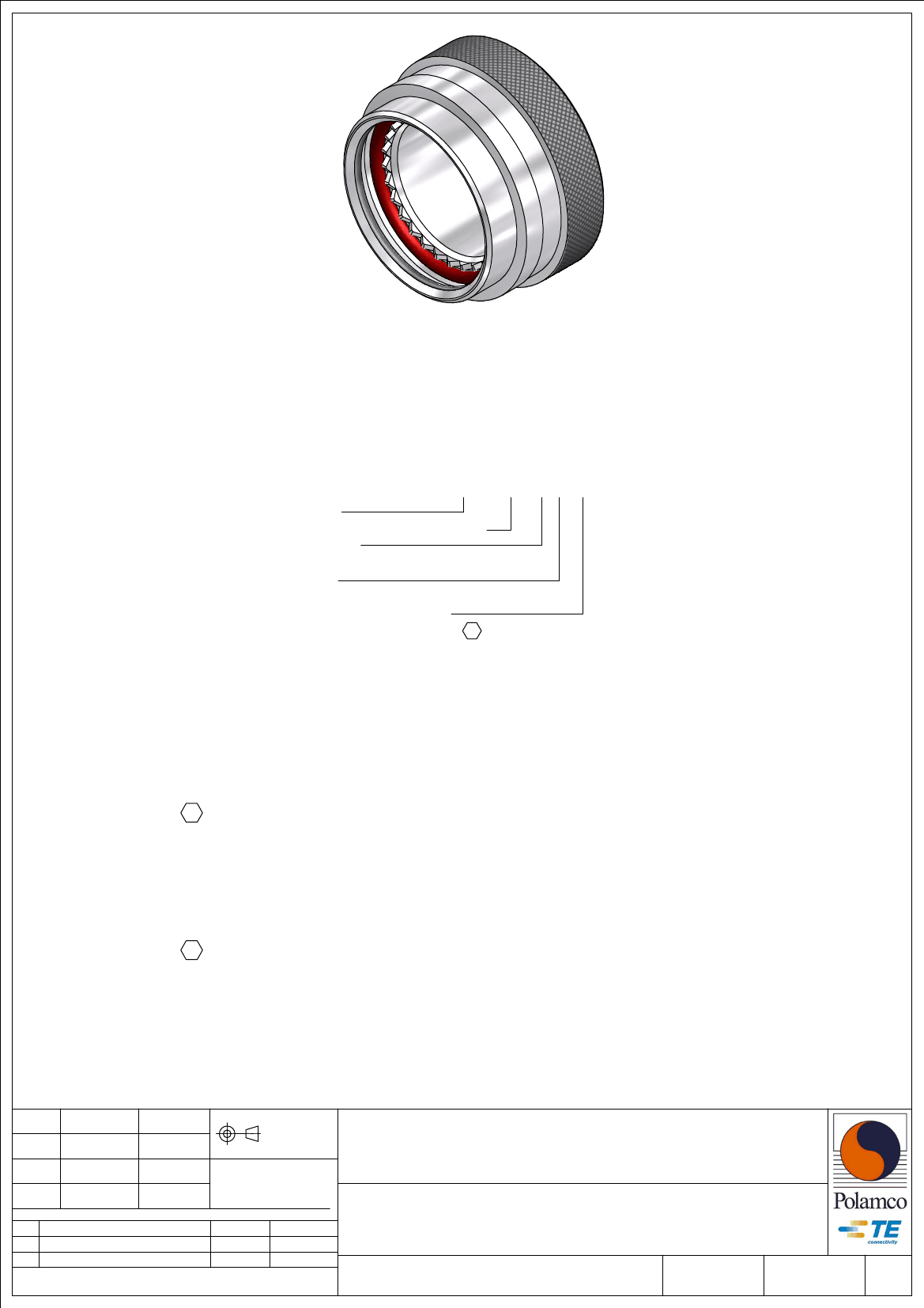

CODE 41 - LOW PROFILE HEAT SHRINK BOOT BACKSHELL
202M112-19B-
SERIES
ORDER NUMBER (TABLE 1)
MATERIAL
REFER TO CH00-0250-004
FINISH
REFER TO CH00-0250-004
MODIFICATION CODE
REFER TO CH00-0250-004 2
NOTES:
1. THIS PRODUCT IS DESIGNED TO TERMINATE A HEAT SHRINKABLE LIPPED
BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,
SEE CH00-0250-004.
3. ADAPTOR TO BE PERMANENTLY MARKED/BAGGED AND LABELLED WITH CODE
IDENTIFICATION NUMBER AND PART NUMBER. (e.g. 06090-202M112-19B).
4. KNURL INSIDE BOOT GROOVE MAY BE SUPPLIED AT MANUFACTURER'S OPTION.
5. BACKSHELL MATES TO MIL-C-38999 SERIES I & II, CLASS E & T, MS27466,
MS27467, MS27468, MS27472, MS27473, MS27474, MS27479, MS27480,
MS27481, MS27484, MS27497, MS27652, MS27653, MS27656 CONNECTORS.
DRAWN
CHECKED
W.RUST
DATE
15/09/2015
15/09/2015
09/10/2015
14/10/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1
TITLE:
LOW PROFILE, HEAT SHRINK BOOT BACKSHELL
ASSY USED ON:
APPROVED
K.SHEPPARD
APPROVED
LTR
K
L
H.SMITH
REVISIONS
DESCRIPTION
REVISED PER ECO-15-003650
REVISED PER ECO-15-013980
DATE
03/06/15
14/10/2015
APPROVED
I.MYONG
H.SMITH
MIL-DTL-38999 SERIES I & II
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
SHT
202M1XX
L
1

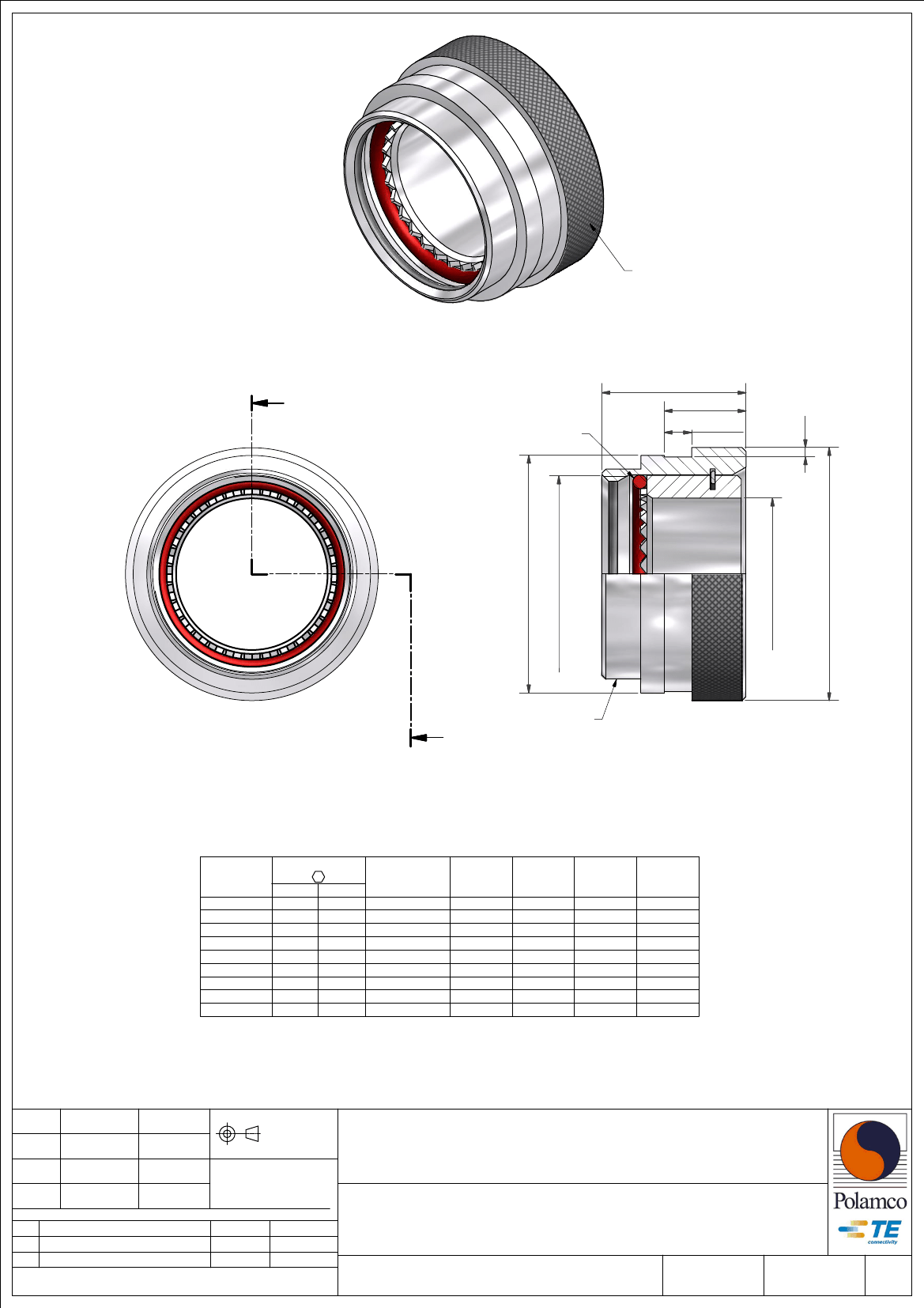

MEDIUM DIAMOND
KNURL
A-A
18,50
A
SILICONE
O-RING
10,50
3,50
0,10
A THREAD
B
X
A
PART MARK
HERE
TABLE 1
BASE PART
NUMBER
202M108
202M110
202M112
202M114
202M116
202M118
202M120
202M122
202M124
SHELL SIZE
5
SER 1 SER 2
9
8
10
11
13
12
15
14
17
16
18
19
20
21
22
23
24
25
A
THREAD
7/16-28UNEF
9/16-24UNEF
11/16-24UNEF
13/16-20UNEF
15/16-20UNEF
1 1/16-18UNEF
1 3/16-18UNEF
1 5/16-18UNEF
1 7/16-18UNEF
B
0,2
17,5
20,5
23,5
25,5
30,5
33,5
36,5
40,0
43,0
X
MIN
1,2
1,2
1,2
1,2
1,2
1,2
1,8
1,8
1,8
Y
MAX
18,0
21,5
24,5
27,5
32,5
35,5
38,5
42,0
45,0
Z
0,15
6,8
10,3
13,1
16,3
19,5
21,9
25,1
28,3
31,5
DRAWN
CHECKED
W.RUST
DATE
15/09/2015
15/09/2015
09/10/2015
14/10/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1
TITLE:
LOW PROFILE, HEAT SHRINK BOOT BACKSHELL
ASSY USED ON:
APPROVED
K.SHEPPARD
APPROVED
LTR
K
L
H.SMITH
REVISIONS
DESCRIPTION
REVISED PER ECO-15-003650
REVISED PER ECO-15-013980
DATE
03/06/15
14/10/2015
APPROVED
I.MYONG
H.SMITH
MIL-DTL-38999 SERIES I & II
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
XXXX
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
Y
Z
SHT
202M1XX
L
2
