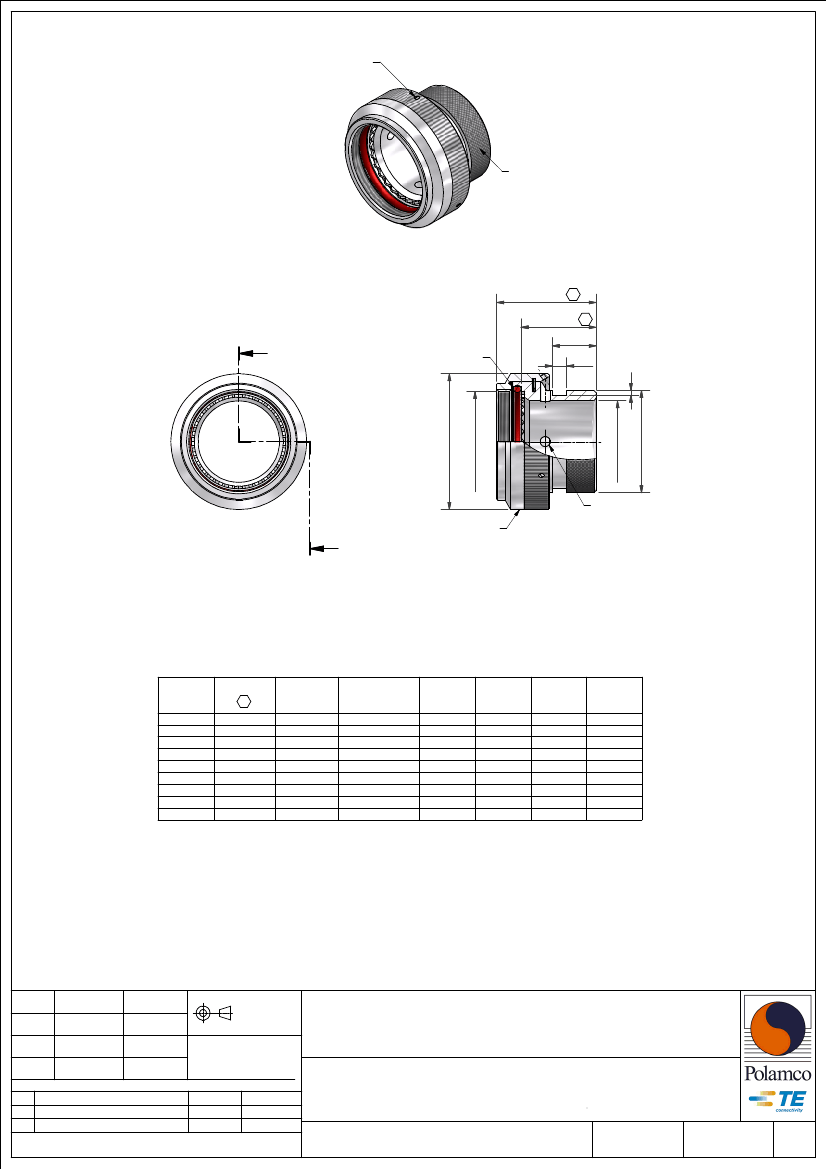

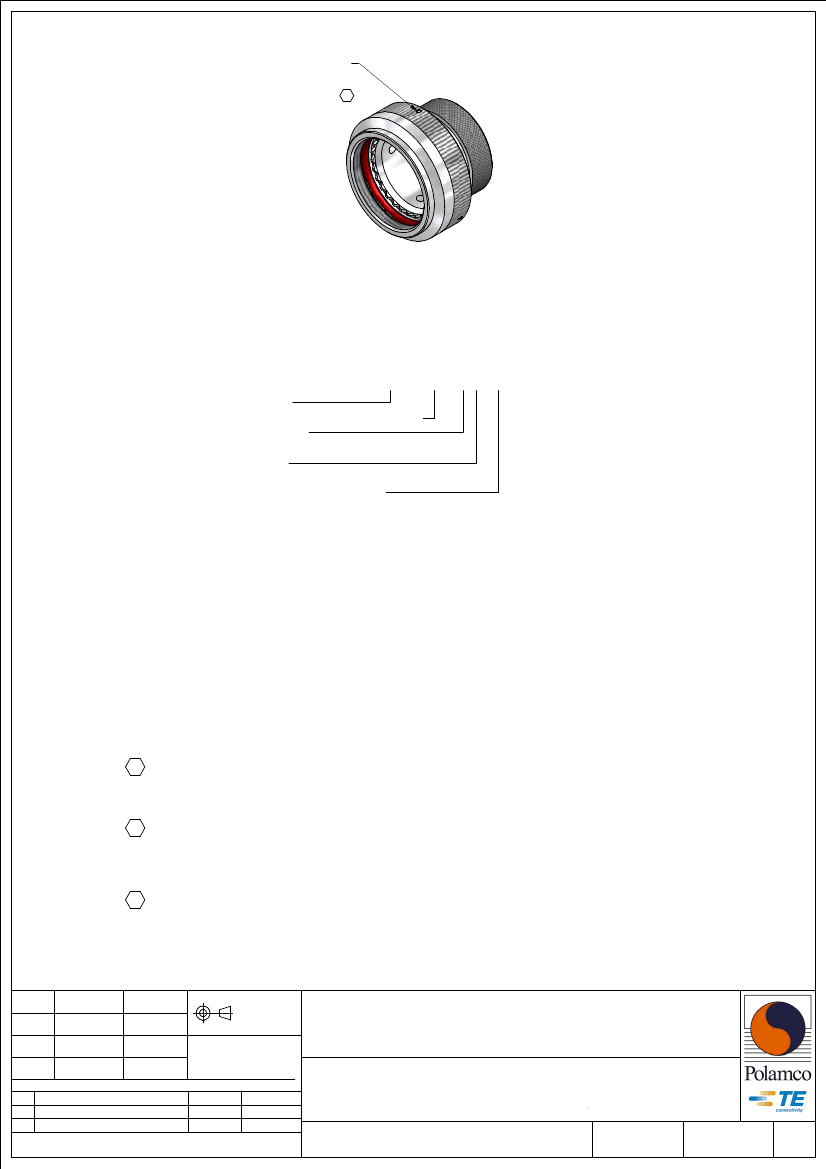

WHEN 'L' MODIFICATION IS SPECIFIED,
COUPLING NUT SHALL HAVE 3 LOCK WIRE HOLES,
120° APART
6
CODE 40 - HEAT SHRINK BOOT BACKSHELL
209M412-19B-DL
SERIES
ORDER NUMBER (TABLE 1)
MATERIAL
REFER TO CH00-0250-004
FINISH
REFER TO CH00-0250-004
MODIFICATION CODE
REFER TO CH00-0250-004
NOTES:
1. THIS PRODUCT IS DESIGNED TO TERMINATE A HEAT SHRINKABLE LIPPED
BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,
SEE CH00-0250-004.
3. BACKSHELL TO BE PERMANENTLY MARKED/BAGGED AND LABELLED WITH CODE
IDENTIFICATION NUMBER AND PART NUMBER. (e.g. 06090-209M412-19B).
4. KNURL INSIDE BOOT GROOVE MAY BE SUPPLIED AT MANUFACTURER'S OPTION.
5. BACKSHELL MATES TO MIL-C-38999 SERIES III & IV, CLASS C, F, K AND W, D38999/20,
/24, /26, /40, /46, /47 CONNECTORS AND WHEN SO MATED PROVIDE
A WATER-TIGHT SEAL MEETING THE REQUIREMENTS OF MIL-C-85049, PAR. 3.5.7.
6. WHEN 'L' MODIFICATION IS SPECIFIED, COUPLING NUT SHALL HAVE 3 LOCK WIRE
HOLES, 120° APART.
7. THIS IS A FUNCTIONAL EQUIVALENT OF MIL-C-85049/69
8. WHEN GROUNDING SCREW MODIFICATION IS ORDERED 18,50 MAX BECOMES 27,20 MAX
AND 25,50 MAX BECOMES 34,20 MAX
DRAWN
CHECKED
W.RUST
DATE
11/09/2015
11/09/2015
11/09/2015
15/10/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
APPROVED
K.SHEPPARD
APPROVED
HEAT SHRINK BOOT BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
H REVISED PER ECO-15-002406
J
REVISED PER ECO-15-013980
DATE
19/02/15
15/10/2015
APPROVED
H.SMITH
H.SMITH
MIL-DTL-39888 SERIES III & IV
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
SHT
209M4XX
J
1
WHEN 'L' MODIFICATION IS SPECIFIED,
COUPLING NUT SHALL HAVE 3 LOCK WIRE HOLES,
120° APART
MEDIUM DIAMOND
KNURL
25,50 MAX 8
18,50 MAX 8
A-A
10,50
3,50
X
A
SILICONE O-RING
A THRAED
ØB
XXXX
A
PART MARK
HERE
4 DRAIN HOLES
WHEN 'D' MODIFICATION
IS SPECIFIED
TABLE 1
BASE
PART
NUMBER
209M408
209M410
209M412
209M414
209M416
209M418
209M420
209M422
209M424
ORDER.NO. SHELL SIZE
5
COM'L / MIL
08
10
12
14
16
18
20
22
24
9/A
11 / B
13 / C
15 / D
17 / E
19 / F
21 / G
23 / H
25 / J
A
THREAD
M12 × 1.0
M15 × 1.0
M18 × 1.0
M22 × 1.0
M25 × 1.0
M28 × 1.0
M31 × 1.0
M34 × 1.0
M37 × 1.0
ØB
MAX
18,0
21,0
24,5
29,0
32,5
35,5
37,0
40,0
43,5
X
+0,20/-0,00
1,12
1,12
1,12
1,12
1,12
1,12
1,75
1,75
1,75
ØY
MAX
13,50
15,40
19,70
21,30
24,50
26,50
31,00
34,40
36,60
ØZ
MIN
6,80
10,30
13,60
16,30
19,50
21,90
25,20
28,30
31,50
DRAWN
CHECKED
W.RUST
DATE
11/09/2015
11/09/2015
11/09/2015
15/10/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
APPROVED
K.SHEPPARD
APPROVED
HEAT SHRINK BOOT BACKSHELL
ASSY USED ON:
H.SMITH
LTR
H REVISED PER ECO-15-002406
J
REVISED PER ECO-15-013980
REVISIONS
DESCRIPTION
DATE
19/02/15
15/10/2015
APPROVED
H.SMITH
H.SMITH
MIL-DTL-39888 SERIES III & IV
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
ØY
ØZ
DRAWING REV:
SHT
209M4XX
J
2
