MAX44286TAZS+: DescriptionBasic information about MAX44286TAZS+ amplifier: MAX44286TAZS+ is an OPERATIONAL AMPLIFIER. The commonly used packaging method is VFBGA, MAX44286TAZS+ amplifier core information: The MAX44286TAZS+ operates at a minimum temperature of -40 °C and a maximum operating temperature of 125 °C. Its peak reflow temperature is NOT SPECIFIED How to simply check the efficiency of an amplifier? Looking at its slew rate, the MAX44286TAZS+ has a nominal slew rate of 0.08 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the MAX44286TAZS+ gain becomes 0.707 times the low-frequency gain is 200 kHz. The MAX44286TAZS+ has a nominal supply voltage of 3.6 V, and its corresponding nominal negative supply voltage is -3.6 V. The upper limit of its supply voltage is 6 V. The input offset voltage of MAX44286TAZS+ is 50 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).) Related dimensions of MAX44286TAZS+: The width of MAX44286TAZS+ is: 0.764 mm, and the length is 0.764 mm. MAX44286TAZS+ has 4 terminals. Its terminal position type is: BOTTOM. Terminal pitch is 0.4 mm. MAX44286TAZS+ amplifier additional information: Its temperature grade is: AUTOMOTIVE. The MAX44286TAZS+ is not Rohs certified. The corresponding JESD-30 code is: S-PBGA-B4. The package code of MAX44286TAZS+ is: VFBGA. The materials of the MAX44286TAZS+ package are mostly PLASTIC/EPOXY. The package shape is SQUARE. The MAX44286TAZS+ package pin formats are: GRID ARRAY, VERY THIN PROFILE, FINE PITCH. Its terminal forms are: BALL. The maximum seat height is 0.37 mm.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size653KB，11 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance; Alternative parts：MAX44286TAZS+

Download Datasheet Parametric Compare View All

MAX44286TAZS+ Overview

Basic information about MAX44286TAZS+ amplifier:

MAX44286TAZS+ is an OPERATIONAL AMPLIFIER. The commonly used packaging method is VFBGA,

MAX44286TAZS+ amplifier core information:

The MAX44286TAZS+ operates at a minimum temperature of -40 °C and a maximum operating temperature of 125 °C. Its peak reflow temperature is NOT SPECIFIED

How to simply check the efficiency of an amplifier? Looking at its slew rate, the MAX44286TAZS+ has a nominal slew rate of 0.08 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the MAX44286TAZS+ gain becomes 0.707 times the low-frequency gain is 200 kHz.

The MAX44286TAZS+ has a nominal supply voltage of 3.6 V, and its corresponding nominal negative supply voltage is -3.6 V. The upper limit of its supply voltage is 6 V. The input offset voltage of MAX44286TAZS+ is 50 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

Related dimensions of MAX44286TAZS+:

The width of MAX44286TAZS+ is: 0.764 mm, and the length is 0.764 mm. MAX44286TAZS+ has 4 terminals. Its terminal position type is: BOTTOM. Terminal pitch is 0.4 mm.

MAX44286TAZS+ amplifier additional information:

Its temperature grade is: AUTOMOTIVE. The MAX44286TAZS+ is not Rohs certified. The corresponding JESD-30 code is: S-PBGA-B4. The package code of MAX44286TAZS+ is: VFBGA. The materials of the MAX44286TAZS+ package are mostly PLASTIC/EPOXY.

The package shape is SQUARE. The MAX44286TAZS+ package pin formats are: GRID ARRAY, VERY THIN PROFILE, FINE PITCH. Its terminal forms are: BALL. The maximum seat height is 0.37 mm.

MAX44286TAZS+ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Maxim
package instruction	VFBGA,
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
Amplifier type	OPERATIONAL AMPLIFIER
Nominal Common Mode Rejection Ratio	120 dB
Maximum input offset voltage	50 µV
JESD-30 code	S-PBGA-B4
length	0.764 mm
Nominal Negative Supply Voltage (Vsup)	-3.6 V
Number of functions	1
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	VFBGA
Package shape	SQUARE
Package form	GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum seat height	0.37 mm
Nominal slew rate	0.08 V/us
Supply voltage upper limit	6 V
Nominal supply voltage (Vsup)	3.6 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	BALL
Terminal pitch	0.4 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	200 kHz
width	0.764 mm
Base Number Matches	1

Preview

Download Datasheet

View All

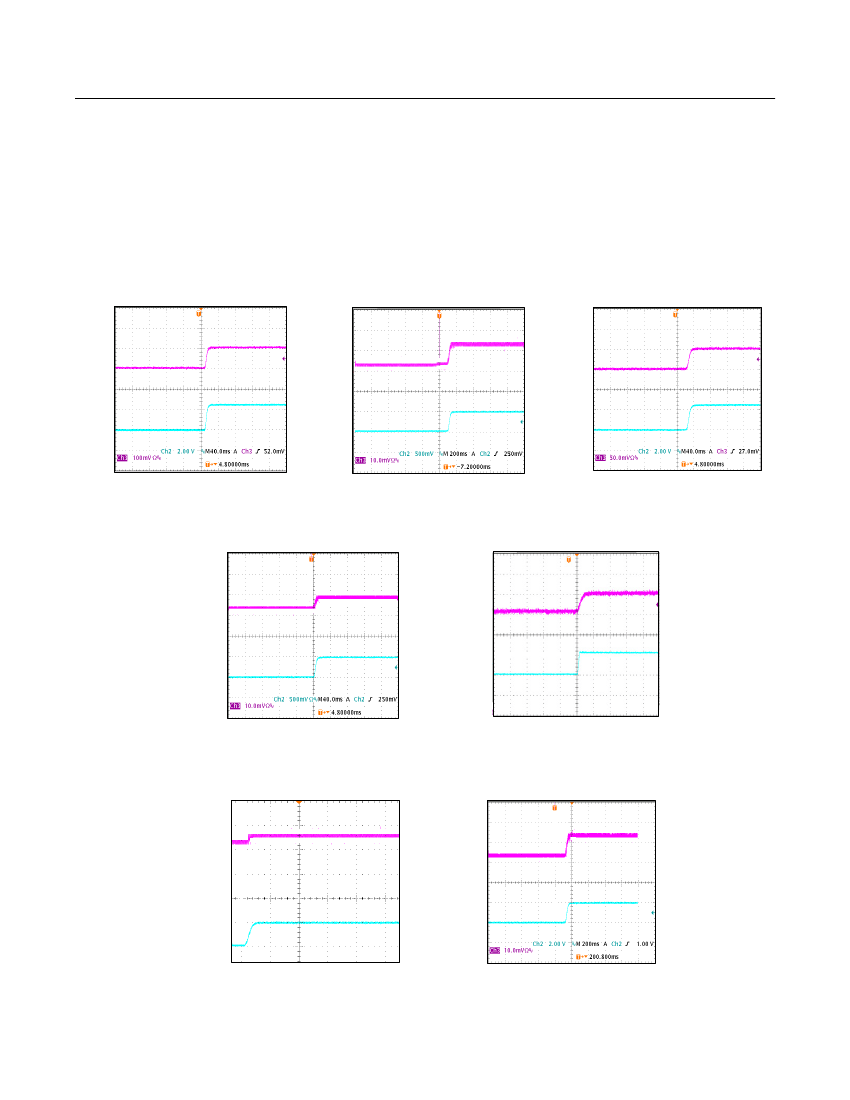

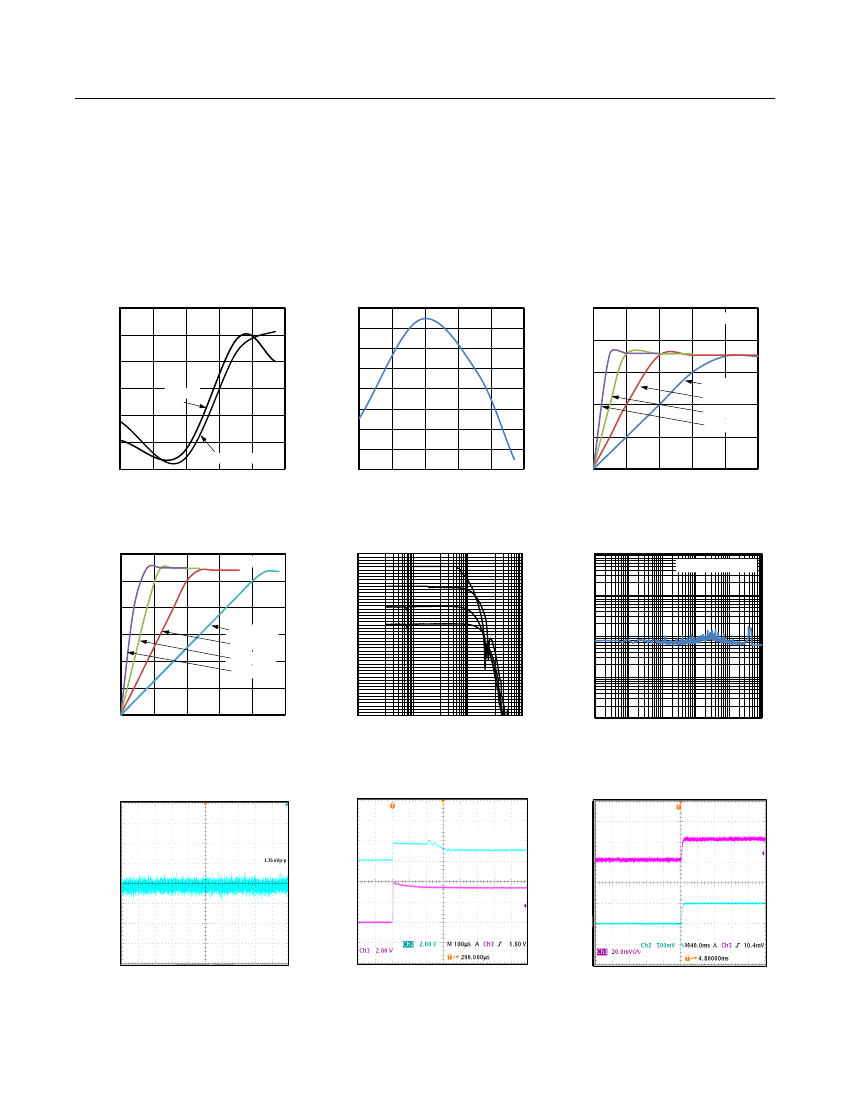

EVALUATION KIT AVAILABLE

MAX44286

Low-Power, Precision, 4-Bump WLP,

Current-Sense Amplifier

General Description

The MAX44286 is a zero-drift, high-side current-sense

amplifier family that offers precision, low supply cur-

rent and is available in a tiny 4-bump ultra-thin WLP of

0.78mm x 0.78mm x 0.35mm footprint. This miniature size

is of paramount for today’s applications in smartphones,

mobile accessories, notebooks, portable medical, and all

battery-operated portable devices where current monitor-

ing with precision and space are critical.

The MAX44286 has voltage output offered in four gain

versions of 25V/V, 50V/V, 100V/V, and 200V/V. These

four gain versions offer flexibility in the choice of the

sense resistor and the very low input offset voltage helps

in detecting small currents on the orders of low micro-

amps. Low power capability also offers the possibility of

minimizing power dissipation.

The MAX44286 operates with a supply voltage range

1.6V to 5.5V over the -40

°C

to +85

°C

temperature

range and

from 1.8V to 5.5V over the -40°C to +125°C

automotive temperature range. Supply voltage for the

device is shared with the RS+ pin to fit the MAX44286 in

a 4-bump, ultra-thin WLP package.

Features and Benefits

●

Ultra-Low Input Offset Voltage and Tiny Gain Error

Allow Sense Resistor to Detect Tiny Currents (nA)

• 30µV (max) Offset Voltage

• 0.23% (max) Gain Accuracy

●

Low Current Consumption Saves Power

•

12.5μA I

for 200kHz Gain Bandwidth

●

Space-Saving 4-Bump WLP Package

• 0.78mm x 0.78mm x 0.35mm

●

Industry-Leading Low-Power Supply Range

• 1.6V to 5.5V Input Common Mode

●

Four Gain Options Offer Flexibility in Sense Resistor

Selection

• G = 25V/V (MAX44286T)

• G = 50V/V (MAX44286F)

• G = 100V/V (MAX44286H)

• G = 200V/V (MAX44286W)

Typical Application Circuit

LOAD

SENSE

Applications

●

Power Management Systems

Portable/Battery-Powered Systems

Smartphones

Mobile Accessories

Portable Medical

Notebook Computers and Tablets

0.1µF

BAT

RS+

GND

RS-

LOAD

GND

Ordering Information

appears at end of data sheet.

For related parts and recommended products to use with this part, refer

www.maximintegrated.com/MAX44286.related.

= 3.3V

µC

MAX44286

OUT

MAX1655

ADC

GND B1

GND

19-7369; Rev 0; 11/14
