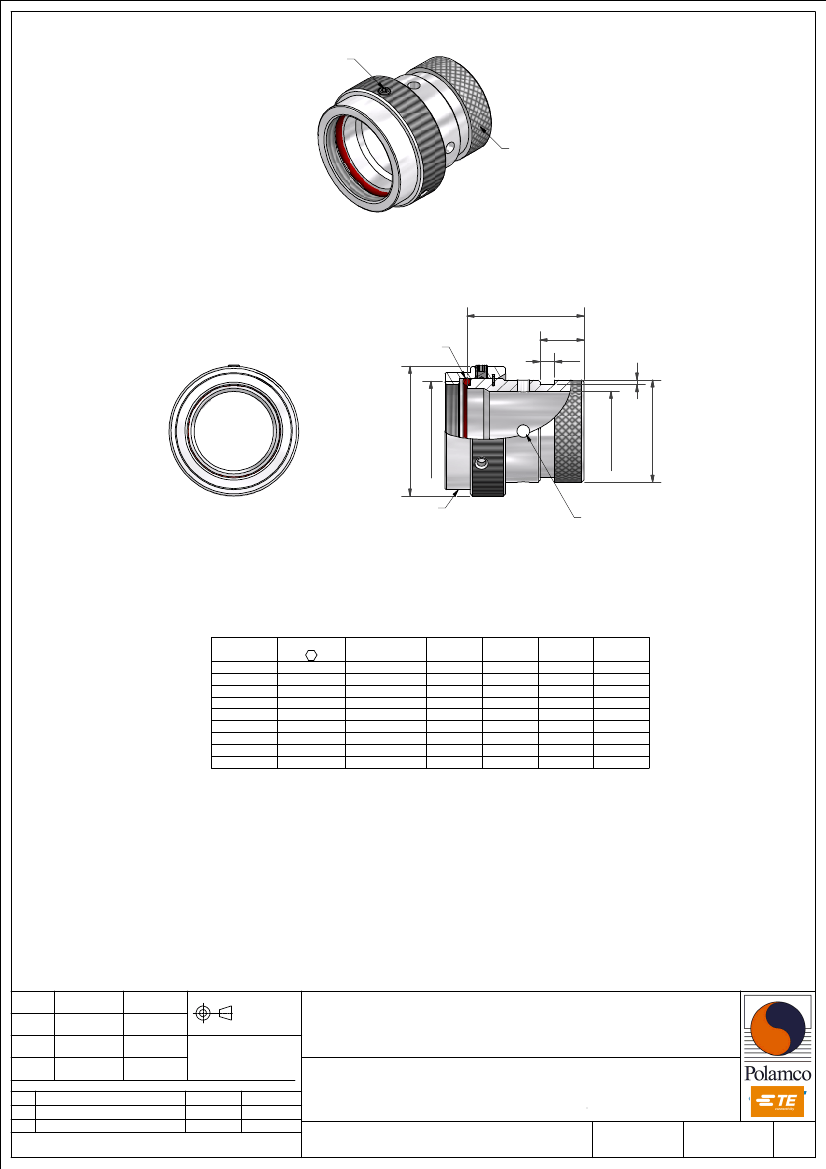

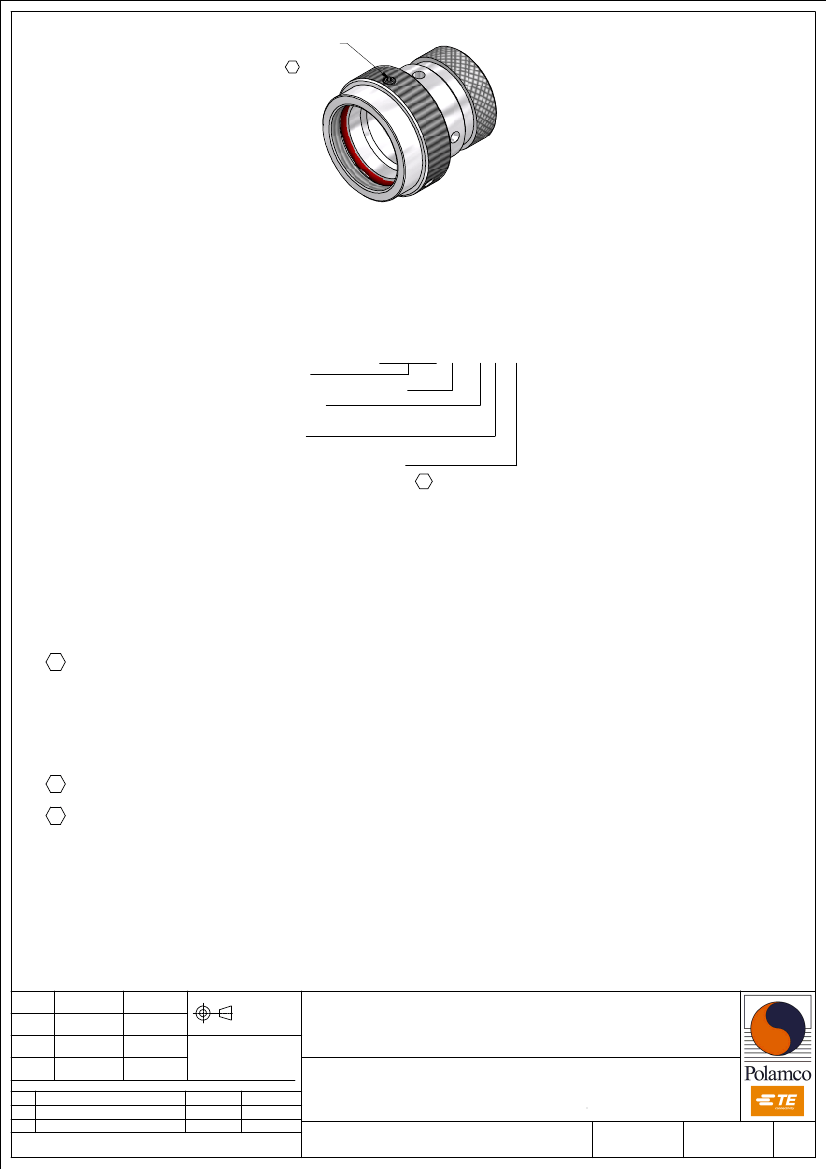

ANTI-ROTATIONAL
SET SCREW
6
CODE 21 - HEAT SHRINK BOOT BACKSHELL
203M916-19B-D
SERIES
SHELL SIZE (TABLE 1)
MATERIAL
REFER TO CH00-0250-004
FINISH
REFER TO CH00-0250-004
MODIFICATION CODE
REFER TO CH00-0250-004 2
NOTES:
1. THIS PRODUCT IS DESIGNED TO TERMINATE A HEAT SHRINKABLE LIPPED
BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,
SEE CH00-0250-004.
3. BACKSHELL TO BE PERMANETLY MARKED/BAGGED AND LABELLED WITH CODE
IDENTIFICATION NUMBER AND PART NUMBER. (e.g. 06090-203M912-19B).
4. KNURL INSIDE BOOT GROOVE MAY BE SUPPLIED AT MANUFACTURER'S OPTION.
5. BACKSHELL MATES TO MIL-C-26482 SERIES I, CLASS E, F, MS3110, MS3111 AND MS3116 CONNECTORS.
6. ANTI-ROTATIONAL SET SCREW, THREE #4-40 THREADED HOLES 120° APART, SINGLE
MATING SET SCREW SUPPLIED.
DRAWN
CHECKED
W.RUST
DATE
08/09/2015
08/09/2015
08/09/2015
01/10/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
APPROVED
K.SHEPPARD
APPROVED
HEAT SHRINK BOOT BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
K REVISED PER ECO-15-013980
L
REVISED PER ECO-18-008680
DATE
01/10/15
APPROVED
MIL-DTL-26482 SERIES I
TE CONNECTIVITY - POLAMCO LTD RESERV ES TH E RIGH T TO AMEND TH IS DRAW ING
AND THE INFORMATIO N SET FORTH HEREON AT ANY T IME. USERS SH OULD
IND EPENDENTLY EVALUATE TH E SUITABILITY OF THE PRODUCT FOR TH EIR APPLICATION.
06/04/18
H.SMITH
O. CANO
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
DRAWING REV:
203M9XX
L
SHT
1
ANTI-ROTATIONAL
SET SCREW
MEDIUM DIAMOND
KNURL
28,00
10,50
SILICONE O-RING
3,50
X
A THREAD
ØB
PART MARK
HERE
XXXX
4 DRAIN HOLES
WHEN 'D' MODIFICATION
IS SPECIFIED
TABLE 1
BASE PART
NUMBER
203M908
203M910
203M912
203M914
203M916
203M918
203M920
203M922
203M924
SHELL SIZE
5
08
10
12
14
16
18
20
22
24
A
THREAD
7/16-28UNEF
9/16-24UNEF
11/16-24UNEF
13/16-20UNEF
15/16-20UNEF
1 1/16-18UNEF
1 3/16-18UNEF
1 5/16-18UNEF
1 7/16-18UNEF
ØB
MAX
18,05
21,55
24,65
27,65
31,05
34,35
37,55
40,55
43,55
X
+0,20/-0,00
1,12
1,12
1,12
1,12
1,12
1,12
1,75
1,75
1,75
ØZ
7,15
9,80
13,50
15,90
19,00
21,40
24,60
27,80
31,00
ØY
MAX
13,50
15,50
19,50
21,50
24,50
26,50
31,00
34,50
36,50
DRAWN
CHECKED
W.RUST
DATE
08/09/2015
08/09/2015
08/09/2015
01/10/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
APPROVED
K.SHEPPARD
APPROVED
HEAT SHRINK BOOT BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
K REVISED PER ECO-15-013980
L
REVISED PER ECO-18-008680
DATE
01/10/15
06/04/18
APPROVED
H.SMITH
O. CANO
MIL-DTL-26482 SERIES I
TE CONNECTIVITY - POLAMCO LTD RESERV ES TH E RIGH T TO AMEND TH IS DRAW ING
AND THE INFORMATIO N SET FORTH HEREON AT ANY T IME. USERS SH OULD
IND EPENDENTLY EVALUATE TH E SUITABILITY OF THE PRODUCT FOR TH EIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
ØY
ØZ
DRAWING REV:
203M9XX
L
SHT
2
