54F163A/B2A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F163A/B2A

54F163A/B2A: DescriptionIC F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CQCC20, CERAMIC, LCC-20, Counter; Categorylogic logic; File Size208KB，8 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F163A/B2A Overview

IC F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CQCC20, CERAMIC, LCC-20, Counter

54F163A/B2A Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	QLCC
package instruction	CERAMIC, LCC-20
Contacts	20
Reach Compliance Code	unknown
Other features	TCO OUTPUT
Counting direction	UP
series	F/FAST
JESD-30 code	S-CQCC-N20
length	8.89 mm
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Maximum supply current (ICC)	55 mA
propagation delay (tpd)	11.5 ns
Certification status	Not Qualified
Maximum seat height	1.905 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Trigger type	POSITIVE EDGE
width	8.89 mm
minfmax	75 MHz
Base Number Matches	1

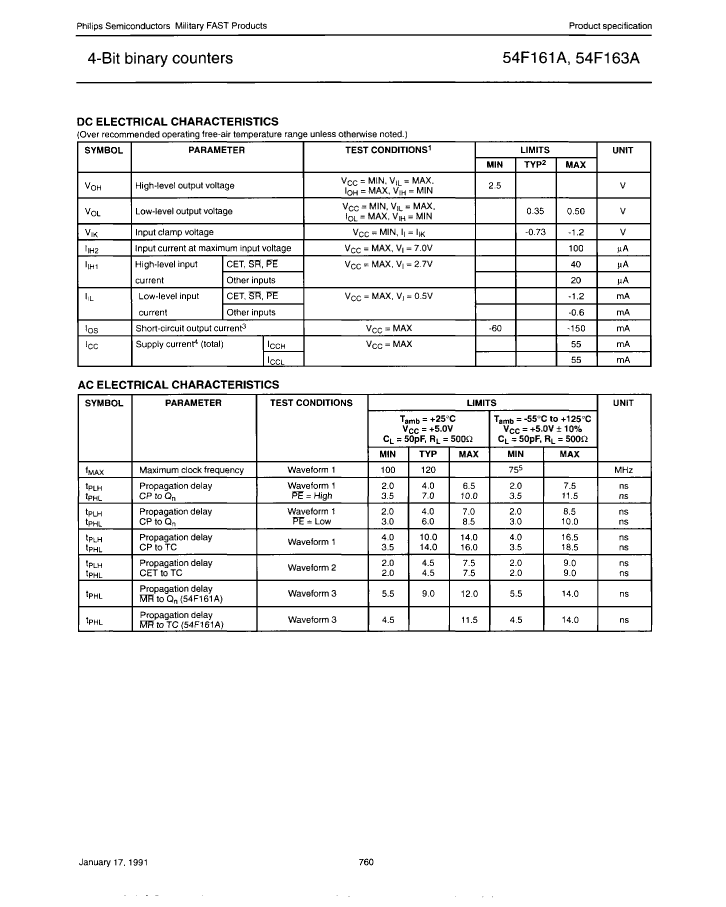

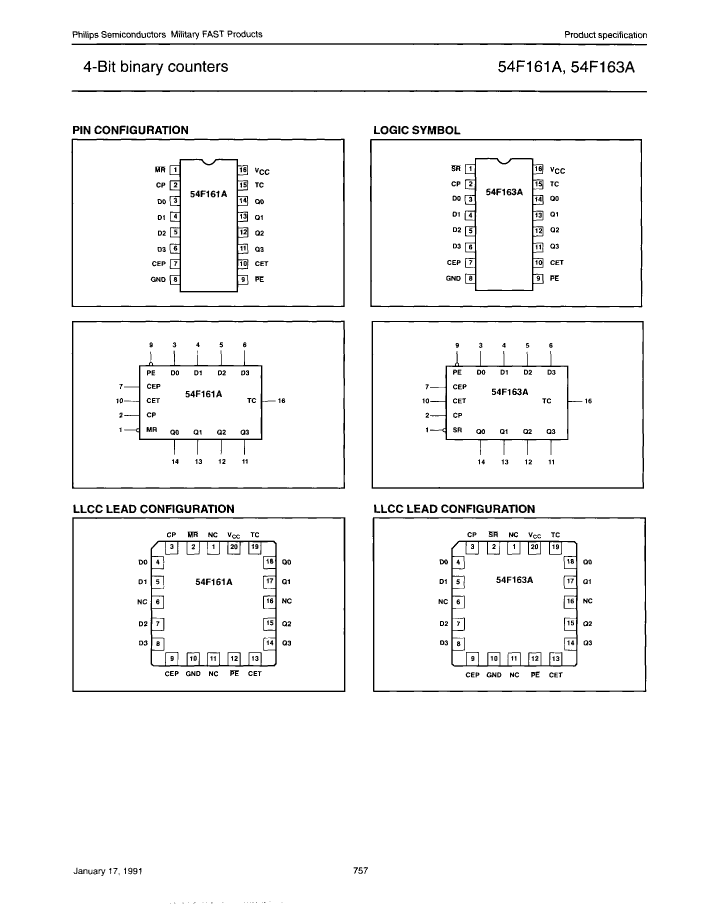

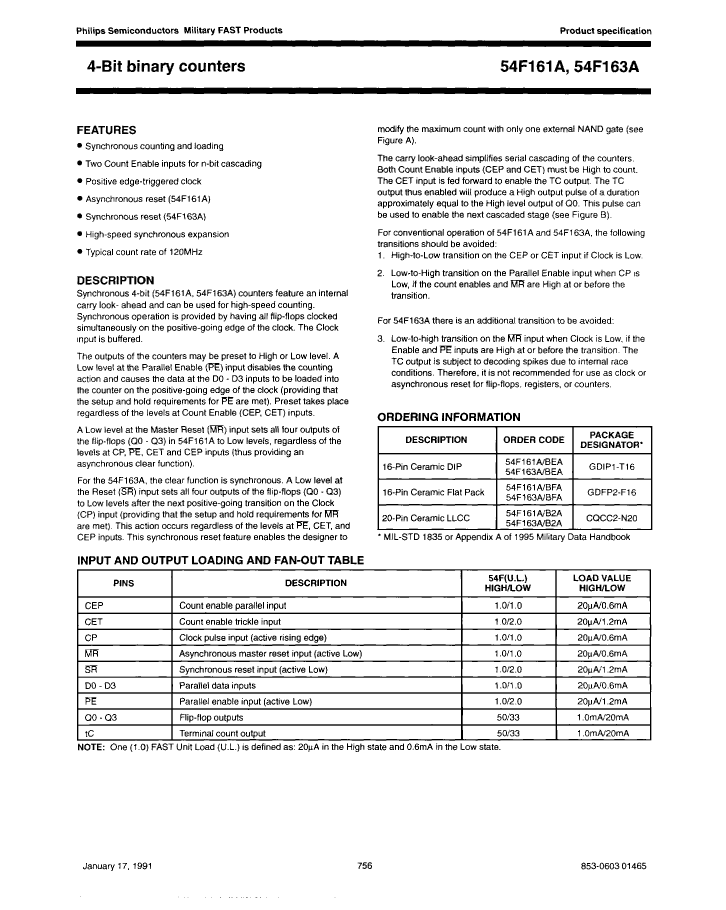

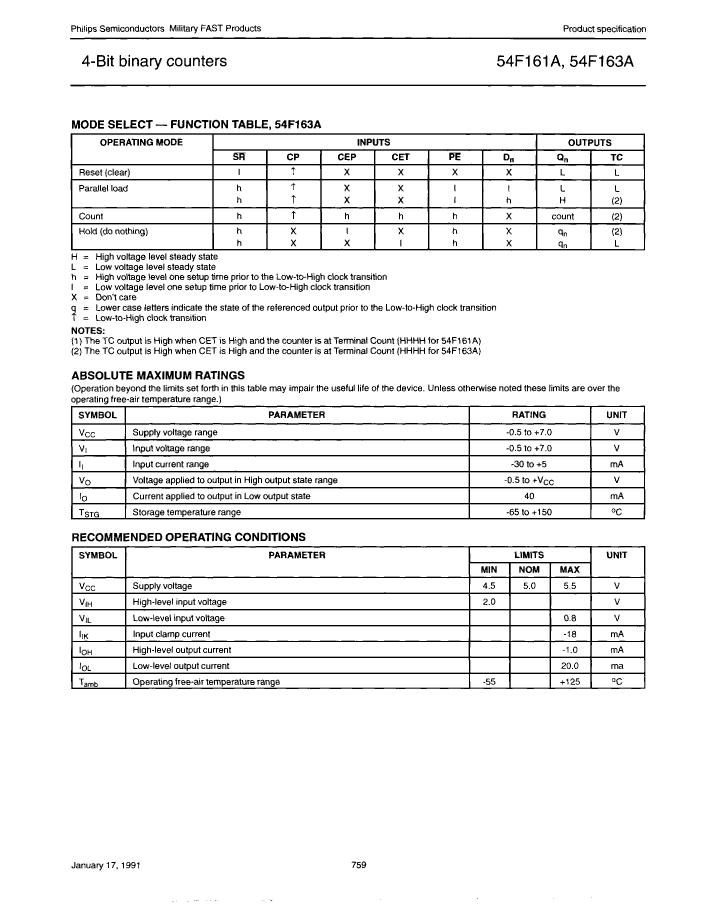

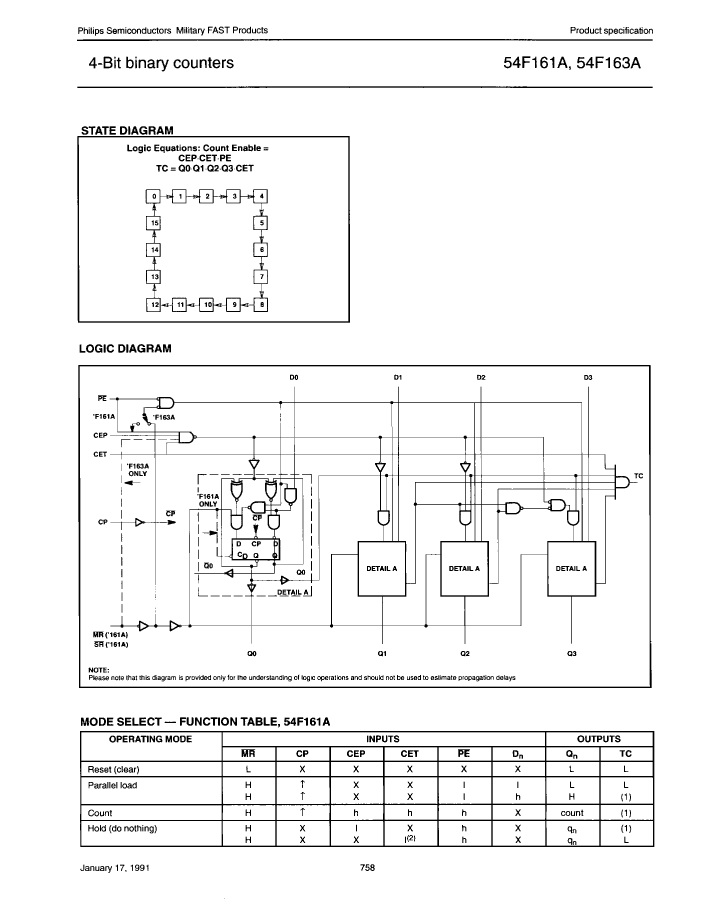

Preview

Download Datasheet

View All

54F163A/B2A Related Products

	54F163A/B2A	N54F163A/BFA	N54F161A/B2A	N54F161A/BFA	54F161A/B2A	54F161A/BEA	54F161A/BFA	N54F163A/B2A	54F163A/BFA	54F163A/BEA
Description	IC F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CQCC20, CERAMIC, LCC-20, Counter	IC F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDFP16, CERAMIC, DFP-16, Counter	IC F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CQCC20, CERAMIC, LLCC-20, Counter	IC F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDFP16, CERAMIC, DFP-16, Counter	IC F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CQCC20, CERAMIC, LCC-20, Counter	IC F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDIP16, CERAMIC, DIP-16, Counter	IC F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDFP16, CERAMIC, FP-16, Counter	IC F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CQCC20, CERAMIC, LLCC-20, Counter	IC F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDFP16, CERAMIC, FP-16, Counter	IC F/FAST SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, CDIP16, CERAMIC, DIP-16, Counter
Parts packaging code	QLCC	DFP	QLCC	DFP	QLCC	DIP	DFP	QLCC	DFP	DIP
package instruction	CERAMIC, LCC-20	CERAMIC, DFP-16	QCCN,	DFP,	QCCN,	DIP,	DFP,	CERAMIC, LLCC-20	CERAMIC, FP-16	DIP,
Contacts	20	16	20	16	20	16	16	20	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT	TCO OUTPUT
Counting direction	UP	UP	UP	UP	UP	UP	UP	UP	UP	UP
series	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST	F/FAST
JESD-30 code	S-CQCC-N20	R-CDFP-F16	S-CQCC-N20	R-CDFP-F16	S-CQCC-N20	R-GDIP-T16	R-CDFP-F16	S-CQCC-N20	R-CDFP-F16	R-GDIP-T16
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Load/preset input	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Logic integrated circuit type	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER	BINARY COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	20	16	20	16	20	16	16	20	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DFP	QCCN	DFP	QCCN	DIP	DFP	QCCN	DFP	DIP
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	CHIP CARRIER	FLATPACK	CHIP CARRIER	IN-LINE	FLATPACK	CHIP CARRIER	FLATPACK	IN-LINE
Maximum supply current (ICC)	55 mA	55 mA	55 mA	55 mA	55 mA	55 mA	55 mA	55 mA	55 mA	55 mA
propagation delay (tpd)	11.5 ns	11.5 ns	11.5 ns	11.5 ns	11.5 ns	11.5 ns	11.5 ns	11.5 ns	11.5 ns	11.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.905 mm	2.159 mm	1.905 mm	2.159 mm	1.905 mm	5.08 mm	2.159 mm	1.905 mm	2.159 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	NO	YES	YES	YES	NO
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	NO LEAD	FLAT	NO LEAD	FLAT	NO LEAD	THROUGH-HOLE	FLAT	NO LEAD	FLAT	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL	QUAD	DUAL	QUAD	DUAL	DUAL	QUAD	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
width	8.89 mm	6.731 mm	8.89 mm	6.731 mm	8.89 mm	7.62 mm	6.731 mm	8.89 mm	6.731 mm	7.62 mm
minfmax	75 MHz	75 MHz	75 MHz	75 MHz	75 MHz	75 MHz	75 MHz	75 MHz	75 MHz	75 MHz
Base Number Matches	1	1	1	1	1	1	1	1	1	1
length	8.89 mm	11.176 mm	8.89 mm	11.176 mm	8.89 mm	-	-	8.89 mm	-	-
