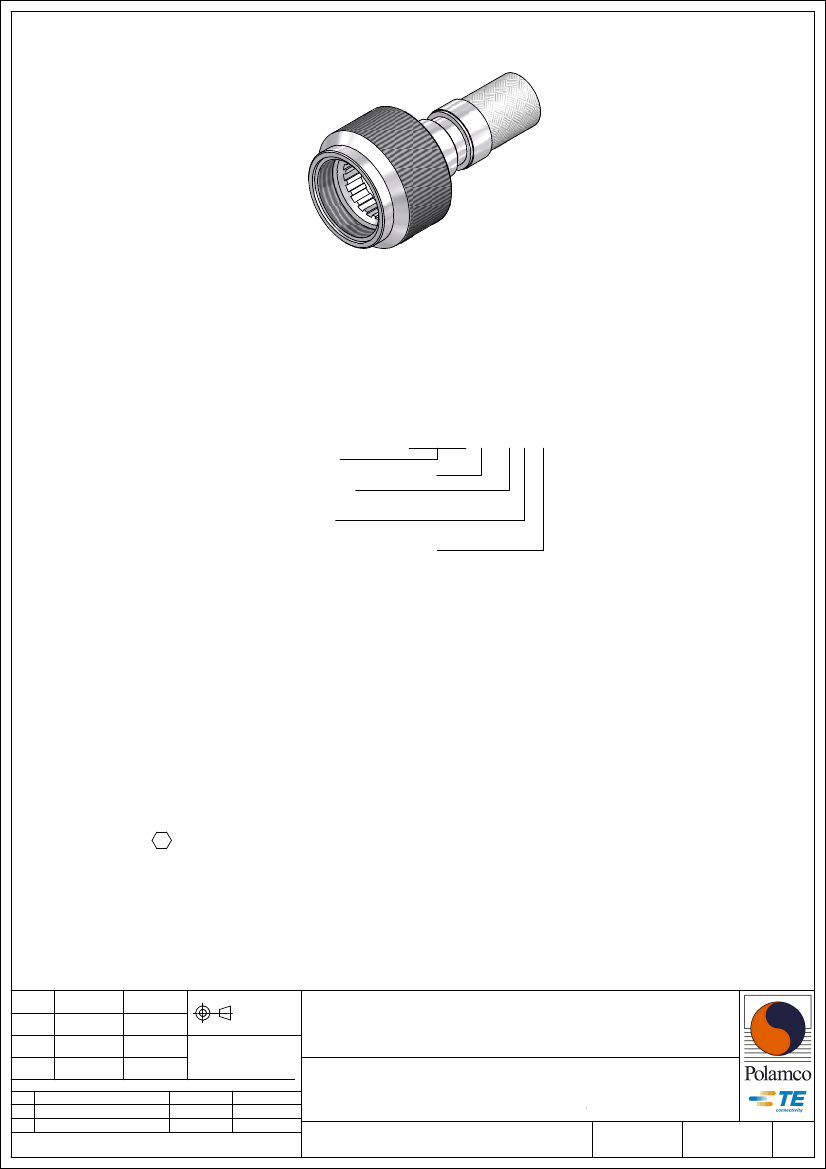

CODE 30 - BRAID TAIL BACKSHELL
211M510-19B05
SERIES
SHELL SIZE (TABLE 1)
MATERIAL
REFER TO CH00-0250-004
FINISH
REFER TO CH00-0250-004
ENTRY SIZE (TABLE 2)
NOTES:
1. THIS PRODUCT IS DESIGNED TO TERMINATE A HEAT SHRINKABLE LIPPED
BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,
SEE CH00-0250-004
3. BACKSHELL TO BE PERMANENTLY MARKED/BAGGED AND LABELLED WITH CODE
IDENTIFICATION NUMBER AND PART NUMBER. (e.g. 06090-211M510-19B05).
4. FOR LARGER ENTRY SIZES, A 2 PIECE ADAPTER (TYPE II) IS SUPPLIED.
5. BRAID TERMINATION RING MAY BE SUPPLIED AS TINEL-LOCK SHAPE MEMORY
RING AT MANUFACTURERS OPTION.
6. BACKSHELL MATES TO MIL-C-28840, M28840/10, /11, /14 & /16
If this document is printed it becomes uncontrolled. Check for the latest revision
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
29/04/2015
29/04/2015
08/05/2015
02/09/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
BRAID TAIL BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
G REVISED PER ECN AD93084
H
REVISED PER ECO-15-012672
DATE
24/05/1993
02/09/2015
APPROVED
H.SMITH
MIL-DTL-28840/10, /11, /14 & /16
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
DRAWING NO:
DRAWING REV:
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
211M5XX
H
1
30,00
152,40 MIN
A THREAD
ØB
XXXX
ØY
ØZ
TINNED COPPER
SHIELD
PART MARK HERE

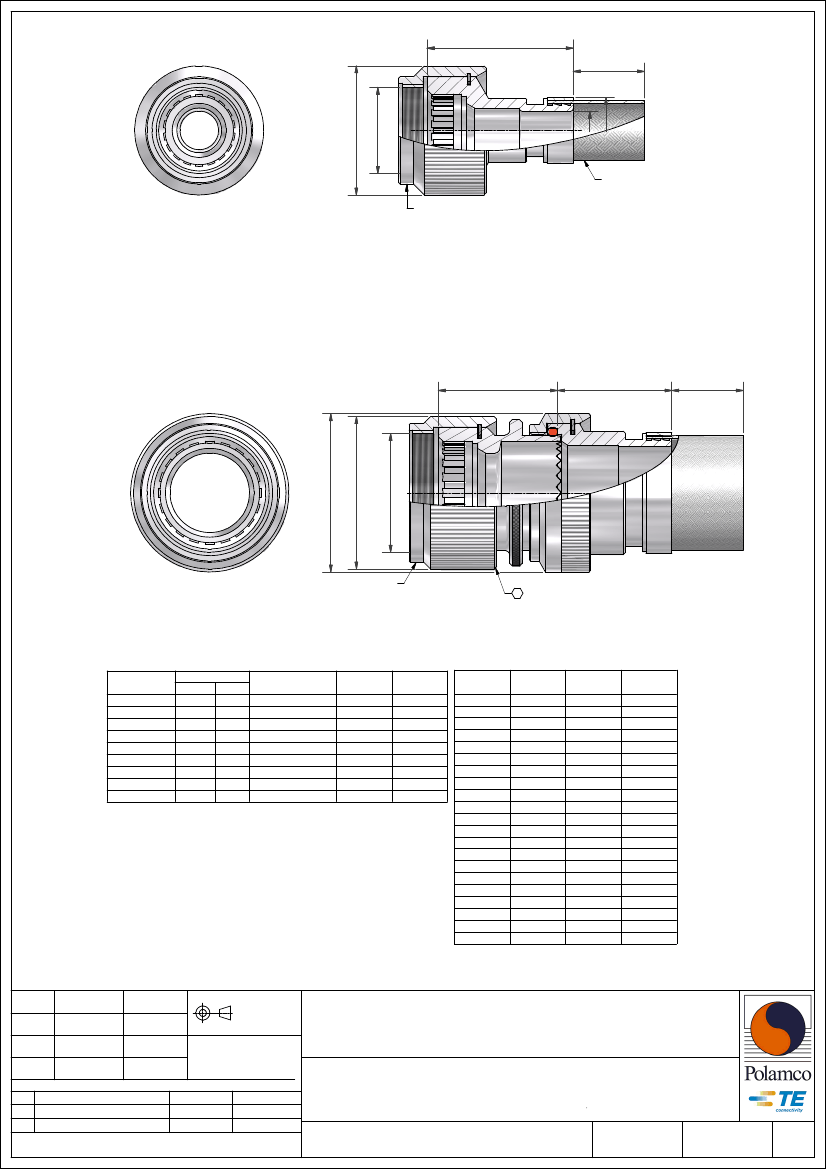

STRAIGHT BACKSHELL - TYPE 1
IF THE MAX ENTRY IS EXCEEDED BACKSHELL
WILL BE SUPPLIED AS TYPE 2
24,50
`
0,50
23,50
152,40 MIN
A THREAD
ØK
ØB
PART MARK HERE
4
STRAIGHT BACKSHELL - TYPE 2
TABLE 1
ORDER
NUMBER
10
12
14
16
18
22
24
28
32
TABLE 2
ENTRY
SIZE
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
20
21
22
24
28
XXXX
SHELL SIZE
COM'L MIL
11
A
13
B
15
C
17
D
19
E
23
F
25
G
29
H
33
J
A
THREAD
3/4 - 20UNEF
7/8 - 20UNEF
1 - 20UNEF
1 1/8 - 18 UNEF
1 1/4 - 18UNEF
1 7/16 -18UNEF
1 9/16 -18UNEF
1 7/8 - 16UN
2 1/16 -16UN
ØB
MAX
26,5
29,7
31,3
35,5
38,7
43,6
47,2
55,2
60,5
MAX
ENTRY
05
08
10
12
14
16
18
22
24
ØK
MAX
NA
NA
21,0
21,0
21,0
24,5
24,5
29,0
32,5
32,5
35,5
35,5
37,0
37,0
40,0
40,0
43,5
48,5
48,5
52,1
58,5
ØZ
REF
4,77
6,35
7,92
9,52
11,12
12,70
14,27
15,87
17,47
19,05
20,62
22,23
23,82
25,40
26,98
28,60
31,80
33,34
35,00
38,10
44,45
ØY
REF
13,1
13,1
13,1
17,9
17,9
17,9
17,9
24,2
24,2
24,2
24,2
30,6
30,6
30,6
33,2
33,2
42,0
42,0
42,0
42,0
49,0
If this document is printed it becomes uncontrolled. Check for the latest revision
DRAWN
K.WINCZURA
CHECKED
APPROVED
K.SHEPPARD
APPROVED
DATE
29/04/2015
29/04/2015
08/05/2015
02/09/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
BRAID TAIL BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
LTR
DESCRIPTION
G REVISED PER ECN AD93084
H
REVISED PER ECO-15-012672
DATE
24/05/1993
02/09/2015
APPROVED
H.SMITH
MIL-DTL-28840/10, /11, /14 & /16
TE CONNECTIVITY - POLAM CO LTD RESERVES THE RIGHT TO AMEND THIS DRAW ING
AND THE INFORMATION SET FORTH HEREON AT ANY TIM E. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
DRAWING NO:
DRAWING REV:
SHT
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
211M5XX
H
2
