A21-115-209-42301-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> A21-115-209-42301-Z

A21-115-209-42301-Z: DescriptionD Type Connector, 15+9 Contact(s), Male/Female, .109/.09 inch Pitch, Solder Terminal, #4-40, Plug/receptacle; CategoryThe connector The connector; File Size881KB，2 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

A21-115-209-42301-Z Overview

D Type Connector, 15+9 Contact(s), Male/Female, .109/.09 inch Pitch, Solder Terminal, #4-40, Plug/receptacle

A21-115-209-42301-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	1.244 inch
subject depth	0.854 inch
body length	1.213 inch
Body/casing type	PLUG-RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE/FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1400VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Plug contact pitch	.109/.09 inch
Match contact row spacing	.112/.1 inch
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2+3
Number of rows loaded	2+3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	24
Base Number Matches	1

Preview

Download Datasheet

View All

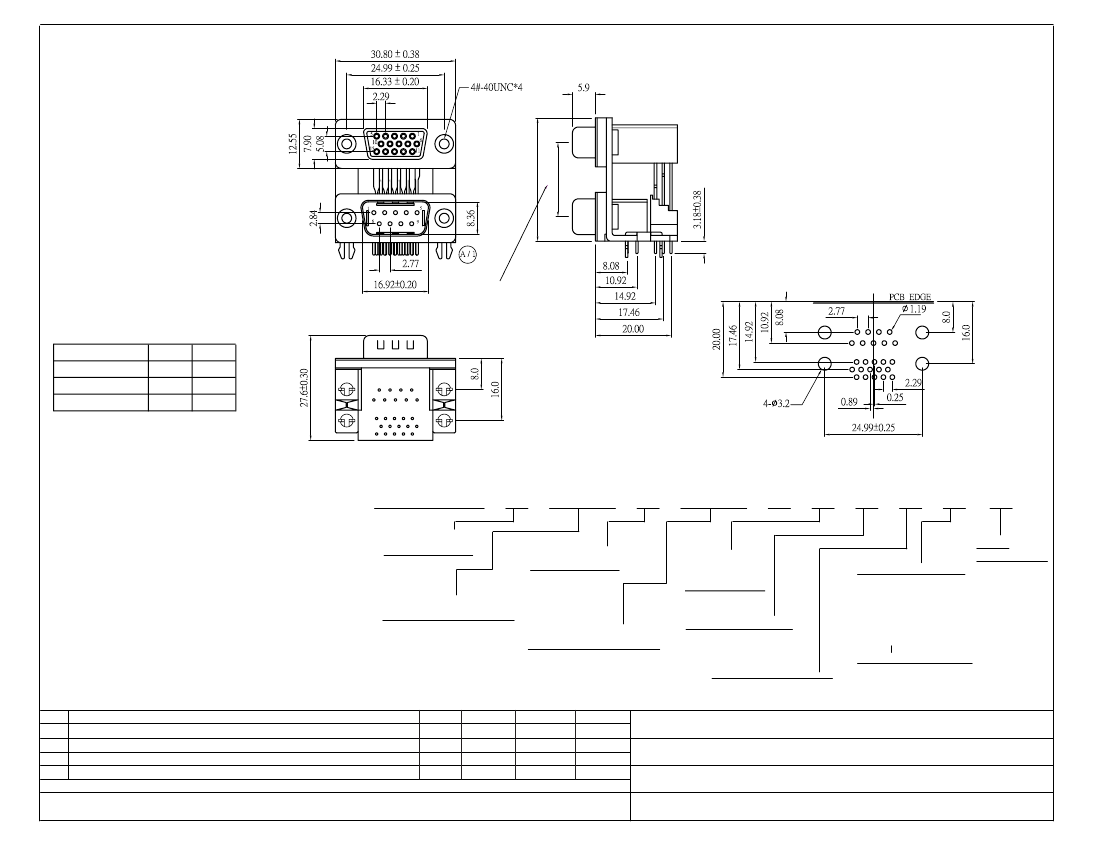

DISTANCE BETWEEN

CONNECTORS

DIMENSION(mm)

OPTION

15.88

19.05

22.86

28.42

31.60

35.41

DISTANCE BETWEEN

CONNECTORS (E)

(SEE TABLE)

ELECTRICAL:

CURRENT RATING: 5A

VOLTAGE RATING: 300VDC

OPERATING VOLTAGE: 500V

CONTACT RESISTANCE:

< 15 Milliohm Max.

INSULATION RESISTANCE:

> 1000 Megaohm Min. at 500VDC

DIELECTRIC WITHSTANDING VOLTAGE:

1000V (rms) for 1 Minute

OPERATING TEMPERATURE: -55°C to +105°C

HOW TO ORDER:

TOP CONNECTOR

CONTACT TYPE:

1 - FEMALE

2 - MALE

MATERIAL:

INSULATOR: THERMOPLASTIC

W/ GLASS FIBER FILLED (UL94V-0)

CONTACT: COPPER ALLOY

SHELL: NICKEL PLATED STEEL

CONTACT PLATING: GOLD ON MATING SURFACE

Sn-Pb ON TERMINATION END

ALL OVER 50

µ"

NICKEL

Rev

Issued

A Revised Dimension E

Revised for RoHS Compliance

SCALE:n/a

TOL. DEC.

.X +/-0.25

.XX +/- 0.10

TOP CONNECTOR

NUMBER OF CONTACTS:

09, 15, 25

BOTTOM CONNECTOR

CONTACT TYPE:

0 - N/A

1 - FEMALE

2 - MALE

BOTTOM CONNECTOR

NUMBER OF CONTACTS:

00, 09, 15, 25

DISTANCE

BETWEEN

CONNECTORS:

SEE TABLE

MOUNTING OPTION:

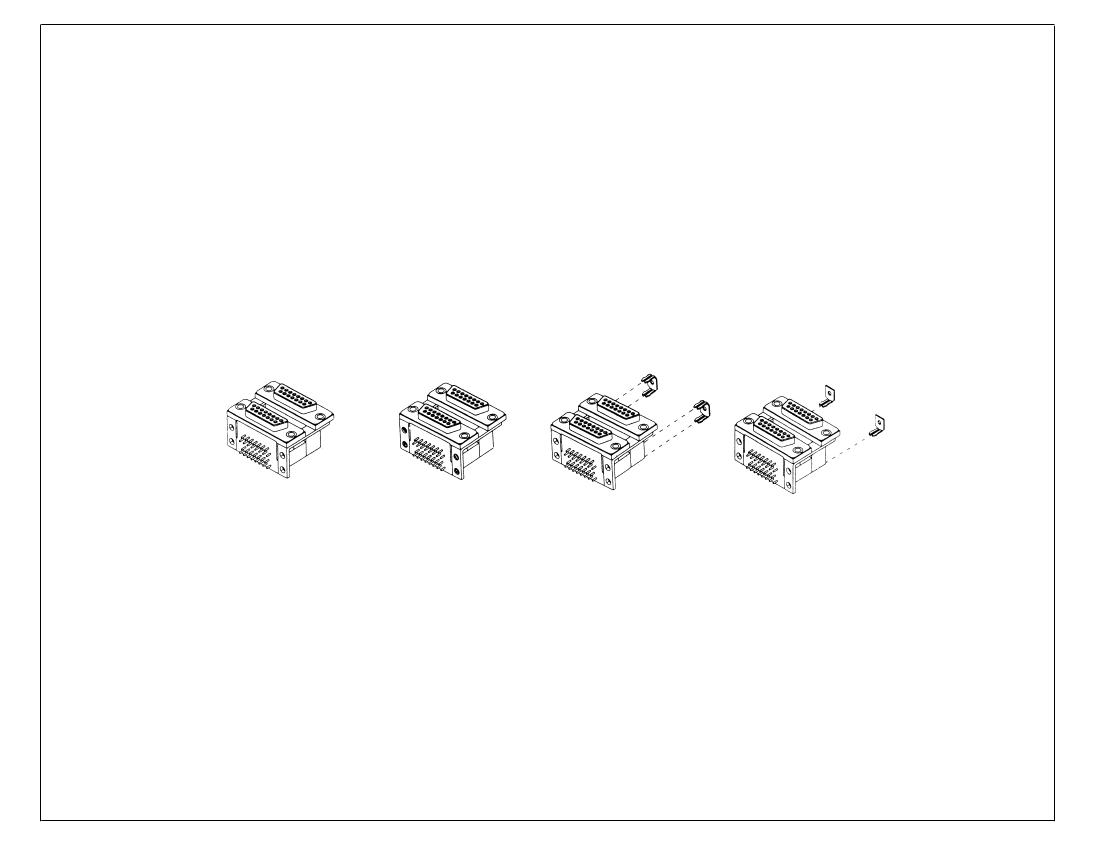

SEE PAGE 2

HARDWARE:

0 - W/OUT JACK SCREW

J - W/ JACK SCREW

PLATING OVERALL:

0 - FULL Au

4 - 10u" Au

5 - 15u" Au

7 - 30u" Au

8 - FULL TIN

RoHS

COMPLIANT

SELECTIVE PLATING:

1 - Au CONTACT AREA/TIN TAIL

9 - 15u" Au CONTACT AREA/TIN TAIL

A - 30u" Au CONTACT AREA/TIN TAIL

Drawn Checked Approved

Date

S.M.

01/07/04

SMP TECHNOLOGY, INC.

A.M.

S.M.

6/21/04

D.H.

S.M.

5/17/07

Stacked D-Sub Connector, 15 Position High Density Female Over 9 Position male

B.S.

19.05mm Between Connectors, Fork Style Grounding Bracket to PCB

.XXX +/- 0.05

ANGLE +/-2°

UNIT: mm

P/N: A21-115-209-42301-Z
