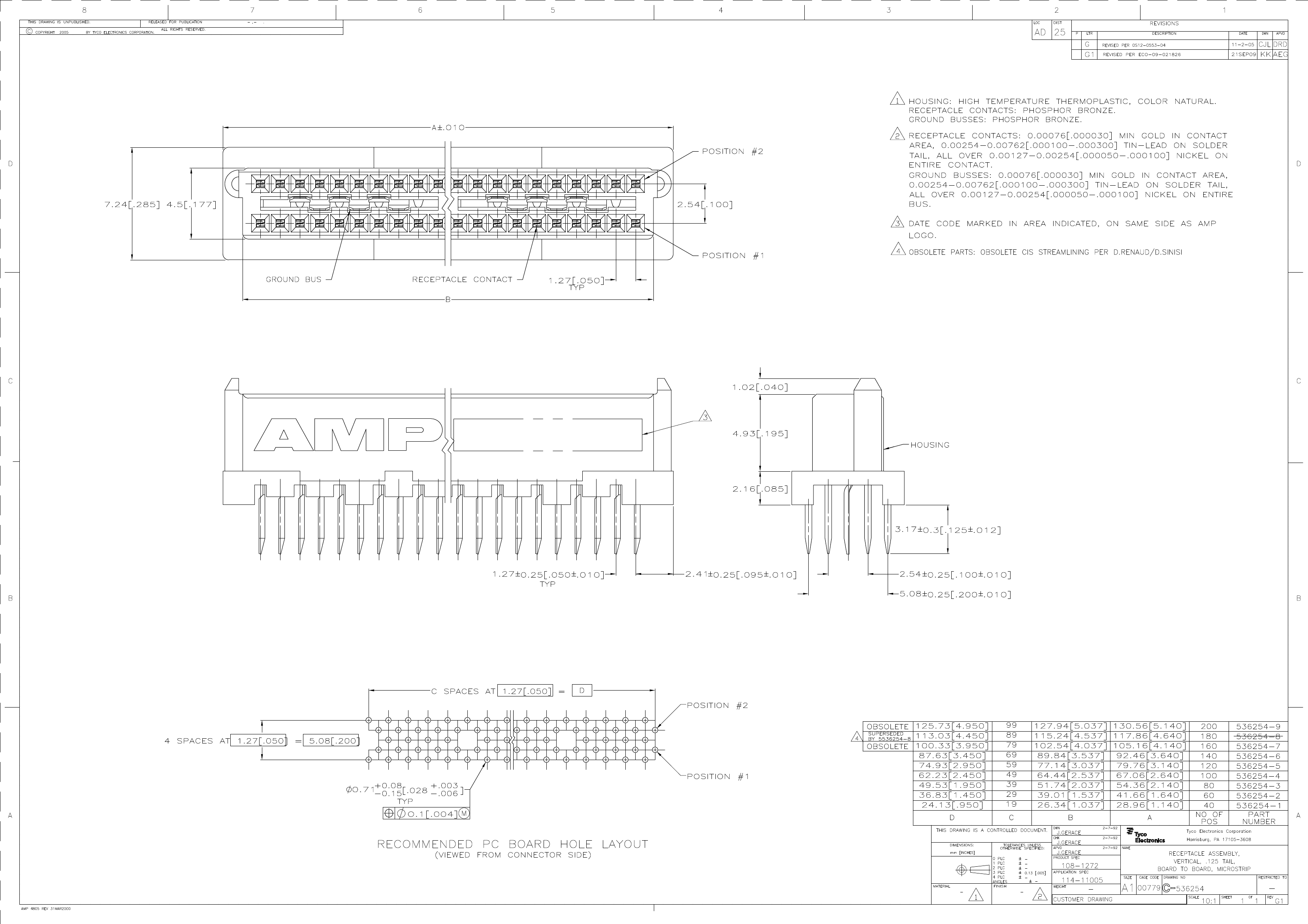

080,VT,RC,BD,BD,30AU,125ST
| Parameter Name | Attribute value |
| Brand Name | AMP |
| Is it Rohs certified? | incompatible |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Other features | STAGGERED CONFIGURATION |
| body width | 0.285 inch |
| subject depth | 0.28 inch |
| body length | 2.14 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | TIN LEAD |
| Contact completed and terminated | Tin/Lead (Sn/Pb) |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 500VAC V |
| Durability | 50 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 5000000000 Ω |
| Insulator color | NATURAL |
| insulator material | THERMOPLASTIC |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Plug contact pitch | 0.05 inch |
| Match contact row spacing | 0.1 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | GUIDE PIN |
| Installation option 2 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -60 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 1.27 mm |
| Plating thickness | 30u inch |
| polarization key | POLARIZED HOUSING |
| reliability | COMMERCIAL |
| Terminal length | 0.125 inch |
| Terminal pitch | 1.27 mm |
| Termination type | SOLDER |
| Total number of contacts | 80 |
| Base Number Matches | 1 |
| 536254-3 | 536254-4 | 536254-5 | 536254-1 | |
|---|---|---|---|---|
| Description | 080,VT,RC,BD,BD,30AU,125ST | 100,VT,RC,BD,BD,30AU,125ST | 120 CONTACT(S), FEMALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE | 040,VT,RC,BD,BD,30AU,125ST |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible |
| Reach Compliance Code | compli | compli | unknown | compli |
| Other features | STAGGERED CONFIGURATION | STAGGERED CONFIGURATION | STAGGERED CONFIGURATION | STAGGERED CONFIGURATION |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | TIN LEAD | NOT SPECIFIED | GOLD (30) OVER NICKEL | TIN LEAD |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | NOT SPECIFIED | PHOSPHOR BRONZE |
| DIN compliance | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO |
| MIL compliance | NO | NO | NO | NO |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD |
| Number of rows loaded | 2 | 2 | 2 | 2 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 80 | 100 | 120 | 40 |
| Brand Name | AMP | AMP | - | AMP |
| body width | 0.285 inch | 0.285 inch | - | 0.285 inch |
| subject depth | 0.28 inch | 0.28 inch | - | 0.28 inch |
| body length | 2.14 inch | 2.64 inch | - | 1.14 inch |
| Contact completed and terminated | Tin/Lead (Sn/Pb) | - | TIN LEAD OVER NICKEL | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie |
| contact mode | RECTANGULAR | RECTANGULAR | - | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | - | SQ PIN-SKT |
| Dielectric withstand voltage | 500VAC V | 500VAC V | - | 500VAC V |
| Durability | 50 Cycles | 50 Cycles | - | 50 Cycles |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | - | 5000000000 Ω |
| Insulator color | NATURAL | NATURAL | - | NATURAL |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | - | THERMOPLASTIC |
| JESD-609 code | e0 | - | e0 | e0 |
| Plug contact pitch | 0.05 inch | 0.05 inch | - | 0.05 inch |
| Match contact row spacing | 0.1 inch | 0.1 inch | - | 0.1 inch |
| Installation option 1 | GUIDE PIN | GUIDE PIN | - | GUIDE PIN |
| Installation option 2 | LOCKING | LOCKING | - | LOCKING |
| Number of connectors | ONE | ONE | - | ONE |
| PCB row number | 4 | 4 | - | 4 |
| Maximum operating temperature | 125 °C | 125 °C | - | 125 °C |
| Minimum operating temperature | -60 °C | -60 °C | - | -60 °C |
| PCB contact pattern | STAGGERED | STAGGERED | - | STAGGERED |
| PCB contact row spacing | 1.27 mm | 1.27 mm | - | 1.27 mm |
| Plating thickness | 30u inch | 30u inch | - | 30u inch |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | - | POLARIZED HOUSING |
| reliability | COMMERCIAL | COMMERCIAL | - | COMMERCIAL |
| Terminal length | 0.125 inch | 0.125 inch | - | 0.125 inch |
| Base Number Matches | 1 | 1 | - | 1 |
