13-0518-10TLE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 13-0518-10TLE

13-0518-10TLE: DescriptionIC Socket, SIP13, 13 Contact(s),; CategoryThe connector socket; File Size561KB，1 Pages; ManufacturerAries Electronics

Download Datasheet Parametric View All

13-0518-10TLE Overview

IC Socket, SIP13, 13 Contact(s),

13-0518-10TLE Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARD: UL 94V-0
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie
Contact material	BRASS
Device slot type	IC SOCKET
Type of equipment used	SIP13
Shell material	NYLON46
JESD-609 code	e0
Number of contacts	13
Base Number Matches	1

Preview

Download Datasheet

View All

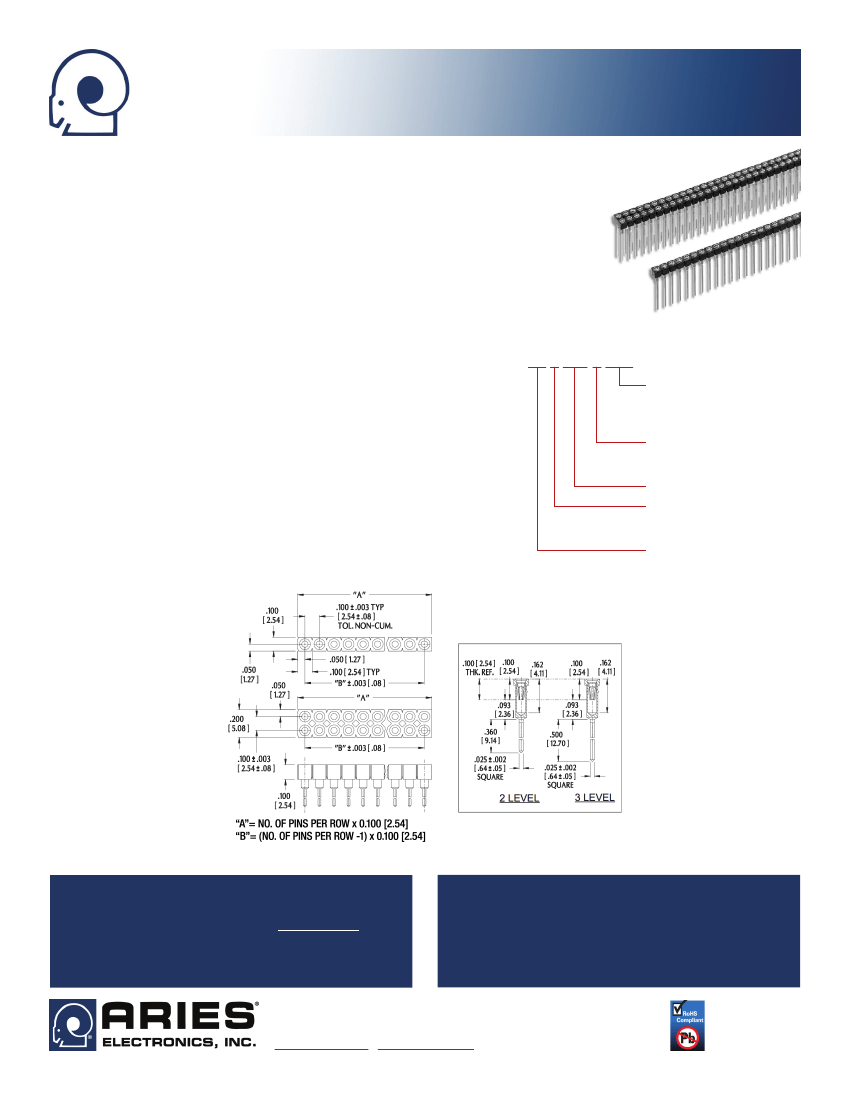

Series 508 Single & Dual Row Socket Strips

w/Collet Contacts & Wire Wrap Pins

FEATURES

• Available in Single or Dual Row Strips

• Cut to the Desired Number of Pins to Fit the Application

• Side-to-side and End-to-end Stackable

GENERAL SPECIFICATIONS

•

BODY MATERIAL: Black UL 94V-0 Nylon 4/6

•

PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTM B16/B16M-05

•

PIN BODY PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 or 200µ [5.08µ] min. 93/7 Sn/Pb per

ASTM B545

–OR– 200µ [5.08µ] min. Sn per ASTM B545 Type 1 over 100µ [2.54µ] min. Ni per SAE

AMS-QQ-N-290B

•

4-FINGER COLLET CONTACT: BeCu per UNS C17200 ASTM B194-08

ORDERING INFORMATION

•

CONTACT PLATING: 200µ [5.08µ] min. 93/7 Sn/Pb per ASTM B545 –OR–

200µ

[5.08µ] min. Sn per ASTM B545 Type 1 –OR– 10µ [0.25µ] min. Au per MIL-G-45204

XX X 508-X XXX

over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290B

Plating

•

CONTACT CURRENT RATING: 3 amps

0 = Au Collet, Sn Shell

0TL = Au Collet, Sn/Pb Shell

•

OPERATING TEMPERATURE: -67°F to 221°F [-55°C to 105°C] for Sn plating; -67°F

1 = Au Collet & Shell

to 257°F [-55°C to 125°C] for Au plating

Termination

•

INSERTION FORCE: 180g/pin, based on 0.018 [0.46] dia. test lead

2 = 2-level Wire Wrap Pins

•

WITHDRAWAL FORCE: 90g/pin, based on 0.018 [0.46] dia. test lead

3 = 3-level Wire Wrap Pins

•

NORMAL FORCE: 140g/pin, based on 0.018 [0.46] dia. test lead

Series

•

ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] dia., 0.110-0.160 [2.79-4.06] long

No. of Rows

0 = Single

1 = Dual

No. of Pins

1 to 40 – Single Row

2 to 40 – Dual Row

MOUNTING CONSIDERATIONS

•

SUGGESTED PCB PAD SIZE:

0.063 [1.60] dia.

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

FOR COLLECT SOCKETS w/SOLDER PIN TAILS, SEE DATA SHEET 12020

CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS

CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.

SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE

FURNISHED, DEPENDING ON QUANTITY.

ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS

WITHOUT NOTICE

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE

CONSIDERED UNCONTROLLED

2609 Bartram Road

•

Bristol, PA 19007-6810 USA

TEL 215-781-9956

•

FAX 215-781-9845

WWW.ARIESELEC.COM

•

INFO@ARIESELEC.COM

12021

Rev. 6.1

1 of 1
