FOLC-150-04-S-Q-LC datasheet, PDF

Datasheet> All Categories > The connector> The connector> FOLC-150-04-S-Q-LC

FOLC-150-04-S-Q-LC: Descriptionconn socket 200pos quad pcb; CategoryThe connector The connector; File Size482KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

FOLC-150-04-S-Q-LC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FOLC-150-04-S-Q-LC	-	-	View	Buy Now

FOLC-150-04-S-Q-LC Overview

conn socket 200pos quad pcb

FOLC-150-04-S-Q-LC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	2 weeks
Is Samacsys	N
Other features	HIGH RELIABILITY TIGER EYE CONTACT
Board mount options	LOCKPIN
body width	0.22 inch
subject depth	0.18 inch
body length	2.6 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrie
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.39 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	200
Evacuation force-minimum value	1.112 N
Base Number Matches	1

Preview

Download Datasheet

View All

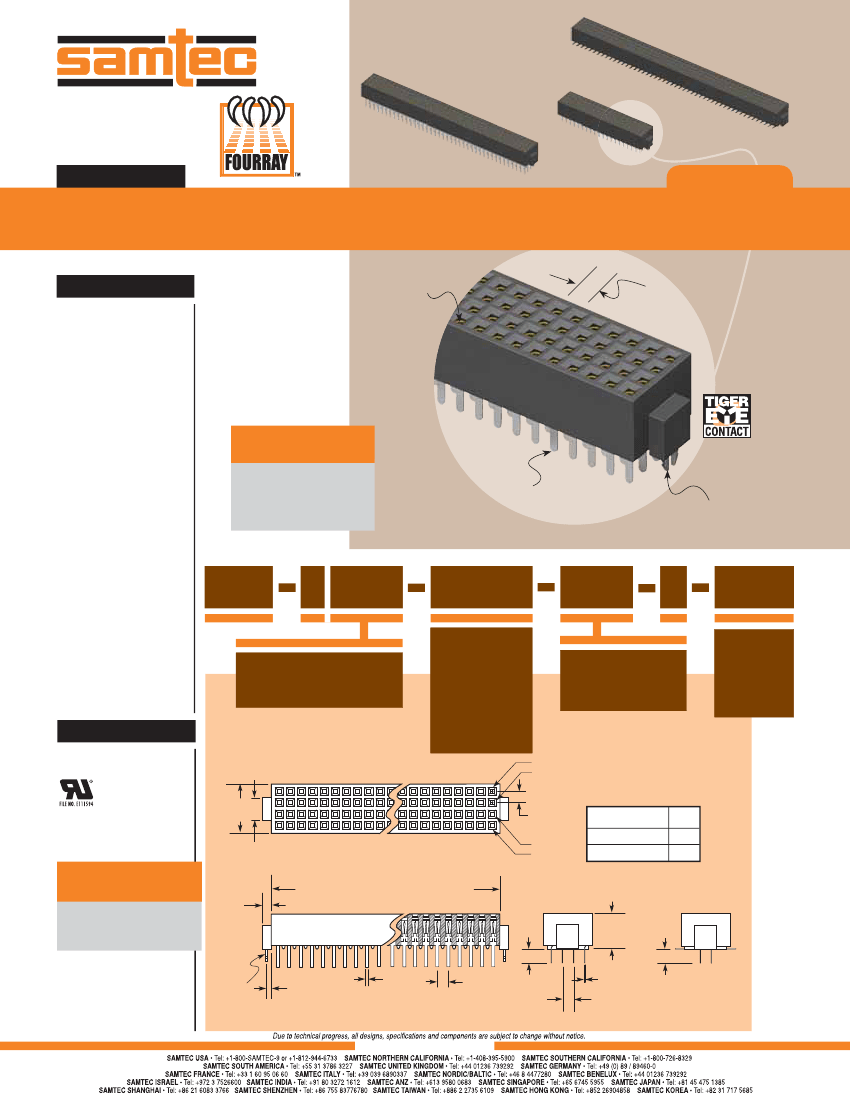

F-214

FOLC–150–M1–L–Q

FOLC–120–L1–L–Q–LC

FOLC–140–04–L–Q

(1,27 mm) .050"

FOLC SERIES

QUAD ROW TIGER EYE SOCKETS

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts

see www.samtec.com?FOLC

Insulator Material:

Black Liquid Crystal Polymer

Contact Material:

BeCu

Current Rating:

2.6 A per pin

(1 pin powered per row)

Operating Temp Range:

-55°C to +125°C

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Contact Resistance:

15 mΩ

Insertion Depth:

(3,30 mm) .130" to

(4,06 mm) .160"

Insertion Force:

(Single contact only)

Standard= 5.0 oz (1,39 N) avg.

LIF= 2.0 oz (0,56 N) avg.

Normal Force:

Standard= 70 grams

(0,69 N) avg.

LIF= 40 grams (0,39 N) avg.

Withdrawal Force:

(Single contact only)

Standard= 4 oz (1,11 N) avg.

LIF= 1.5 oz (0,42 N) avg.

Max Cycles:

100 with 30µ" (0,76 µm) Au

RoHS Compliant:

Yes

™

Mates with:

MOLC

Low Insertion Force

contacts available

(1,27 mm) .050" x

(1,27 mm) .050"

micro pitch

High reliability

Tiger Eye™

contacts

™

ALSO AVAILABLE

(MOQ Required)

• Other sizes

• Alignment pins

• Other platings

Contact Samtec.

Through-hole

Locking clip

options available

FOLC

NO. PINS

PER ROW

LEAD

STYLE

PLATING

OPTION

–01 & –04

20, 25, 30, 35,

40, 45, 50

(Standard sizes)

= Through-Hole

–LC

–L

= 10µ" (0,25 µm)

Gold on contact,

Matte Tin on tail

= Locking

Clip

(Manual

placement

required)

Processing:

Lead-Free Solderable:

Yes

SMT Lead Coplanarity:

(0,15 mm) .006" max

–M1 & –M2

= Mixed Technology

–L1 & –L4

= Low Insertion Force

Through-Hole

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

(2,54)

.100

(5,59)

.220

(1,27)

.050

TYP

LEAD

STYLE

(1,91)

.075

(3,04)

.120

– 01, –M1

– 04, –M2

OTHER

SOLUTIONS

• Surface mount design

with Tiger Buy

™

contacts

(see TOLC/SOLC Series)

Optional

Locking

Clip

(–LC)

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

No. of positions x (1,27) .050 + (0,51) .020

(1,02) .040 TYP (2)

(4,57)

.180

(0,51)

.020

(0,41)

.016

(1,27)

.050

(1,27)

.050

TYP

(0,13)

.005

TYP

Mixed

Technology

WWW.SAMTEC.COM
