533514-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 533514-1

533514-1: DescriptionHDI RECP ASSY 3 ROW 240 POS; CategoryThe connector The connector; File Size238KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

533514-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	533514-1	-	-	View	Buy Now

533514-1 Overview

HDI RECP ASSY 3 ROW 240 POS

533514-1 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	23 weeks
Other features	AMP-HDI
body width	0.36 inch
subject depth	0.724 inch
body length	9.05 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
DIN compliance	NO
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.5004 N
Insulation resistance	5000000000 Ω
Insulator color	NATURAL
insulator material	THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	533514
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	HOLE .099-.111
Installation option 2	GUIDE SLOT
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	240
Evacuation force-minimum value	.1112 N
Base Number Matches	1

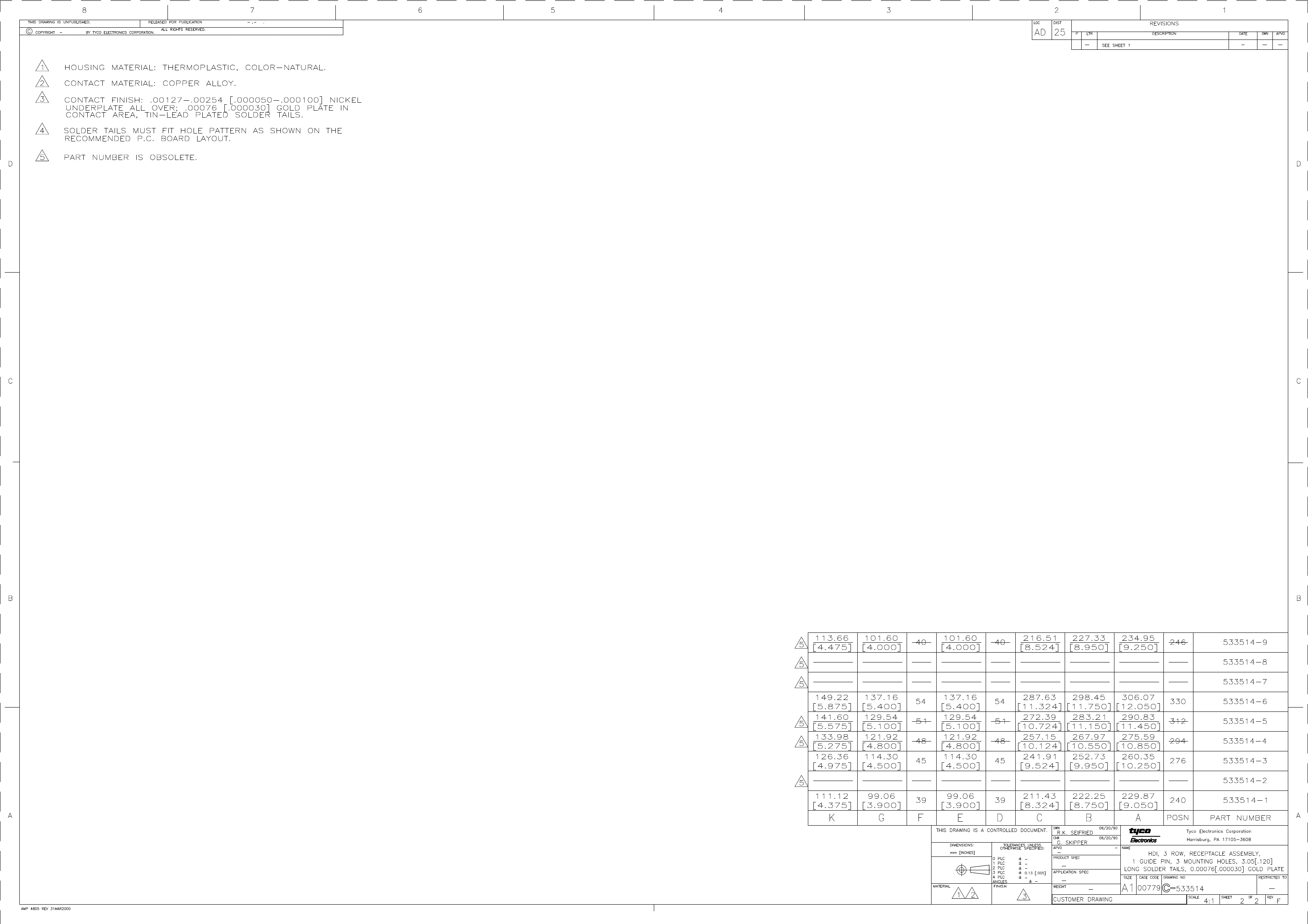

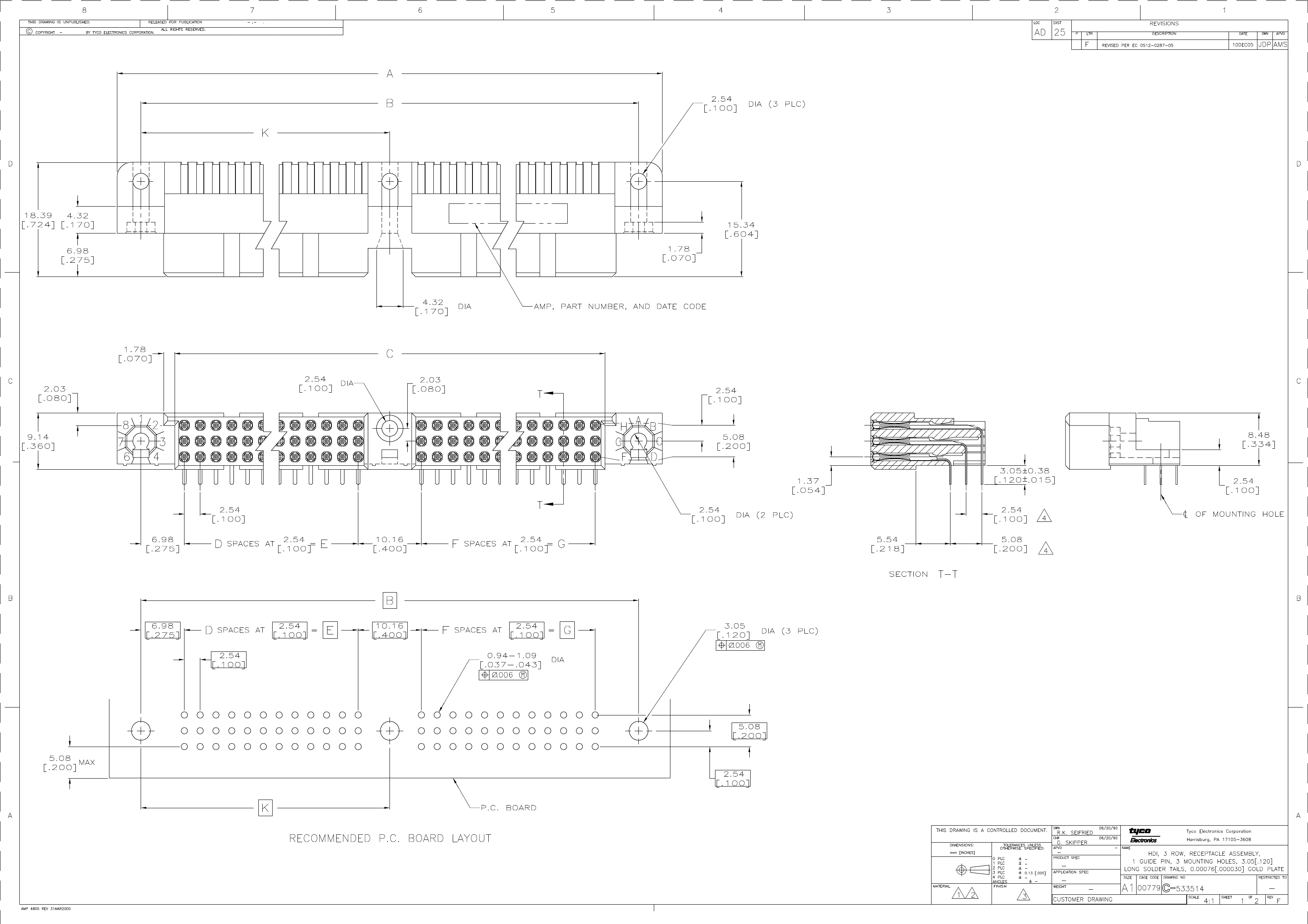

Preview

Download Datasheet

View All

533514-1 Related Products

	533514-1	533514-9	DIP-U1989-12-1802-B-S-1	533514-5	533514-2
Description	HDI RECP ASSY 3 ROW 240 POS	CONNECTOR, 246 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE	Array/Network Resistor, Isolated, Thin Film, 0.04W, 18000ohm, 50V, 0.1% +/-Tol, -10,10ppm/Cel, 7025,	HEADER CONNECTOR,PCB MNT,PLUG,312 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,#2-56,NATURAL	CONNECTOR, FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE
Reach Compliance Code	compli	unknown	compliant	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	-	-
Other features	AMP-HDI	-	ULTRA PRECISION	MOUNT, EARS OPTIONAL	-
Body/casing type	RECEPTACLE	RECEPTACLE	-	PLUG	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	GOLD (30) OVER NICKEL	-	AU	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN	TIN LEAD OVER NICKEL	-	NICKEL	TIN LEAD OVER NICKEL
Contact point gender	FEMALE	FEMALE	-	FEMALE	FEMALE
DIN compliance	NO	NO	-	-	NO
Filter function	NO	NO	-	-	NO
IEC compliance	NO	NO	-	-	NO
JESD-609 code	e3	e0	e4	-	e0
MIL compliance	NO	NO	-	-	NO
Manufacturer's serial number	533514	533514	-	533514	533514
Mixed contacts	NO	NO	-	-	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	-	BOARD	BOARD
Number of rows loaded	3	3	-	3	3
Maximum operating temperature	125 °C	-	125 °C	125 °C	-
Minimum operating temperature	-65 °C	-	-55 °C	-65 °C	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	-	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	-	SOLDER	SOLDER
Total number of contacts	240	246	-	312	-
Base Number Matches	1	1	-	1	-
