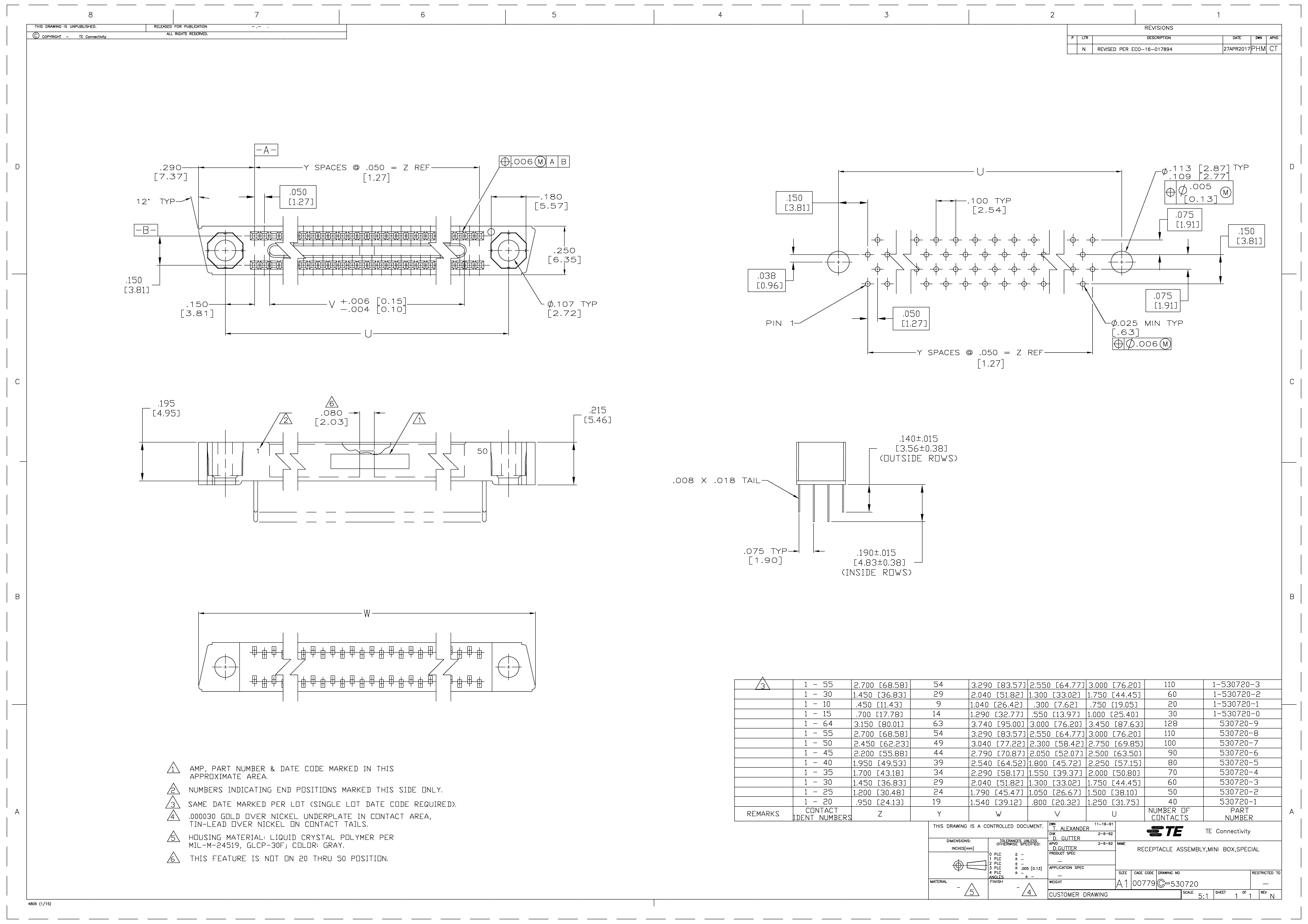

MINI-BX-RCPT ASSY 100 POS
| Parameter Name | Attribute value |
| Brand Name | AMP |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Objectid | 1503009689 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Samacsys Description | MINI-BX-RCPT ASSY 100 POS |
| Samacsys Manufacturer | TE Connectivity |
| Samacsys Modified On | 2020-10-09 20:32:13 |
| YTEOL | 9.15 |
| Other features | STANDARD: MIL-C-55302 |
| body width | 0.255 inch |
| subject depth | 0.215 inch |
| body length | 3.04 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT APPLICABLE |
| Contact completed and terminated | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier |
| Contact point gender | FEMALE |
| Contact material | NOT APPLICABLE |
| contact mode | STAGGERED |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 600VAC V |
| Electromagnetic interference shielding | NO |
| empty shell | YES |
| Filter function | NO |
| IEC compliance | NO |
| Insulator color | GRAY |
| insulator material | LIQUID CRYSTAL POLYMER |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Power Connector Ratings | 1.5A |
| Plug contact pitch | 0.05 inch |
| Match contact row spacing | 0.15 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | HOLE .099-.111 |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of ports | 1 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -65 °C |
| Options | GENERAL PURPOSE |
| Panel mounting | NO |
| Plating thickness | 30u inch |
| polarization key | POLARIZED |
| Rated current (signal) | 1.5 A |
| Guideline | UL |
| Terminal length | 0.14 inch |
| Terminal pitch | 1.27 mm |
| Termination type | SOLDER |
| Total number of contacts | 100 |
| UL Flammability Code | 94V-0 |
| 530720-7 | 530720-3 | |
|---|---|---|
| Description | MINI-BX-RCPT ASSY 100 POS | MINI BX-RCPT ASSY 60 POS |
| Brand Name | AMP | AMP |
| Is it lead-free? | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible |
| Reach Compliance Code | compliant | compli |
| ECCN code | EAR99 | EAR99 |
| Other features | STANDARD: MIL-C-55302 | STANDARD: MIL-C-55302 |
| body width | 0.255 inch | 0.255 inch |
| subject depth | 0.215 inch | 0.22 inch |
| body length | 3.04 inch | 2.04 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT APPLICABLE | GOLD (30) |
| Contact completed and terminated | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie |
| Contact point gender | FEMALE | FEMALE |
| Contact material | NOT APPLICABLE | BERYLLIUM COPPER |
| contact mode | STAGGERED | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO |
| Filter function | NO | NO |
| IEC compliance | NO | NO |
| insulator material | LIQUID CRYSTAL POLYMER | GLASS FILLED LIQUID CRYSTAL POLYMER |
| JESD-609 code | e0 | e0 |
| MIL compliance | NO | YES |
| Plug contact pitch | 0.05 inch | 0.05 inch |
| Match contact row spacing | 0.15 inch | 0.15 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO | NO |
| Installation option 1 | HOLE .099-.111 | HOLE .099-.111 |
| Installation method | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD |
| Number of connectors | ONE | ONE |
| PCB row number | 4 | 4 |
| Number of rows loaded | 2 | 2 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE |
| Plating thickness | 30u inch | 30u inch |
| polarization key | POLARIZED | CENTER |
| Terminal length | 0.14 inch | 0.14 inch |
| Terminal pitch | 1.27 mm | 1.27 mm |
| Termination type | SOLDER | SOLDER |
| Total number of contacts | 100 | 60 |
