Part Number

Search

534175-4

Description
MINI BOX RECP 90 POS SEALED
CategoryThe connector    The connector

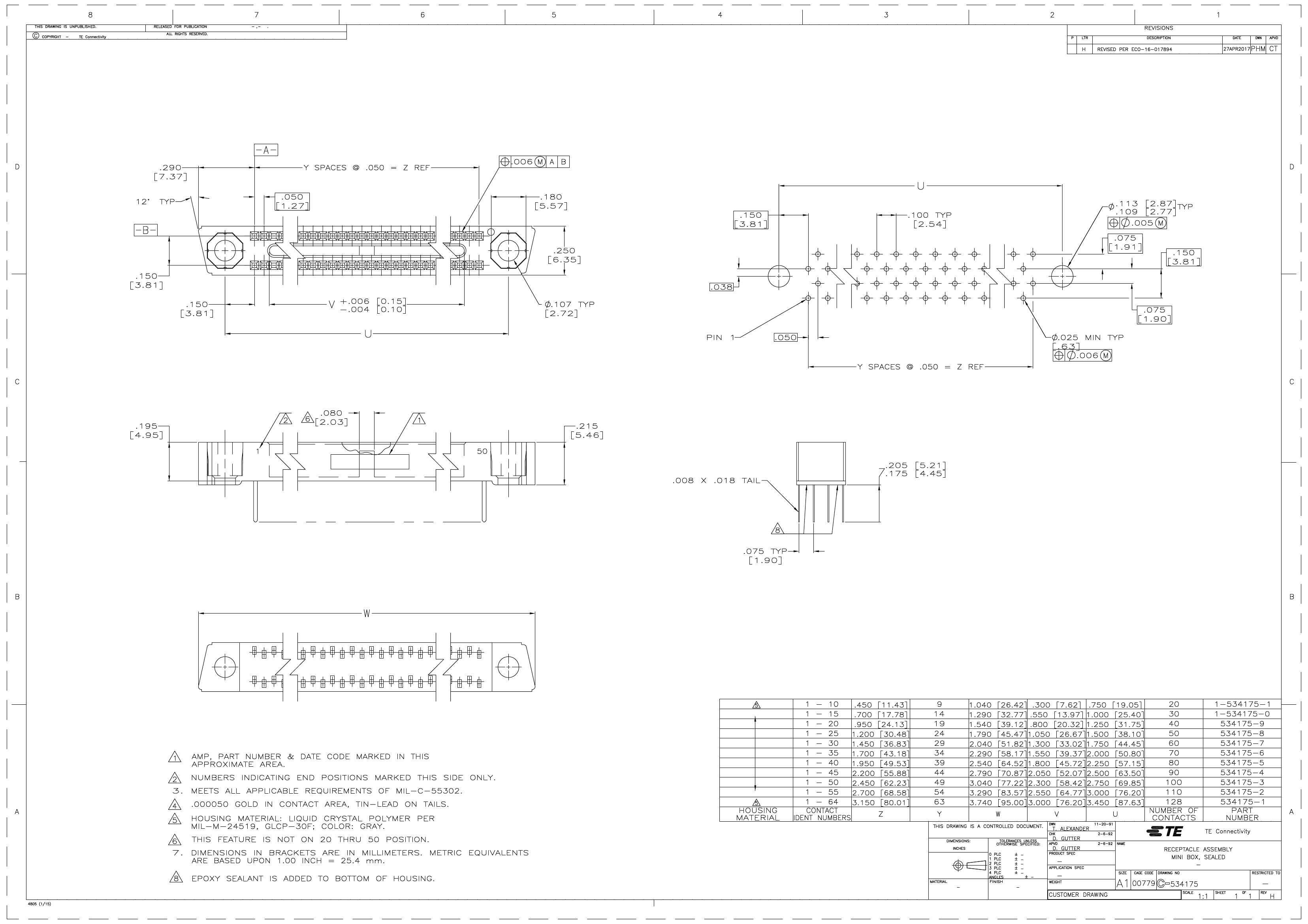

File Size128KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

534175-4 Online Shopping

Suppliers Part Number Price MOQ In stock
534175-4 - - View Buy Now

534175-4 Overview

MINI BOX RECP 90 POS SEALED

534175-4 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Reach Compliance Codecompli
ECCN codeEAR99
Factory Lead Time6 weeks
Other featuresSTANDARD: MIL-C-55302
body width0.255 inch
subject depth0.22 inch
body length2.79 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationGOLD (50)
Contact completed and terminatedTin/Lead (Sn/Pb) - with Nickel (Ni) barrie
Contact point genderFEMALE
Contact materialBERYLLIUM COPPER
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 codee0
MIL complianceYES
Plug contact pitch0.05 inch
Match contact row spacing0.15 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1HOLE .099-.111
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number4
Number of rows loaded2
OptionsGENERAL PURPOSE
PCB contact row spacing1.905 mm
Plating thickness50u inch
polarization keyCENTER
reliabilityMIL-C-55302
Terminal length0.19 inch
Terminal pitch1.27 mm
Termination typeSOLDER
Total number of contacts90
Base Number Matches1

534175-4 Related Products

534175-4 534175-7 534175-2 534175-1 534175-6
Description MINI BOX RECP 90 POS SEALED MINI BOX RCPT 60 POS SEALED MINI BOX RECP ASY 110 POS SEAL MINI BOX RECP 128 POS SEALED MINI BOX RECP ASSY 70 POS SEAL
Brand Name AMP AMP AMP AMP AMP
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible
Reach Compliance Code compli compli compli compli compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99
Other features STANDARD: MIL-C-55302 STANDARD: MIL-C-55302 STANDARD: MIL-C-55302 STANDARD: MIL-C-55302 STANDARD: MIL-C-55302
body width 0.255 inch 0.255 inch 0.255 inch 0.255 inch 0.255 inch
subject depth 0.22 inch 0.22 inch 0.22 inch 0.22 inch 0.22 inch
body length 2.79 inch 2.04 inch 3.29 inch 3.74 inch 2.29 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation GOLD (50) GOLD (50) GOLD (50) GOLD (50) GOLD (50)
Contact completed and terminated Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie TIN LEAD OVER NICKEL Tin/Lead (Sn/Pb) - with Nickel (Ni) barrie Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE
Contact material BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER BERYLLIUM COPPER
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
DIN compliance NO NO NO NO NO
Filter function NO NO NO NO NO
IEC compliance NO NO NO NO NO
insulator material GLASS FILLED LIQUID CRYSTAL POLYMER GLASS FILLED LIQUID CRYSTAL POLYMER GLASS FILLED LIQUID CRYSTAL POLYMER GLASS FILLED LIQUID CRYSTAL POLYMER GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code e0 e0 e0 e0 e0
MIL compliance YES YES YES YES YES
Plug contact pitch 0.05 inch 0.05 inch 0.05 inch 0.05 inch 0.05 inch
Match contact row spacing 0.15 inch 0.15 inch 0.15 inch 0.15 inch 0.15 inch
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO NO NO NO
Installation option 1 HOLE .099-.111 HOLE .099-.111 HOLE .099-.111 HOLE .099-.111 HOLE .099-.111
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE ONE
PCB row number 4 4 4 4 4
Number of rows loaded 2 2 2 2 2
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
PCB contact row spacing 1.905 mm 1.905 mm 1.905 mm 1.905 mm 1.905 mm
Plating thickness 50u inch 50u inch 50u inch 50u inch 50u inch
polarization key CENTER CENTER CENTER CENTER CENTER
reliability MIL-C-55302 MIL-C-55302 MIL-C-55302 MIL-C-55302 MIL-C-55302
Terminal length 0.19 inch 0.19 inch 0.19 inch 0.19 inch 0.19 inch
Terminal pitch 1.27 mm 1.27 mm 1.27 mm 1.27 mm 1.27 mm
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 90 60 110 128 70
Base Number Matches 1 1 1 1 1
Factory Lead Time 6 weeks 12 weeks - 6 weeks 15 weeks
