81CNQ045A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 81CNQ045A

81CNQ045A: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 45V V(RRM), Silicon, D61-8, 3 PIN; CategoryDiscrete semiconductor diode; File Size231KB，8 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric Compare View All

81CNQ045A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	81CNQ045A	-	-	View	Buy Now

81CNQ045A Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 45V V(RRM), Silicon, D61-8, 3 PIN

81CNQ045A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
package instruction	R-PSFM-T3
Contacts	3
Manufacturer packaging code	D61-8
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FREE WHEELING DIODE, HIGH RELIABILITY
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.74 V
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Maximum non-repetitive peak forward current	4600 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	175 °C
Maximum output current	80 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	45 V
surface mount	NO
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

Bulletin PD-20040 rev. A 09/01

81CNQ...A SERIES

SCHOTTKY RECTIFIER

New GenIII D-61 Package

Major Ratings and Characteristics

Characteristics

F(AV)

Rectangular

waveform

RRM

range

FSM

@ tp = 5 µs sine

@ 40 Apk, T

= 125°C

(per leg)

range

80 Amp

Description/Features

The 81CNQ...A center tap Schottky rectifier module series has

been optimized for low reverse leakage at high temperature.

The proprietary barrier technology allows for reliable operation

up to 175 °C junction temperature. Typical applications are in

switching power supplies, converters, free-wheeling diodes,

and reverse battery protection.

175 °C T

operation

Center tap module

High purity, high temperature epoxy encapsulation for

enhanced mechanical strength and moisture resistance

Low forward voltage drop

High frequency operation

Guard ring for enhanced ruggedness and long term

reliability

81CNQ...A Units

35 to 45

4600

0.54

- 55 to 175

°C

New fully transfer-mold low profile, small

footprint, high current package

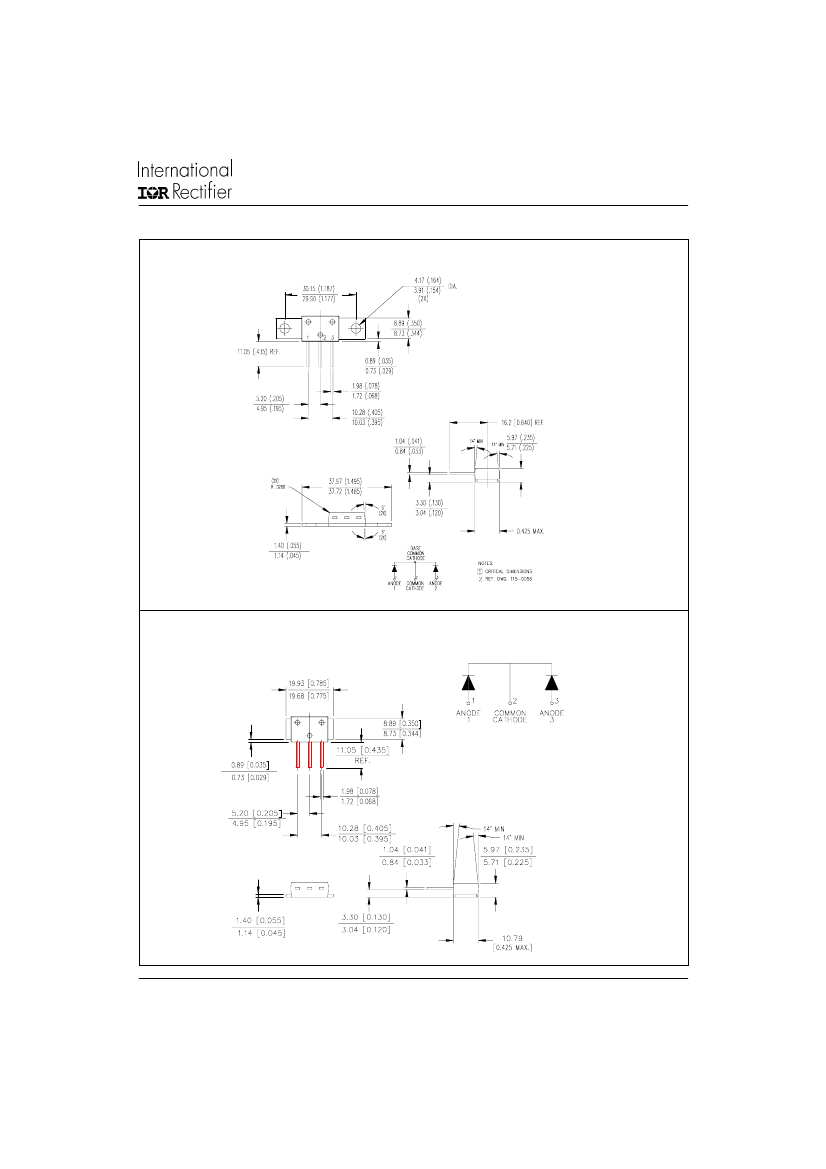

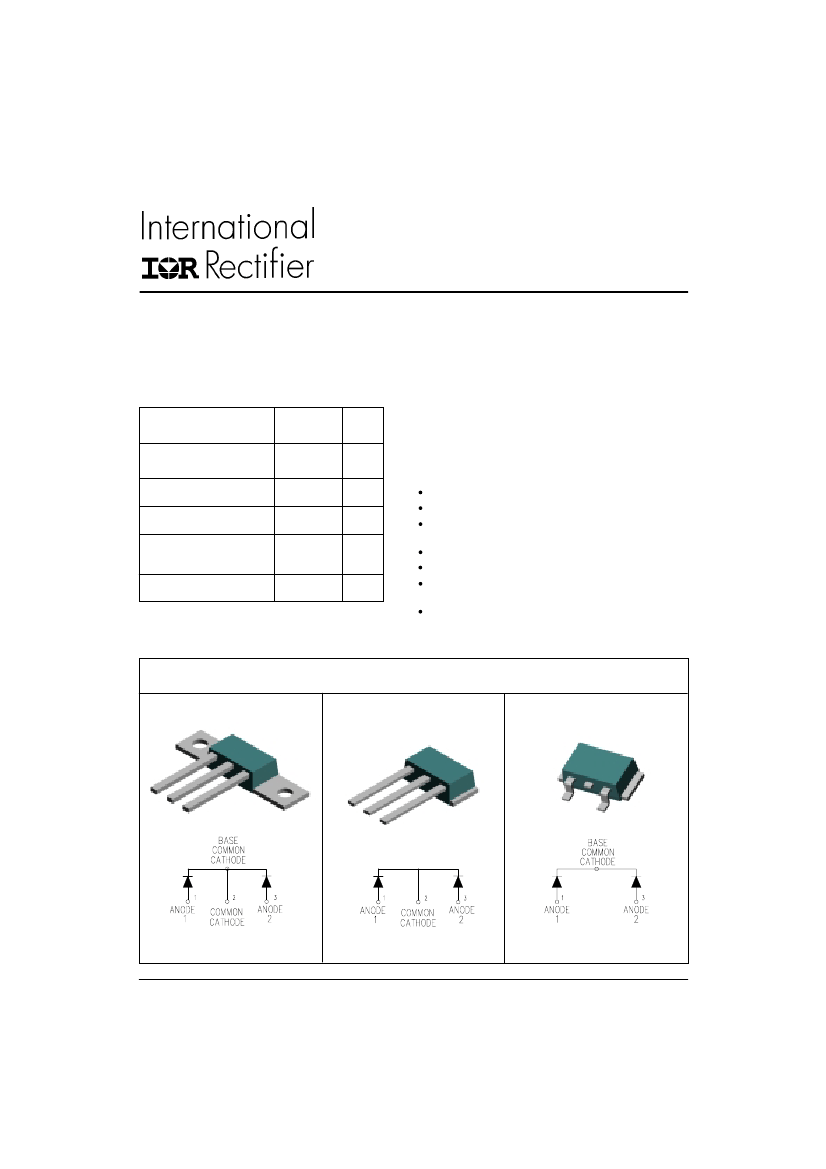

Case Styles

81CNQ...A

81CNQ...ASM

81CNQ...ASL

D61-8

www.irf.com

D61-8-SM

D61-8-SL

81CNQ045A Related Products

	81CNQ045A	81CNQ045ASL	81CNQ045ASM	81CNQ040ASL	81CNQ040A	81CNQ040ASM	81CNQ035ASM	81CNQ035ASL	81CNQ035A
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 45V V(RRM), Silicon, D61-8, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 45V V(RRM), Silicon, D61-8-SL, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 45V V(RRM), Silicon, D61-8-SM, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 40V V(RRM), Silicon, D61-8-SL, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 40V V(RRM), Silicon, D61-8, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 40V V(RRM), Silicon, D61-8-SM, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 35V V(RRM), Silicon, D61-8-SM, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 35V V(RRM), Silicon, D61-8-SL, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 80A, 35V V(RRM), Silicon, D61-8, 3 PIN
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	R-PSFM-T3	R-PSSO-G2	R-PSIP-T3	R-PSSO-G2	R-PSFM-T3	R-PSIP-T3	R-PSIP-T3	R-PSSO-G2	R-PSFM-T3
Contacts	3	3	3	3	3	3	3	3	3
Manufacturer packaging code	D61-8	D61-8-SL	D61-8-SM	D61-8-SL	D61-8	D61-8-SM	D61-8-SM	D61-8-SL	D61-8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	unknown	compliant	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	FREE WHEELING DIODE, HIGH RELIABILITY	FREE WHEELING DIODE, HIGH RELIABILITY	FREE WHEELING DIODE, HIGH RELIABILITY	FREE WHEELING DIODE, HIGH RELIABILITY	FREE WHEELING DIODE, HIGH RELIABILITY	FREE WHEELING DIODE, HIGH RELIABILITY	FREE WHEELING DIODE, HIGH RELIABILITY	FREE WHEELING DIODE, HIGH RELIABILITY	FREE WHEELING DIODE, HIGH RELIABILITY
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.74 V	0.74 V	0.74 V	0.74 V	0.74 V	0.74 V	0.74 V	0.74 V	0.74 V
JESD-30 code	R-PSFM-T3	R-PSSO-G2	R-PSIP-T3	R-PSSO-G2	R-PSFM-T3	R-PSIP-T3	R-PSIP-T3	R-PSSO-G2	R-PSFM-T3
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	4600 A	4600 A	4600 A	4600 A	4600 A	4600 A	4600 A	4600 A	4600 A
Number of components	2	2	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1	1	1
Number of terminals	3	2	3	2	3	3	3	2	3
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	80 A	80 A	80 A	80 A	80 A	80 A	80 A	80 A	80 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	FLANGE MOUNT	IN-LINE	IN-LINE	SMALL OUTLINE	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	45 V	45 V	45 V	40 V	40 V	40 V	35 V	35 V	35 V
surface mount	NO	YES	NO	YES	NO	NO	NO	YES	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Base Number Matches	1	1	1	1	1	1	1	1	1
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-
