3-1534415-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-1534415-2

3-1534415-2: DescriptionDUOPL POW FEM CON2P; CategoryThe connector; File Size552KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-1534415-2 Overview

DUOPL POW FEM CON2P

3-1534415-2 Parametric

Parameter Name	Attribute value
Connector System	wire to board
Connector type	female end
Connectors and terminals terminate to	A printed circuit board
Connector type	card edge
Connector type	Connector components
shape	standard
Cable type	Stranded wire
Number of power supply locations	2
Number of Positions	2
Rows	1
Connector terminal load status	Fully loaded
PCB mounting direction	right angle
Pre-installed	yes
Number of slots for insulation displacement	2
Card entry method	side
Support	Without
pre-assembled	yes
hot swap	no
UL Voltage Rating (VAC)	250
Operating Voltage	250 V
Keying between cavity number	R2.5 / PRL-2-
Cable exit angle	90°
Terminal base material	CuNiSi
Contact Current Rating (Max) (A)	6
Terminal contact plating material	tin
Terminal contact plating thickness	3 – 6 µm [ 196.849 – 787.399 µin ]
Terminal conduction (typ.)	power supply
Terminal termination area plating material	tin
Terminal type	socket
Cable termination method	Piercing crimping (IDC)
PCB installation and fixation	Without
Panel mount features	Without
PCB mounting alignment	with
Terminal retention type	lock gun
Lock clip position	none
Connector mounting type	Cable installation
Terminal positioning force	with
joint fixation	with
Joint alignment type	keying
joint alignment	with
Centerline (Pitch)	5 mm [ .197 in ]
Shell color	nature
Shell material	PA 6
end cap	Without
Shell type	closed end
Accepts Wire Insulation Diameter Range	2.2 mm [ .087 in ]
PCB thickness (recommended)	1.5 mm [ .059 in ]
Cable size	22 – 20 AWG [ .35 – .5 mm² ]
high	7.3 mm [ .287 in ]
Acceptable wire insulation diameter range (mm)	1.2 – 2.4
Working group temperature range	-40 – 110 °C [ -40 – 230 °F ]
Circuit Application	Signal
Applicable to	PCB frame, male header
Agencies/Standards	UL
UL flammability rating	UL 94V-2
Package quantity	3850
Encapsulation method	tray

Preview

Download Datasheet

View All

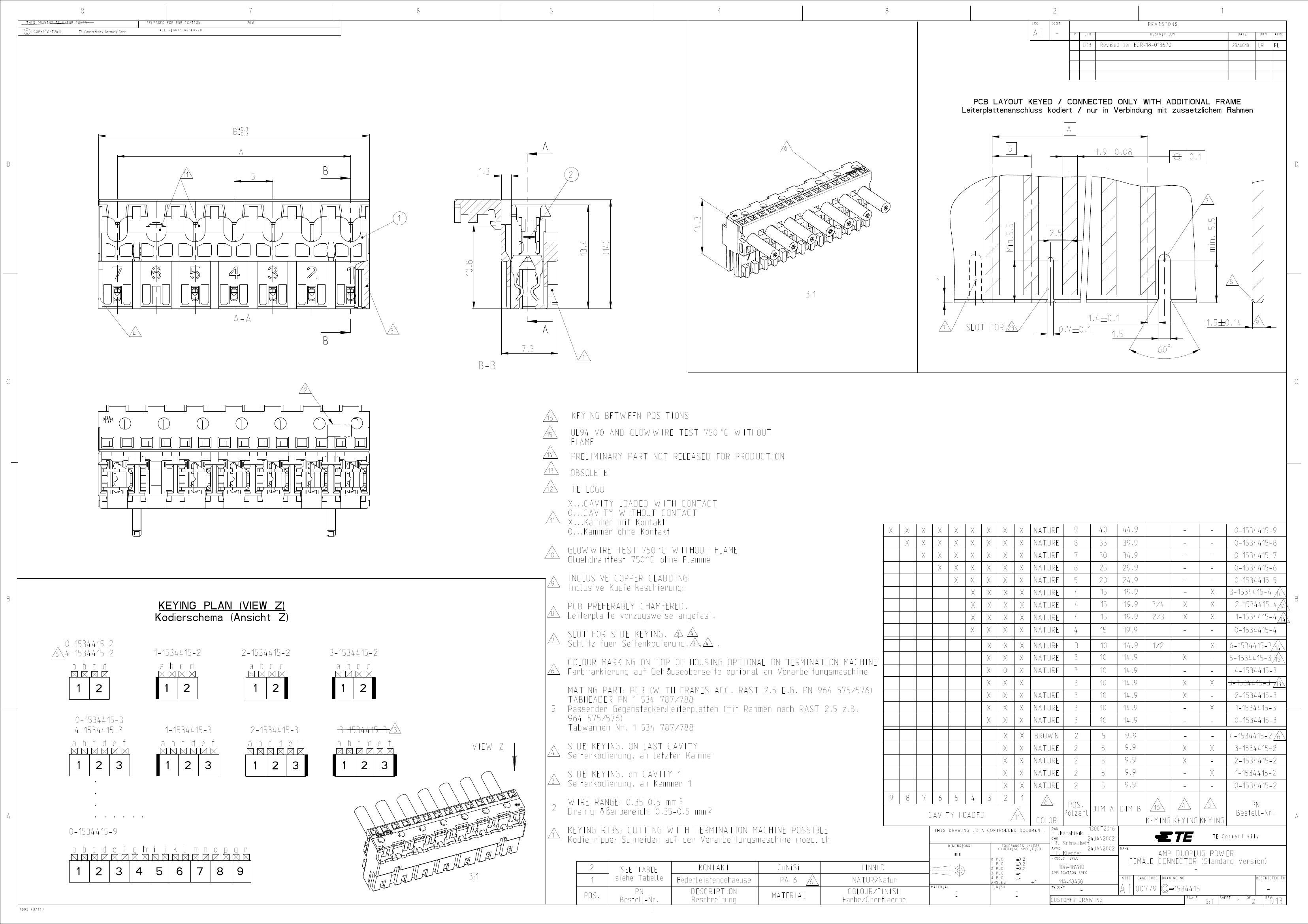

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

TE Connectivity Germany GmbH

2016

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

2016

D13

Revised per ECR-18-013670

28AUG18

PCB LAYOUT KEYED / CONNECTED ONLY WITH ADDITIONAL FRAME

Leiterplattenanschluss kodiert / nur in Verbindung mit zusaetzlichem Rahmen

+0.1

-0.3

1.9 0.08

0.1

1.3

Min.

5.5

13.4

10.8

( )

2.5

min. 5.5

14.3

3:1

A-A

SLOT FOR

1.4 0.1

0.7 0.1

1.5

60 $

1.5 0.14

7.3

B-B

KEYING BETWEEN POSITIONS

UL94 V0 AND GLOWWIRE TEST 750°C WITHOUT

FLAME

PRELIMINARY PART NOT RELEASED FOR PRODUCTION

OBSOLETE

TE LOGO

X...CAVITY

0...CAVITY

X...Kammer

0...Kammer

LOADED WITH CONTACT

WITHOUT CONTACT

mit Kontakt

ohne Kontakt

NATURE

BROWN

NATURE

44.9

39.9

34.9

29.9

24.9

19.9

14.9

9.9

3/4

2/3

1/2

0-1534415-9

0-1534415-8

0-1534415-7

0-1534415-6

3-1534415-4

0-1534415-5

GLOWWIRE TEST 750°C WITHOUT FLAME

Gluehdrahttest 750^C ohne Flamme

INCLUSIVE COPPER CLADDING:

Inclusive Kupferkaschierung:

PCB PREFERABLY CHAMFERED.

Leiterplatte vorzugsweise angefast.

SLOT FOR SIDE KEYING,

Schlitz fuer Seitenkodierung,

KEYING PLAN (VIEW Z)

Kodierschema (Ansicht Z)

2-1534415-4

0-1534415-2

4-1534415-2

a b c d

0-1534415-4

1-1534415-4

1-1534415-2

a b c d

2-1534415-2

a b c d

3-1534415-2

a b c d

14.9

6-1534415-3

4-1534415-3

COLOUR MARKING ON TOP OF HOUSING OPTIONAL ON TERMINATION MACHINE

Farbmarkierung auf Gehäuseoberseite optional an Verarbeitungsmaschine

MATING PART: PCB (WITH FRAMES ACC. RAST 2.5 E.G. PN 964 575/576)

TABHEADER PN 1 534 787/788

Passender Gegenstecker:Leiterplatten (mit Rahmen nach RAST 2.5 z.B.

964 575/576)

Tabwannen Nr. 1 534 787/788

SIDE KEYING, ON LAST CAVITY

Seitenkodierung, an letzter Kammer

SIDE KEYING, on CAVITY 1

Seitenkodierung, an Kammer 1

WIRE RANGE: 0.35-0.5 mm²

Drahtgrößenbereich: 0.35-0.5 mm²

KEYING RIBS; CUTTING WITH TERMINATION MACHINE POSSIBLE

Kodierrippe; Schneiden auf der Verarbeitungsmaschine moeglich

POS.

KONTAKT

SEE TABLE

siehe Tabelle Federleistengehaeuse

Bestell-Nr.

DESCRIPTION

Beschreibung

CuNiSi

PA 6

MATERIAL

5-1534415-3

3-1534415-3

2-1534415-3

1-1534415-3

0-1534415-3

4-1534415-2

3-1534415-2

2-1534415-2

1-1534415-2

0-1534415-2

Bestell-Nr.

a b c d e f

0-1534415-3

4-1534415-3

a b c d e f

1-1534415-3

a b c d e f

2-1534415-3

a b c d e f

3-1534415-3

VIEW Z

9.9

2 3

. . . . . .

CAVITY LOADED

0-1534415-9

a b c d e f g h i j k l m n o p q r

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

COLOR

DWN

POS.

DIM A DIM B

Polzahl

3:1

TINNED

COLOUR/FINISH

Farbe/Oberflaeche

NATUR/Natur

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.2

13OCT2016

H.Karabiyik

CHK

24JAN2002

B. Schnaubelt

APVD

24JAN2002

T. Klenner

PRODUCT SPEC

APPLICATION SPEC

KEYING KEYING KEYING

TE Connectivity

NAME

108-18780

114-18458

SIZE

AMP DUOPLUG POWER

FEMALE CONNECTOR (Standard Version)

CAGE CODE

DRAWING NO

1 $

WEIGHT

CUSTOMER DRAWING

RESTRICTED TO

00779

1534415

SCALE

4805 (3/11)

5:1

SHEET

REV

D13
