3-1534798-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-1534798-5

3-1534798-5: DescriptionAMP DUOPLUG MK2 CONNECTOR 5P SELECTIVE; CategoryThe connector; File Size690KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-1534798-5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1534798-5	-	-	View	Buy Now

3-1534798-5 Overview

AMP DUOPLUG MK2 CONNECTOR 5P SELECTIVE

3-1534798-5 Parametric

Parameter Name	Attribute value
Connector System	wire to board
Connector type	female end
Connectors and terminals terminate to	A printed circuit board
Connector type	card edge
Connector type	Connector components
Cable type	Separate conductor
Number of Positions	5
Rows	1
Connector terminal load status	selective loading
PCB mounting direction	right angle
Pre-installed	yes
Card entry method	side
Support	Without
pre-assembled	yes
hot swap	no
Operating Voltage	250 V
Cable exit angle	90°
Terminal base material	CuS
Contact Current Rating (Max) (A)	2
Terminal contact plating material	tin
Terminal contact plating thickness (µm)	3 – 6
Terminal termination area plating material	tin
Terminal type	socket
Cable termination method	Piercing crimping (IDC)
PCB installation and fixation	Without
Panel mount features	Without
Terminal retention type	lock gun
Lock clip position	none
Connector mounting type	Cable installation
Terminal positioning force	with
joint fixation	Without
Joint alignment type	keying
joint alignment	with
Centerline (Pitch)	2.5 mm [ .098 in ]
Shell color	nature
Shell material	PA 6 GF
end cap	Without
Shell type	closed end
PCB thickness (recommended)	1.5 mm [ .059 in ]
Cable size	24 – 22 AWG [ .22 – .35 mm² ]
high	7.3 mm [ .287 in ]
Acceptable wire insulation diameter range	1.2 – 1.6 mm [ .047 – .063 in ]
Working group temperature range	-40 – 110 °C [ -40 – 230 °F ]
Circuit Application	Signal
Applicable to	PCB frame, male header
Package quantity	2618
Encapsulation method	tray

Preview

Download Datasheet

View All

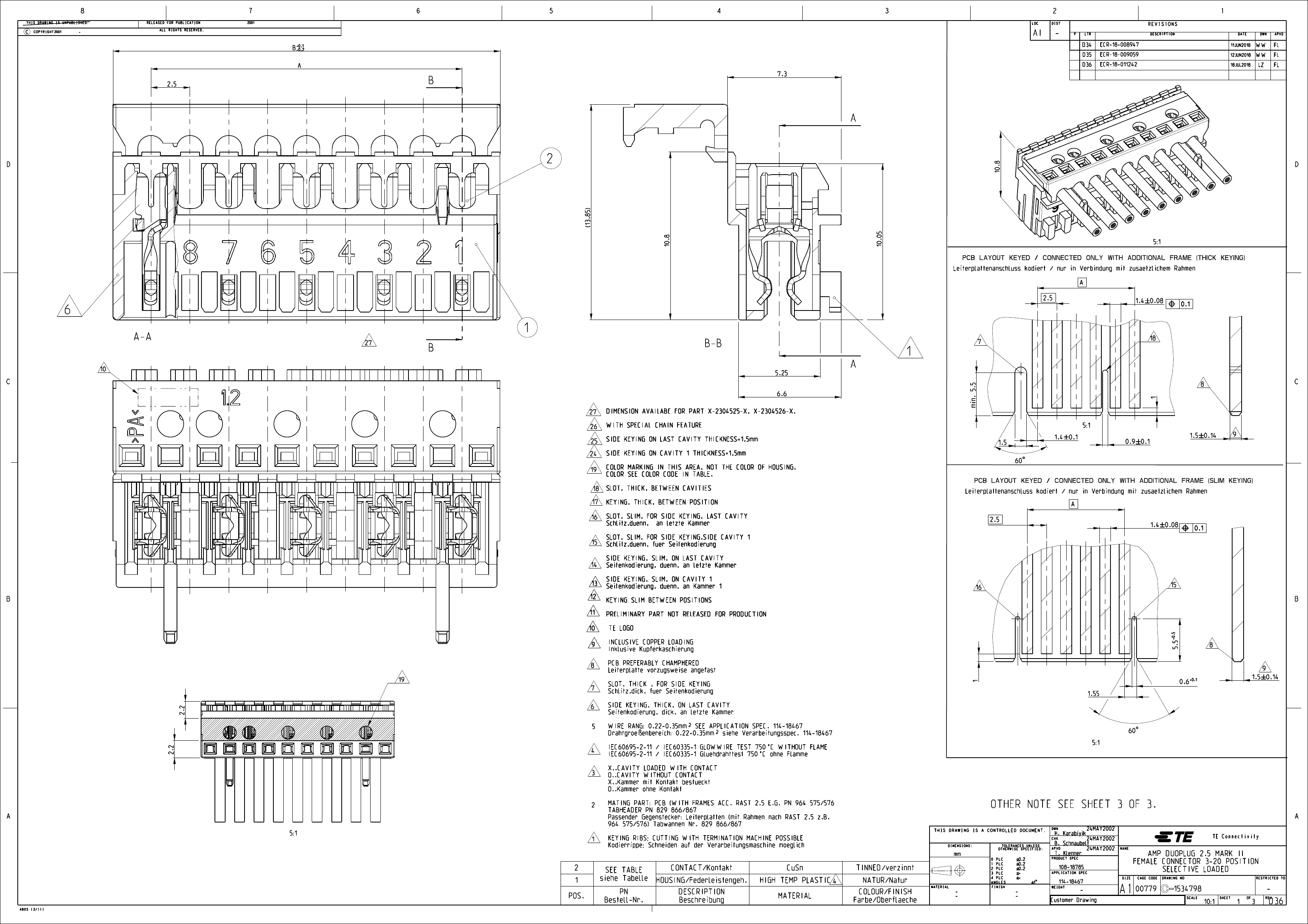

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

2001

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

2001

+0.1

-0.2

D34

D35

D36

ECR-18-008947

ECR-18-009059

ECR-18-011242

11JUN2018

12JUN2018

18JUL2018

2.5

7.3

10.8

(

13.85

)

10.05

10.8

5:1

PCB LAYOUT KEYED / CONNECTED ONLY WITH ADDITIONAL FRAME (THICK KEYING)

Leiterplattenanschluss kodiert / nur in Verbindung mit zusaetzlichem Rahmen

A-A

2.5

1.4 0.08

0.1

B-B

5.25

6.6

min. 5.5

DIMENSION AVAILABE FOR PART X-2304525-X, X-2304526-X.

WITH SPECIAL CHAIN FEATURE

SIDE KEYING ON LAST CAVITY THICKNESS=1,5mm

SIDE KEYING ON CAVITY 1 THICKNESS=1,5mm

COLOR MARKING IN THIS AREA, NOT THE COLOR OF HOUSING.

COLOR SEE COLOR CODE IN TABLE.

5:1

1.5

60 $

1.4 0.1

0.9 # 0.1

1.5 0.14

18 SLOT, THICK, BETWEEN CAVITIES

17 KEYING, THICK, BETWEEN POSITION

SLOT, SLIM, FOR SIDE KEYING, LAST CAVITY

Schlitz,duenn, an letzte Kammer

SLOT, SLIM, FOR SIDE KEYING,SIDE CAVITY 1

Schlitz,duenn, fuer Seitenkodierung

SIDE KEYING, SLIM, ON LAST CAVITY

Seitenkodierung, duenn, an letzte Kammer

SIDE KEYING, SLIM, ON CAVITY 1

Seitenkodierung, duenn, an Kammer 1

KEYING SLIM BETWEEN POSITIONS

PRELIMINARY PART NOT RELEASED FOR PRODUCTION

PCB LAYOUT KEYED / CONNECTED ONLY WITH ADDITIONAL FRAME (SLIM KEYING)

Leiterplattenanschluss kodiert / nur in Verbindung mit zusaetzlichem Rahmen

2.5

1.4 0.08

0.1

2.2

INCLUSIVE COPPER LOADING

Inklusive Kupferkaschierung

PCB PREFERABLY CHAMPHERED

Leiterplatte vorzugsweise angefast

SLOT, THICK , FOR SIDE KEYING

Schlitz,dick, fuer Seitenkodierung

SIDE KEYING, THICK, ON LAST CAVITY

Seitenkodierung, dick, an letzte Kammer

WIRE RANG: 0.22-0.35mm² SEE APPLICATION SPEC. 114-18467

Drahtgroeßenbereich: 0.22-0.35mm² siehe Verarbeitungsspec. 114-18467

IEC60695-2-11 / IEC60335-1 GLOWWIRE TEST 750°C WITHOUT FLAME

IEC60695-2-11 / IEC60335-1 Gluehdrahttest 750°C ohne Flamme

X..CAVITY

O..CAVITY

X..Kammer

O..Kammer

LOADED WITH CONTACT

WITHOUT CONTACT

mit Kontakt bestueckt

ohne Kontakt

60 $

5:1

+0.5

5.5

TE LOGO

1.5 0.14

0.6

+0.1

1.55

2.2

5:1

MATING PART: PCB (WITH FRAMES ACC. RAST 2.5 E.G. PN 964 575/576

TABHEADER PN 829 866/867

Passender Gegenstecker: Leiterplatten (mit Rahmen nach RAST 2.5 z.B.

964 575/576) Tabwannen Nr. 829 866/867

KEYING RIBS; CUTTING WITH TERMINATION MACHINE POSSIBLE

Kodierrippe; Schneiden auf der Verarbeitungsmaschine moeglich

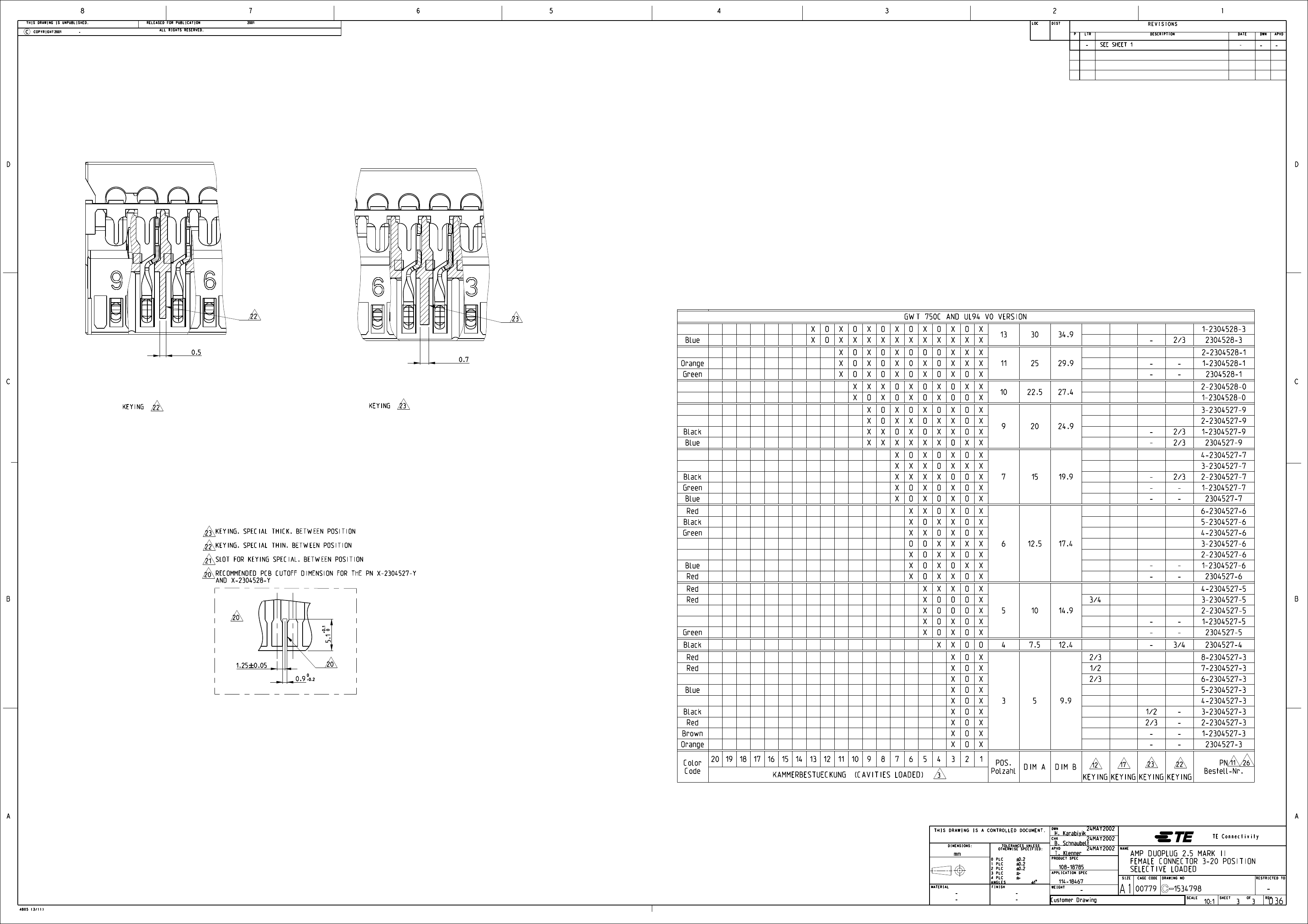

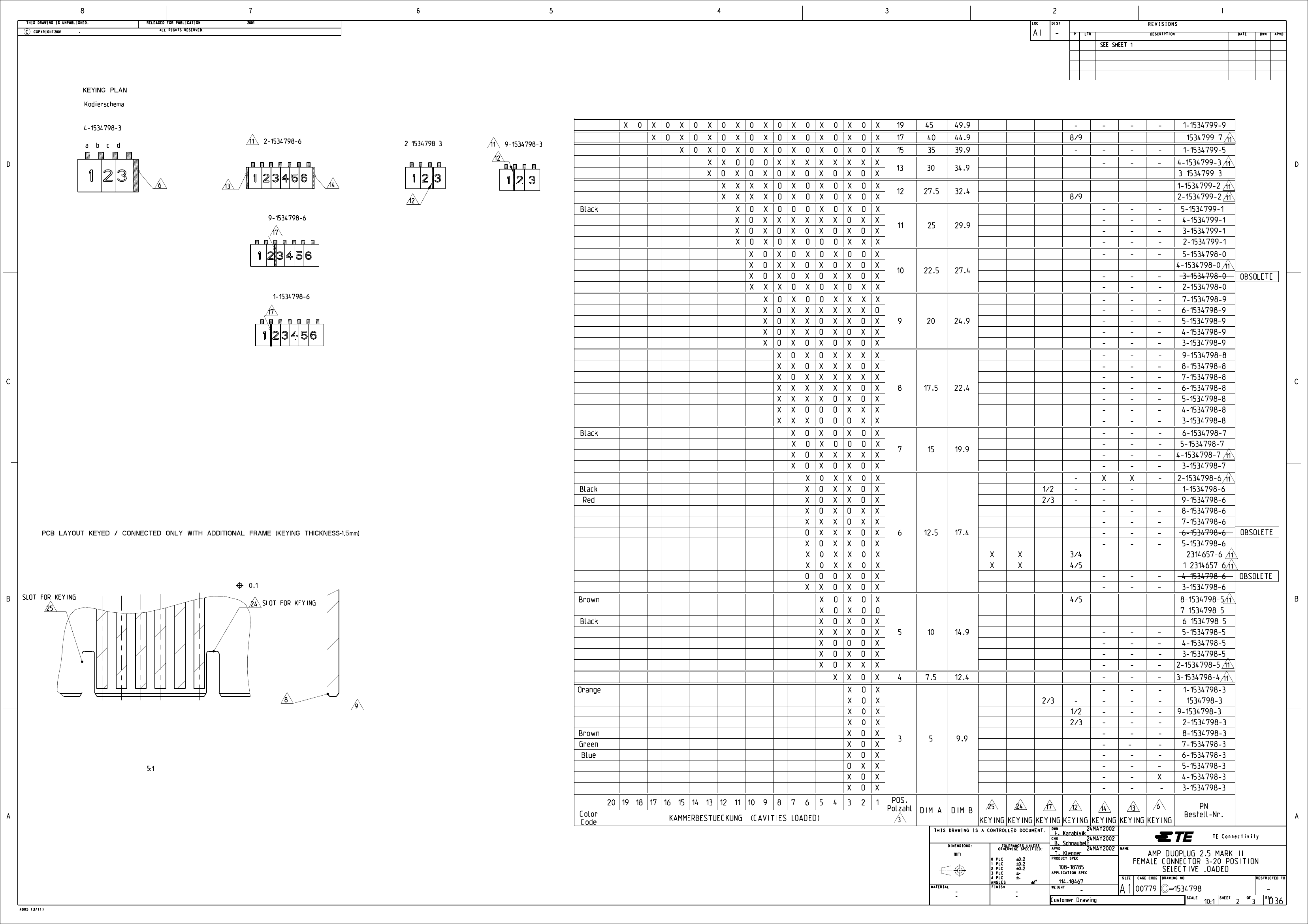

OTHER NOTE SEE SHEET 3 OF 3.

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

TE Connectivity

POS.

4805 (3/11)

CONTACT/Kontakt

CuSn

SEE TABLE

siehe TabelleHOUSING/Federleistengeh. HIGH TEMP PLASTIC

Bestell-Nr.

DESCRIPTION

Beschreibung

MATERIAL

TINNED/verzinnt

COLOUR/FINISH

Farbe/Oberflaeche

NATUR/Natur

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.2

24MAY2002

H. Karabiyik

CHK

24MAY2002

B. Schnaubelt

APVD

24MAY2002

T. Klenner

DWN

PRODUCT SPEC

APPLICATION SPEC

NAME

108-18785

114-18467

1 $

WEIGHT

Customer Drawing

SIZE

AMP DUOPLUG 2.5 MARK II

FEMALE CONNECTOR 3-20 POSITION

SELECTIVE LOADED

CAGE CODE

DRAWING NO

RESTRICTED TO

00779

1534798

SCALE

10:1

SHEET

REV

D36
