3-284865-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-284865-4

3-284865-4: DescriptionDirect mount card edge conn.,; CategoryThe connector; File Size755KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-284865-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-284865-4	-	-	View	Buy Now

3-284865-4 Overview

Direct mount card edge conn.,

3-284865-4 Parametric

Parameter Name	Attribute value
Connector System	wire to board
Connector type	female end
Connectors and terminals terminate to	A printed circuit board
Connector type	card edge
Connector type	Connector components
shape	standard
Cable type	Stranded wire
Number of Positions	4
Rows	1
Connector terminal load status	Fully loaded
PCB mounting direction	right angle
Pre-installed	yes
Number of slots for insulation displacement	4
Card entry method	side
pre-assembled	yes
hot swap	no
Operating Voltage	63 VAC
Keying between cavity number	4-M
color	red
Cable exit angle	90°
Terminal base material	Phosphor bronze
Contact Current Rating (Max) (A)	2
Terminal contact plating material	Pre-tin plating
Terminal termination area plating thickness (µm)	4 – 10
Terminal type	socket
Cable termination method	Piercing crimping (IDC)
PCB installation and fixation	with
Panel mount features	Without
PCB mounting alignment	with
Lock clip position	none
Connector mounting type	board mounting
Terminal positioning force	Without
joint fixation	with
Joint alignment type	keying
joint alignment	with
Centerline (Pitch)	2.5 mm [ .098 in ]
Shell color	red
Shell material	PBT GF
end cap	Without
Shell type	closed end
Accepts Wire Insulation Diameter Range	1.3 – 2.1 mm [ .05 – .08 in ]
PCB thickness (recommended)	1.5 mm [ .059 in ]
Cable size	24 – 22 AWG [ .22 – .35 mm² ]
high	7.35 mm [ .29 in ]
Acceptable wire insulation diameter range	1.3 mm [ .051 in ]
card slot depth	5 mm [ .2 in ]
Working group temperature range	-40 – 110 °C [ -40 – 230 °F ]
Circuit Application	Signal
Applicable to	A printed circuit board
Package quantity	364
Encapsulation method	tray

Preview

Download Datasheet

View All

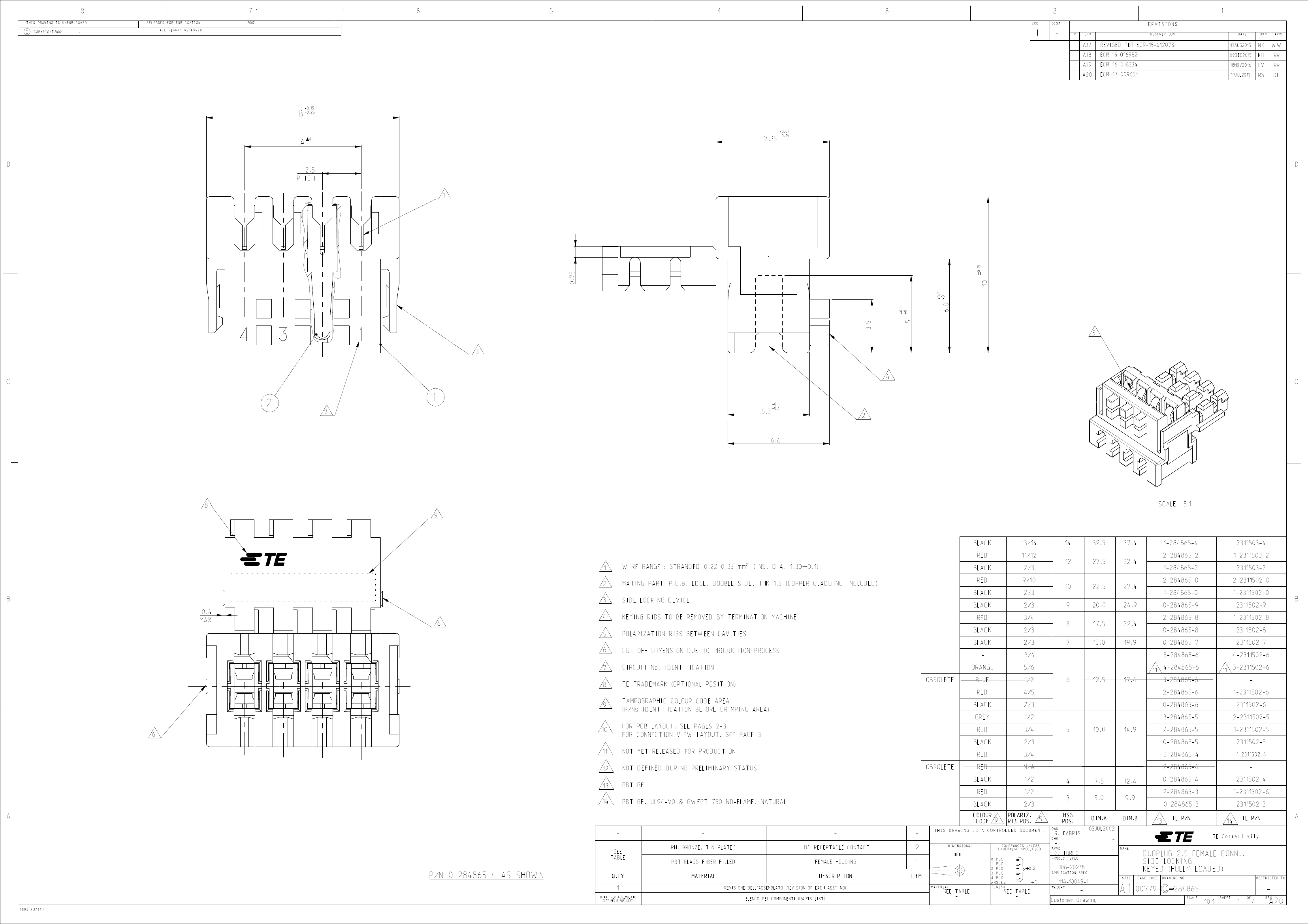

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

2002

SECTION X1-X1

SECTION A2-A2

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

A17

A18

A19

A20

REVISED PER ECR-15-012073

ECR-15-016952

ECR-16-016334

ECR-17-009651

13AUG2015

09DEC2015

18NOV2016

19JUL2017

+0.15

-0.25

7.35

+0.05

-0.15

2.5

PITCH

0.75

3.5

+0.1

-0

6.0

+0.2

-0

5.3

-0.1

6.6

SCALE 5:1

BLACK

RED

WIRE RANGE : STRANDED 0.22-0.35 mm (INS. DIA. 1.30

13/14

11/12

2/3

9/10

2/3

3/4

2/3

3/4

5/6

1/2

4/5

2/3

1/2

3/4

2/3

3/4

N/A

1/2

2/3

POLARIZ.

RIB POS.

32.5

27.5

37.4

32.4

1-284865-4

2-284865-2

1-284865-2

2-284865-0

1-284865-0

0-284865-9

2-284865-8

0-284865-8

0-284865-7

5-284865-6

4-284865-6

2311503-4

1-2311503-2

2311503-2

2-2311502-0

1-2311502-0

2311502-9

1-2311502-8

2311502-8

2311502-7

4-2311502-6

3-2311502-6

# 0.1)

BLACK

RED

BLACK

MATING PART: P.C.B. EDGE, DOUBLE SIDE, THK 1.5 (COPPER CLADDING INCLUDED)

SIDE LOCKING DEVICE

KEYING RIBS TO BE REMOVED BY TERMINATION MACHINE

POLARIZATION RIBS BETWEEN CAVITIES

CUT OFF DIMENSION DUE TO PRODUCTION PROCESS

CIRCUIT No. IDENTIFICATION

TE TRADEMARK (OPTIONAL POSITION)

TAMPOGRAPHIC COLOUR CODE AREA

(P/Ns IDENTIFICATION BEFORE CRIMPING AREA)

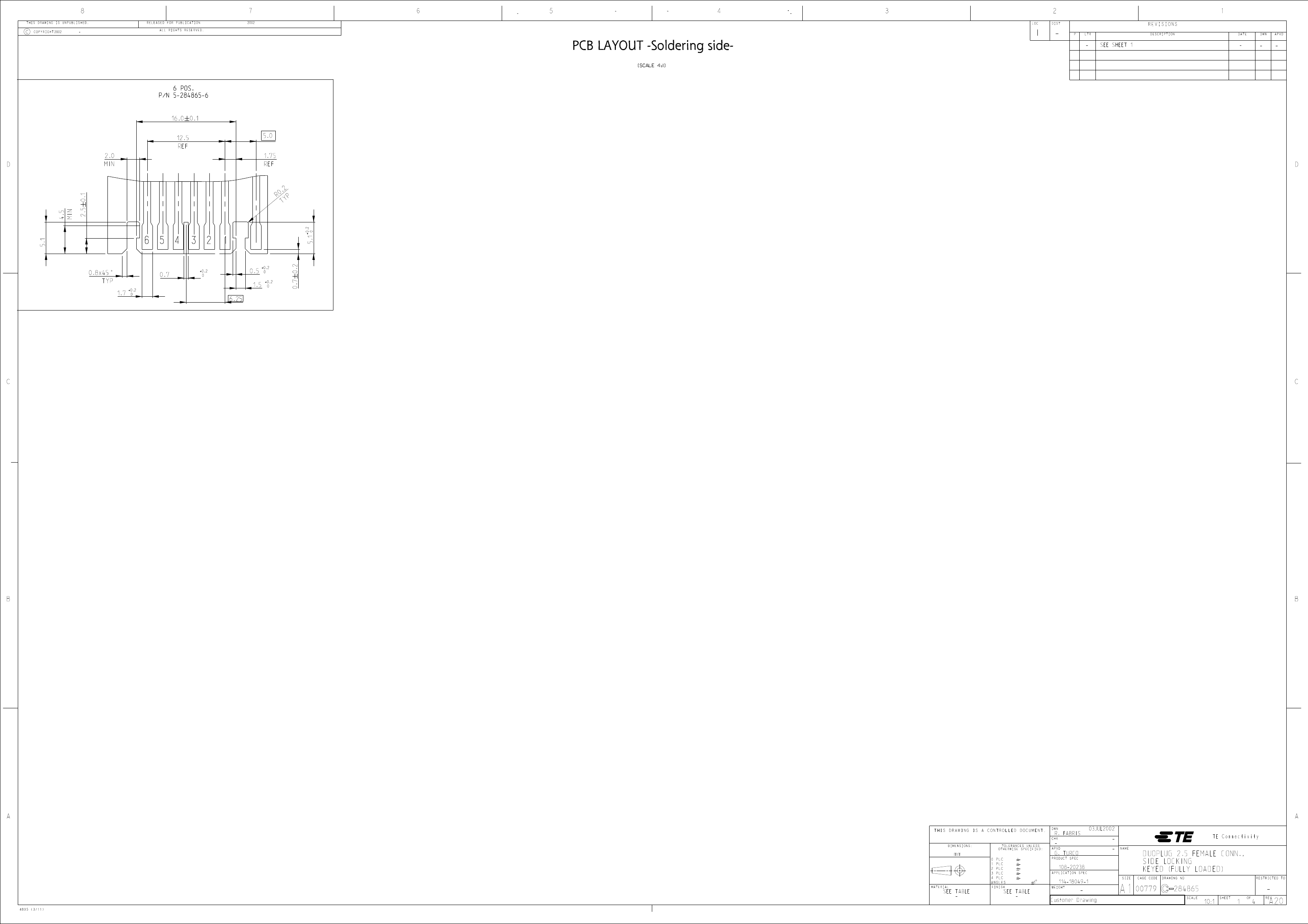

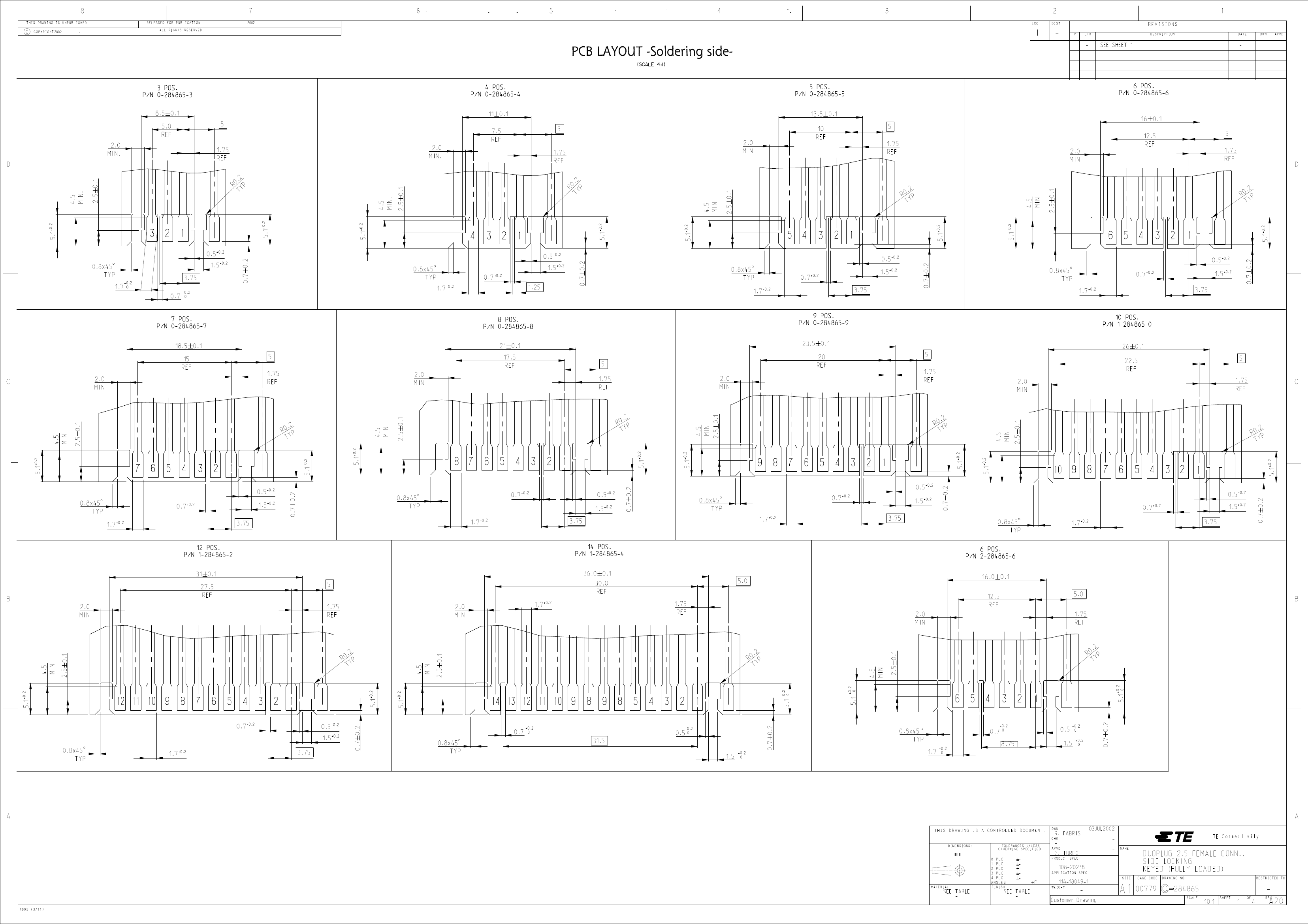

FOR PCB LAYOUT, SEE PAGES 2-3

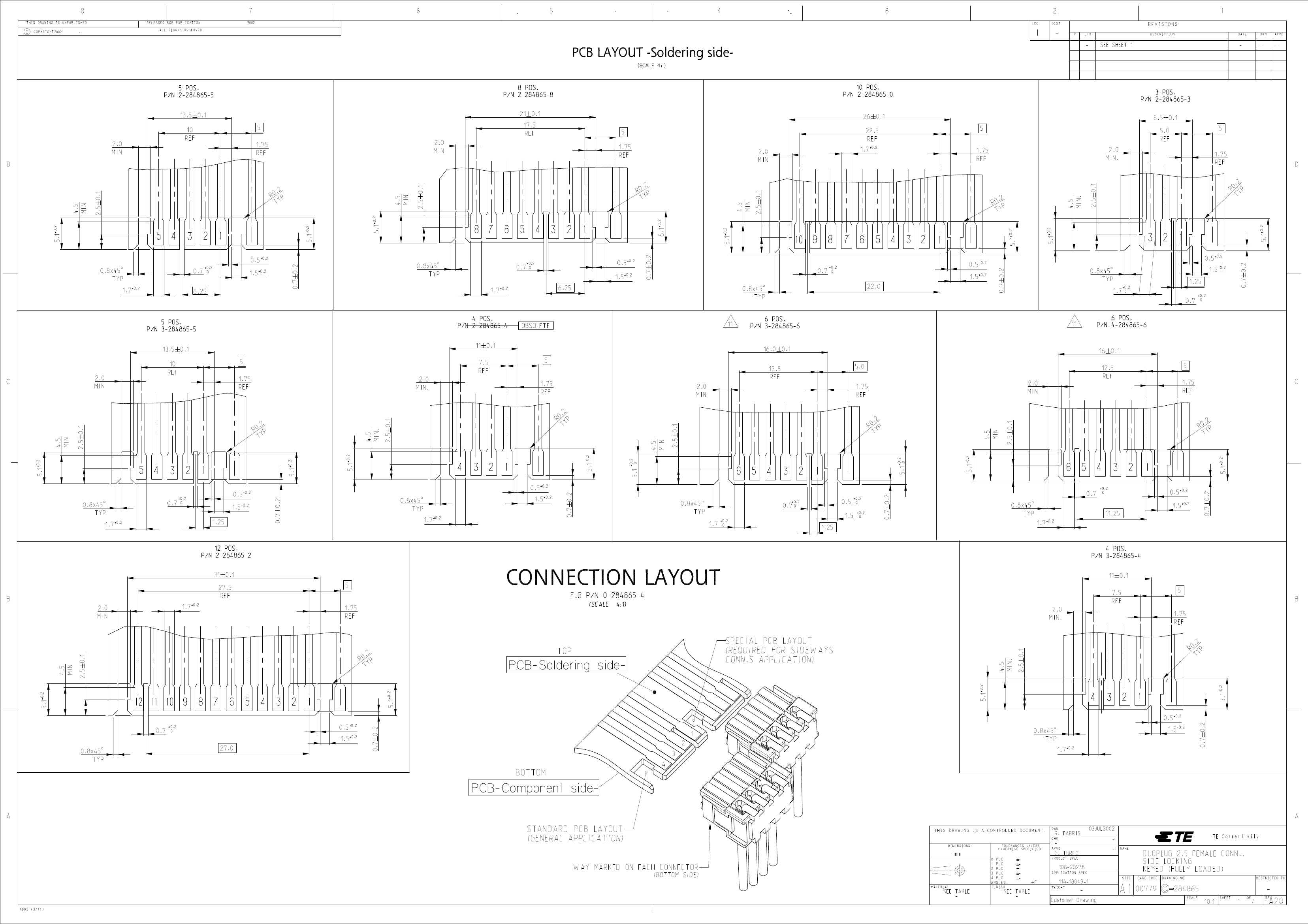

FOR CONNECTION VIEW LAYOUT, SEE PAGE 3

NOT YET RELEASED FOR PRODUCTION

NOT DEFINED DURING PRELIMINARY STATUS

PBT GF

PBT GF, UL94-V0 & GWEPT 750 NO-FLAME, NATURAL

OBSOLETE

22.5

20.0

17.5

15.0

27.4

24.9

22.4

19.9

0.4

MAX

BLACK

RED

BLACK

ORANGE

BLUE

RED

BLACK

GREY

12.5

17.4

3-284865-6

2-284865-6

0-284865-6

3-284865-5

1-2311502-6

2311502-6

2-2311502-5

1-2311502-5

2311502-5

1-2311502-4

RED

BLACK

10.0

14.9

2-284865-5

0-284865-5

3-284865-4

2-284865-4

RED

BLACK

RED

BLACK

COLOUR

CODE

2311502-4

1-2311502-6

2311502-3

TE P/N

DWN

CHK

7.5

5.0

DIM.A

03JUL2002

12.4

9.9

DIM.B

0-284865-4

2-284865-3

0-284865-3

TE P/N

SEE

TABLE

HSG

POS.

R. FABRIS

APVD

PH. BRONZE, TIN PLATED

PBT GLASS FIBER FILLED

MATERIAL

IDC RECEPTACLE CONTACT

FEMALE HOUSING

DESCRIPTION

THIS DRAWING IS A CONTROLLED DOCUMENT.

TE Connectivity

NAME

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

MATERIAL

FINISH

P/N 0-284865-4 AS SHOWN

Q.TY

ITEM

SEE TABLE

Q.TA' PER ASSEMBLATO

(QTY REQ'D PER ASSY)

}

G. TURCO

PRODUCT SPEC

108-20238

APPLICATION SPEC

DUOPLUG 2.5 FEMALE CONN.,

SIDE LOCKING

KEYED (FULLY LOADED)

CAGE CODE

DRAWING NO

RESTRICTED TO

114-18049-1

WEIGHT

SIZE

REVISIONE DELL'ASSEMBLATO (REVISION OF EACH ASSY NO)

ELENCO DEI COMPONENTI (PARTS LIST)

SEE TABLE

00779

284865

SCALE

10:1

SHEET

Customer Drawing

REV

A20

4805 (3/11)

3-284865-4 Related Products

	3-284865-4	284865-3	2-284865-3	284865-7	284865-4
Description	Direct mount card edge conn.,	DUOPLUG side lock., female con	DUOPLUG side lock., 3 pos,fully, 1/2	Direct mount card edge conn.,	Direct mount card edge conn.,
Connector System	wire to board	wire to board	wire to board	wire to board	wire to board
Connectors and terminals terminate to	A printed circuit board	A printed circuit board	A printed circuit board	A printed circuit board	A printed circuit board
shape	standard	standard	standard	standard	standard
Cable type	Stranded wire	Stranded wire	Stranded wire	Stranded wire	Stranded wire
Number of Positions	4	3	3	7	4
Rows	1	1	1	1	1
Connector terminal load status	Fully loaded	Fully loaded	Fully loaded	Fully loaded	Fully loaded
PCB mounting direction	right angle	right angle	right angle	right angle	right angle
Pre-installed	yes	yes	yes	yes	yes
Card entry method	side	side	side	side	side
pre-assembled	yes	yes	yes	yes	yes
hot swap	no	no	no	no	no
Operating Voltage	63 VAC	63 VAC	63 VAC	63 VAC	63 VAC
Keying between cavity number	4-M	3-Feb	2-J	41892	2-J
color	red	black	red	red	black
Cable exit angle	90°	90°	90°	90°	90°
Terminal base material	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze	Phosphor bronze
Contact Current Rating (Max) (A)	2	2	2	2	2
Terminal contact plating material	Pre-tin plating	Pre-tin plating	Pre-tin plating	Pre-tin plating	Pre-tin plating
Terminal termination area plating thickness (µm)	4 – 10	4 – 10	4 – 10	4 – 10	4 – 10
Terminal type	socket	socket	socket	socket	socket
Cable termination method	Piercing crimping (IDC)	Piercing crimping (IDC)	Piercing crimping (IDC)	Piercing crimping (IDC)	Piercing crimping (IDC)
PCB installation and fixation	with	with	with	with	with
Panel mount features	Without	Without	Without	Without	Without
PCB mounting alignment	with	with	with	with	with
Lock clip position	none	none	none	none	none
Connector mounting type	board mounting	board mounting	board mounting	board mounting	board mounting
Terminal positioning force	Without	Without	Without	Without	Without
joint fixation	with	with	with	with	with
Joint alignment type	keying	keying	keying	keying	keying
joint alignment	with	with	with	with	with
Centerline (Pitch)	2.5 mm [ .098 in ]	2.5 mm [ .098 in ]	2.5 mm [ .098 in ]	2.5 mm [ .098 in ]	2.5 mm [ .098 in ]
Shell color	red	black	red	black	black
Shell material	PBT GF	PBT GF	PBT GF	PBT GF	PBT GF
end cap	Without	Without	Without	Without	Without
Shell type	closed end	closed end	closed end	closed end	closed end
Accepts Wire Insulation Diameter Range	1.3 – 2.1 mm [ .05 – .08 in ]	1.3 – 2.1 mm [ .05 – .08 in ]	1.3 – 2.1 mm [ .05 – .08 in ]	1.3 – 2.1 mm [ .05 – .08 in ]	1.3 – 2.1 mm [ .05 – .08 in ]
PCB thickness (recommended)	1.5 mm [ .059 in ]	1.5 mm [ .059 in ]	1.5 mm [ .059 in ]	1.5 mm [ .059 in ]	1.5 mm [ .059 in ]
Cable size	24 – 22 AWG [ .22 – .35 mm² ]	24 – 22 AWG [ .22 – .35 mm² ]	24 – 22 AWG [ .22 – .35 mm² ]	24 – 22 AWG [ .22 – .35 mm² ]	24 – 22 AWG [ .22 – .35 mm² ]
Acceptable wire insulation diameter range	1.3 mm [ .051 in ]	1.3 mm [ .051 in ]	1.3 mm [ .051 in ]	1.3 mm [ .051 in ]	1.3 mm [ .051 in ]
Working group temperature range	-40 – 110 °C [ -40 – 230 °F ]	-40 – 110 °C [ -40 – 230 °F ]	-40 – 110 °C [ -40 – 230 °F ]	-40 – 110 °C [ -40 – 230 °F ]	-40 – 110 °C [ -40 – 230 °F ]
Circuit Application	Signal	Signal	Signal	Signal	Signal
Applicable to	A printed circuit board	A printed circuit board	A printed circuit board	A printed circuit board	A printed circuit board
Package quantity	364	448	448	168	364
Encapsulation method	tray	tray	tray	tray	tray
Connector type	Connector components	Connector components	Connector components	Connector components	Connector components
Number of slots for insulation displacement	4	3	3	-	4
high	7.35 mm [ .29 in ]	7.35 mm [ .29 in ]	7.35 mm [ .29 in ]	7.35 mm [ .29 in ]	-
card slot depth	5 mm [ .2 in ]	5 mm [ .2 in ]	5 mm [ .2 in ]	5 mm [ .2 in ]	-
