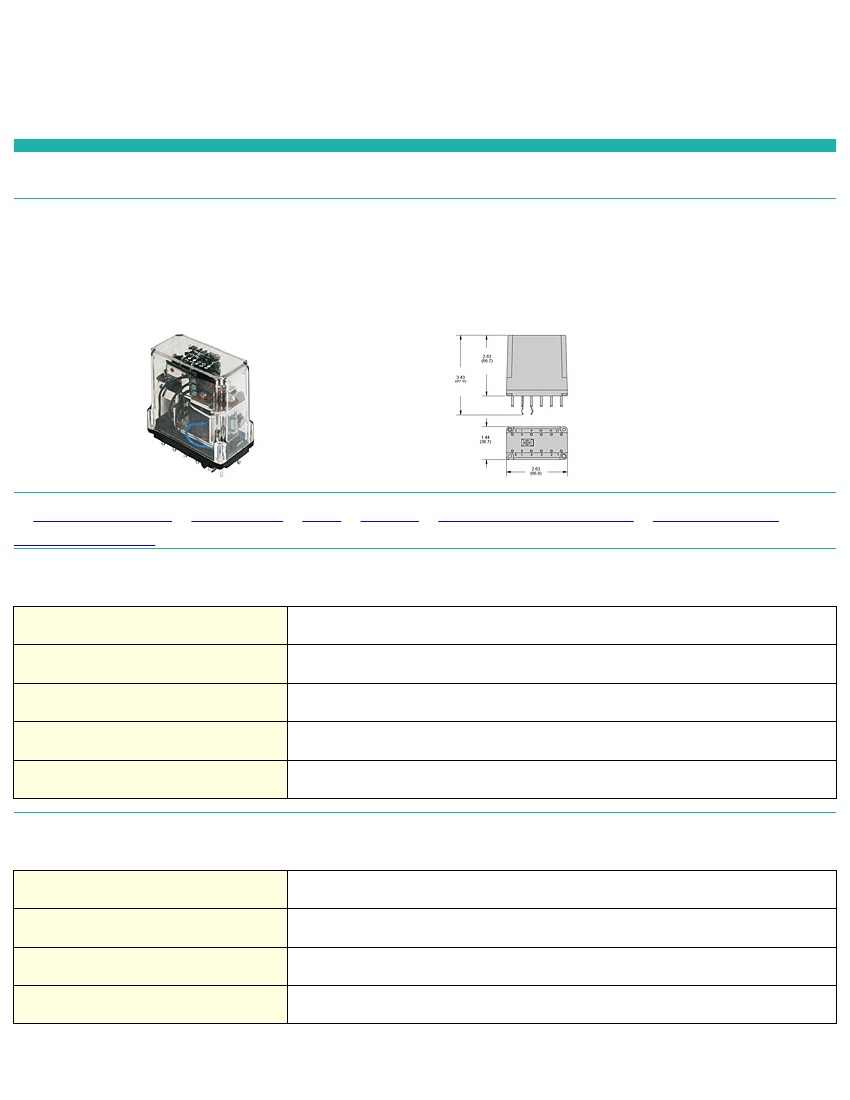

Preview

311XBXPR-120VAC: DescriptionPower/Signal Relay, DPDT, Momentary, 4900mW (Coil), 5A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Through Hole-Straight Mount; CategoryMechanical and electronic products relay; File Size184KB，3 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric Compare View All

311XBXPR-120VAC Overview

Power/Signal Relay, DPDT, Momentary, 4900mW (Coil), 5A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Through Hole-Straight Mount

311XBXPR-120VAC Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	COIL OPERATE VOLTAGE(AC): 102 V, COIL RELEASE VOLTAGE(AC): 12 V
Coil current (AC) maximum value	0.041 A
Coil power	4900 mW
Maximum coil voltage (AC)	120 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	5A@240VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	311
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	35 ms
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	35 ms
surface mount	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

Struthers-Dunn

407 East Smith Street - Suite B

Timmonsville, SC 29161 US

Phone:

(843) 346-4427 •

Fax:

(843) 346-4465

E-Mail:

info@struthers-dunn.com •

Web site:www.struthers-dunn.com

Item # 311XBXPR-120VAC, 311 Series - Industrial Sequencing Relays

The 311 Series relays are sequencing (stepper) relays built on the industrial 219 style frame. Hold down clip is integral to the relay base. Double pole contacts transfer

on energizing of coil or de-energizing. Dual cam movement allows contacts to operate together or separately. Works equally well with application of continous voltage

to coil or energy saving impulse. No continuous voltage required for memory. Numerous custom switching arrangements are possible over 8 steps per revolution of the

cams.

For Additional Configuration please contact the manufacturer.

·

SPECIFICATIONS

·

CONTACTS

·

COIL

·

TIMING

·

DIELECTRIC STRENGTH

·

TEMPERATURE

·

MISCELLANEOUS

SPECIFICATIONS

Series

311

Contact Arrangement

XBX (DPDT) - (2 form C)

Standard Features

Plug-in with polycarbonate cover

Contact Transfer

Coil is de-energized

Coil Voltage

120 VAC

CONTACTS

Contact Configuration

DPDT

Contact Material

Silver Alloy

Contact Rating

5A

Contact Rating 120 / 240VAC Resistive

5A

7/31/2013 | Page 1 of 3

311XBXPR-120VAC Related Products

	311XBXPR-120VAC	311XBXPR120VAC
Description	Power/Signal Relay, DPDT, Momentary, 4900mW (Coil), 5A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Through Hole-Straight Mount	POWER/SIGNAL RELAY, DPDT, MOMENTARY, 4900mW (COIL), 5A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT
Reach Compliance Code	unknow	unknown
Other features	COIL OPERATE VOLTAGE(AC): 102 V, COIL RELEASE VOLTAGE(AC): 12 V	COIL OPERATE VOLTAGE(AC): 102 V, COIL RELEASE VOLTAGE(AC): 12 V
Coil current (AC) maximum value	0.041 A	0.041 A
Coil power	4900 mW	4900 mW
Maximum coil voltage (AC)	120 V	120 V
Coil/Input Power Type	AC	AC
Contact (AC) maximum rated R load	5A@240VAC	5A@240VAC
Maximum contact current (AC)	5 A	5 A
Maximum contact current (DC)	5 A	5 A
Contact (DC) maximum rated R load	5A@28VDC	5A@28VDC
Maximum contact voltage (AC)	240 V	240 V
Maximum contact voltage (DC)	28 V	28 V
Contact/Output Power Type	AC/DC	AC/DC
Electrical life	100000 Cycle(s)	100000 Cycle(s)
Manufacturer's serial number	311	311
Installation features	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT
operating hours	35 ms	35 ms
Maximum operating temperature	60 °C	60 °C
Minimum operating temperature	-20 °C	-20 °C
Relay action	MOMENTARY	MOMENTARY
Relay function	DPDT	DPDT
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY
release time	35 ms	35 ms
surface mount	NO	NO
Termination type	SOLDER	SOLDER
Base Number Matches	1	1
