1534072-2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 1534072-2

Preview

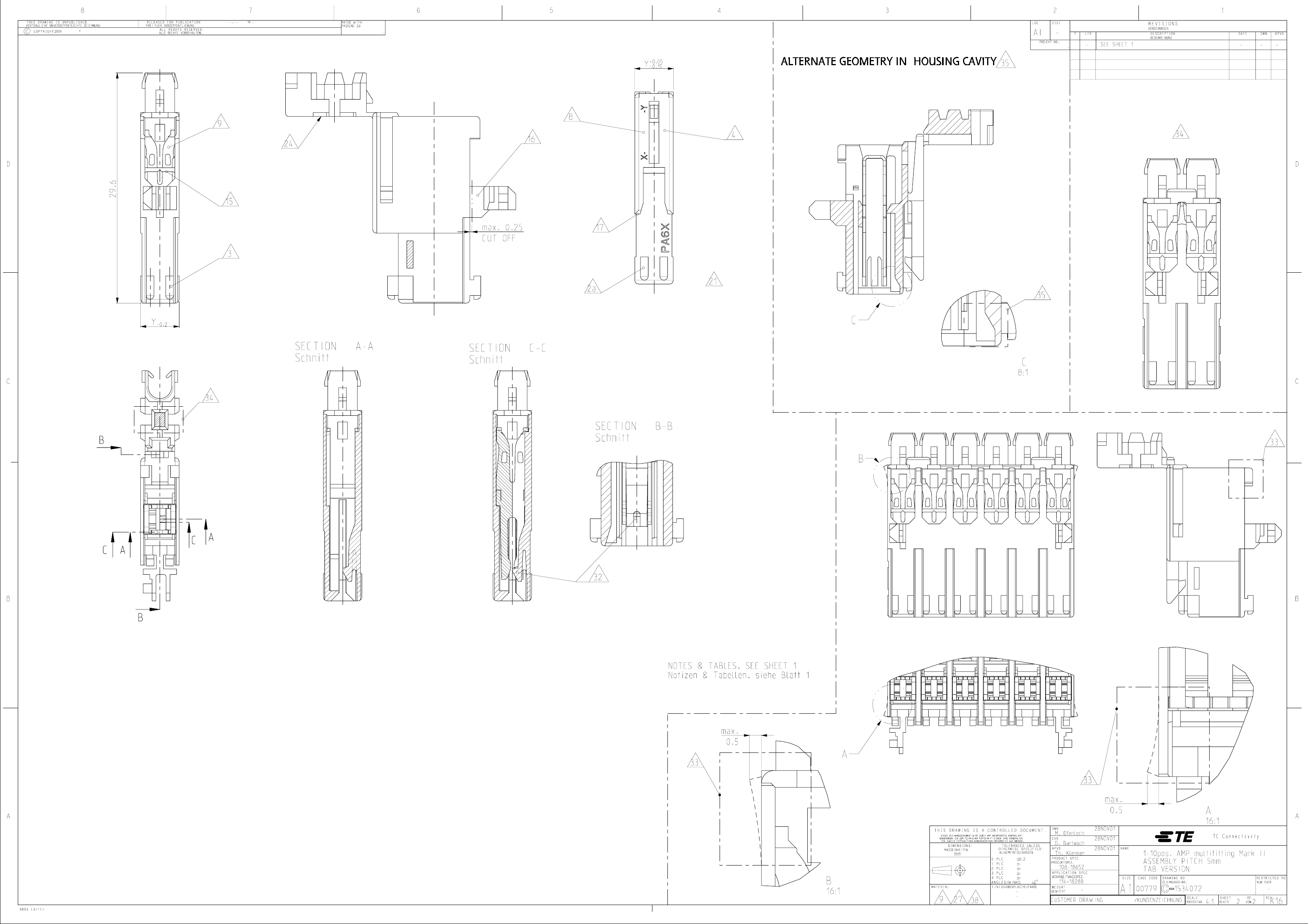

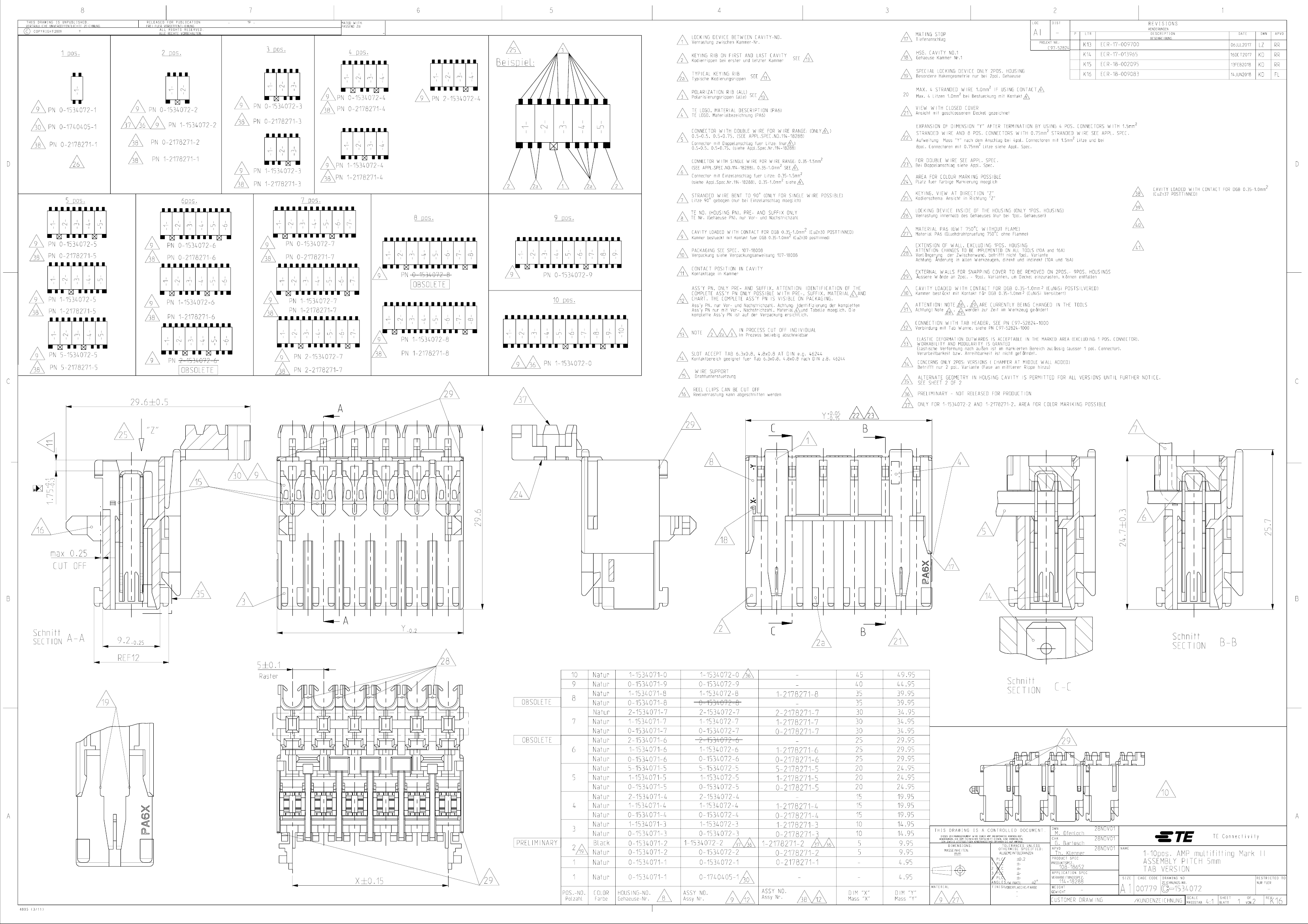

1534072-2: DescriptionMULTIF.ASSY MK2 2POS,AR; CategoryThe connector; File Size404KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1534072-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1534072-2	-	-	View	Buy Now

1534072-2 Overview

MULTIF.ASSY MK2 2POS,AR

1534072-2 Parametric

Parameter Name	Attribute value
Connector System	wire to board
Sealable	no
Connectors and terminals terminate to	Wires and cables
Number of Positions	2
Rows	1
Terminal contact plating material	tin
Terminal contact part plating material surface coating	Ti
Terminal contact plating thickness	1 µm [ 39.37 µin ]
Contact Current Rating (Max) (A)	16
Cable termination method	Piercing crimping (IDC)
PCB mounting alignment	Without
joint fixation	with
PCB installation and fixation	Without
Connector mounting type	Cable installation
Centerline (Pitch)	5 mm [ .197 in ]
Shell color	nature
Working group temperature range	-40 – 110 °C [ -40 – 230 °F ]
Circuit Application	Signal

Preview

Download Datasheet

View All

1534072-2 Related Products

	1534072-2	1534072-1	1-1534072-8	1-1534072-3	1534072-4	1534072-5	1-1534072-7
Description	MULTIF.ASSY MK2 2POS,AR	MULTIFIT MK2 ASSY 1P,AR	AMP MF MK II ASS'Y/AR 8POS	MULTIF.ASSY MK2 3POS,AR	MULTIF.ASSY MK2 4POS, AR	MULTIF.ASSY MK2 5P,AR	AMP MF MK II ASS'Y/AR 7POS
Connector System	wire to board	wire to board	wire to board	wire to board	wire to board	wire to board	wire to board
Sealable	no	no	no	no	no	no	no
Connectors and terminals terminate to	Wires and cables	Wires and cables	Wires and cables	Wires and cables	Wires and cables	Wires and cables	Wires and cables
Number of Positions	2	1	8	3	4	5	7
Rows	1	1	1	1	1	1	1
Cable termination method	Piercing crimping (IDC)	Piercing crimping (IDC)	Piercing crimping (IDC)	Piercing crimping (IDC)	Piercing crimping (IDC)	Piercing crimping (IDC)	Piercing crimping (IDC)
joint fixation	with	with	with	with	with	with	with
Centerline (Pitch)	5 mm [ .197 in ]	5 mm [ .197 in ]	5 mm [ .197 in ]	5 mm [ .197 in ]	5 mm [ .197 in ]	5 mm [ .197 in ]	5 mm [ .197 in ]
Shell color	nature	nature	nature	nature	nature	nature	nature
Terminal contact plating material	tin	tin	-	-	tin	tin	-
Terminal contact part plating material surface coating	Ti	Ti	-	-	Ti	Ti	-
Terminal contact plating thickness	1 µm [ 39.37 µin ]	1 µm [ 39.37 µin ]	-	-	1 µm [ 39.37 µin ]	1 µm [ 39.37 µin ]	-
Contact Current Rating (Max) (A)	16	16	-	-	16	16	-
PCB mounting alignment	Without	Without	-	-	Without	Without	-
PCB installation and fixation	Without	Without	-	-	Without	Without	-
Connector mounting type	Cable installation	Cable installation	-	-	Cable installation	Cable installation	-
Working group temperature range	-40 – 110 °C [ -40 – 230 °F ]	-40 – 110 °C [ -40 – 230 °F ]	-	-	-40 – 110 °C [ -40 – 230 °F ]	-40 – 110 °C [ -40 – 230 °F ]	-
Circuit Application	Signal	Signal	-	-	Signal	Signal	-
Connector type	-	female end	female end	female end	-	-	female end
Lock type	-	external	external	external	-	-	external
Joint fixation type	-	locking	locking	locking	-	-	locking
joint alignment	-	with	with	with	-	-	with
Joint alignment type	-	keying	keying	keying	-	-	keying
RAST version	-	none	none	none	-	-	none
