183-10-952-00-001 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> 183-10-952-00-001

Preview

183-10-952-00-001: DescriptionIC Socket, DIP52, 52 Contact(s),; CategoryThe connector socket; File Size112KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

183-10-952-00-001 Overview

IC Socket, DIP52, 52 Contact(s),

183-10-952-00-001 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	DIP HEADER
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP52
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
JESD-609 code	e4
Number of contacts	52
Base Number Matches	1

Preview

Download Datasheet

View All

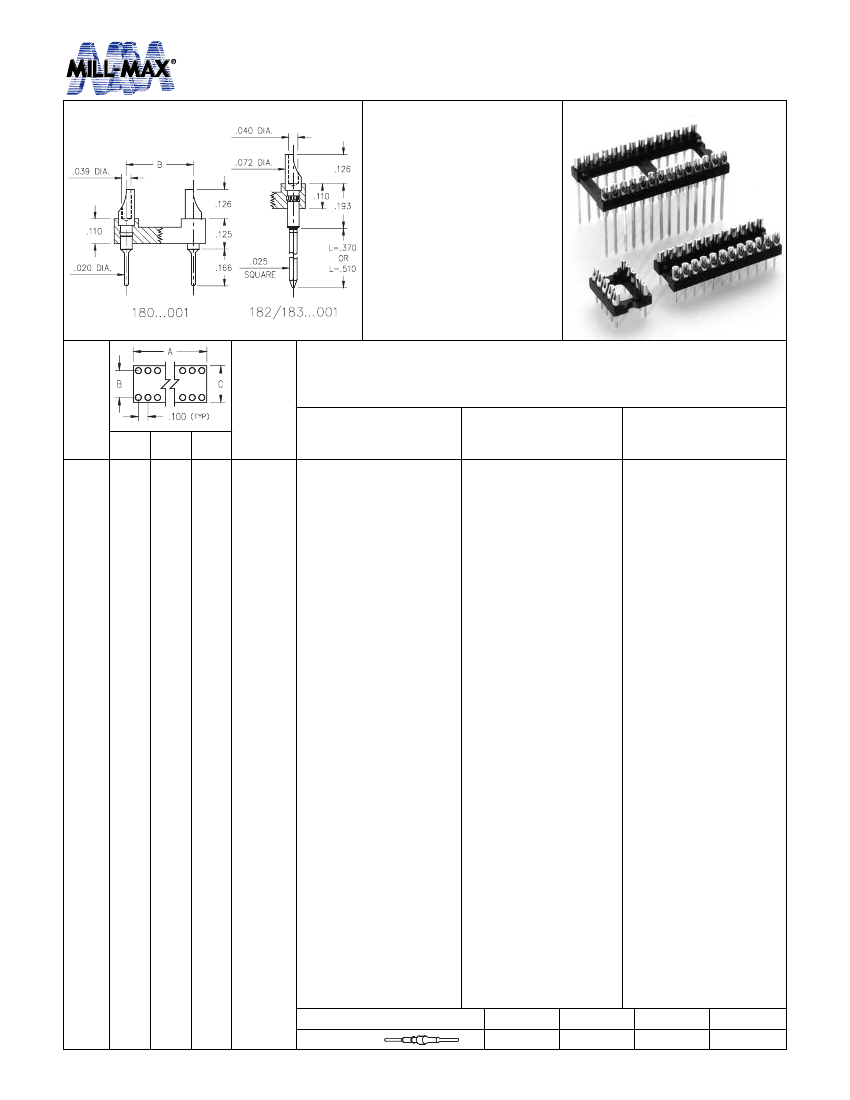

DUAL-IN-LINE SOLDER CUP HEADERS

Solder Tail and Wrapost

Open Frame

•

Series 180, 182, 183 DIL

Headers are equipped

with solder cups for

wiring applications.

•

Terminations are

pluggable .020” diameter

solder tails (M-M# 8000),

see page 174 for details;

or 2 & 3-level wraposts,

(M-M# 8301) see page

184 for details.

Series 180, 182, 183

Total number

of pins

Quantity

per tube

Ordering Information

Solder Tail

180- XX-210-00-001

1 80- XX-304-00-001

1 80- XX-306-00-001

180-XX-308-00-001

180- XX-310-00-001

180-XX-314-00-001

180-XX-316-00-001

180-XX-318-00-001

180-XX-320-00-001

180-XX-322-00-001

180-XX-324-00-001

180-XX-328-00-001

180-XX-420-00-001

180-XX-422-00-001

180-XX-424-00-001

180-XX-428-00-001

180-XX-432-00-001

180-XX-624-00-001

180-XX-628-00-001

180-XX-632-00-001

180-XX-636-00-001

180-XX-640-00-001

180-XX-642-00-001

180-XX-648-00-001

180-XX-650-00-001

180-XX-652-00-001

180-XX-950-00-001

180-XX-952-00-001

180-XX-964-00-001

SPECIFY PLATING CODE XX=

A

0.5

0.2

0.3

0.4

0.5

0.7

0.8

0.9

1.0

1.1

1.2

1.4

1.0

1.1

1.2

1.4

1.6

1.2

1.4

1.6

1.8

2.0

2.1

2.4

2.5

2.6

2.5

2.6

3.2

B

0.2

0.3

0.4

0.6

0.9

C

0.3

0.4

0.5

0.7

1.0

41

102

67

50

40

28

25

22

20

18

16

14

20

18

16

14

12

16

14

12

11

10

9

8

7

8

7

6

2 Level Wrapost

L = .370

182-XX-210-00-001

182-XX-304-00-001

182-XX-306-00-001

182-XX-308-00-001

182-XX-310-00-001

182-XX-314-00-001

182-XX-316-00-001

182-XX-318-00-001

182-XX-320-00-001

182-XX-322-00-001

182-XX-324-00-001

182-XX-328-00-001

182-XX-420-00-001

182-XX-422-00-001

182-XX-424-00-001

182-XX-428-00-001

182-XX-432-00-001

182-XX-624-00-001

182-XX-628-00-001

182-XX-632-00-001

182-XX-636-00-001

182-XX-640-00-001

182-XX-642-00-001

182-XX-648-00-001

182-XX-650-00-001

182-XX-652-00-001

182-XX-950-00-001

182-XX-952-00-001

182-XX-964-00-001

10

10µ” Au

90

200µ” Sn/Pb

3 Level Wrapost

L = .510

183-XX-210-00-001

183-XX-304-00-001

183-XX-306-00-001

183-XX-308-00-001

183-XX-310-00-001

183-XX-314-00-001

183-XX-316-00-001

183-XX-318-00-001

183-XX-320-00-001

183-XX-322-00-001

183-XX-324-00-001

183-XX-328-00-001

183-XX-420-00-001

183-XX-422-00-001

183-XX-424-00-001

183-XX-428-00-001

183-XX-432-00-001

183-XX-624-00-001

183-XX-628-00-001

183-XX-632-00-001

183-XX-636-00-001

183-XX-640-00-001

183-XX-642-00-001

183-XX-648-00-001

183-XX-650-00-001

183-XX-652-00-001

183-XX-950-00-001

183-XX-952-00-001

183-XX-964-00-001

10

4

6

8

10

14

16

18

20

22

24

28

20

22

24

28

32

24

28

32

36

40

42

48

50

52

50

52

64

Pin Plating

w w w. m i l l - m a x . c o m

40

516-922-6000
