RF SSMB Connector, 1 Contact(s), Male, Board Mount, Solder Terminal, Plug

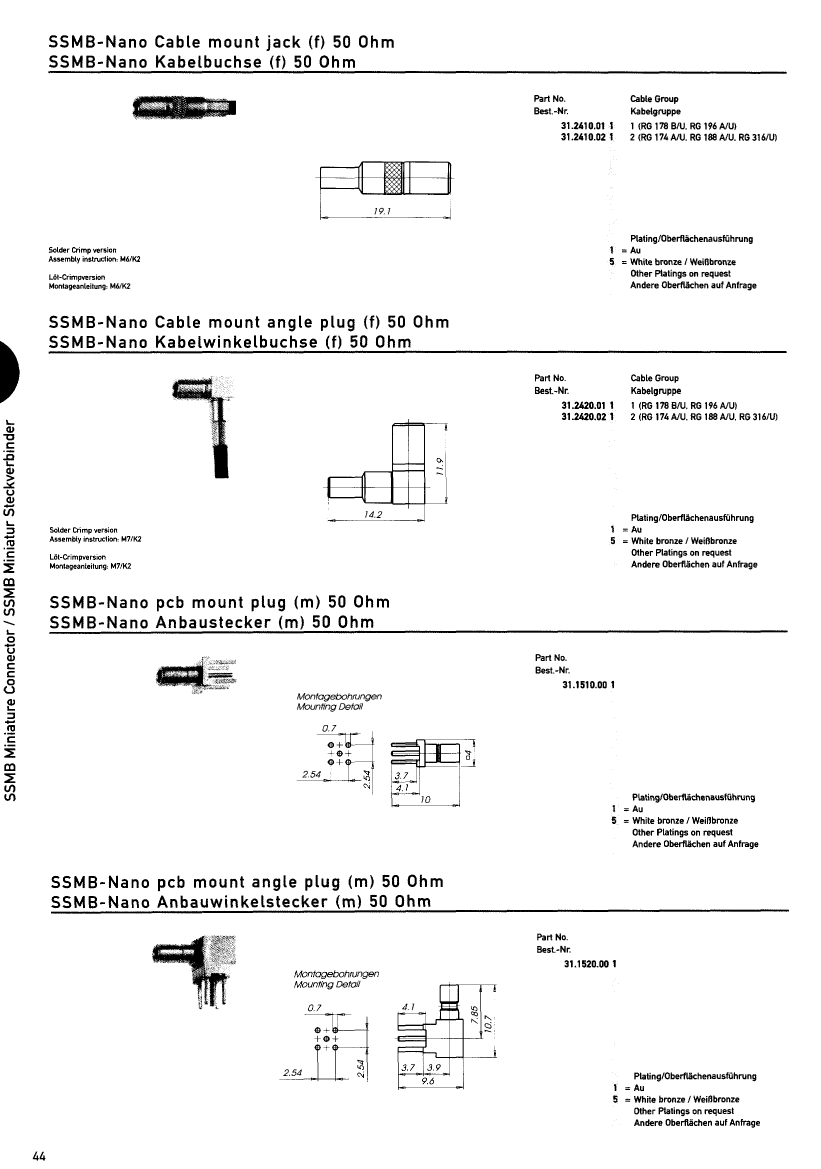

| Parameter Name | Attribute value |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Other features | STANDARD: IEC 169-19 |
| body width | 0.157 inch |
| subject depth | 0.248 inch |
| body length | 0.157 inch |
| Body/casing type | PLUG |
| Characteristic impedance | 50 Ω |
| Connector type | RF SSMB CONNECTOR |
| Contact to complete cooperation | GOLD |
| Contact completed and terminated | GOLD |
| Contact point gender | MALE |
| Contact resistance | 5 mΩ |
| Contact style | COAX |
| Coupling type | SNAP |
| DIN compliance | NO |
| Dielectric withstand voltage | 500VDC V |
| Durability | 500 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| insulator material | POLYTETRAFLUORO ETHYLENE |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of ports | 1 |
| Maximum operating frequency | 12.4 GHz |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| Panel mounting | NO |
| Rated current (signal) | 1 A |
| Terminal length | 0.146 inch |
| Termination type | SOLDER |
| Total number of contacts | 1 |
| voltage standing wave ratio | 1.11 |
| Base Number Matches | 1 |
| 31.1510.001 | 31.1520.001 | 31.2420.021 | 31.2420.011 | 31.2410.011 | 804-029-01NF9-19BB | |
|---|---|---|---|---|---|---|
| Description | RF SSMB Connector, 1 Contact(s), Male, Board Mount, Solder Terminal, Plug | RF SSMB Connector, 1 Contact(s), Male, Board Mount, Solder Terminal, Plug | RF SSMB Connector, 1 Contact(s), Male, Cable Mount, Crimp Solder Terminal, Locking, Plug | RF SSMB Connector, 1 Contact(s), Male, Cable Mount, Crimp Solder Terminal, Locking, Plug | RF SSMB Connector, Female, Cable Mount, Crimp Solder Terminal, Jack | Circular Connector |
| Reach Compliance Code | compli | compli | compliant | compliant | unknown | not_compliant |
| Connector type | RF SSMB CONNECTOR | RF SSMB CONNECTOR | RF SSMB CONNECTOR | RF SSMB CONNECTOR | RF SSMB CONNECTOR | CIRCULAR CONNECTOR |
| Contact to complete cooperation | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD (50) |
| Contact completed and terminated | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD |
| JESD-609 code | e4 | e4 | e4 | e4 | e4 | e4 |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | - | EAR99 |
| Other features | STANDARD: IEC 169-19 | STANDARD: IEC 169-19 | APPLICABLE CABLES: RG 174A/U; RG 188A/U; RG 316/U | APPLICABLE CABLES: RG 178B/U; RG 196A/U | APPLICABLE CABLES: RG 178B/U; RG 196A/U | - |
| subject depth | 0.248 inch | 0.421 inch | 0.469 inch | 0.469 inch | 0.752 inch | - |
| Body/casing type | PLUG | PLUG | PLUG | PLUG | JACK | - |
| Characteristic impedance | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω | - |
| Contact point gender | MALE | MALE | MALE | MALE | FEMALE | - |
| Contact resistance | 5 mΩ | 5 mΩ | 5 mΩ | 5 mΩ | - | - |
| Contact style | COAX | COAX | COAX | COAX | - | - |
| Coupling type | SNAP | SNAP | SNAP | SNAP | SNAP | - |
| DIN compliance | NO | NO | NO | NO | NO | - |
| Dielectric withstand voltage | 500VDC V | 500VDC V | 500VDC V | 500VDC V | - | - |
| Durability | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | - | - |
| Filter function | NO | NO | NO | NO | NO | - |
| IEC compliance | NO | NO | NO | NO | NO | - |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | - | - |
| insulator material | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | - |
| MIL compliance | NO | NO | NO | NO | NO | - |
| Plug information | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | MULTIPLE MATING PARTS AVAILABLE | - |
| Installation method | STRAIGHT | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | STRAIGHT | - |
| Installation type | BOARD | BOARD | CABLE | CABLE | CABLE | - |
| Number of ports | 1 | 1 | 1 | 1 | 1 | - |
| Maximum operating frequency | 12.4 GHz | 12.4 GHz | 4 GHz | 4 GHz | 4 GHz | - |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | - | - |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | - | - |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | - |
| Panel mounting | NO | NO | NO | NO | NO | - |
| Rated current (signal) | 1 A | 1 A | 1 A | 1 A | - | - |
| Terminal length | 0.146 inch | 0.146 inch | 0.37 inch | 0.37 inch | - | - |
| Termination type | SOLDER | SOLDER | CRIMP SOLDER | CRIMP SOLDER | CRIMP/SOLDER | - |
| Total number of contacts | 1 | 1 | 1 | 1 | 1 | - |
| voltage standing wave ratio | 1.11 | 1.35 | 1.41 | 1.41 | 1.22 | - |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | - |
