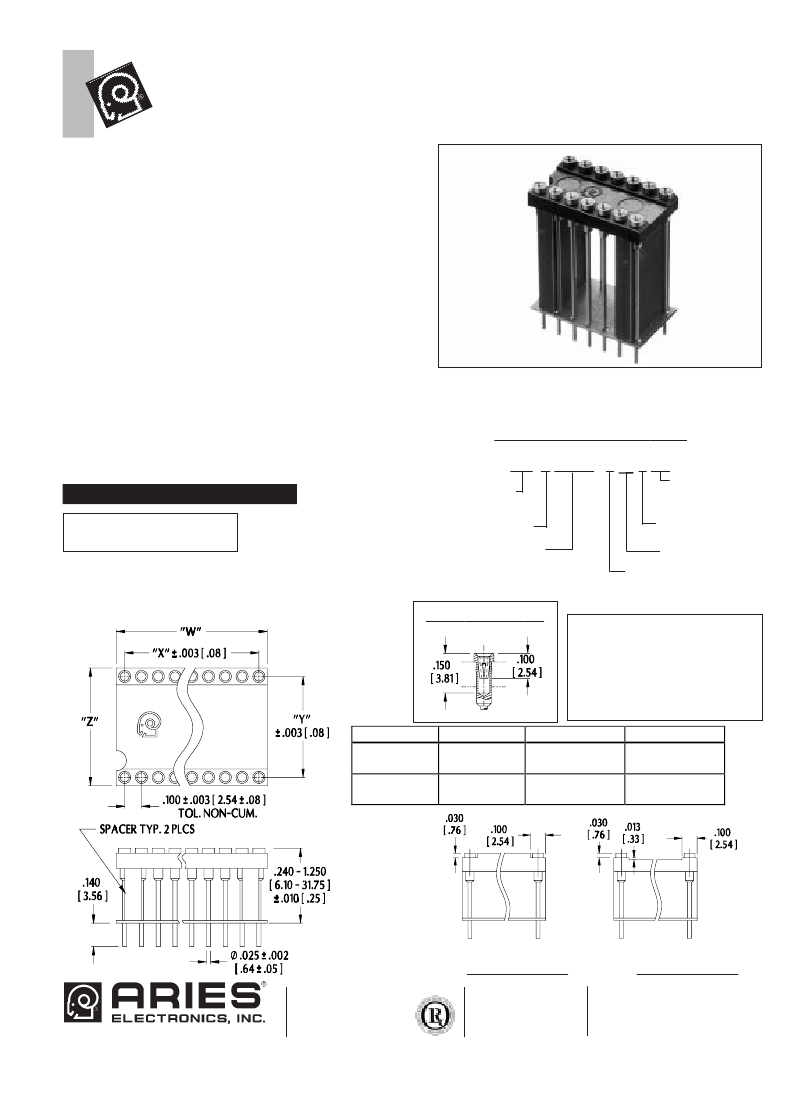

Series 8XXX Collet Elevator Sockets
on .300 [7.62] and .600 [15.24] Centers
FEATURES:
• Ideal for elevating devices (displays, switches, etc.) to desired level
with .240 to 1.250 [6.10 to 31.75] height extension.
SPECIFICATIONS:
• Standard socket body is black UL 94-HB Glass-filled Nylon.
• Spacer is red UL 94-HB Glass-filled Nylon.
• High temp socket boad and spacer are black UL 94V-0 4/6 Nylon.
• Pin body is Brass Alloy 360 1/2 hard per UNS C36000
ASTM-B16-85.
• Pin body plating is 200µ [1.27µm] min. 93/7 Tin/Lead per
MIL-P-81728 over 100µ [2.54µm] min. Nickel per
QQ-N-290. Gold plating also available (consult factory).
• 4-fingered collet contact is Beryllium Copper Alloy per UNS
C17200 ASTM-B194-92.
• Contact plating is 30µ [.76µm] min. Gold per MIL-G-45204 over
50µ [1.27µm] min. Nickel per QQ-N-290.
• Contact current rating=3 Amps.
• Operating temperature=221°F [105°C].
• Insertion Force=180 grams/pin; Withdrawal Force=90 grams/pin;
Normal Force=140 grams/pin; based on a .018 [.46] diameter test
lead.
• Accepts leads .015-.025 [.38-.64] in diameter, .110-.150
[2.79-3.81] long.
MOUNTING CONSIDERATIONS:
• Suggested PCB hole size=.035 ± .002 [.89 ± .05] dia.
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
XX-8XXXX-X10CXX
No. of pins
(see table)
Series
Optional suffix:
V0=UL 94V-0
plastic
Collet style
Tin plated
solder tail pin
Row-to-row spacing:
3: “Y”=.300 [7.62]
6: “Y”=.600 [15.24]
Consult Data Sheet No. 13007 for
collet elevator sockets on .200
[5.08] centers.
Consult Data Sheet No. 13006 for
elevator sockets with bifurcated
contacts.
A
LL
DIMENSIONS
:
INCHES
[
MILLIMETERS
]
All tolerances ± .005 [.13]
unless otherwise specified
“W”=NO. OF PINS PER ROW X .100 [2.54]
“X”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
Seating plane height
.240 [6.10] to 1.250 [31.75]
CONTACT DETAIL
Centers “Y”
.300 [7.62]
.600 [15.24]
Dim. “Z”
.400 [10.16]
.700 [17.78]
Body Style
C
B
C
B
Available Sizes
6 thru 20
22 thru 40
6 thru 40
42 thru 48
BODY STYLE B
NORTH AMERICA
Frenchtown, NJ USA
TEL: (908) 996-6841
FAX: (908) 996-3891
UK/IRELAND/GB
TEL: +44 870 240 0249
FAX: +44 1653 600493
uking@arieselec.com
BODY STYLE C
EUROPE/MAINLAND/HOLLAND
TEL: +31 78 615 94 65
FAX: +31 78 615 43 11
13008
europe@arieselec.com
REV.C
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
http://www.arieselec.com • info@arieselec.com
