116-13-628-41-006100: DescriptionIC Socket, DIP28, 28 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size175KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

116-13-628-41-006100 Overview

IC Socket, DIP28, 28 Contact(s), ROHS COMPLIANT

116-13-628-41-006100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	DIP SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Gold (Au)
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP28
JESD-609 code	e4
Number of contacts	28
Base Number Matches	1

Preview

Download Datasheet

View All

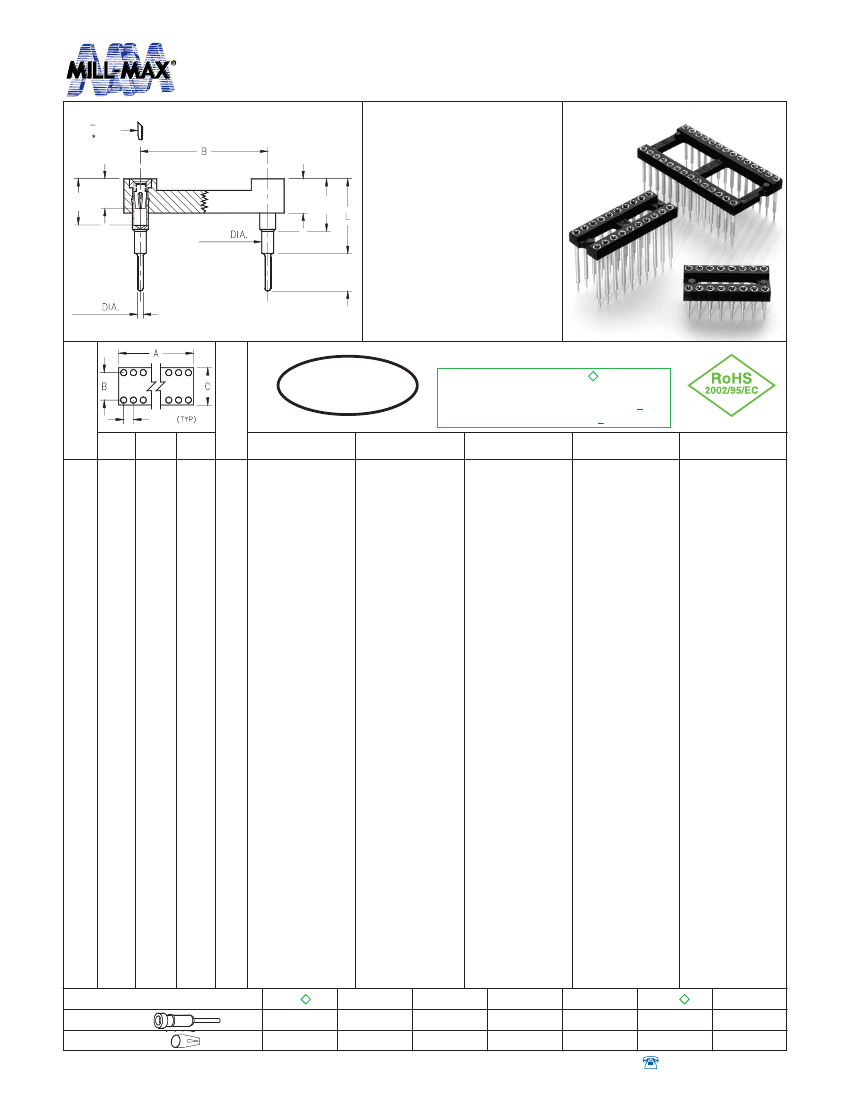

DUAL-IN-LINE SOCKETS

Elevated

Open Frame

0,38

0,25

0,64

0,46

Series 116

•

3,71

2,41

2,79

1,02

•

4,22

•

3,0

0,46

•

For mechanical and

electrical interconnect-

tion and stacking of

PCBs.

Other platings and

heights on request.

Hi-Rel, 4-finger #30

clip rated at 3 amps.

See page 208 for

details.

Uses M-M #0153 pin.

See page 136 for details.

Total number

of pins

Ordering Information

Quantity

per tube

XX=Plating Code

See Below

L = 6,0

L = 8,0

2,54

For RoHS compliance, select



plating code.

For the all gold option (XX=13) also change

part number from 116-XX-XXX-41-00X000

to 116-13-XXX-41-00X100

A

12,6

5,0

7,6

10,1

12,6

17,7

20,3

22,8

25,3

27,8

30,4

35,5

25,4

27,8

30,4

35,5

40,6

30,5

35,5

40,6

45,7

50,8

53,3

60,9

63,5

66,0

63,5

66,0

81,2

B

5,08

7,62

10,16

15,24

22,86

C

7,6

10,1

12,7

17,7

25,3

40

102

67

50

40

28

25

22

20

18

16

14

20

18

16

14

12

16

14

12

11

10

9

8

7

L = 10,21

116-XX-210-41-007000

116-XX-304-41-007000

116-XX-306-41-007000

116-XX-308-41-007000

116-XX-310-41-007000

116-XX-314-41-007000

116-XX-316-41-007000

116-XX-318-41-007000

116-XX-320-41-007000

116-XX-322-41-007000

116-XX-324-41-007000

116-XX-328-41-007000

116-XX-420-41-007000

116-XX-422-41-007000

116-XX-424-41-007000

116-XX-428-41-007000

116-XX-432-41-007000

116-XX-624-41-007000

116-XX-628-41-007000

116-XX-632-41-007000

116-XX-636-41-007000

116-XX-640-41-007000

116-XX-642-41-007000

116-XX-648-41-007000

116-XX-650-41-007000

116-XX-652-41-007000

116-XX-950-41-007000

116-XX-952-41-007000

116-XX-964-41-007000

L = 11,99

116-XX-210-41-008000

116-XX-304-41-008000

116-XX-306-41-008000

116-XX-308-41-008000

116-XX-310-41-008000

116-XX-314-41-008000

116-XX-316-41-008000

116-XX-318-41-008000

116-XX-320-41-008000

116-XX-322-41-008000

116-XX-324-41-008000

116-XX-328-41-008000

116-XX-420-41-008000

116-XX-422-41-008000

116-XX-424-41-008000

116-XX-428-41-008000

116-XX-432-41-008000

116-XX-624-41-008000

116-XX-628-41-008000

116-XX-632-41-008000

116-XX-636-41-008000

116-XX-640-41-008000

116-XX-642-41-008000

116-XX-648-41-008000

116-XX-650-41-008000

116-XX-652-41-008000

116-XX-950-41-008000

116-XX-952-41-008000

116-XX-964-41-008000

L = 15,09

116-XX-210-41-001000

116-XX-304-41-001000

116-XX-306-41-001000

116-XX-308-41-001000

116-XX-310-41-001000

116-XX-314-41-001000

116-XX-316-41-001000

116-XX-318-41-001000

116-XX-320-41-001000

116-XX-322-41-001000

116-XX-324-41-001000

116-XX-328-41-001000

116-XX-420-41-001000

116-XX-422-41-001000

116-XX-424-41-001000

116-XX-428-41-001000

116-XX-432-41-001000

116-XX-624-41-001000

116-XX-628-41-001000

116-XX-632-41-001000

116-XX-636-41-001000

116-XX-640-41-001000

116-XX-642-41-001000

116-XX-648-41-001000

116-XX-650-41-001000

116-XX-652-41-001000

116-XX-950-41-001000

116-XX-952-41-001000

116-XX-964-41-001000

10

4

6

8

10

14

16

18

20

22

24

28

20

22

24

28

32

24

28

32

36

40

42

48

50

52

50

52

64

116-XX-210-41-006000

116-XX-304-41-006000

116-XX-306-41-006000

116-XX-308-41-006000

116-XX-310-41-006000

116-XX-314-41-006000

116-XX-316-41-006000

116-XX-318-41-006000

116-XX-320-41-006000

116-XX-322-41-006000

116-XX-324-41-006000

116-XX-328-41-006000

116-XX-420-41-006000

116-XX-422-41-006000

116-XX-424-41-006000

116-XX-428-41-006000

116-XX-432-41-006000

116-XX-624-41-006000

116-XX-628-41-006000

116-XX-632-41-006000

116-XX-636-41-006000

116-XX-640-41-006000

116-XX-642-41-006000

116-XX-648-41-006000

116-XX-650-41-006000

116-XX-652-41-006000

116-XX-950-41-006000

116-XX-952-41-006000

116-XX-964-41-006000

116-XX-210-41-003000

116-XX-304-41-003000

116-XX-306-41-003000

116-XX-308-41-003000

116-XX-310-41-003000

116-XX-314-41-003000

116-XX-316-41-003000

116-XX-318-41-003000

116-XX-320-41-003000

116-XX-322-41-003000

116-XX-324-41-003000

116-XX-328-41-003000

116-XX-420-41-003000

116-XX-422-41-003000

116-XX-424-41-003000

116-XX-428-41-003000

116-XX-432-41-003000

116-XX-624-41-003000

116-XX-628-41-003000

116-XX-632-41-003000

116-XX-636-41-003000

116-XX-640-41-003000

116-XX-642-41-003000

116-XX-648-41-003000

116-XX-650-41-003000

116-XX-652-41-003000

116-XX-950-41-003000

116-XX-952-41-003000

116-XX-964-41-003000

SPECIFY PLATING CODE XX=

13



0,25µm Au

0,76µm Au

91

10µ” Au

93

0,76µm Au

99

200µ” Sn/Pb

41



200µ” Sn

10µ” Au

43



5,08µm Sn

0,76µm Au

44



200µ”Sn

200µ” Sn

Sleeve (Pin)

Contact (Clip)

200µ” Sn/Pb

5,08µm Sn/Pb

200µ”Sn/Pb

w w w. m i l l - m a x . c o m

30



516-922-6000
