Part Number

Search

3-641435-6

Description
06P MTA156 CONN ASSY ORNG
CategoryThe connector    The connector
File Size66KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance

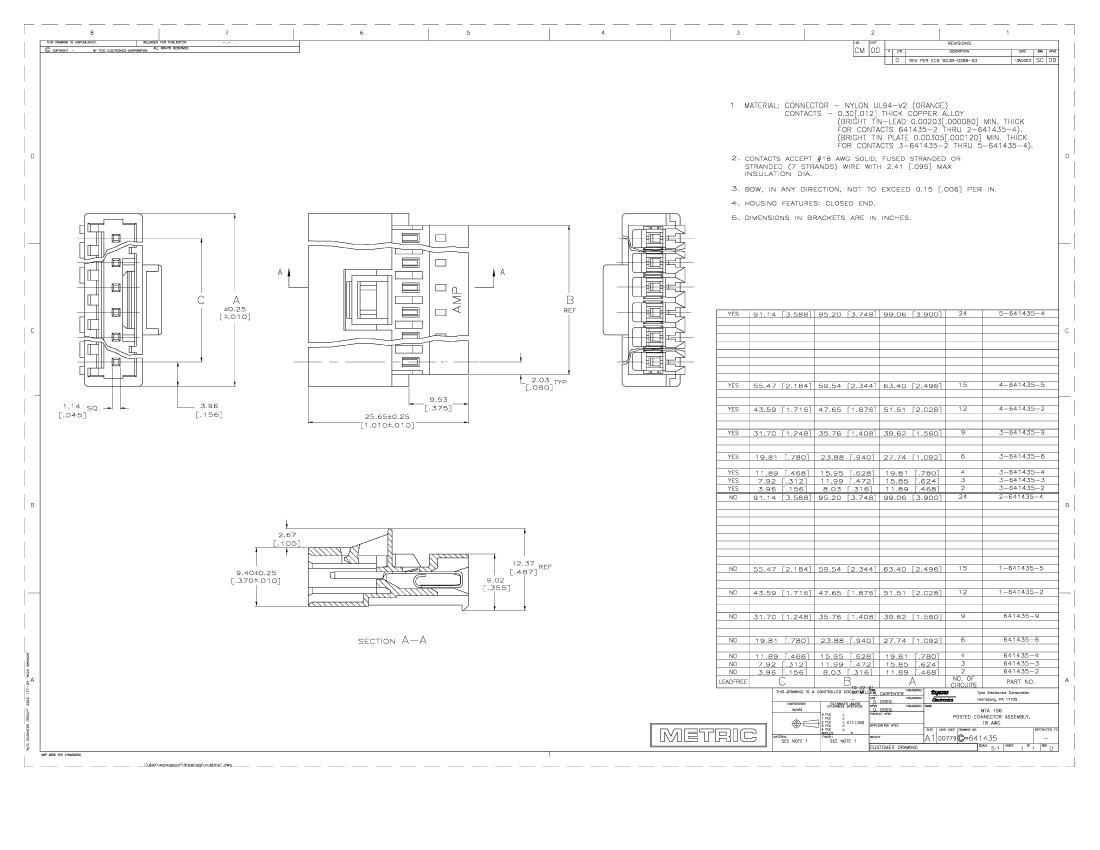

Download Datasheet Parametric Compare View All

3-641435-6 Online Shopping

Suppliers Part Number Price MOQ In stock
3-641435-6 - - View Buy Now

3-641435-6 Overview

06P MTA156 CONN ASSY ORNG

3-641435-6 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerTE Connectivity
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Other featuresSHROUDED
body width0.487 inch
subject depth1.01 inch
body length1.092 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTIN
Contact point genderFEMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance7 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1500VAC V
Durability25 Cycles
Filter functionNO
IEC complianceNO
Insulation resistance5000000000 Ω
Insulator colorORANGE
insulator materialNYLON
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number641435
Plug contact pitch0.156 inch
Mixed contactsNO
Installation option 1LOCKING
Installation typeCABLE
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Plating thickness80u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)7 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Termination typeIDC
Total number of contacts6
UL Flammability Code94V-2
Maximum wire diameter18 AWG
Minimum wire diameter18 AWG
Base Number Matches1

3-641435-6 Related Products

3-641435-6 4-641435-5 4-641435-2 3-641435-9
Description 06P MTA156 CONN ASSY ORNG 15P MTA156 CONN ASSY ORNG 12P MTA156 CONN ASSY ORNG 09P MTA156 CONN ASSY ORNG
Brand Name AMP AMP AMP AMP
Is it lead-free? Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to
Maker TE Connectivity TE Connectivity TE Connectivity TE Connectivity
package instruction ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
Reach Compliance Code compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99
Is Samacsys N N N N
Other features SHROUDED COMPATIBLE CONTACT: 3-641425-1 COMPATIBLE CONTACT: 3-641425-1 SHROUDED
body width 0.487 inch 0.487 inch 0.487 inch 0.487 inch
subject depth 1.01 inch 1.01 inch 1.01 inch 1.01 inch
body length 1.092 inch 2.496 inch 2.028 inch 1.56 inch
Body/casing type PLUG PLUG RECEPTACLE PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contactor design PREASSEM CONN PREASSEM CONN PREASSEM CONN PREASSEM CONN
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact completed and terminated TIN TIN TIN TIN
Contact point gender FEMALE MALE MALE MALE
Contact material COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 7 mΩ 7 mΩ 3 mΩ 7 mΩ
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
DIN compliance NO NO NO NO
Dielectric withstand voltage 1500VAC V 1500VAC V 1500VAC V 1500VAC V
Durability 25 Cycles 25 Cycles 25 Cycles 25 Cycles
Filter function NO NO NO NO
IEC compliance NO NO NO NO
Insulation resistance 5000000000 Ω 5000000000 Ω 5000000000 Ω 5000000000 Ω
Insulator color ORANGE ORANGE ORANGE ORANGE
insulator material NYLON NYLON NYLON NYLON
JESD-609 code e3 e3 e3 e3
MIL compliance NO NO NO NO
Manufacturer's serial number 641435 641435 641435 641435
Plug contact pitch 0.156 inch 0.156 inch 0.156 inch 0.156 inch
Mixed contacts NO NO NO NO
Installation option 1 LOCKING LOCKING LOCKING LOCKING
Installation type CABLE CABLE CABLE CABLE
Number of rows loaded 1 1 1 1
Maximum operating temperature 105 °C 105 °C 105 °C 105 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Plating thickness 80u inch 80u inch 80u inch 80u inch
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Rated current (signal) 7 A 7 A 7 A 7 A
Guideline UL, CSA UL, CSA UL, CSA UL, CSA
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Termination type IDC IDC IDC IDC
Total number of contacts 6 15 12 9
UL Flammability Code 94V-2 94V-2 94V-2 94V-2
Maximum wire diameter 18 AWG 18 AWG 18 AWG 18 AWG
Minimum wire diameter 18 AWG 18 AWG 18 AWG 18 AWG
Base Number Matches 1 1 1 1
