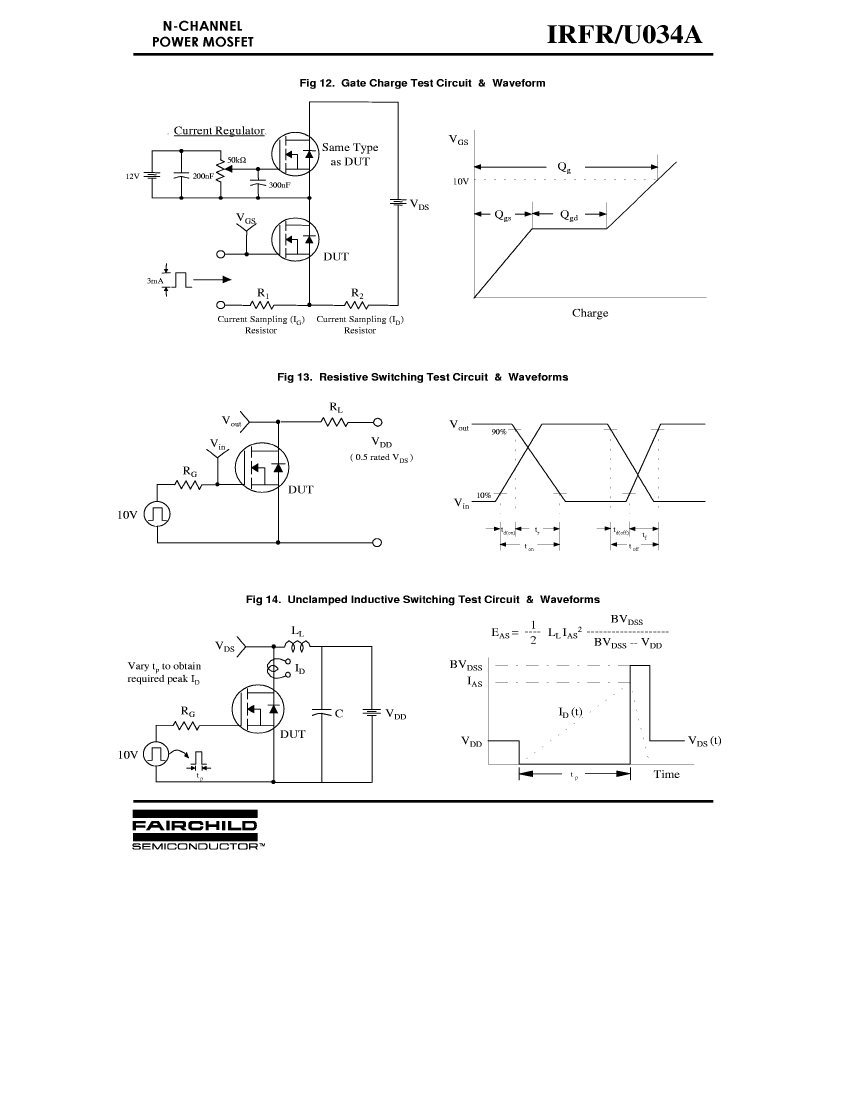

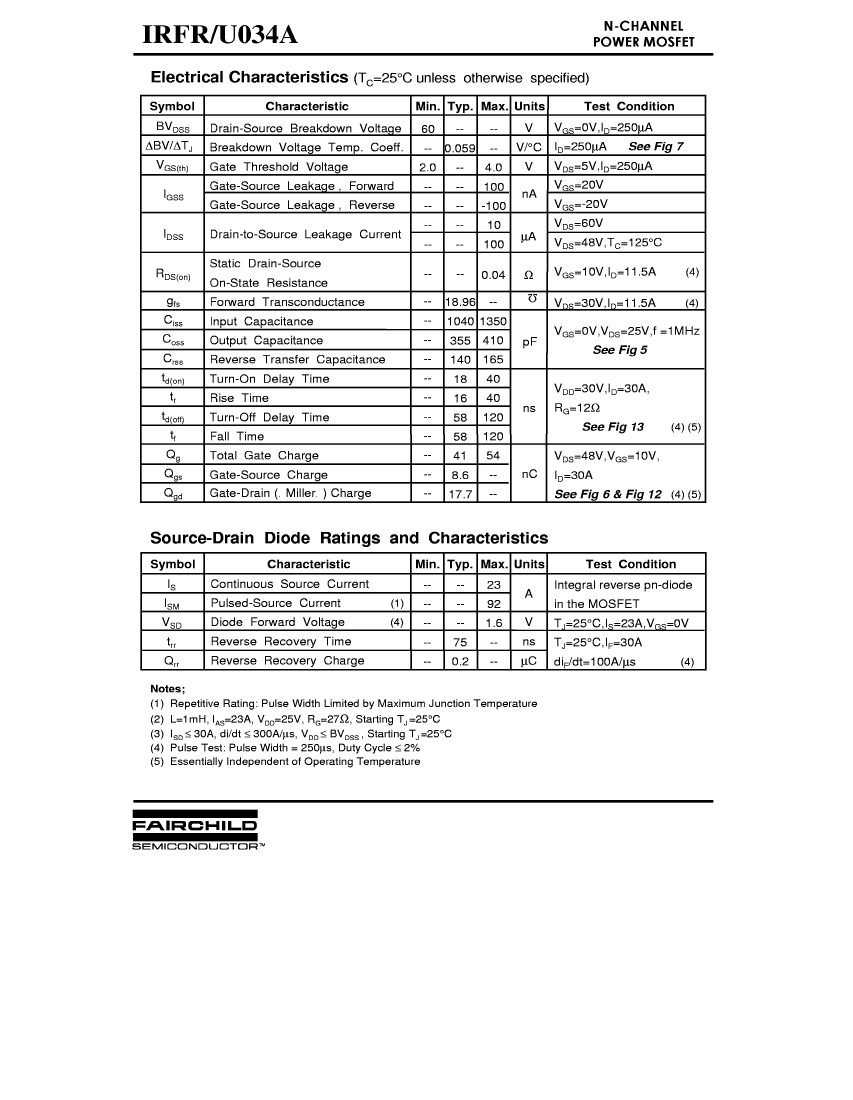

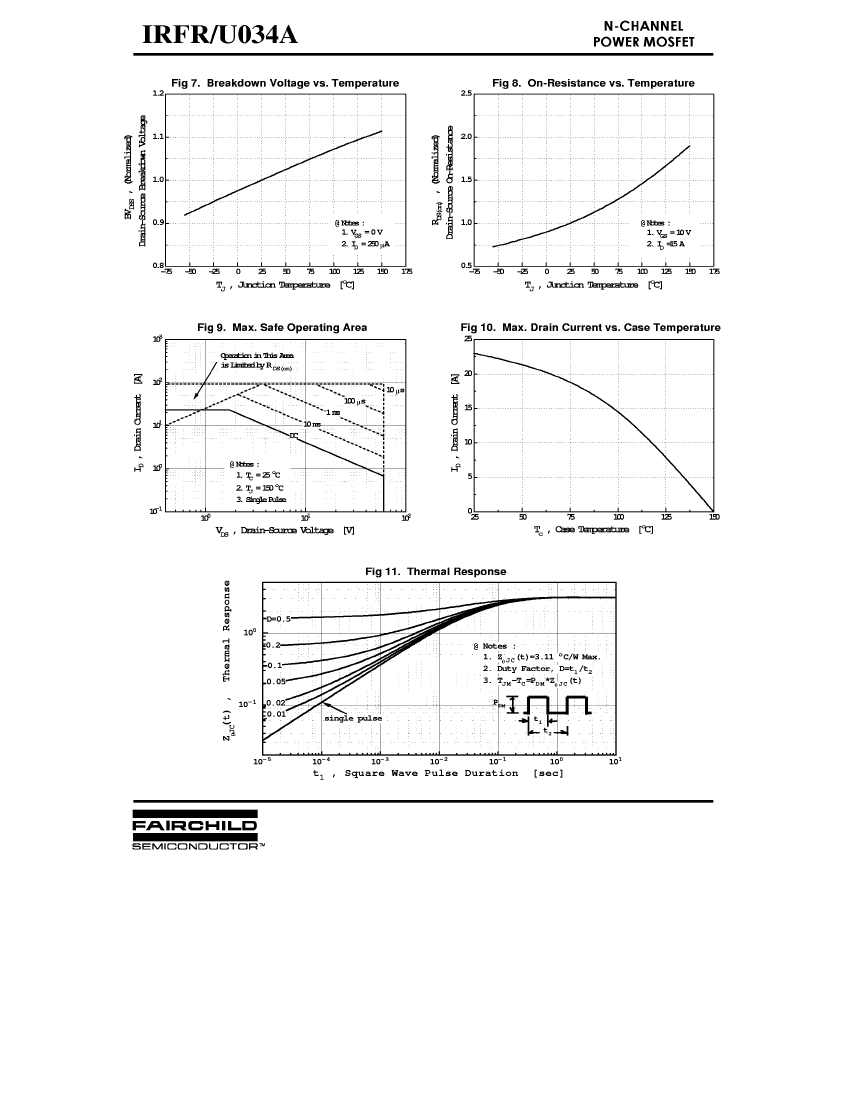

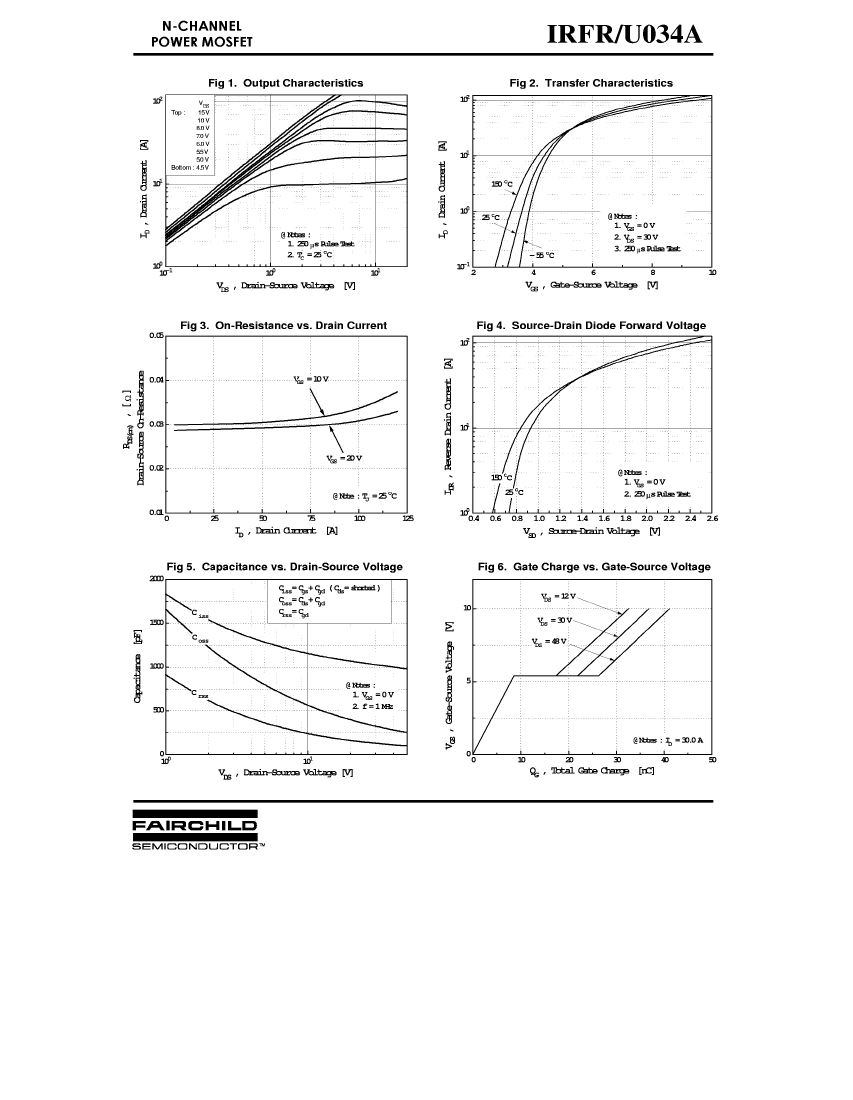

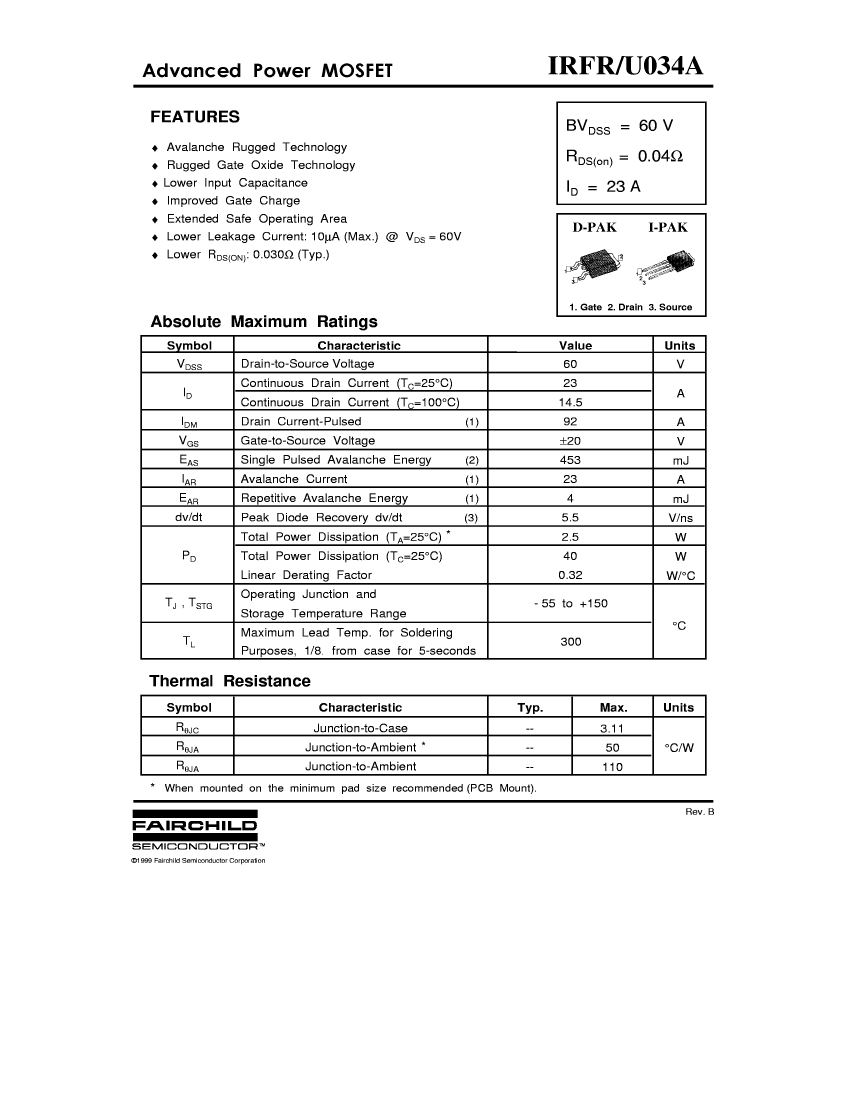

Preview

IRFU034A: DescriptionPower Field-Effect Transistor, 23A I(D), 60V, 0.04ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, IPAK-3; CategoryDiscrete semiconductor The transistor; File Size154KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

IRFU034A Overview

Power Field-Effect Transistor, 23A I(D), 60V, 0.04ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, IPAK-3

IRFU034A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	IN-LINE, R-PSIP-T3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Avalanche Energy Efficiency Rating (Eas)	453 mJ
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	60 V
Maximum drain current (Abs) (ID)	23 A
Maximum drain current (ID)	23 A
Maximum drain-source on-resistance	0.04 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSIP-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	40 W
Maximum pulsed drain current (IDM)	92 A
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

IRFU034A Related Products

	IRFU034A	IRFR034A
Description	Power Field-Effect Transistor, 23A I(D), 60V, 0.04ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, IPAK-3	Power Field-Effect Transistor, 23A I(D), 60V, 0.04ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, DPAK-3
Is it Rohs certified?	incompatible	incompatible
package instruction	IN-LINE, R-PSIP-T3	SMALL OUTLINE, R-PSSO-G2
Contacts	3	3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Avalanche Energy Efficiency Rating (Eas)	453 mJ	453 mJ
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	60 V	60 V
Maximum drain current (Abs) (ID)	23 A	23 A
Maximum drain current (ID)	23 A	23 A
Maximum drain-source on-resistance	0.04 Ω	0.04 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JESD-30 code	R-PSIP-T3	R-PSSO-G2
JESD-609 code	e0	e0
Number of components	1	1
Number of terminals	3	2
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	N-CHANNEL	N-CHANNEL
Maximum power dissipation(Abs)	40 W	40 W
Maximum pulsed drain current (IDM)	92 A	92 A
Certification status	Not Qualified	Not Qualified
surface mount	NO	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Base Number Matches	1	1
