Z8916924VSC datasheet, PDF - EEWORLD Datasheet

Z8916924VSC: DescriptionMicrocontroller, 8-Bit, MROM, Z8 CPU, 24MHz, CMOS, PQCC84,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，23 Pages; ManufacturerIXYS

Download Datasheet Parametric View All

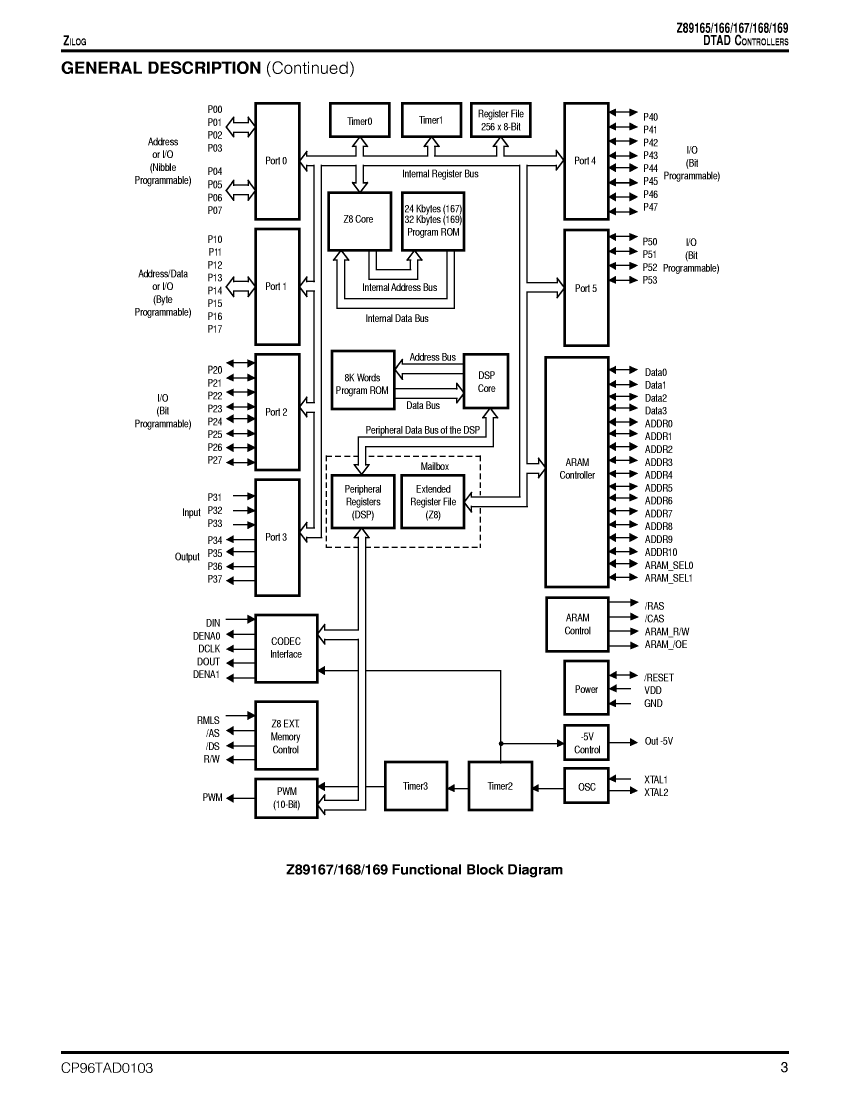

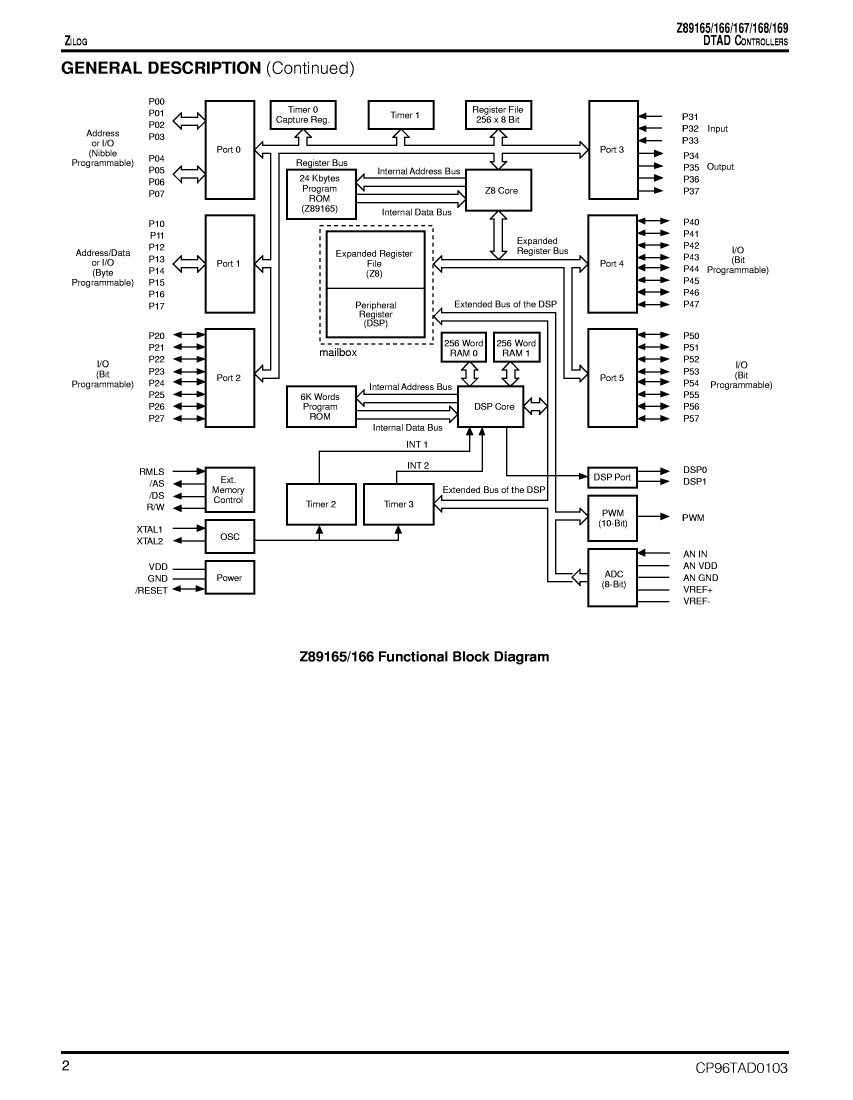

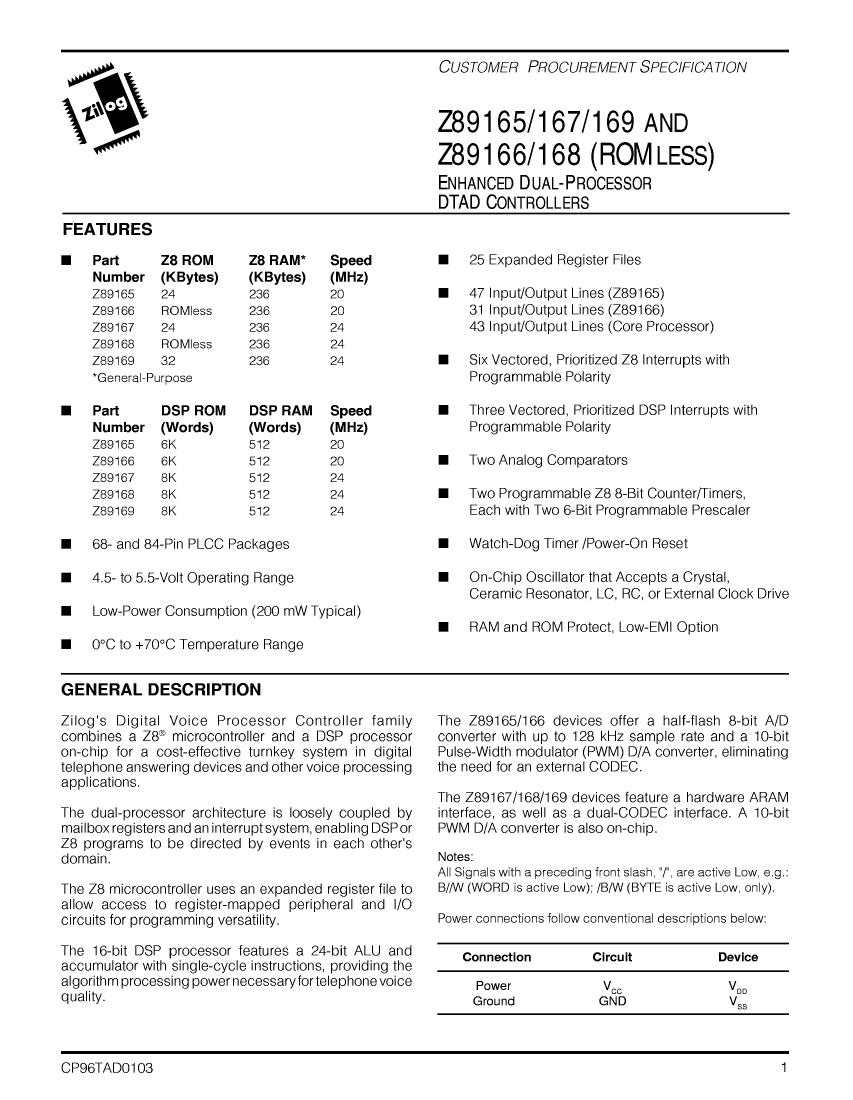

Z8916924VSC Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 24MHz, CMOS, PQCC84,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	113907632
Reach Compliance Code	unknown
YTEOL	6.38
Has ADC	YES
Address bus width	16
bit size	8
CPU series	Z8
DAC channel	YES
DMA channel	NO
External data bus width	8
JESD-30 code	S-PQCC-J84
length	29.31 mm
Number of I/O lines	43

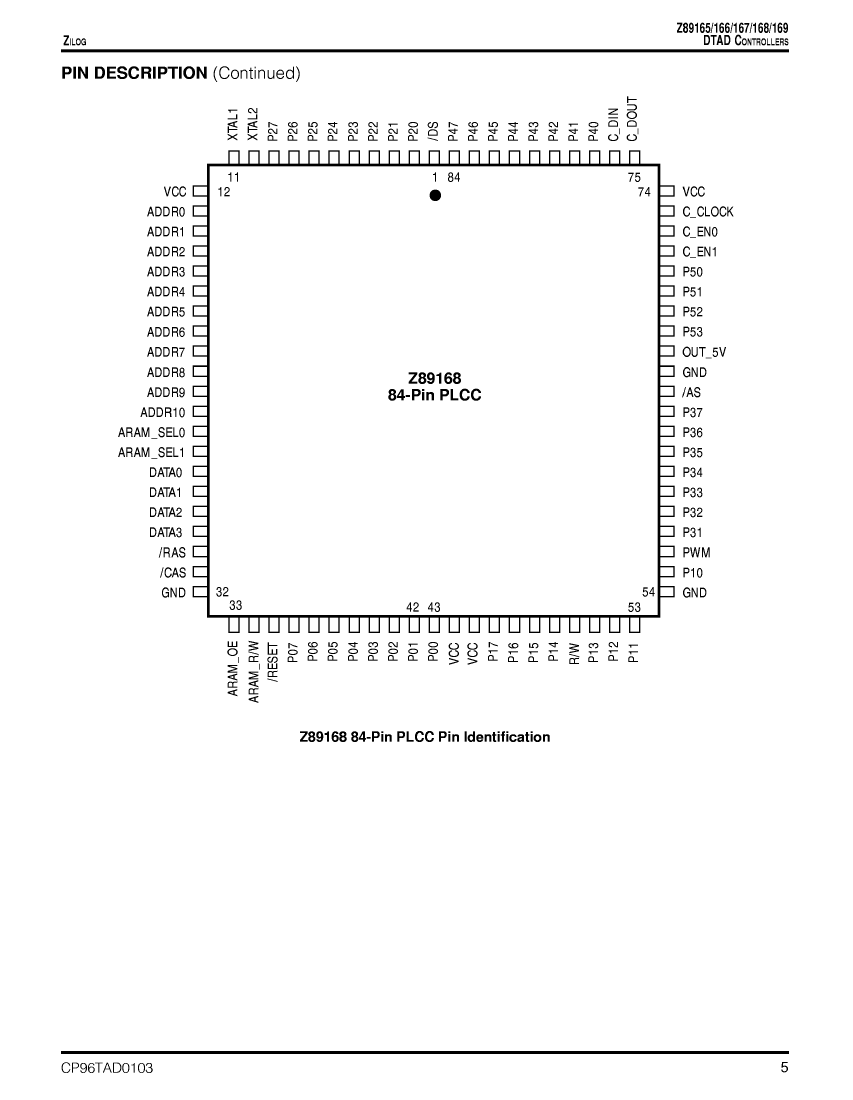

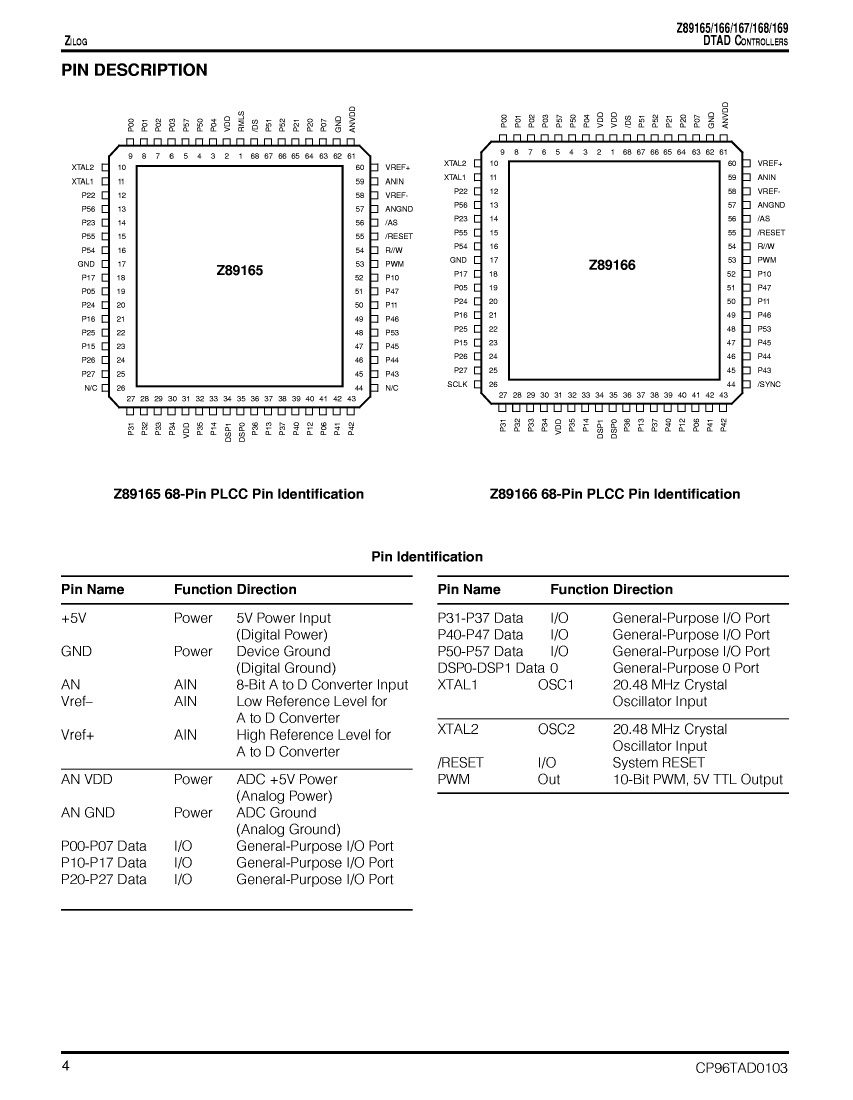

Number of terminals	84
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC84,1.2SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	1280
rom(word)	40960
ROM programmability	MROM
speed	24 MHz
Maximum slew rate	65 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	29.31 mm
