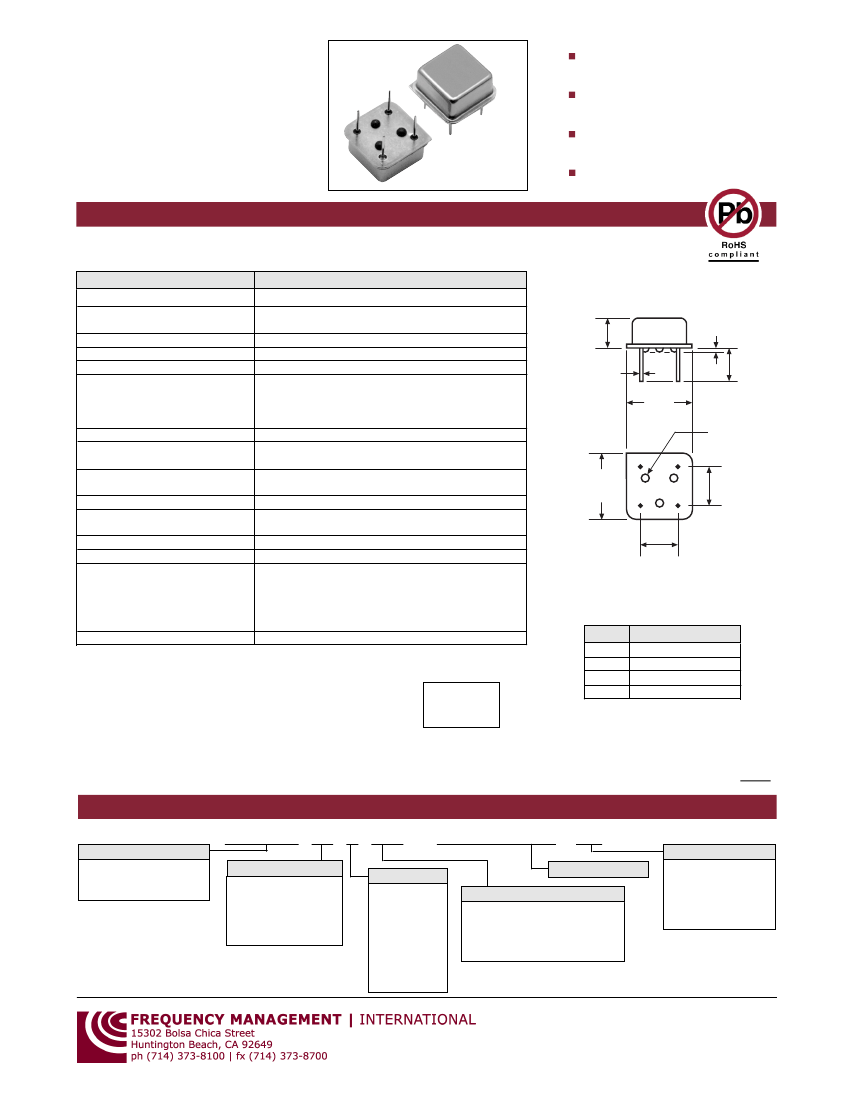

FMOC38
SERIES
3.3 Vdc Clock Oscillators
3.3 Vdc Supply Voltage
HCMOS/TTL Compatible
Small Footprint
Hermetically Sealed
8 PIN DIP
SPECIFICATIONS
05|issue1|022206
Parameter
Frequency Range
Overall Frequency Tolerance
Operating Temperature Range
Storage Temperature
Supply Voltage (Vdd)
Supply Current (Icc)
Specification
15.0 kHz - 160.0 MHz
±20 ppm to ±100 ppm
(Inclusive of Operating Temp., Supply Voltage, & Load)
0 to +70°C Std. (See Temp. Range Options)
-55 to +125°C
+3.3 Vdc (±0.3 Vdc)
15 mA max. @ 15.0 kHz to 23.9 MHz
25 mA max. @ 24.0 to 49.9 MHz
30 mA max. @ 50.0 to 85.0 MHz
70 mA max. @ 86.0 to 160.0 MHz
40/60% Std., 45/55%, 47.5/52.5% Available
0.4 Vdc max. (TTL)
0.4 Vdc max. (HCMOS)
2.4 Vdc min. (TTL)
2.7 Vdc min. (HCMOS)
10 ns max. < 5 ns typical
Absolute: ±100 pSec Max
One Sigma: ±25 pSec Max
10 ms max. < 5 ms typical
2 TTL / 15 pF HCMOS
No Connect (Std.)
Tri-State (option T)
VIH: 2.2 V or Open Enables Output
VIL: 0.8 V Disables Output
100 nS max.
±5ppm max first year
HALF SIZE 8 PIN DIP
0.220
(5.6)
MAX
0.018
(0.46)
0.510
(12.95)
MAX.
1
0.510
(12.95)
MAX.
8
5
4
0.022
(0.56)
0.250
(6.35)
MAX.
Symmetry (Duty Cycle)
Output “0” Level (VOL)
Output “1” Level (VOH)
Rise and Fall Time
Jitter
Start Time
Output Load
Pin 1 Options
(See Spec. Option T below)
Insulated
Stand-Offs
0.300
(7.62)
0.300
(7.62)
Output Disable/Enable Time:
Aging @ 25°C
All specifications subject to change without notice.
PIN FUNCTION TABLE
Pin
1
4
5
8
Function
NC or Tri-State
Case Ground
Output
Supply Voltage (Vdd)
STANDARD MARKING
XXX.XXXM
XXXXXXX
• FMI YYWW
XXX.XXXM FREQUENCY in MHz
XXXXXXX Part Number
Pin 1 Symbol, FMI, Date Code
Standard Specifications for product indicated in
color
Dimensions: Inches
(mm)
PART DESCRIPTION SYSTEM
FMOC38 00 A S/T - XX.XXXXXXM - CM
Product Family
HCMOS/TTL Compatible
3.3 Vdc Clock Osc.
Half Size 8 Pin DIP
Overall Frequency Tol.
20 ± 20 ppm
25 ± 25 ppm
50 ± 50 ppm
00 ± 100 ppm
nn ± Custom Value
Temp. Range
A 0 to 70 °C
B -20 to 70 °C
C -40 to 85 °C
D -10 to 50 °C
E -10 to 60 °C
F -30 to 60 °C
J 0 to 50 °C
X Custom
Frequency (MHz)
Specification Options
S - Symmetry 45/55%
S1 - Symmetry 47.5/52.5%
T - Tri-State
BLANK - None Required (Std.)
Options
GW - Gull Wing
JL - J-Lead
PD - Parameter Data
CM - Custom Mark
BLANK - None Req’d.
1-800-800-XTAL
[9825]
www.fmi-inc.com
