FX4B1-20P-1.27SV(71) datasheet, PDF

Datasheet> All Categories > The connector> The connector> FX4B1-20P-1.27SV(71)

FX4B1-20P-1.27SV(71): Descriptionconn hdr 20pos 1.27mm; CategoryThe connector The connector; File Size395KB，17 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric View All

FX4B1-20P-1.27SV(71) Overview

conn hdr 20pos 1.27mm

FX4B1-20P-1.27SV(71) Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Hirose
Reach Compliance Code	unknow
ECCN code	EAR99
Is Samacsys	N
Base Number Matches	1

Preview

Download Datasheet

View All

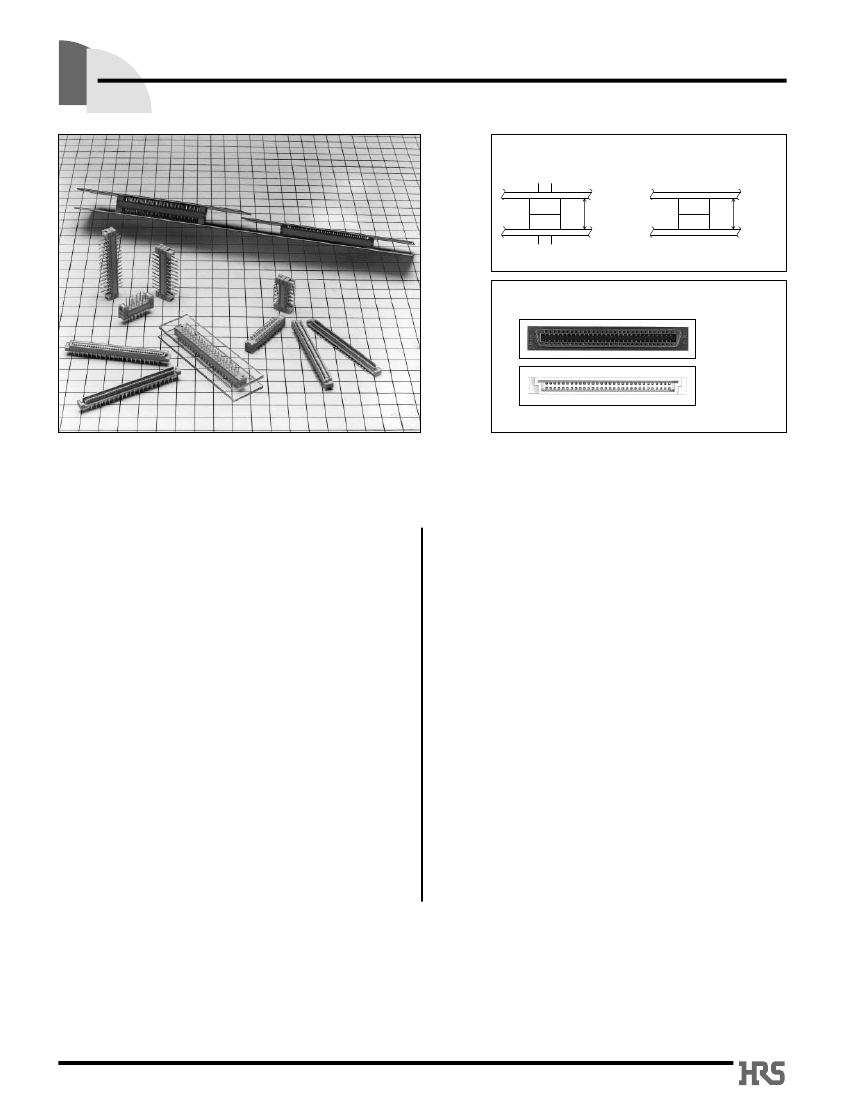

Stacking Height 5 to 11mm Half Pitch Connector

FX4 Series

Stacking Height Flexible

5 to 11mm

SMT type

6 to 11mm

DIP type

The mounting area 70% reduced, compared with

conventional product (FX2 series)

FX2 series

FX4 series

(Compared with 60 contacts)

sFeatures

The FX4 series is a miniature board to board connectors, where the stacking height can be set at the 1mm interval.

According to the mounting method, you can select the product from the dip type and SMT type.

qDip

Type

1. Small and Light

The mounting space and weight is reduced about 30%,

compared to the conventional product (HRS FX2 series),

respectively, and the mounting area about 70% reduced,

compared to the conventional one.

qSMT

Type

1. Small and Light

The mounting space and weight is reduced about 40%,

compared with the conventional product (HRS FX2 series),

and the mounting area is reduced 80%, compared to the

conventional one.

2. Stacking Height 5 to 11mm

The board to board stacking height can be set per 1mm

from 5mm up to 11mm.

2. Stacking Height 6 to 11mm

The board to board stacking height can be set per 1mm

from 6mm up to 11mm. In addition, the height can be also

set in combination with the dip type.

3. Flux Swell Prevention

When solder is dipped, the flux swell from the board rear

side is completely prevented.

3. Mis-insertion Prevention and Low

Insertion/Extraction Structure

The connection area is designed to completely prevent the

mis-insertion.

Moreover, the low insertion/extraction force mechanism is

adopted.

4. Mis-insertion Prevention and Low

Insertion/Extraction Force Mechanism

The connection area is designed to completely prevent the

mis-insertion.

Moreover, the low insertion/extraction mechanism is

adopted.

4. Positioning Boss Selectable

According to the mounting condition, it is selected whether

or not the boss is required. Regarding the boss attached

type, the boss eccentric position can stabilize the mounting

direction.

sApplications

Computers, peripheral equipments, business equipments, etc.

A189
