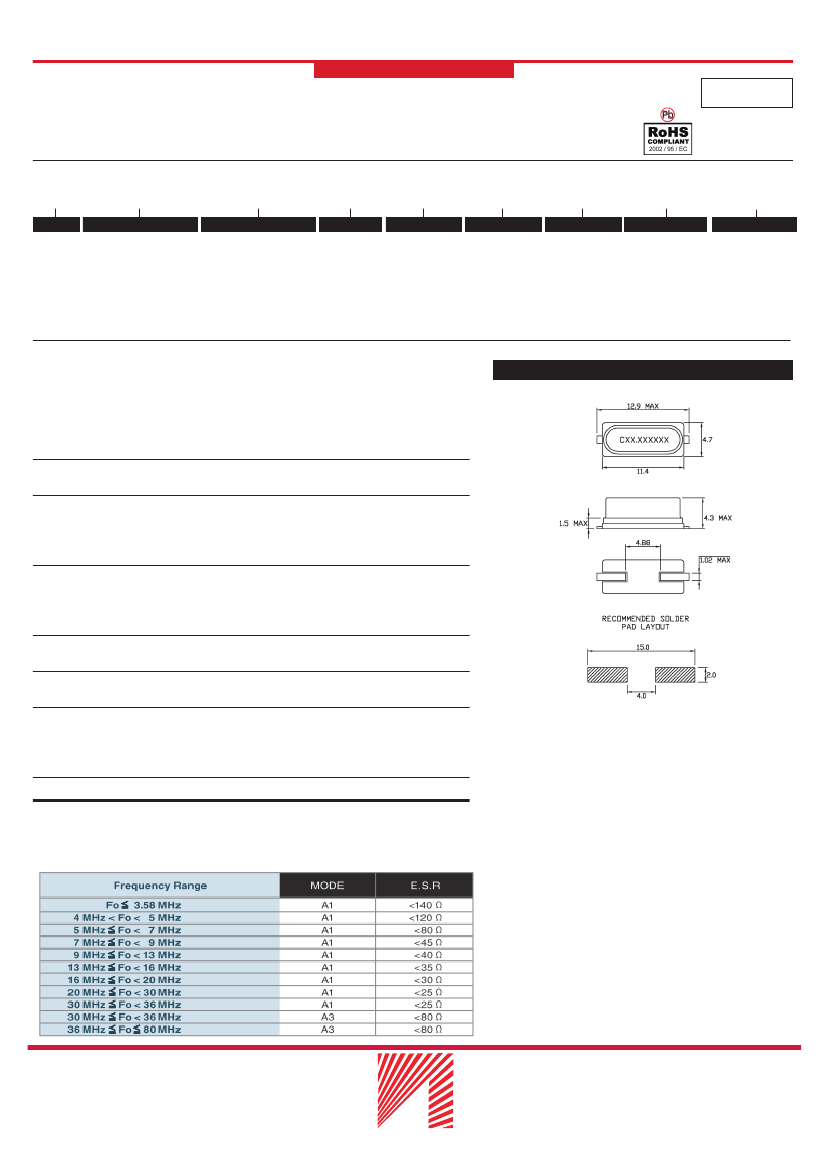

CARDINAL COMPONENTS
Low Profile Surface Mount Crystals
Cardinal “AT-Strip” surface mount crystals are among the most readily available on
the market today. Many popular frequencies are kept in stock at our facility.
Series CSM1
Part Numbering Example: CSM1 Z - A1 B2 C2 200 - 3.579545 D18 - 3
CSM1
Z
A1*
B2
C2
200
3.579545
D18
-3
SERIES ADDED FEATURES OPERATING TEMP. STABILITY TOLERANCE RESISTANCE FREQUENCY LOAD CAP.
OVERTONE
CSM1 BLANK = BULK PACK A0 = -10°C ~ +60°C B1 = ±100 C1 = ±100 SEE CHART
D16,18,20,ETC. BLANK: FUND.
-3: 3rd OT
BELOW
DS = SERIES
Z = TAPE AND REEL A1 = -10°C ~ +70°C B2 = ± 50 C2 = ± 50
B3 = ± 30 C3 = ± 30
A2 = -40°C ~ +85°C
A3 = -55°C ~ +125°C B4 = ± 10 C4 = ± 10
*NOTE:
The above ABC combinations cover basic specification options. We tailor our crystal specifications
to meet customer requirements. Please contact our sales department if you don’t see exactly what you need.
Specifications:
Frequency Range:
3.579545~36.000 MHz
36.000000~80.000 MHz
Operating Temperature:
Frequency Stability:
AT Cut Fundamental
AT Cut 3rd Overtone
CSM1
-10°C ~ +70°C
-40°C ~ +85°C
±100
± 50
± 30
± 15
±100
± 50
± 30
± 10
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ppm
Standard
Standard
Frequency Tolerance:
(at 25°C)
Standard
Load Capacitance:
Resistance:
Standard:
Standard 18 pF or series.
Please specify your required load.
Maximum resistance corresponds to frequency.
See chart below.
Mode: Fundamental or 3rd Overtone
Shunt Capacitance: 7 pF Max
Aging: ± 5 ppm/year
Drive Level: 1.0 mW Max
Tape and Reel (1K per Reel)
Optional Features:
Note:
Not all combinations of the above tolerances, stabilities, and temperature
ranges are available. Consult the factory if your requirement is not standard.
Resistance Chart:
All resistances are maximum values.
EQUIVALENT SERIES RESISTANCE (ESR), MODE OF OPERATION (MODE), AND CUT
Frequency MHz
3.579545~4.999
5.000~5.999
6.000~7.999
8.000~8.999
9.000~9.999
10.000~14.999
ESR(Ω)
200 Max
150 Max
120 Max
90 Max
80 Max
70 Max
Mode/cut
Fund./AT
Fund./AT
Fund./AT
Fund./AT
Fund./AT
Fund./AT
Frequency MHz
15.000~15.999
16.000~23.999
24.000~30.000
24.000~48.000
24.576~29.999
30.000~75.000
ESR (Ω)
60 Max
50 Max
40 Max
40 Max
150 Max
100 Max
Mode/cut
Fund./AT
Fund./AT
Fund./AT
Fund./BT
3rd Overtone/AT
3rd Overtone/AT
