SFH213-PPPN-D10-ID-BK datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> SFH213-PPPN-D10-ID-BK

Preview

SFH213-PPPN-D10-ID-BK: Descriptionconn recept 20pos 2mm idt gold; CategoryThe connector; File Size247KB，1 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

SFH213-PPPN-D10-ID-BK Overview

conn recept 20pos 2mm idt gold

SFH213-PPPN-D10-ID-BK Parametric

Parameter Name	Attribute value
Datasheets
SFH213-PPxN-Dxx-ID-xx
S(B,F)H21 Catalog Page
Product Photos
SFH213-PPPN-D10-ID-BK
Product Training Modules
Box Header Line
IDC Header Line
Featured Produc
Fully Shrouded Box Headers
IDC Headers
Standard Package	1
Category	Connectors, Interconnects
Family	Rectangular Connectors - Free Hanging, Panel Mou
Packaging	Tray
Connector Type	Heade
Contact Type	Female Socke
Number of Positions	20
Pitch	0.079" (2.00mm)
Number of Rows	2
Row Spacing	0.079" (2.00mm)
Mounting Type	Free Hanging (In-Line)
Fastening Type	-
Cable Terminati	IDC
Wire Type	Ribbon Cable
Wire Gauge	-
Features	Feed Through
Polarizing Key, Strain Relief
Contact Finish	Gold
Contact Finish Thickness	Flash
Col	Black
Dynamic Catalog	SFH21 Series
Mating Products	S9078-ND - CONN RECEPT 20POS 2MM IDT GOLDS9069-ND - CONN RECEPT 20POS 2MM IDT GOLDS9039-ND - CONN HEAD 2MM 20POS GOLD SMDS9030-ND - CONN HEAD 2MM 20POS GOLD R/AS9021-ND - CONN HEAD 2MM 20POS GOLD
Other Names	S9048SFH213PPPND10IDBK

Preview

Download Datasheet

View All

8

7

6

5

4

3

2

1

REVISIONS

REV.

B

C

ECO NO.

1845

1909

2149

2835

DESCRIPTION

UPDATE TOLERANCE BLOCK, ADD NOTE 11

DATE

11/6/2008

BY

JH

LH

JHSU

F

B .008[ 0.20]

F

.163 4.15

D

E

ADD 'V' PLATING, UPDATE NOTES

2/4/2009

REMOVE "E" PLATING, UPDATE NOTES 10,

06/15/2010

AVAILABLE POSITION NUMBERS

UPDATE NOTE 4 (WAS OPERATING TEMP, -45 C TO

4/21/2014

+85 C)

.432 10.98

.055 1.40

E

B .008[ 0.20]

.163 4.15

.134 3.40

.039 1.00

D

.348 8.85

D

.118 3.00

B .008[ 0.20]

.031 0.80

.075 1.90

C

.215 5.45

.163 4.15

A .004[ 0.10]

.079 2.00

C

B

.079 2.00

B

A

NOTES:

1. INSULATOR MATERIAL: PBT 30% GLASS FIBER

2. CONTACT MATERIAL: PHOSPHOR BRONZE

3. PLATING: SEE PART NUMBER CODING

4. OPERATING TEMPERATURE: -45 C TO +105 C

5. UL FLAMMABILITY RATING: 94V-0

6. CURRENT RATING: 1 AMP PER CONTACT

7. INSULATION RESISTANCE: 1,000M OHMS MIN.

8. DIELECTRIC WITHSTANDING: 500 VAC

9. MATES WITH SBH21 SERIES

10. FOR .039"[1.00mm] PITCH FLAT CABLE, 26 - 28 AWG WIRE RANGE

11. M181 DENOTES PART W/O POLARIZING KEY

8

7

6

5

Pb

RoHS

COMPLIANT

4

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCHES [MM]

TOLERANCES:

ANGULAR:

1

DRAWN

DATE

10/28/08

NAME

JH

DECIMALS

.XX = .012 [.3]

.XXX = .008 [.20]

.XXXX = .0040 [.100]

3

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

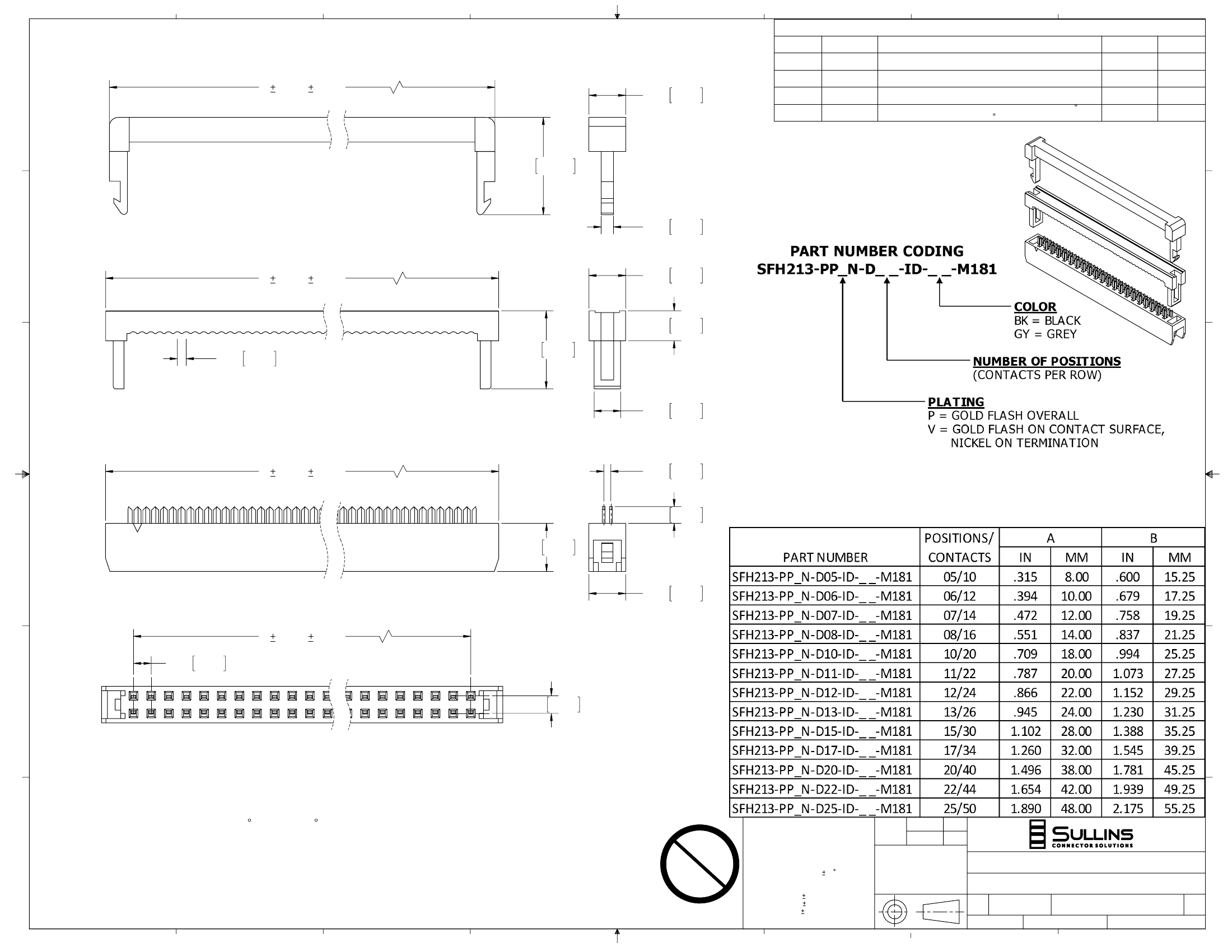

HEADER FEMALE,.079[2.00] CC,SR w/o POLARIZING KEY

PART NUMBER

SIZE

TITLE

A

SCALE: 4:1

2

C

CAGE CODE

SFH213-PP_N-D_ _-ID-_ _-M181

DWG. NO.

54453

11157

REV

SHEET 1 OF 1

1

E

FILE NAME: 11157, SFH213-PP_N-D_ _-ID-_ _-M181
