APH-C-2-72-SM-SDB-GD datasheet, PDF

Datasheet> All Categories > The connector> The connector> APH-C-2-72-SM-SDB-GD

APH-C-2-72-SM-SDB-GD: DescriptionBoard Connector, 72 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size113KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

APH-C-2-72-SM-SDB-GD Overview

Board Connector, 72 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

APH-C-2-72-SM-SDB-GD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166968619
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
ECCN code	EAR99
YTEOL	9.1
Other features	ROHS COMPLIANT
body width	0.2 inch
subject depth	0.111 inch
body length	3.6 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	1000 Cycles
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.1562 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	72

Preview

Download Datasheet

View All

SPECIFICATIONS

Current rating:

Contact material:

Contact plating:

Contact resistance:

Insulator material:

Insulator color:

Insulation resistance:

Withstanding:

Operating temperature:

3 amps

Brass

Gold, tin or duplex plated

20 milliohms max.

Polyester, UL94V-0

Black

1,000 megohms min.

500VAC for 1 min.

-40°C to +105°C

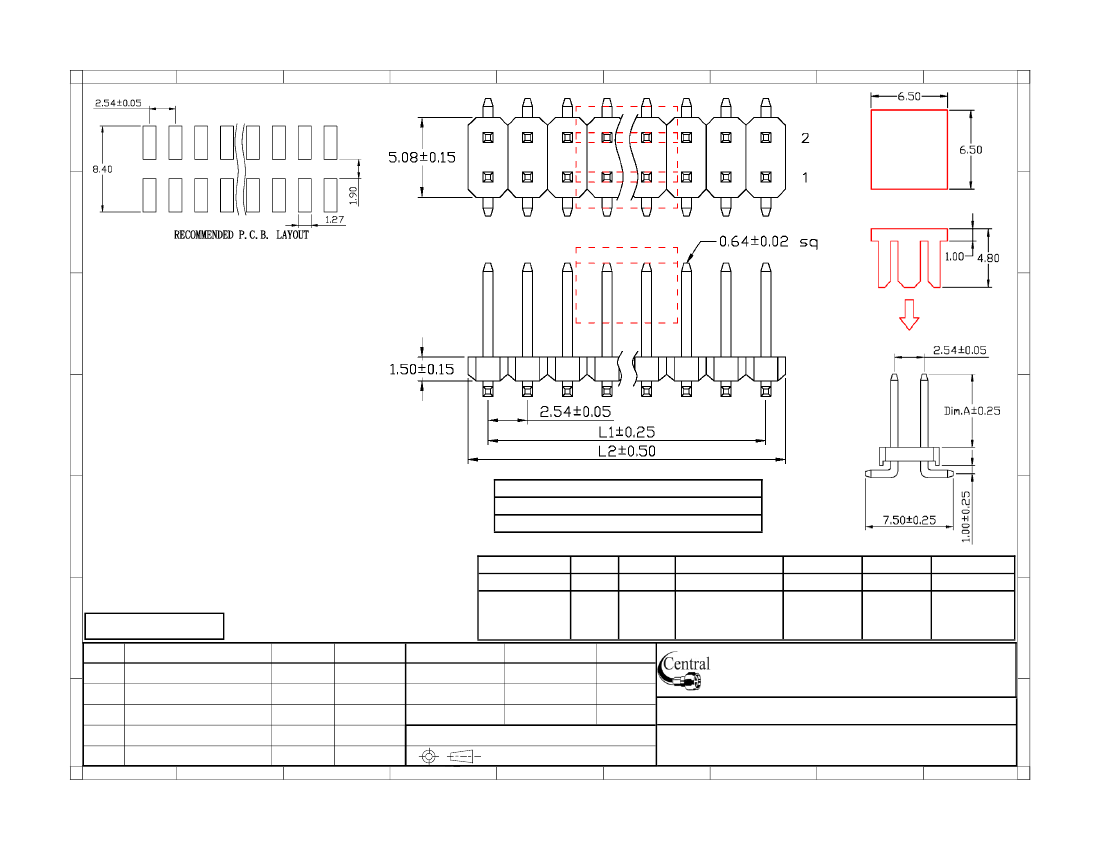

Dimension Formulas

L1 (mm) = 2.54mm x No. of pins –1

L2 (mm) = 2.54mm x No. of pins

Series

Rows Positions

Type

Contact

Plating

Options

APH-C

Pin header,

2=Dual 04-80

SM=Surface mount SDA=.240”

GD=Gold

PPL=Pick cap

1.5mm insulator

SDB=.318

SG=Duplex

CSL=Custom TN=Tin

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

RoHS compliant

Rev.

Description

Date

03/27/99

03/27/99 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

APH-C-2-XX-SM-XX-XX

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: Pin header, 2.54mm pitch, SMT type, 1.5mm insulator
