CED-2-A-48-A2-B1-7-SG2-C2-BLHT: DescriptionBoard Euro Connector, 48 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size163KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CED-2-A-48-A2-B1-7-SG2-C2-BLHT Overview

Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

CED-2-A-48-A2-B1-7-SG2-C2-BLHT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304473458
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
ECCN code	EAR99
YTEOL	7.9
Other features	ROHS COMPLIANT
body width	0.413 inch
subject depth	0.457 inch
body length	2.165 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	48

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

C

D

E

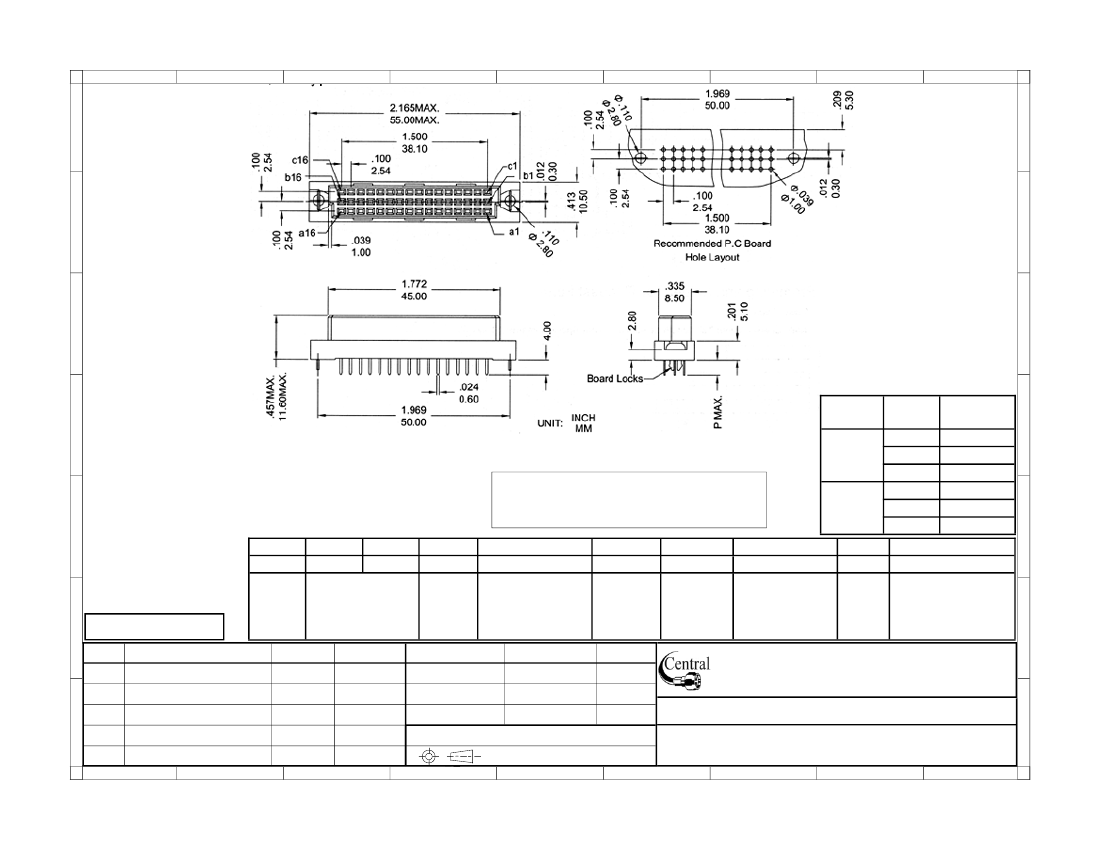

SPECIFICATIONS

Current rating:

Contact material:

Contact resistance:

Housing material:

Insulation resistance:

Withstanding:

Operating temperature:

2 amps

Brass

30 milliohms max. at 100 milliamps DC

PBT, 30% glass filled, UL94V-0

1,000 megohms min. at 500VDC

1,000VAC for 1 min.

-55°C to +105°C

Pitch

2.54mm

• All mounting types available with boardlocks (BL)

• Straight (A mount) type available in press fit (PF)

• All types available with first mate last break (FMLB)

Position

48

32

16

24

16

8

5.08mm

Rows with

contacts

a b c

a - c

a - -

a b c

a - c

a - -

D

E

F

RoHS compliant

Rev.

A PNT

Description

Series

Gender Mounting Contacts

Pin Length

CED

X

XX

DIN41612 1-B=Male right angle 8, 16, 24, A1=4.0mm

2-A=Female straight 32, 48

A2=2.5mm

(see chart) A3=13mm (str only)

A4=17mm (str only)

Date

1/21/09

Approved

Greg

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Pitch

Loaded Rows

Plating

Type

Options

XX

X

SGX

C

XX

B1=2.54mm 1=A

SG=Selective gold C2 type [Blank]=None

B2=5.08mm 5=A,C

1=30µ” (Level 1)

(See also PF=Press fit

7=A,B,C

2=10-20µ” (Level 2) B, Q & R) BL=Boardlocks

3=Flash (Level 3)

HT=High temp. material

Date

08/10/99

08/10/99 Part No.:

F

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

G

CED-2-A-XX-XX-XX-X-SGX-C2-XX

7

8

9

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

Description: DIN 41612, C2 type, female

G

1

2

3

4
