DRS-02-38-GD-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> DRS-02-38-GD-TR

DRS-02-38-GD-TR: DescriptionBoard Connector, 38 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Plug; CategoryThe connector The connector; File Size102KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

DRS-02-38-GD-TR Overview

Board Connector, 38 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Plug

DRS-02-38-GD-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1294394674
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
YTEOL	8.35
Other features	ROHS COMPLIANT
body width	0.098 inch
subject depth	0.083 inch
body length	0.768 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	200VAC V
IEC compliance	NO
Insulation resistance	500000000 Ω
MIL compliance	NO
Plug contact pitch	0.039 inch
Match contact row spacing	0.039 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	38

Preview

Download Datasheet

View All

SPECIFICATIONS

Current rating:

Contact material:

Contact resistance:

Insulator material:

Insulation resistance:

Withstanding:

Operating temperature:

Processing temperature:

0.5 amps

Phosphor bronze

40 milliohms max.

Polyester LCP, UL94V-0

500 megohms min.

200VAC

-40°C to +105C°

230C for 30~60 sec. max.

Recommended PC Board Layout

RoHS compliant

Rev.

Description

Date

Approved

Series

Rows

Pins

Contact plating

Options

DRS

Female 02=2 rows 02-40 positions GD=Gold flash

[blank]=None

header

SG=Selective gold TR=Tape & reel

TN=Tin

PPL=Pick and place cap

Drawing

Name

Date

Central Components Manufacturing

Approved Howard

08/18/06

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

Checked Lizzy

08/18/06

DRS-02-XX-XX-XX

Drawn Tina

08/18/06 Part No.:

0.0 ± 0.35

0.00 ± 0.20 Angles ± 3’

UNIT: mm

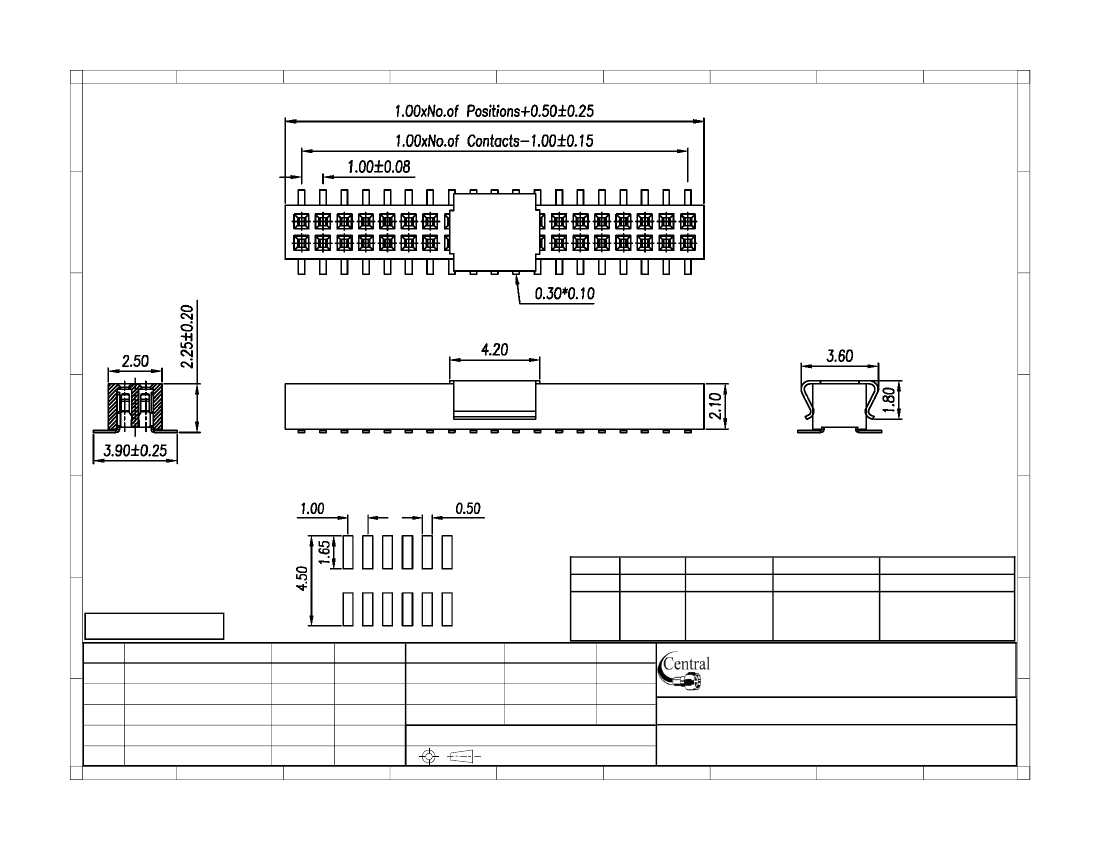

Description: Female header, 1.00mm pitch, dual rows SMT type,

base 2.10mm height
