PH5R10-130GBB1.9/2/2-U: DescriptionBoard Connector, 30 Contact(s), 1 Row(s), Male, Right Angle, 0.039 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size259KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PH5R10-130GBB1.9/2/2-U Overview

Board Connector, 30 Contact(s), 1 Row(s), Male, Right Angle, 0.039 inch Pitch, Solder Terminal, Black Insulator, Receptacle

PH5R10-130GBB1.9/2/2-U Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166172213
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.049 inch
subject depth	0.079 inch
body length	1.181 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	PH5R
Plug contact pitch	0.039 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.079 inch
Terminal pitch	0.9906 mm
Termination type	SOLDER
Total number of contacts	30

Preview

Download Datasheet

View All

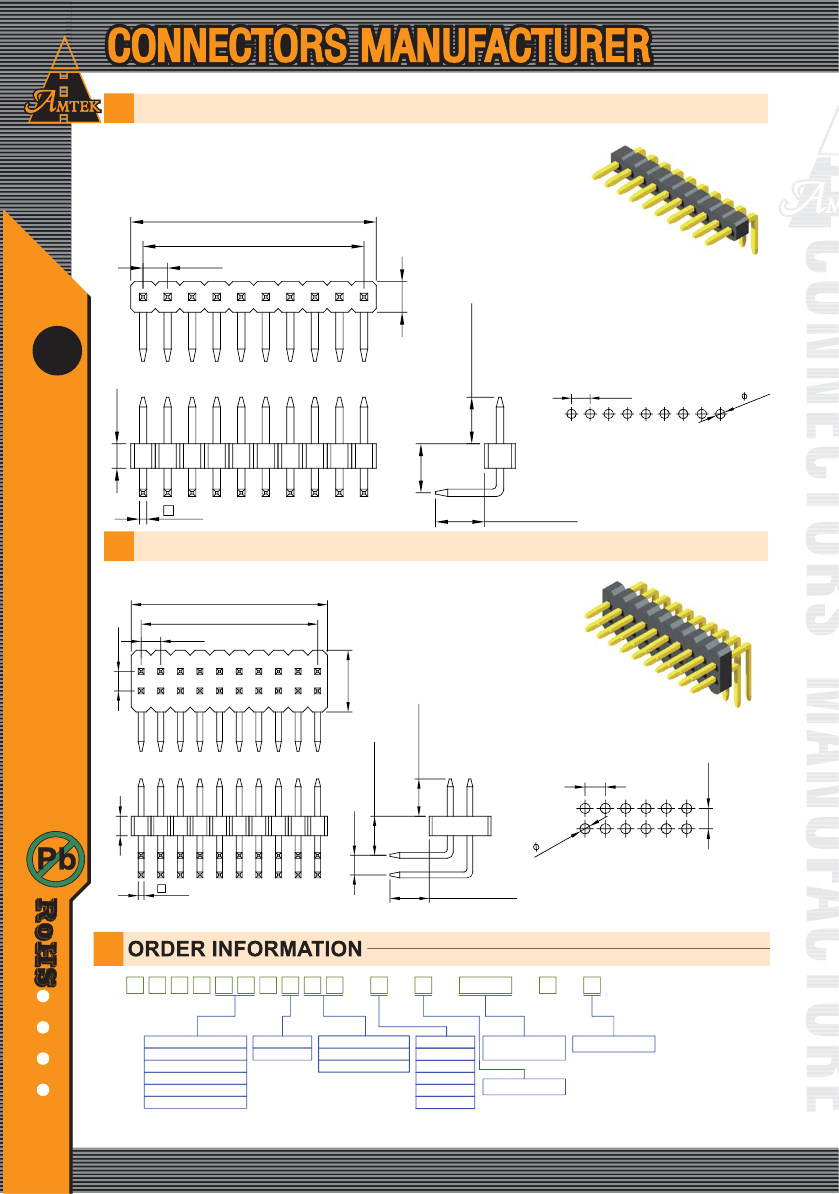

Pin Header 1.0mm 1 Row H=1.0mm Right Angle Type

Specifications

Current Rate:1 AMP

Insulation Resistance:1000MΩ Min

Contact Resistance:20mΩ Max

Dielectric Voltage:500V AC for one minute

Operation Temperature:-40°C to +105°C

Material

Insulator:Polyester,UL 94V-0

Standard:Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

P

in Header 1.0mm

2-7

Part No.:PH5R10-1XX-U

Pin Header 1.0mm 2 Row H=1.0/1.5mm Right Angle Type

Part No.:PH5R10/15-2XX-U

P H 5 R X X - X X X

X

A/B/C

-

U

Insulator Height

Single row Insulator Height

10:Insulator Height H=1.0mm

Dual row Insulator Height

10:Insulator Height H=1.0mm

15:Insulator Height H=1.5mm

1:Single Row

2:Dual Row

No. of Contacts Per Row

H=1.0mm (02~50)

H=1.5mm (02~40)

G:Gold Flash

GA:Gold 5u"

GB:Gold 10u"

GC:Gold 20u"

GD:Gold 30u"

T:Tin Plated

Fill in Dimensions For

Special Design

U:RoHS + Nylon 6T

B:Black Insulator

Standard Recommended

www.amtek-co.com.tw
