PS4M58-209SBBCOR-U datasheet, PDF

Datasheet> All Categories > The connector> The connector> PS4M58-209SBBCOR-U

PS4M58-209SBBCOR-U: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size251KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

PS4M58-209SBBCOR-U Overview

Board Connector, 18 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Black Insulator, Plug

PS4M58-209SBBCOR-U Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1164602360
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.197 inch
subject depth	0.224 inch
body length	0.47 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	PS4M58
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.842 mm
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	18

Preview

Download Datasheet

View All

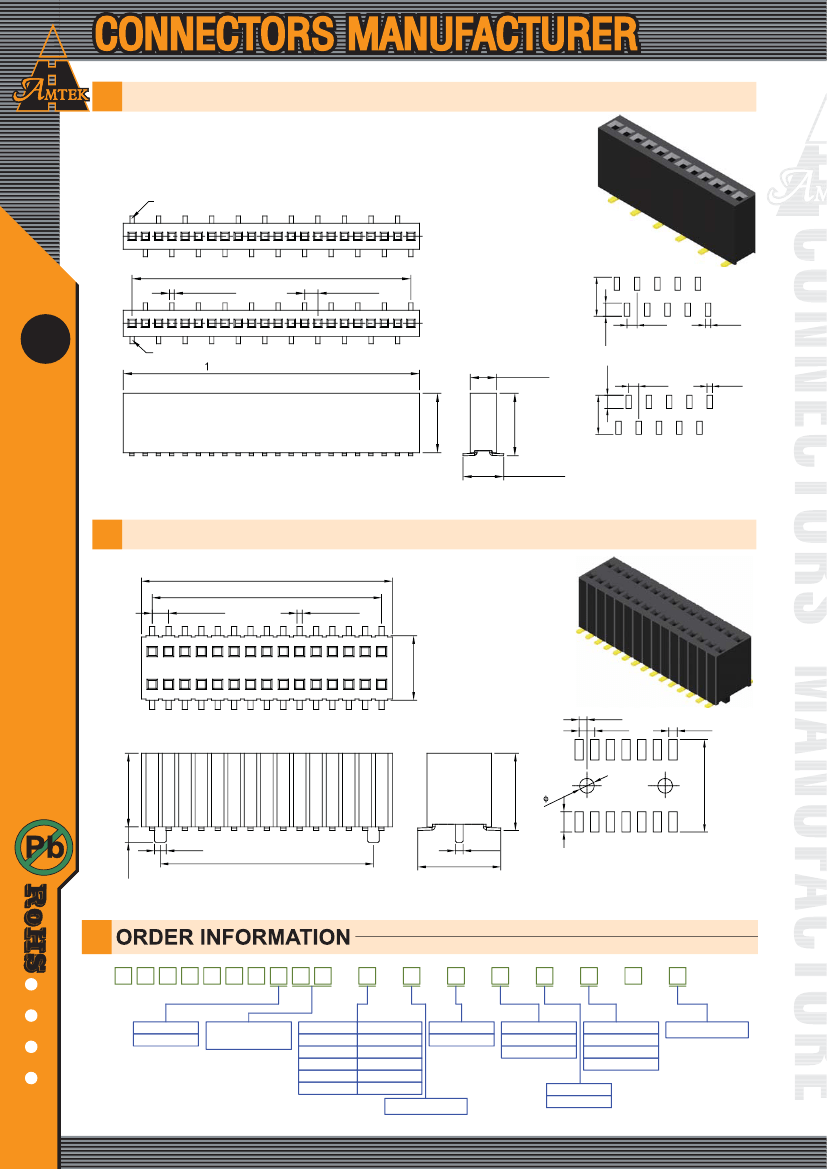

Female Header 1.27mm 1 Row H=5.7mm SMT Type

Specifications

Current Rate:1 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:500V AC for one minute

Operation Temperature:-40°C to +105°C

Material

Insulator:Polyester,UL 94V-0

◎

Standard:Nylon 6T

Terminal:Copper Alloy

Plating:Gold Plated

Pin 1

A Type

1.27 x (No. of Contacts-1)±0.15

4.90

0.44x0.20

1.27±0.07

1.65

B Type

Pin 1

.27 x No. of Posltions+0.5±0.30

2.50±0.25

1.27

0.68

1.65

5.70±0.25

6.00±0.25

4.90

5.00±0.25

5.70±0.25

6.00±0.25

1.2

0.90

0.60

1.27xNo.of Posltions-2.54±0.20

6.43±0.30

1.65

1.20

Recommended PCB Layout

(PCB TOLERANCE ±0.05)

Part No.:PS4M58-2XX-U

P S 4 M 5 8

- X X X

1:Single Row

2:Dual Row

No. of Contacts per row

(03~50)

◎G:Gold

Flash

GA:Gold 5u"

GB:Gold 10u"

GC:Gold 20u"

GD:Gold 30u"

T:Tin Plated

S:Selective

SA:Selective 5u"

SB:Selective 10u"

SC:Selective 20u"

SD:Selective 30u"

TE:Tin 200u"

◎

O:W/O Cap

C:With Cap

◎

O:W/O Peg

P:With Peg

(For Dual Row Only)

PCB Layout

U:RoHS + Nylon 6T

◎A:A

Type

B:B Type

(For Single row Only)

◎T:Tube

R:Tape & Reel

◎B:Black

Insulator

2-41

◎:Standard

Recommended

www.amtek-co.com.tw

7.50

emale Header 1.27mm

A Type

1.27

0.68

B Type

3.89±0.30

Recommended PCB Layout

(PCB TOLERANCE ±0.05)

Part No.:PS4M58-1XX-U

Female Header 1.27x2.54mm 2 Row H=5.7mm SMT Type

1.27 x No. of Posltions+0.5±0.30

1.27 x (No. of Contacts/2-1)±0.15

1.27±0.07

0.44x0.20

0.64

1.27

0.68
