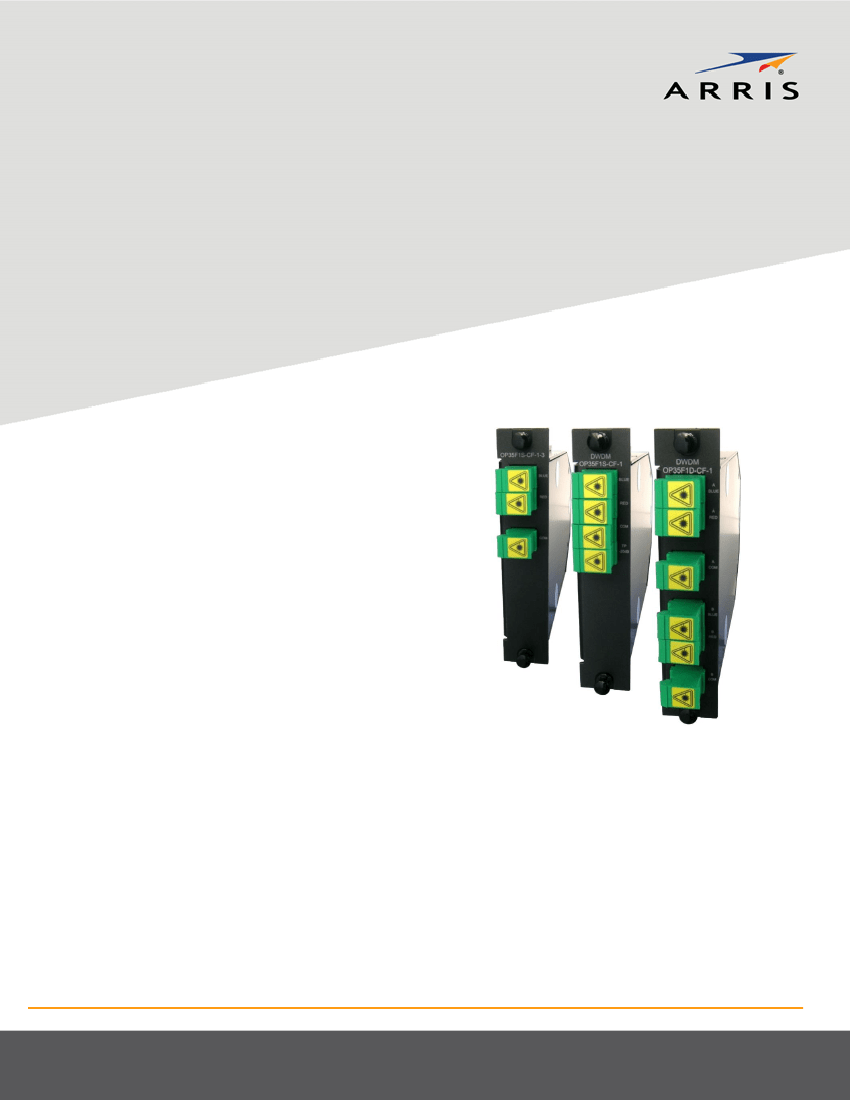

Optical Passives (ISP)
OP35F1x-CF
Red/Blue, CWDM/DWDM, and DWDM
Channel Group Combiner/Separator Filters
FEATURES
•
•
•
3-port filters to combine or separate red and blue (or
•
•
•
•
CWDM and DWDM) bands
Low insertion loss
SC/APC connectors ensure performance repeatability,
compatibility and easy installation and maintenance
Removable adapters for easy cleaning
Options for standard or high isolation
Optional line monitoring tap
Occupies one half-depth slot
PRODUCT OVERVIEW
ARRIS OP35F1x-CF series of combiner/separator filters are 3-port filters that combine (or separate) red and blue (or CWDM and

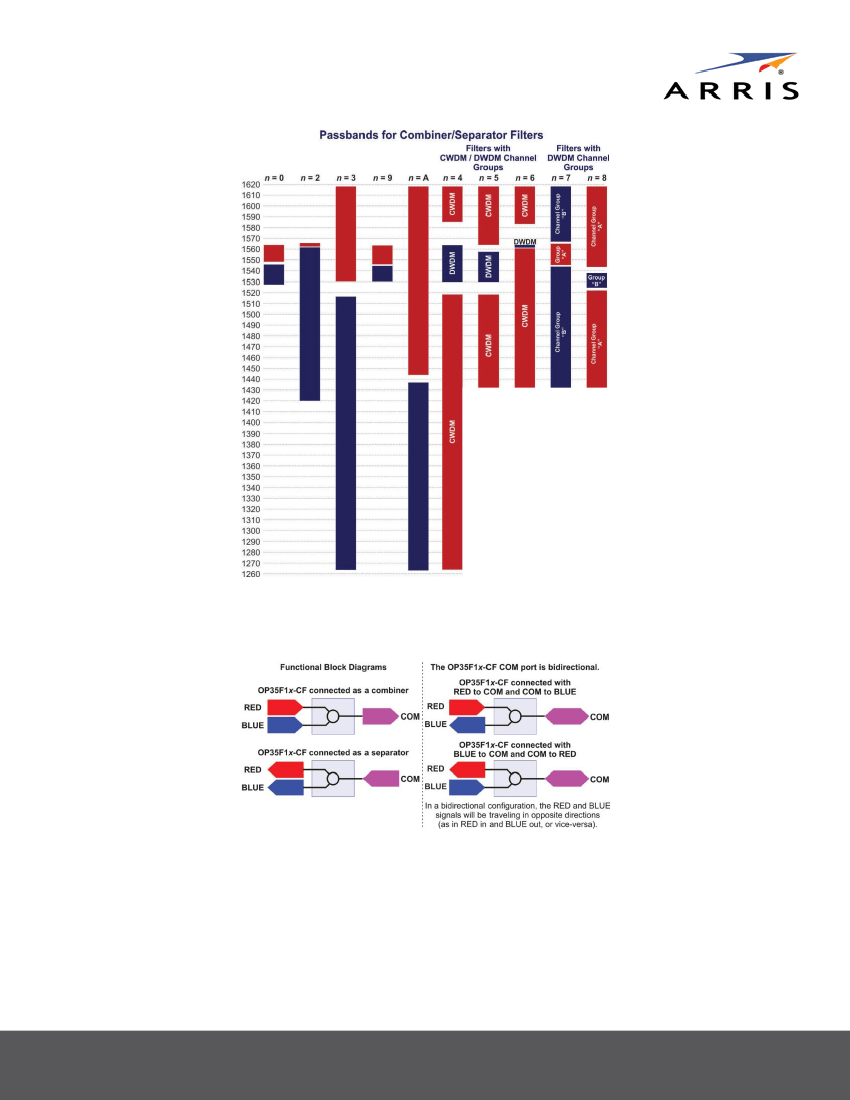

DWDM) bands. The various available band combinations are shown graphically on the following page. In addition to packages
containing a single filter, dual-filter packages are also available, and both single- and dual-packaged filter modules are also available
with an optional -20 dB tap for monitoring. These filters are designed to be used in controlled indoor environments within a
temperature range of –20° to +65°C.
Ask us about the complete Access Technologies Solutions portfolio:
ISP-OP35F1x-CF
Fiber-Deep
DOCSIS
®
3.1
Node Segmentation
HPON
™
/RFoG
FTTx
OP35F1x-CF
For model numbers of the form
OP95F1x-CF-m-n-ab-yz, the
variable
n
defines passband
options. For
n
= 0, 2, 3, 9 or A,
bands are identified as red or
blue. For
n
= 4, 5, or 6, bands are
identified as CWDM or DWDM.
For
n
= 7 or 8, bands are identified
by a channel group designator for
a range of ITU DWDM channel
numbers.
Ask us about the complete Access Technologies Solutions portfolio:
ISP-OP35F1x-CF
Fiber-Deep
DOCSIS
®
3.1
Node Segmentation
HPON
™
/RFoG
FTTx
OP35F1x-CF
SPECIFICATIONS
Cha ra cteristics
Physical
Dimensions
Weight
Environmental
Operating Temperature Range
Storage Temperature Range
Humidity
Optical
Optical connectors
Passbands (nm) (specified for values of
n
in model numbers of the form
OP35F1x-CF-m-n-ab-AS)
Speci fication
6.5” D x 5.2” H x 1.0” W (3RU) (16.5 cm x 13 cm x 2.5 cm)
0.8 lbs (0.36 kg)
–20°C to +65°C (–4°F to +149°F)
–40°C to +85°C (–40°F to +185°F)
5% to 95% non-condensing
SC/APC
n
0
2
3
9
RED
1549.0-1563.8
1562.6-1565.0
1530.0-1618.0
1546.7-1561.7 (Chs 20-38)
BLUE
1528.0-1545.6
1420.0-1561.0
1264.0-1517.0
1530.1-1544.0 (Chs 42-59)
A
n
1443.5-1617.5
CWDM (or RED)
1263.5-1437.5
DWDM (or BLUE)
4
5
6
n
7
1263.5-1519.0 and 1585.0-1617.5
1423.5-1519.0 and 1563.5-1617.5
1423.5-1561.0 and 1583.5-1617.5
DWDM Channel Group “A”
1545.7-1565.1 (Chs 18-39)
1530.0-1563.3
1530.0-1558.4
1562.0-1564.0
DWDM Channel Group “B”
1423.5-1542.4 and 1568.4-1617.5 (Chs 44-59)
8
Ripple within passband
0.5 dB
1423.5-1520.8 and 1542.8-1617.5 (Chs 18-43)
1524.3-1539.2 (Chs 48-59)
Insertion losses, including connectors
Max (and typical) values, in dB, shown for models without and with –20 dB line monitoring taps (yy = 00 and
99, respectively) and with standard or high isolation (m = 1 and 2, respectively)
BLUE to COM
RED to COM
n
0
2,3
9,A
m
1
yy
= 00
yy
= 99
0.6 (0.4) 0.9 (0.7)
yy
= 00
yy
= 99
0.5 (0.3) 0.8 (0.6)
2
1
2
1
1.0 (0.8) 1.3 (1.1)
0.5 (0.3) 0.8 (0.6)
0.5 (0.3) 0.8 (0.6)
0.5 (0.3) 0.8 (0.6)
DWDM to COM
0.5 (0.3) 0.8 (0.6)
0.6 (0.4) 0.9 (0.7)
1.0 (0.8) 1.3 (1.1)
0.6 (0.4) 0.9 (0.7)
CWDM to COM
n
4,5,6
n
7,8
Power handling, max (any input port)
Directivity, min
55 dB
m
1
m
1
yy
= 00
yy
= 99
0.6 (0.4) 0.9 (0.7)
Ch. Group “B” to COM
yy
= 00
yy
= 99
0.6 (0.4) 0.9 (0.7)
yy
= 00
yy
= 99
0.5 (0.3) 0.8 (0.6)
Ch. Group “A” to COM
yy
= 00
yy
= 99
0.5 (0.3) 0.8 (0.6)
24.8 dBm
Return loss, min
Polarization dependent loss, max
Isolation
50 dB
0.15 dB (< 0.1 dB typ)
Minimum values, in dB, shown for models with standard or high isolation (
m
= 1 and 2, respectively)
n
0
2,3
9,A
n
4,5,6
n
7,8
m
1
2
1
BLUE to COM
> 25
> 50
> 15
RED to COM
> 15
> 15
> 25
2
1
m
1
m
1
> 15
> 15
DWDM to COM
> 25
Ch. Group “B” to COM
> 25
> 50
> 25
CWDM to COM
> 15
Ch. Group “A” to COM
> 15
–20 dB tap monitoring option (yy = 99)
1% bi-directional test point for output/input from/to COM port
Ask us about the complete Access Technologies Solutions portfolio:
ISP-OP35F1x-CF
Fiber-Deep
DOCSIS
®
3.1
Node Segmentation
HPON
™
/RFoG
FTTx
OP35F1x-CF
ORDERING INFORMATION
O P 3 5 F 1 * – C F – * – * – * * – A S
Red/Blue CWDM/DWDM Filter
* = Number of Filters in Module (S = Single, D = Dual)
(Reserved Fields)
* = Blue Band Isolation Option (1 = Standard, 2 = High);
see Note 1.
* = Passband Option (n = 0, 2, 3, 4, 5, 6, 7, 8, 9 or A); reference
table for descriptions
** = –20 dB Test Port (00 = not present, 99 = present)
AS = SC/APC Connector
Note:
1. The high isolation option is available only for Passband Options 0 and 2.
RELATED PRODUCTS
CH3000 Chassis
Optical Transmitters
Optical Patch Cords
Optical Passives
HPON
™
Installation Services
Note:
Specifications are subject to change without notice.
Customer Care
Contact Customer Care for product information and sales:
•
United States: 866-36-ARRIS
•
International: +1-678-473-5656
Copyright Statement:
©ARRIS Enterprises, LLC, 2016. All rights reserved. No part of this publication may be
reproduced in any form or by any means or used to make any derivative work (such as translation,
transformation, or adaptation) without written permission from ARRIS Enterprises, LLC (“ARRIS”). ARRIS
reserves the right to revise this publication and to make changes in content from time to time without
obligation on the part of ARRIS to provide notification of such revision or change. ARRIS and the ARRIS logo
are registered trademarks of ARRIS Enterprises, LLC. Other trademarks and trade names may be used in this
document to refer to either the entities claiming the marks or the names of their products. ARRIS disclaims
proprietary interest in the marks and names of others. The capabilities, system requirements and/or
compatibility with third-party products described herein are subject to change without notice.
87-10361-RevG_OP35F1x-CF_CustomOpticalFilters
