54HCU04M/B2AJC datasheet, PDF - EEWORLD Datasheet

54HCU04M/B2AJC: DescriptionIC,LOGIC GATE,HEX INVERTER,HC-CMOS,LLCC,20PIN,CERAMIC; Categorylogic logic; File Size374KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54HCU04M/B2AJC Overview

IC,LOGIC GATE,HEX INVERTER,HC-CMOS,LLCC,20PIN,CERAMIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
Logic integrated circuit type	INVERTER
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	2/6 V
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

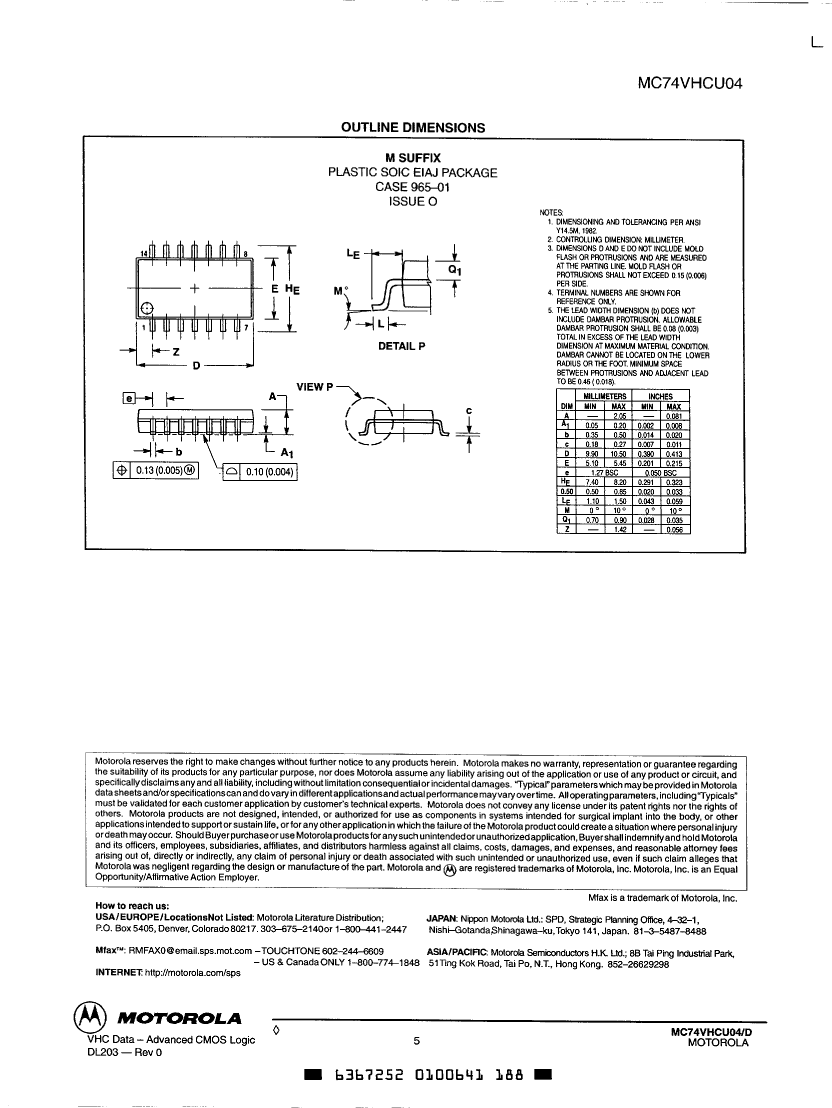

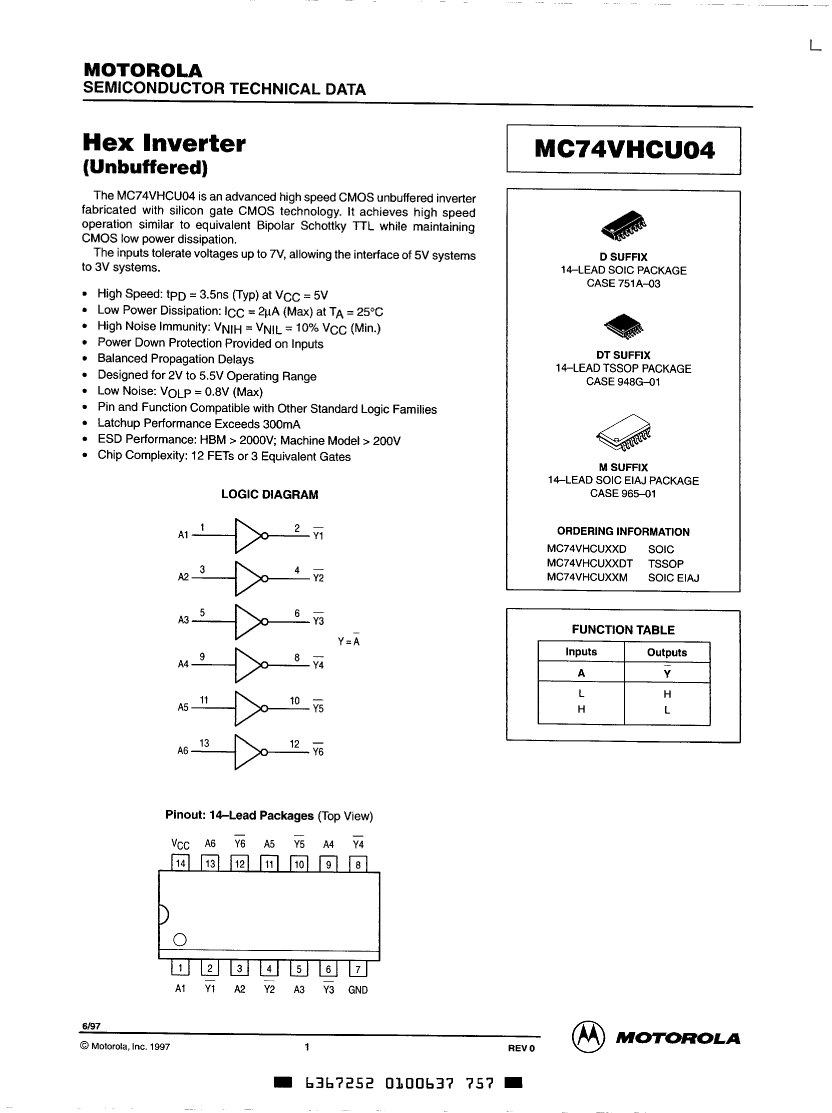

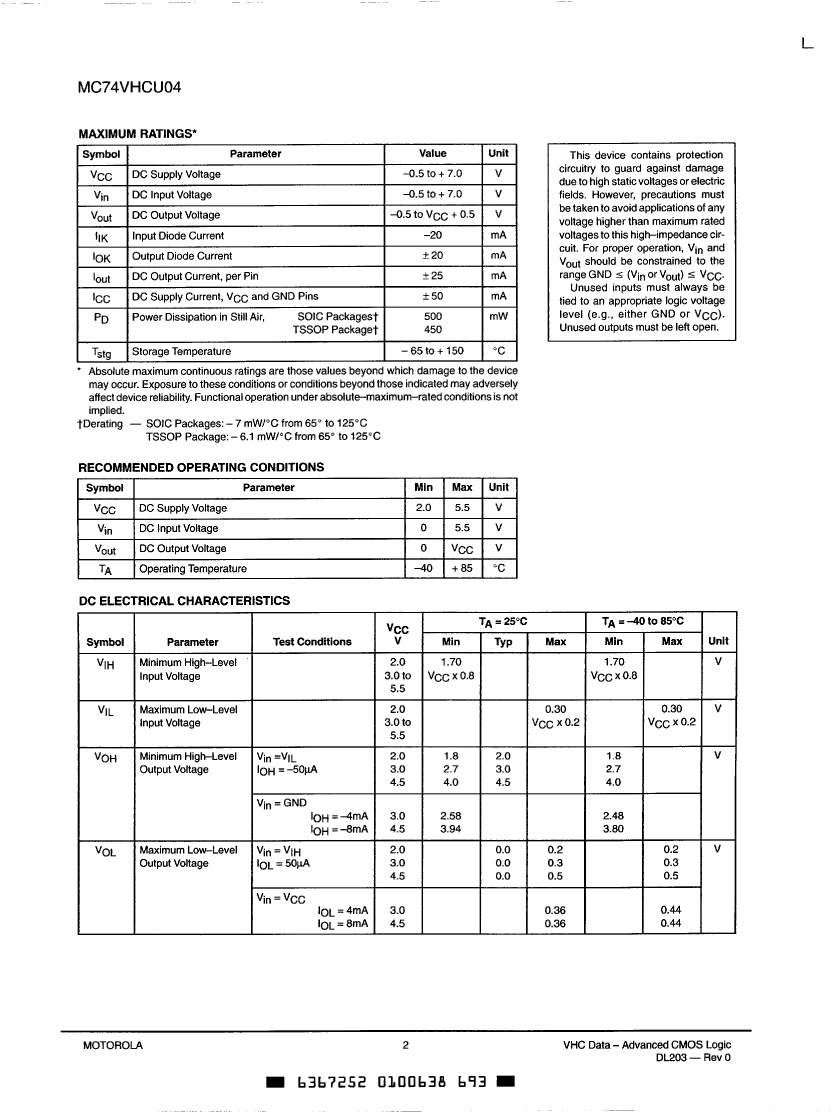

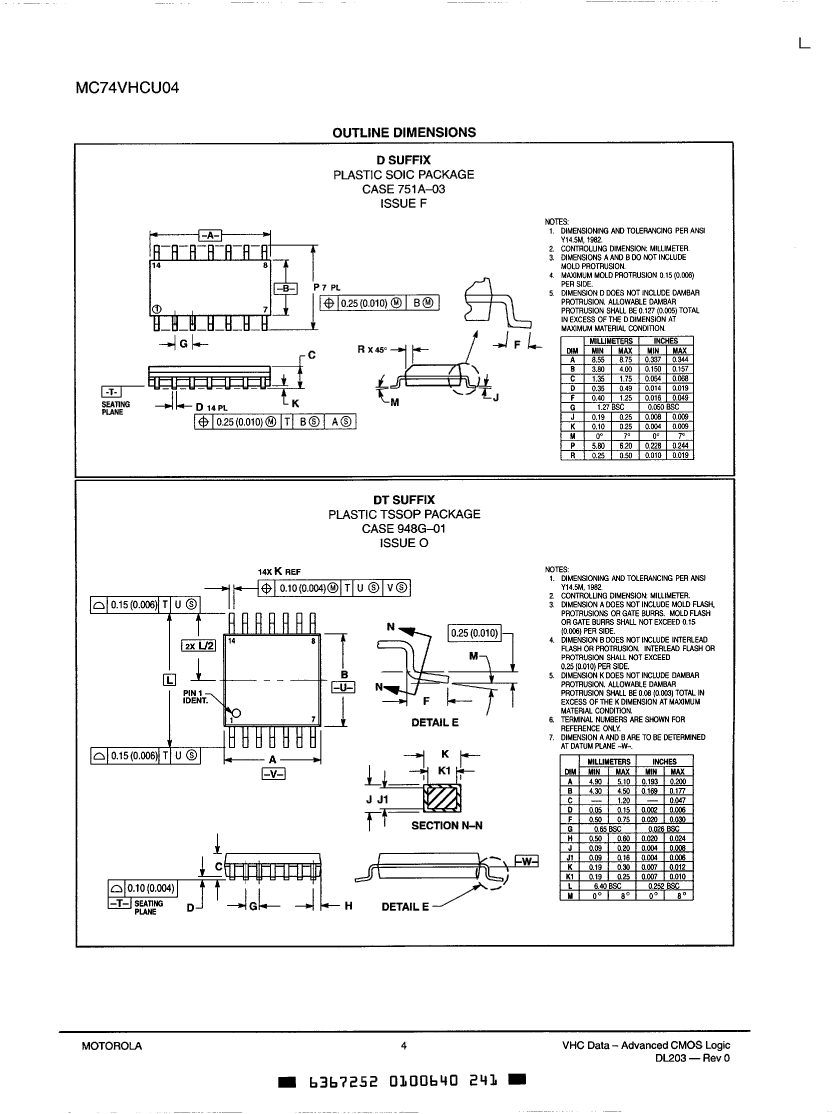

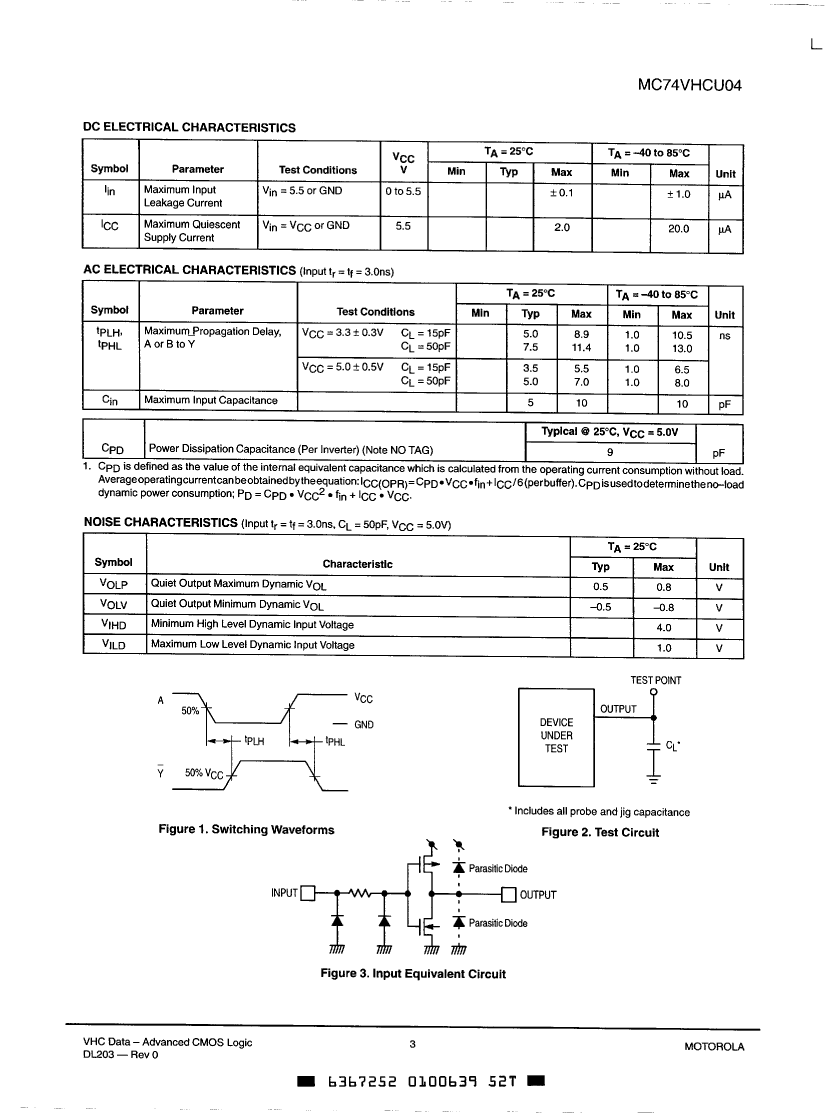

	54HCU04M/B2AJC	MC74VHCU04DT	MC74VHCU04D
Description	IC,LOGIC GATE,HEX INVERTER,HC-CMOS,LLCC,20PIN,CERAMIC	IC,LOGIC GATE,HEX INVERTER,AHC/VHC-CMOS,TSSOP,14PIN,PLASTIC	IC,LOGIC GATE,HEX INVERTER,AHC/VHC-CMOS,SOP,14PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	NXP	NXP	NXP
package instruction	QCCN, LCC20,.35SQ	TSSOP, TSSOP14,.25	SOP, SOP14,.25
Reach Compliance Code	unknown	unknown	unknown
JESD-30 code	S-XQCC-N20	R-PDSO-G14	R-PDSO-G14
JESD-609 code	e0	e0	e0
Logic integrated circuit type	INVERTER	INVERTER	INVERTER
Number of terminals	20	14	14
Maximum operating temperature	125 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-40 °C	-40 °C
Package body material	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCN	TSSOP	SOP
Encapsulate equivalent code	LCC20,.35SQ	TSSOP14,.25	SOP14,.25
Package shape	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE
power supply	2/6 V	2/5.5 V	2/5.5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.635 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL
Base Number Matches	1	1	-
Load capacitance (CL)	-	50 pF	50 pF
MaximumI(ol)	-	0.008 A	0.008 A
Prop。Delay @ Nom-Sup	-	8 ns	8 ns
