BGM1J470M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> BGM1J470M

BGM1J470M: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 63V, 20% +Tol, 20% -Tol, 47uF; CategoryPassive components capacitor; File Size332KB，2 Pages; ManufacturerGemmy Electronics Co., Ltd.

Download Datasheet Parametric View All

BGM1J470M Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 63V, 20% +Tol, 20% -Tol, 47uF

BGM1J470M Parametric

Parameter Name	Attribute value
Objectid	1215511252
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	47 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	10 mm
dielectric materials	ALUMINUM
length	20 mm
Manufacturer's serial number	BGM(1J)
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package form	Radial
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	63 V
series	BGM(1J)
Terminal pitch	5 mm

Preview

Download Datasheet

View All

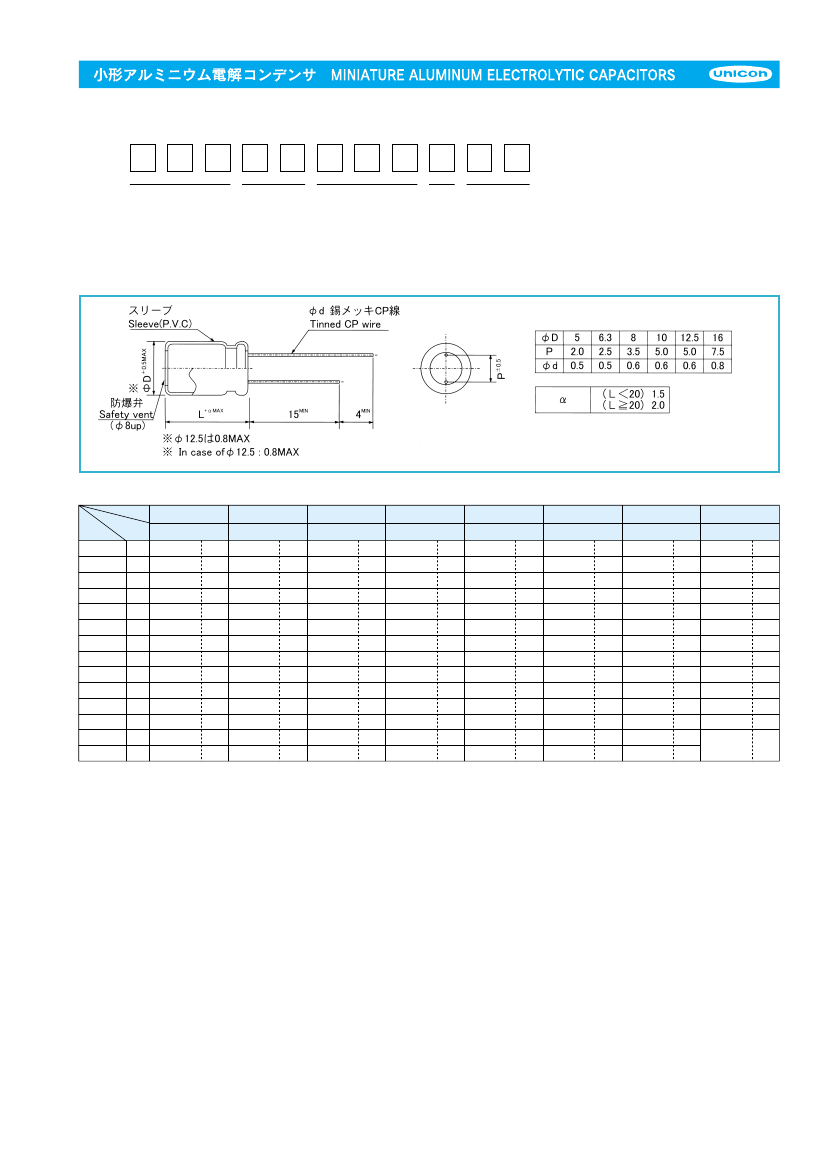

BGM

04 ½両極性標準品（105℃）

RADIAL TYPE BI-POLAR

シリーズ

SERIES

標準品

Standard

両極性品

Bi-polar

■

特長 FEATURES

・

極性反転回路用標準品

Standard size for reversing polarity circuit.

・

自動挿入用テーピング品を各種用意

Available in taping configuration for automatic insertion.

・

105℃ 1000 時間保証

Load Life : 105℃ 1000 hours.

■

仕様 SPECIFICATIONS

項目 Items

½ 用温度範囲

Operating Temperature Range

定格電圧範囲

Rated Voltage Range

静電容量範囲

Nominal Capacitance Range

静電容量許容差

Capacitance Tolerance

漏れ電流

Leakage Current

損失角の正接

Dissipation Factor

特性

Characteristics

−40 ＋105℃

∼

6.3 100V.DC

∼

0.47 1000μF

∼

±20％（20℃，120Hz)

I=0.03CV 又は 3μAのいずれか大きい値以下（5分値）

I=0.03CV or 3μA whichever is greater, after 5 minutes application of rated voltage.

定格電圧(V)

・120Hz

6.3

100

Rated Voltage

20℃

tanδ(MAX)

0.24

0.20

0.16

0.14

0.12

0.10

0.09

インピーダンス比 Impedance Ratio

定格電圧(V)

6.3

100

Rated Voltage

・120Hz

Z(-25℃)/Z(20℃)

Z(-40℃)/Z(20℃)

105℃中にて定格電圧を 250時間毎極性反転し1000時間印加後、下記規格を満足する。

After 1000 hours application of rated voltage at 105℃, reversing polarity at each 250 hours.,

capacitors meet the characteristics requirements mentioned below.

静電容量変化率初期値の±20％以内

Capacitance Change Within ±20％ of initial value.

損失角の正接初期規格値の200％以下

Dissipation Factor

200％ or less of initial specified value.

漏れ電流初期規格値以下

Leakage Current

Initial specified value or less.

105℃1000時間無負荷放½後、上記高温負荷特性の規格を満足する。

（½し、JIS C-5102 4.4項の電圧処理後）

After leaving capacitors under no load at 105℃ for 1000 hours and applying voltage according to

JIS C-5102 4.4, they meet the specified value for load life characteristics listed above.

黒色チューブに½色印刷

White print on black sleeve.

JIS C-5141 特性Ｗ

Characteristics Ｗ of JIS C-5141.

温度特性

Temperature Characteristics

高温負荷特性

Load Life

高温無負荷特性

Shelf Life

表示

Marking
