SH30283R3YLB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SH30283R3YLB

SH30283R3YLB: DescriptionGeneral Purpose Inductor, 3.3uH, 30%, Ferrite-Core, 1515,; CategoryPassive components inductor; File Size124KB，6 Pages; ManufacturerABC [ABC Taiwan Electronics Corp]; Environmental Compliance

Download Datasheet Parametric Compare View All

SH30283R3YLB Overview

General Purpose Inductor, 3.3uH, 30%, Ferrite-Core, 1515,

SH30283R3YLB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ABC [ABC Taiwan Electronics Corp]
package instruction	1515
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	1515
structure	Shielded
core material	Ferrite
DC Resistance	0.04 Ω
Nominal inductance(L)	3.3 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package height	2.8 mm
Package length	3.8 mm
Package form	SMT
Package width	3.8 mm
method of packing	TR, Embossed, 7 Inch
Minimum quality factor (at nominal inductance)	7
Maximum rated current	1.7 A
self resonant frequency	55 MHz
series	SH3028-L
shield	YES
Tolerance	30%
Base Number Matches	1

Preview

Download Datasheet

View All

SPECIFICATION FOR APPROVAL

REF :

PROD.

NAME

PAGE: 1

SHIELDED SMD

POWER INDUCTOR

ABC'S DWG NO.

ABC'S ITEM NO.

SH3028□□□□L□-□□□

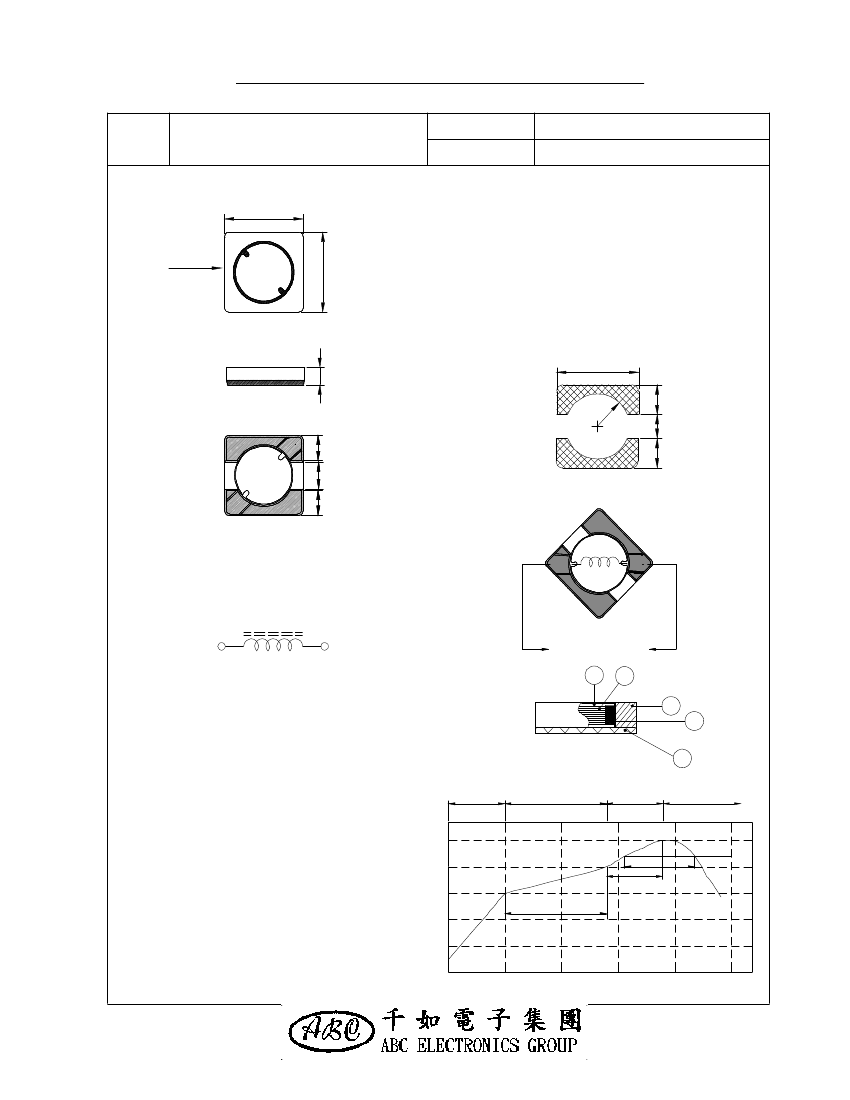

Ⅰ﹒CONFIGURATION

& DIMENSIONS：

Marking

(White)

3.80

±0.30

3.80

±0.30

2.80

±0.20

1.30 typ.

1.20 typ.

1.10 ref.

4.30 ref.

1.60 ref.

1.40 ref.

100

m/m

( PCB Pattern Suggestion )

Ⅱ﹒SCHEMATIC

DIAGRAM：

LCR Meter

Peak Temp：250℃ max.

Max. Peak Temp - 5℃：30sec max.

Max time above 217℃

：60sec~150sec

max.

Temperature

Rising Area

+4.0

℃

/ sec max.

Preheat Area

150 ~ 200

℃

/ 60 ~ 120sec

Reflow Area

+3.0

℃

/ sec max.

Ⅲ﹒MATERIALS：

a﹒Core：Ferrite DR core

b﹒Core：Ferrite RI core

c﹒Wire

：Enamelled

copper wire ( Class H )

d﹒Adhesive

：Epoxy

resin

e﹒Terminal：Ag/Ni/Sn

f﹒Remark：Products comply with RoHS'

requirements

Temperature (

℃

)

Forced Cooling Area

-(1.0 ~ 5.0)

℃

/ sec max.

Peak Temperature:

250℃

217℃

250

200

150

60sec~120sec

60sec~150sec

60sec max.

Ⅳ﹒GENERAL

SPECIFICATION：

a﹒Temp. rise

：20℃

typ.

b﹒Storage temp.：-40℃ ----+125℃

c﹒Operating temp.：-40℃----+105℃

d﹒Resistance to solder heat：250℃.10 secs.

100

200

100

150

Time ( seconds )

250

AR-001A
