0359780440 datasheet, PDF - EEWORLD Datasheet

0359780440: Descriptionhdr 3.96mm wtb R/A 4pos gwc; CategoryThe connector The connector; File Size77KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

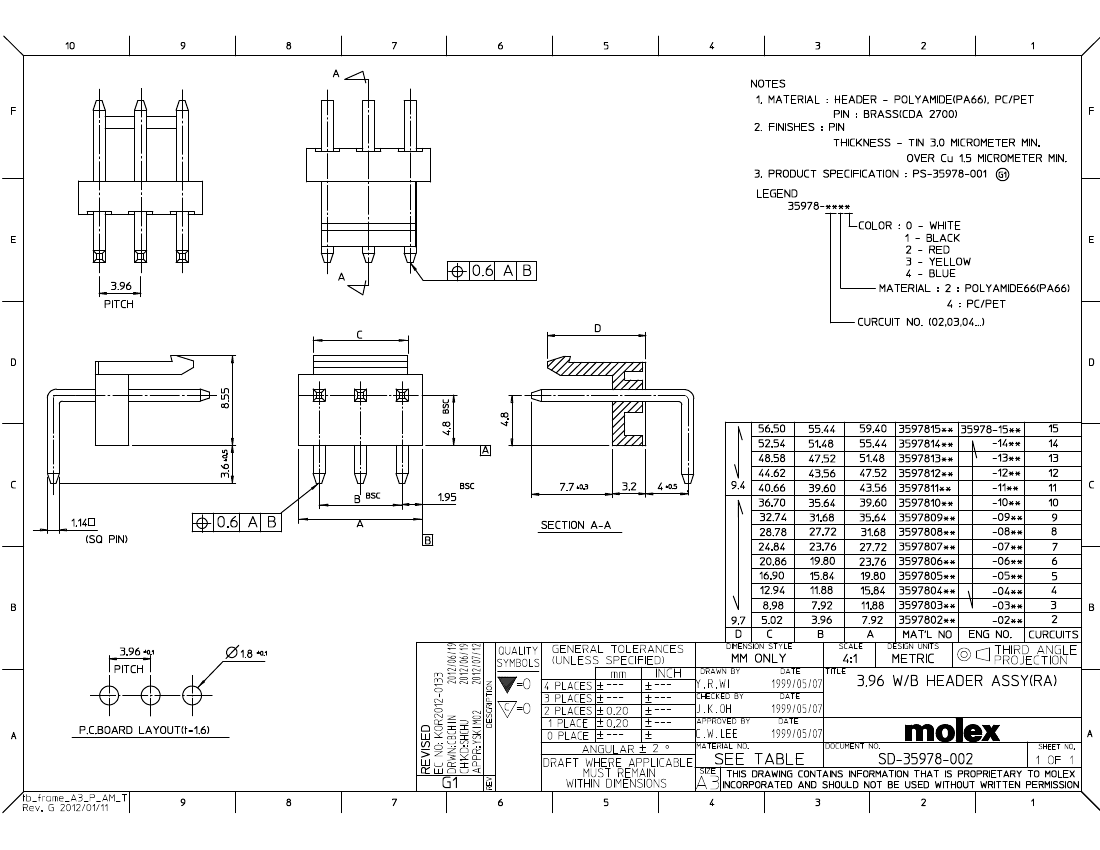

0359780440 Overview

hdr 3.96mm wtb R/A 4pos gwc

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compli
Connector type	BOARD CONNECTOR
Contact arrangement	S0P4
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN/LEAD
Contact point gender	MALE
Contact material	NOT SPECIFIED
Durability	30 Cycles
Insulator color	NATURAL
insulator material	POLYESTER
Manufacturer's serial number	35978
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Guideline	UL,CSA,TUV
reliability	COMMERCIAL
Termination type	SOLDER
Total number of contacts	4

	0359780440	0359781040	0359780240
Description	hdr 3.96mm wtb R/A 4pos gwc	conn 3.96 W/B header 10pos R/A	hdr 3.96mm wtb R/A 2pos gwc
Is it Rohs certified?	conform to	conform to	conform to
Maker	Molex	Molex	Molex
Reach Compliance Code	compli	compli	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	TIN
Contact completed and terminated	TIN/LEAD	TIN/LEAD	TIN
Contact point gender	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	BRASS
Manufacturer's serial number	35978	35978	35978
Mixed contacts	YES	YES	NO
Installation type	BOARD	BOARD	BOARD
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	4	10	2
Is it lead-free?	Lead free	Lead free	-
Contact arrangement	S0P4	S0P10	-
Durability	30 Cycles	30 Cycles	-
Insulator color	NATURAL	NATURAL	-
insulator material	POLYESTER	POLYESTER	-
Installation option 1	LOCKING	LOCKING	-
Installation method	RIGHT ANGLE	RIGHT ANGLE	-
Number of connectors	ONE	ONE	-
Maximum operating temperature	85 °C	85 °C	-
Minimum operating temperature	-25 °C	-25 °C	-
Guideline	UL,CSA,TUV	UL,CSA,TUV	-
reliability	COMMERCIAL	COMMERCIAL	-
