A-DF-09-LL-WP datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> A-DF-09-LL-WP

Preview

A-DF-09-LL-WP: Descriptionconn dsub ip67 fmal 9pos sld cup; CategoryThe connector; File Size69KB，1 Pages; ManufacturerASSMANN WSW components; Environmental Compliance

Download Datasheet Parametric View All

A-DF-09-LL-WP Overview

conn dsub ip67 fmal 9pos sld cup

A-DF-09-LL-WP Parametric

Parameter Name	Attribute value
Datasheets
A-DF09LL-WP-R Drawing
Product Photos
A-xxxxLL-WP-R
Product Training Modules
Waterproof Connectors
Standard Package	30
Category	Connectors, Interconnects
Family	D-Sub Connectors
Packaging	Tray
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Number of Positions	9
Number of Rows	2
Shell Size, Connector Layou	1 (DE, E)
Contact Type	Signal
Mounting Type	Panel Mou
Flange Feature	Mating Side
Female Screwlock
Terminati	Solder Cu
Features	-
Shell Material, Finish	-
Contact Finish	Gold
Contact Finish Thickness	-
Ingress Protecti	IP67 - Dust Tight, Waterproof
Operating Temperature	-40°C ~ 105°C
Voltage Rating	-
Current Rating	5A
Housing Material	Polyamide (PA), Nylon, Glass Filled
Col	Black
Dynamic Catalog	A-DF and A-DS Series (Waterproof)
Associated Produc	AE10154-ND - CONN HOOD DSUB IP67 9POS/15POS
Other Names	A-DF 09 LL-WP-RA-DF09LL-WP-RADF09LLWPRAE10095

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

A

B

C

= Important Dimension

C

D

E

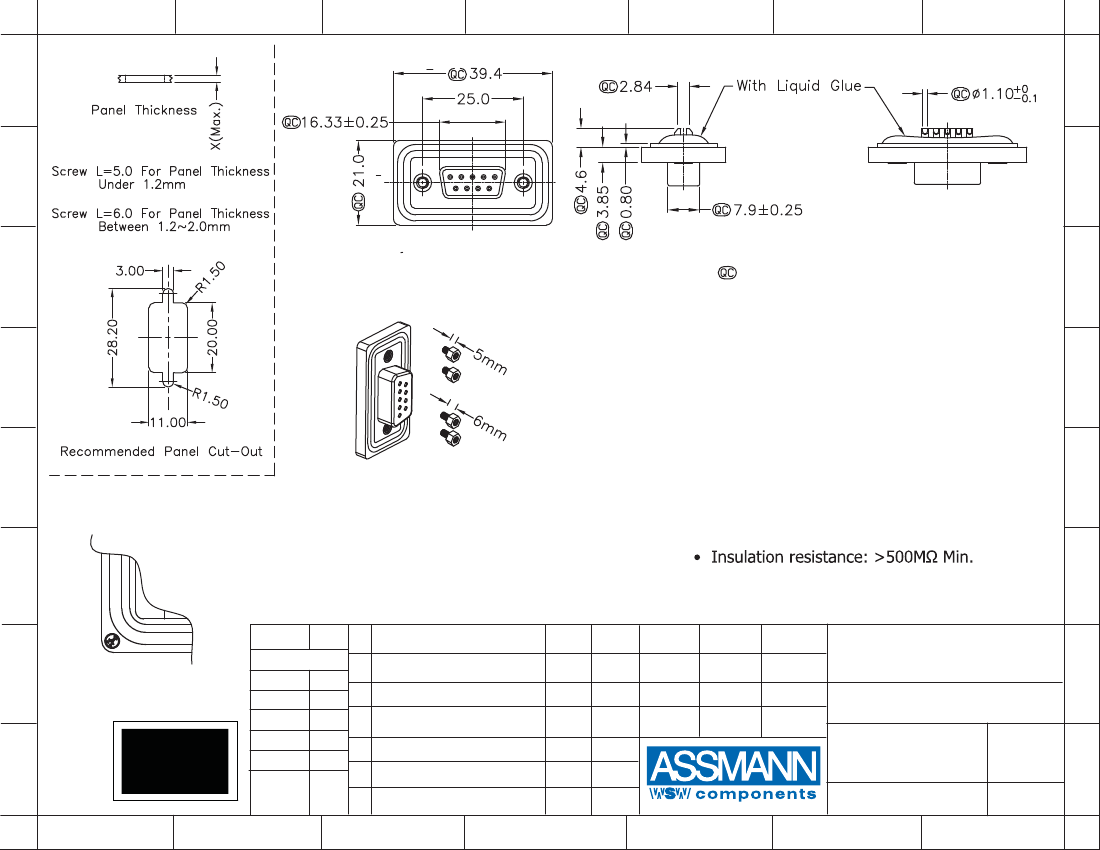

Material:

• Waterproof Rate: IP67

• Connector: Black, Nylon + GF

• Pin: Copper Alloy, Gold Plated

• Applicable Wire Range: 22AWG - 26AWG

• Insulators: PBT

• Max Torque on hex stand off: 9.92LB

Electrical:

• Current Rating: 5A

• Dielectric voltage: 500V AC / 1 Minute

• Operating Temperature: -40°C to +105°C

Item No.

D

E

F

Scale

1:1

Drawn

Approved

11.22.11

Name

Chappell

G

TOLERANCE

X.X

X.XX

X.XXX

±0.40

±0.25

±0.15

±3°

A-DF09LL-WP-R

Title

G

D-Sub Connector Waterproof,

Solder Cup Version, Female, 9 Pin

H

RoHS

Complaint

1

2

Angle

Drawing No.

rev00

Sheet

H

Modification

Date

Name

Replace

3

4

5

6

7
