1-1734827-2 datasheet, PDF - EEWORLD Datasheet

1-1734827-2: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug; CategoryThe connector The connector; File Size261KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1-1734827-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1734827-2	-	-	View	Buy Now

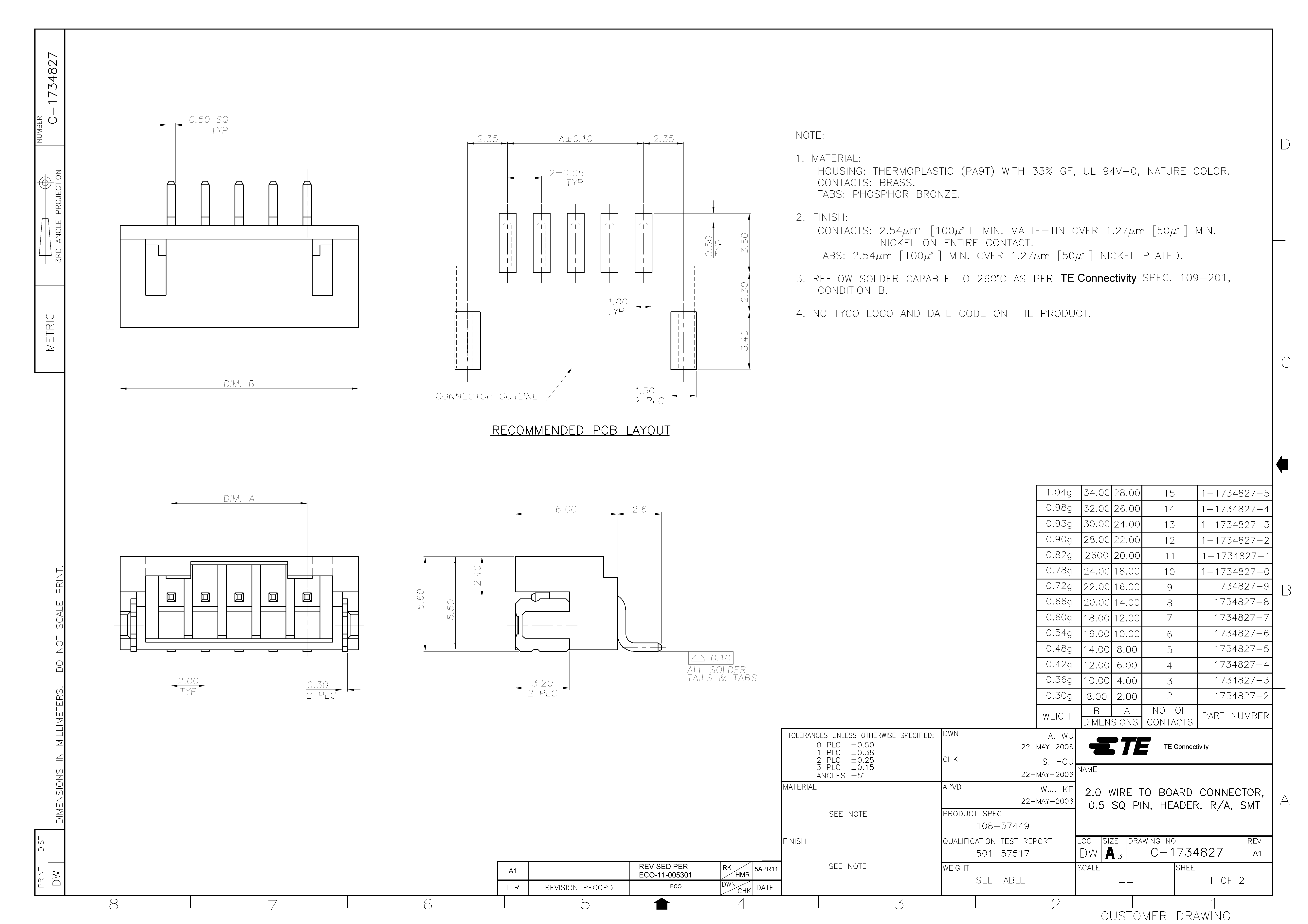

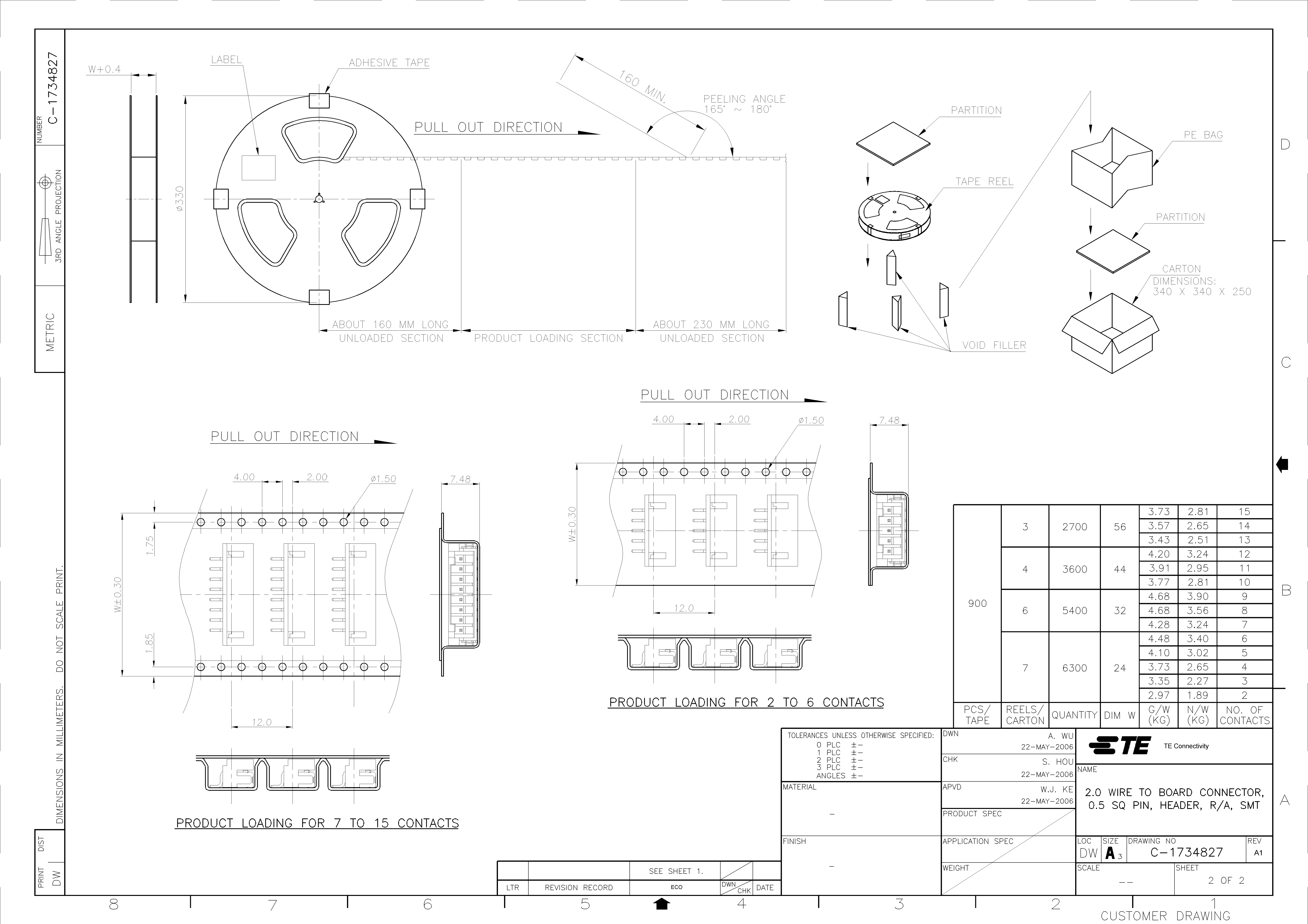

Board Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1738904284
Reach Compliance Code	compliant
Samacsys Description	2.0 WTB HDR .5 SQ RA SMT 12P
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2023-03-07 16:10:32
YTEOL	0
Board mount options	PEG
body width	0.236 inch
subject depth	0.22 inch
body length	1.102 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	NATURAL
insulator material	POLYAMIDE9T/POLYETHYLENE
MIL compliance	NO
Power Connector Ratings	3A
Plug contact pitch	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Panel mounting	NO
Plating thickness	100u inch
polarization key	POLARIZED
Rated current (signal)	3 A
Rated voltage	100 V
Guideline	UL
Terminal length	0.102 inch
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	12
UL Flammability Code	94V-0
Maximum wire diameter	24 AWG
Minimum wire diameter	30 AWG
