ECS-480-8-48-CGM-TR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECS-480-8-48-CGM-TR

ECS-480-8-48-CGM-TR: DescriptionParallel - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size438KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/; Environmental Compliance

Download Datasheet Parametric View All

ECS-480-8-48-CGM-TR Overview

Parallel - Fundamental Quartz Crystal,

ECS-480-8-48-CGM-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7342454014
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
YTEOL	7.35
Other features	TR, 7 INCH
Ageing	2 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.003%
frequency tolerance	10 ppm
JESD-609 code	e4
load capacitance	8 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	48 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L1.2XB1.0XH0.33 (mm)/L0.047XB0.039XH0.013 (inch)
Series resistance	100 Ω
surface mount	YES
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

ECX-1048

SMD CRYSTAL

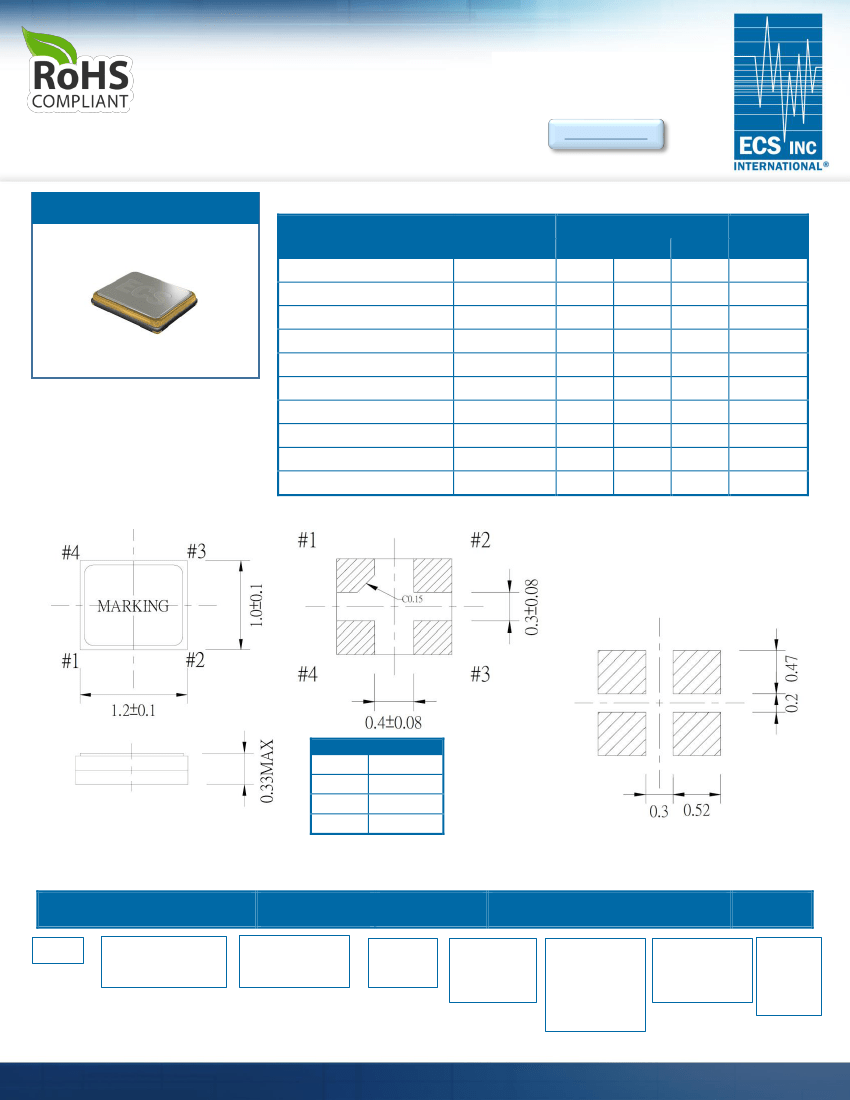

The ultra-miniature ECX-1048 is a our smallest compact Crystal.

The 1.2 x 1.0 x 0.33 mm ceramic package is ideal for LoRa WAN,

receivers, video, audio, and mobile applications.

ECX-1048 SMD CRYSTAL

Request a Sample

OPERATING CONDITIONS / ELECTRICAL CHARACTERISTICS

PARAMETERS

Frequency

Frequency Tolerance

Frequency Stability

Resistance (ESR)

Shunt Capacitance

Load Capacitance

Drive Level

Operating Temperature

Storage Temperature

Aging (First Year)

@ +25°C

-30 ~ +85°C (Y)

32 ~ 54.000 MHz

CONDITIONS

MIN

ECX-1048

TYP

MAX

UNITS

54.000

± 10

100

MHz

ppm

+85

+90

±2

μW

°C

ppm

32.000

Specify in P/N

opr

stg

@ +25°C ±3°C

-40

•

Low Profile

1.2 x 1.0 mm Footprint

Extended Temp. Range

RoHS Compliant

IOT/Wearable Applications

DIMENSIONS (mm)

PAD CONNECTIONS

Figure 1)

Top, Side, and Bottom views

In/Out

Out/In

Gnd

Figure 2)

Suggested Land Pattern

PART NUMBERING GUIDE: Example ECS-320-10-48-CKY-TR

ECS - FREQUENCY ABBREVIATION

LOAD

CAPACITANCE

8 = 8 pF

10 = 10 pF

PACKAGE

Tolerance

-48 =

ECX-1048

A = ± 25 ppm

J = ± 20 ppm

R = ± 15 ppm

C = ± 10 ppm

CUSTOM OPTIOND

Stability

E = ± 50 ppm

G = ± 30 ppm

H = ± 25 ppm

T = ± 20 ppm

W = ± 15 ppm

K = ± 10 ppm

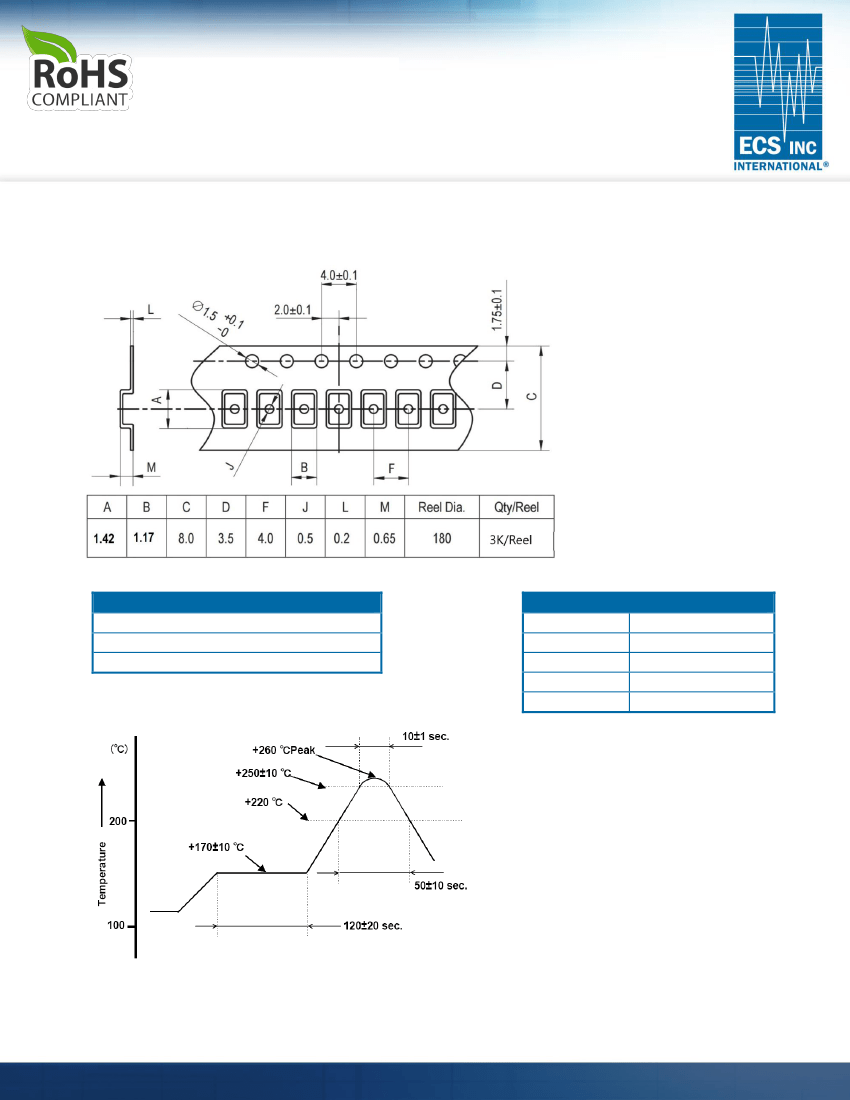

PACKAGING

Temp Range

TR =

Tape

& Reel

3K/Reel

ECS

320 = 32.000 MHz

See P/N Guide

M = -20 ~ +70°C

Y = -30 ~ +85°C

N = -40 ~ +85°C

*Contact ECS for availability

Rev.2017

15351 West 109

Street

Lenexa, KS 66219

Phone: 913.782.7787

Fax: 913.782.6991
